Overview

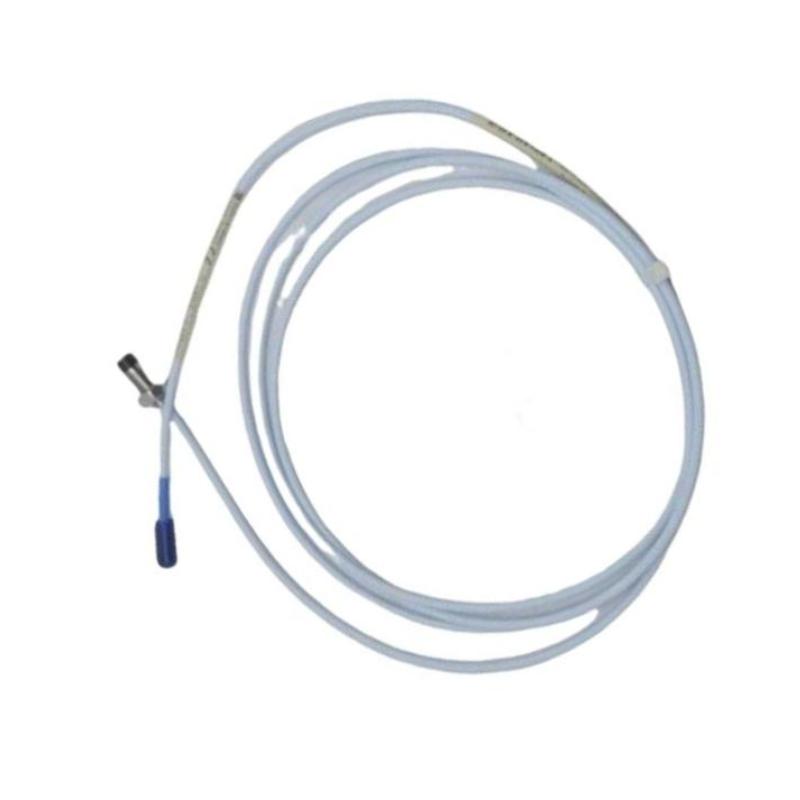

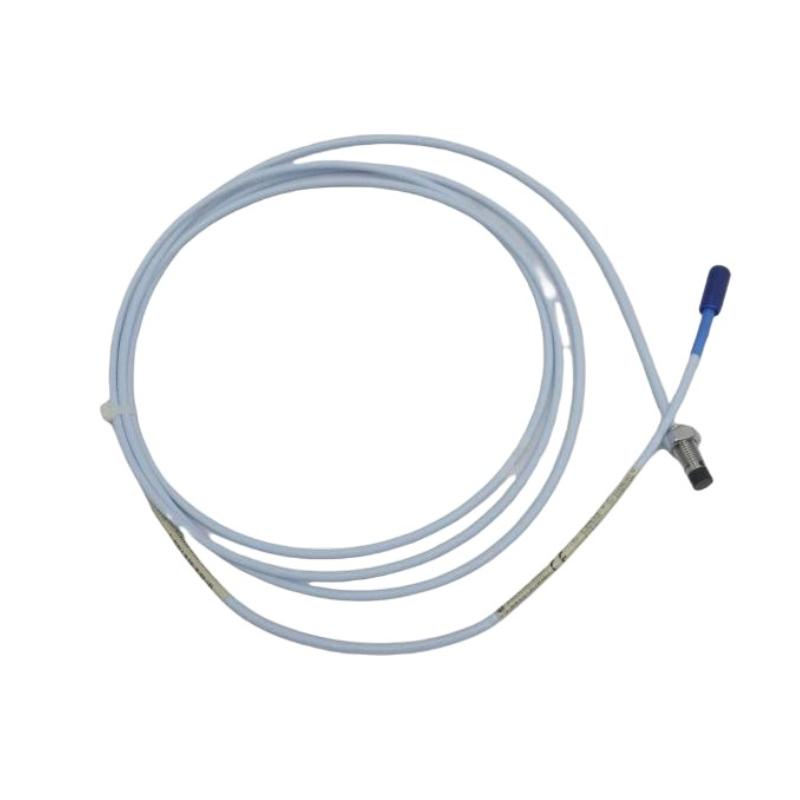

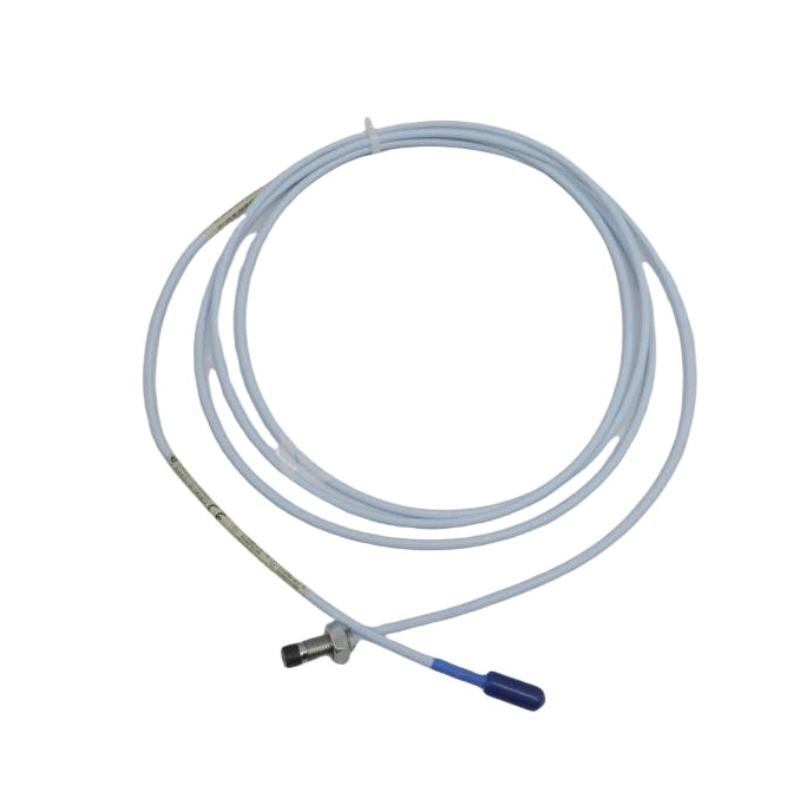

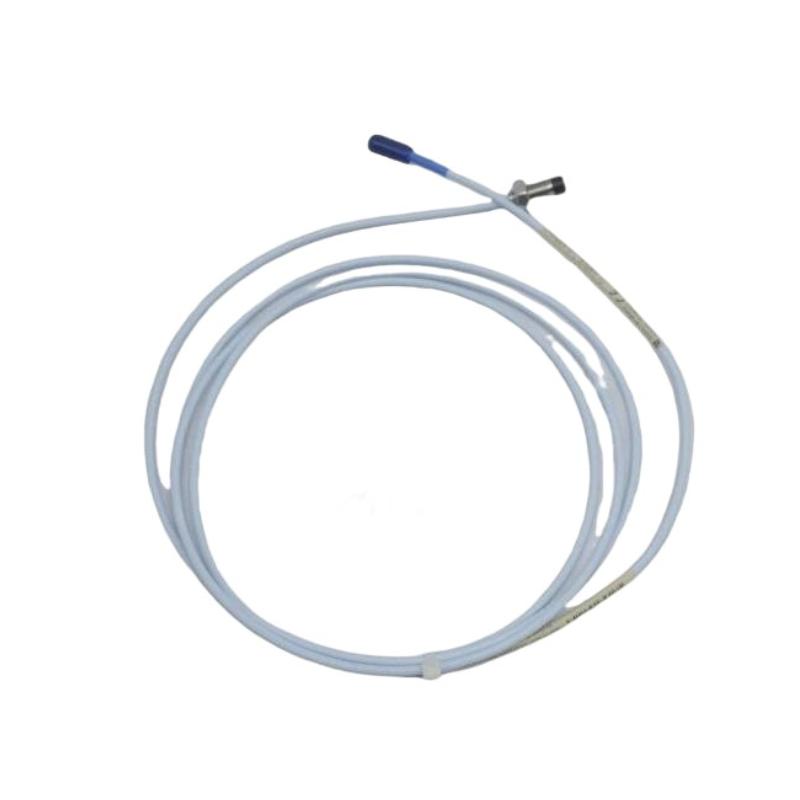

The Bently Nevada 330101-00-53-10-02-00 is a 3300 XL 8 mm Proximity Probe designed for non-contact measurement of shaft vibration, shaft position, axial displacement, and Keyphasor® (speed reference) signals in rotating machinery. It is part of the 3300 XL 8 mm Proximity Transducer System, which consists of a proximity probe, a compatible 3300 XL Proximitor® Sensor, and (when required) a 330130 extension cable. The complete system is factory calibrated to provide high accuracy, interchangeability, and reliable machinery protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Eddy-current Proximity Probe |
| Manufacturer | Bently Nevada |
| Model | 330101-00-53-10-02-00 |
| Product Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Armor | Non-armored |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 5.3 in (134.6 mm) |
| Integral Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature ClickLoc® coaxial connector |
| Cable Type | Standard cable |
| Agency Approval | 00 – No agency approvals required |
| Compatible System | 3300 XL 8 mm Proximity Transducer System |
