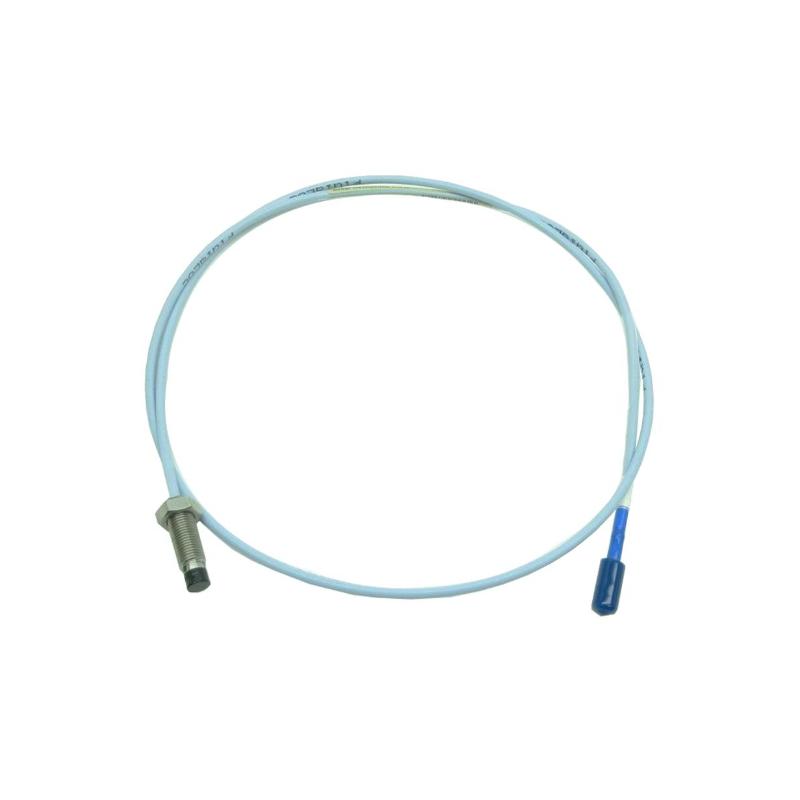

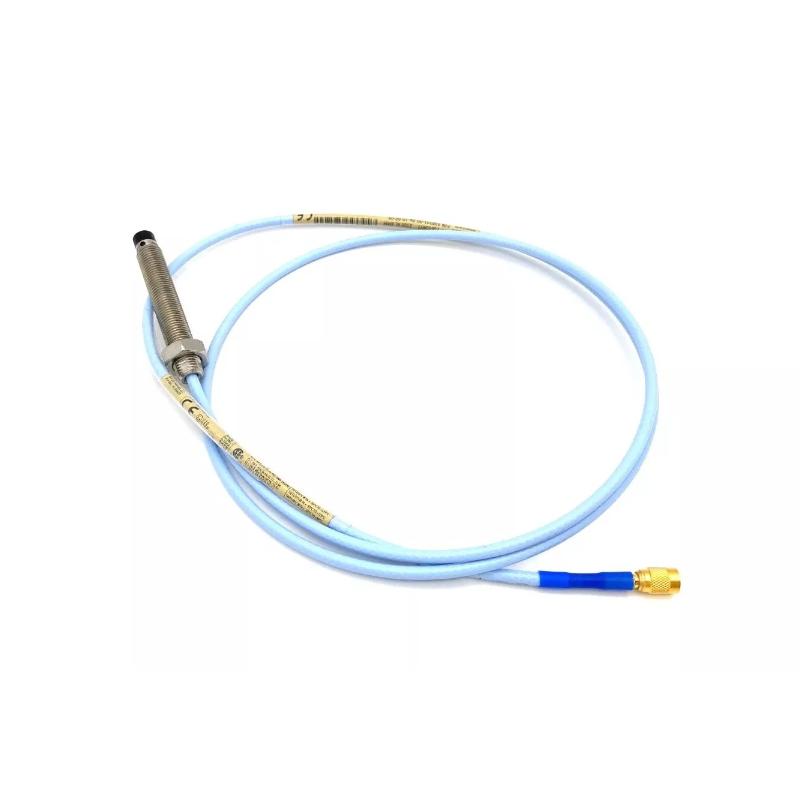

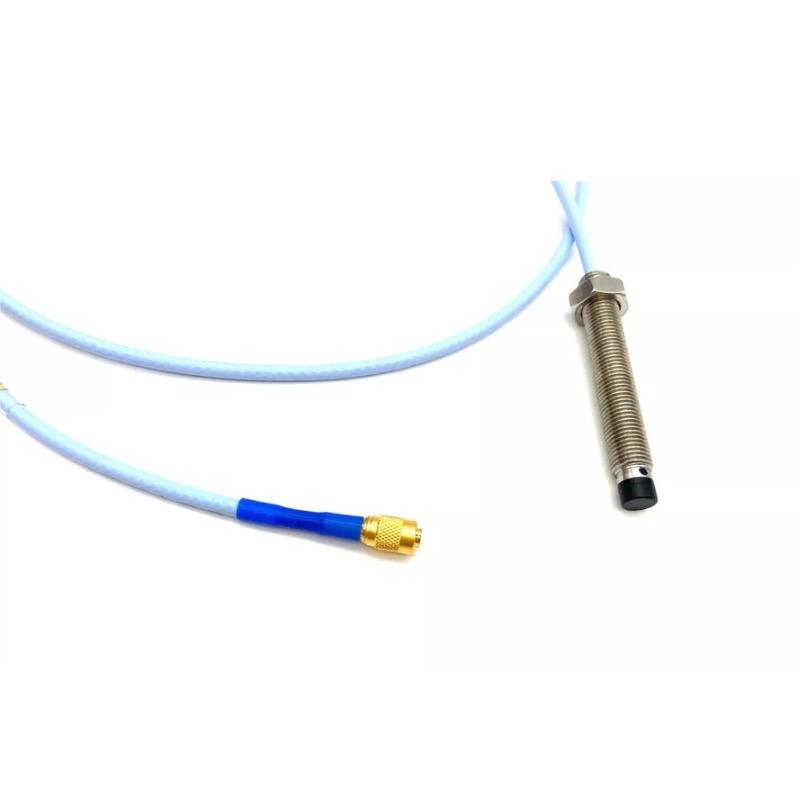

Bently Nevada 330103-00-05-05-12-05 3300 XL 8 mm Proximity Probe

Name: Bently Nevada 330103-00-05-05-12-05 3300 XL 8 mm Proximity Probe
Brand: Bently Nevada PLC
SKU: 8508
Availability: InStock
Rating: 5.0 (1 reviews)

Brand:Bently Nevada PLC
Item No.:330103-00-05-05-12-05
Product Origin:USA
Product Dimensions:Total Length : 0.5 meter
Product Weight:0.16kg
Payment:T/T, Western Union, Credit Card
Goods_stock:15
Shipping Port:Xiamen, China
Lead Time:1-3 Days
Condition:Brand New And Original
Warranty:1 Year
Certificate:COO
Evaluation:

0.0

Points

Send Inquiry

Product Details
Product Applications
Product Advantages
Technical FAQs
Contact

Introduction — High-Stability Proximity Measurement for Critical Rotating Machinery

The Bently Nevada 330103-00-05-05-12-05 3300 XL 8 mm Proximity Probe is a precision eddy current sensor designed for continuous monitoring of shaft vibration, displacement, and position in rotating machinery. As part of the widely adopted 3300 XL proximity transducer system, it delivers stable output performance, strong environmental resistance, and long-term measurement reliability for industrial condition monitoring applications.

The “12” segment in the configuration code typically indicates a FluidLoc® cable option with ClickLoc® connector system, improving sealing performance and installation robustness in demanding environments. The 3300 XL platform is widely used in turbine, compressor, and critical rotating equipment monitoring systems compliant with API 670-based design practices.

Technical Specifications — Mechanical Design & System Configuration

Specification	Details
Product Type	3300 XL 8 mm Proximity Probe
Model Number	330103-00-05-05-12-05
Probe Diameter	8 mm
Thread Type	M10 × 1 metric thread
Unthreaded Length	0 mm
Case Length	50 mm
Cable Length	0.5 m (typical “05” configuration)
Connector Type	Miniature coaxial ClickLoc
Cable Type	FluidLoc / 75 Ω triaxial industrial cable
Measurement Principle	Eddy current non-contact sensing
Measured Parameters	Vibration, displacement, shaft position
Housing Material	Stainless steel
Probe Tip Material	PPS (Polyphenylene sulfide)
System Compatibility	Bently Nevada 3300 XL system
Estimated Weight	~0.25–0.35 kg

Applications — Industrial Condition Monitoring for Rotating Assets

This probe is widely used in machinery protection systems where precision and reliability are essential:

Steam turbine vibration and axial position monitoring
Gas turbine shaft displacement tracking
Compressor radial vibration measurement
Pump cavitation and hydraulic instability detection
Industrial motor condition monitoring
Oil & gas rotating machinery protection systems
Petrochemical and refinery process equipment monitoring

Advantages — FluidLoc-Sealed Design for Harsh Industrial Environments

High-precision eddy current non-contact sensing
Stable signal output for continuous monitoring systems
Compact 8 mm probe design for tight installation spaces
FluidLoc® cable option improves sealing and environmental resistance
ClickLoc® connector ensures secure and vibration-resistant connection
Fully compatible with Bently Nevada 3300 XL architecture
Supports predictive maintenance and early fault detection
Designed for long-term industrial continuous operation

Technical FAQs — Engineering-Level Insights

What is the function of this probe?
It measures shaft vibration and displacement without physical contact.
What technology does it use?
Eddy current proximity sensing technology.
What does the “12” in the model code represent?
It typically refers to a FluidLoc cable and ClickLoc connector configuration.
What is the probe diameter?
8 mm.
What is the case length?
50 mm.
What is the cable length?
Typically 0.5 m for the “05” configuration.
Is it suitable for harsh environments?
Yes, especially with FluidLoc cable protection.
Is it compatible with 3300 XL systems?
Yes, it integrates fully with Bently Nevada 3300 XL platforms.
What industries commonly use it?
Power generation, oil & gas, petrochemical, and heavy industry.
Why is non-contact sensing important?
It eliminates mechanical wear and ensures stable long-term measurement accuracy.
