Introduction — Compact Precision Sensor for Stable Machinery Protection

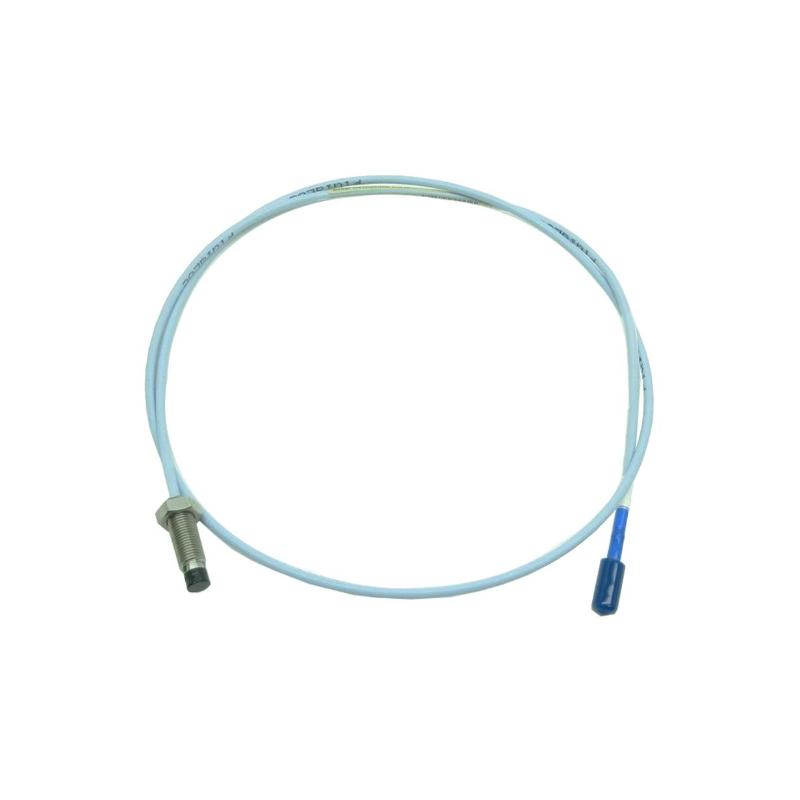

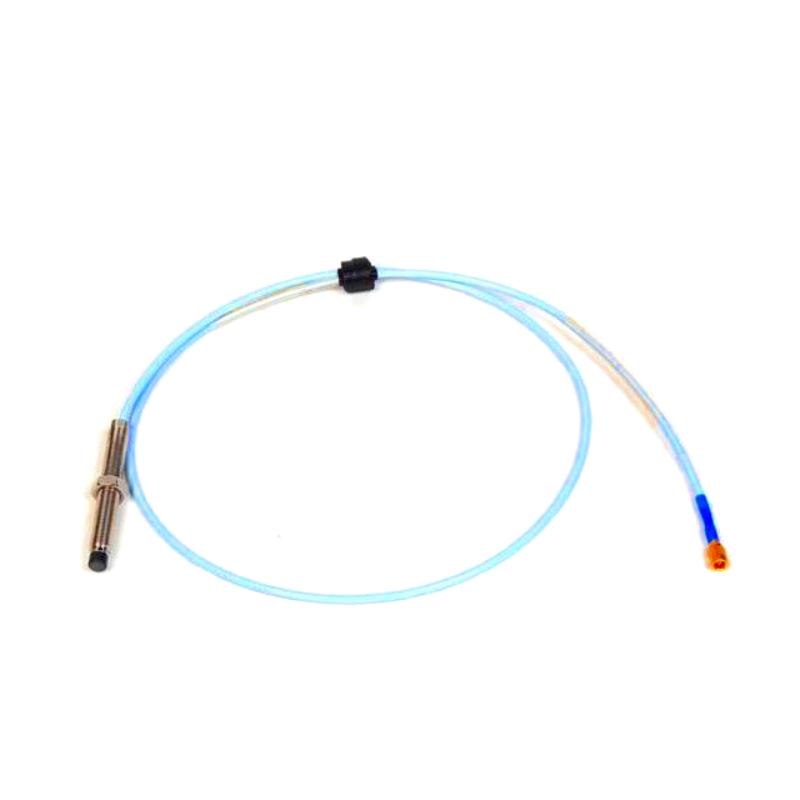

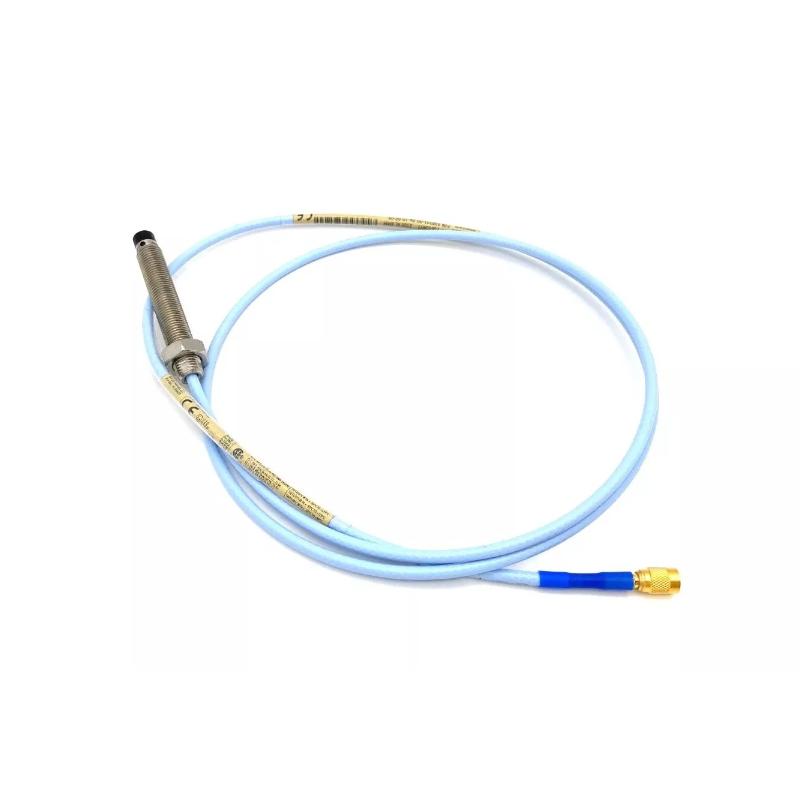

The Bently Nevada 330103-00-05-05-02-CN 3300 XL 8 mm Proximity Probe is a high-accuracy eddy current sensor designed for continuous measurement of shaft vibration, displacement, and position in rotating machinery. As part of the widely adopted 3300 XL proximity transducer system, it provides stable signal output, excellent linear response, and long-term reliability in harsh industrial environments.
The “-CN” suffix typically indicates a China-region compliance/configuration variant, while the core design remains fully compatible with the standard 3300 XL probe, extension cable, and Proximitor® sensor architecture used in global machinery protection systems.
Technical Specifications — Mechanical Design & System Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330103-00-05-05-02-CN |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 50 mm |
| Cable Length | 0.5 m (typical “05” configuration) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | 75 Ω triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| System Compatibility | Bently Nevada 3300 XL system |
| Estimated Weight | ~0.24–0.32 kg (typical industrial configuration range) |
