Introduction — Compact Precision Sensing for Rotating Machinery Protection

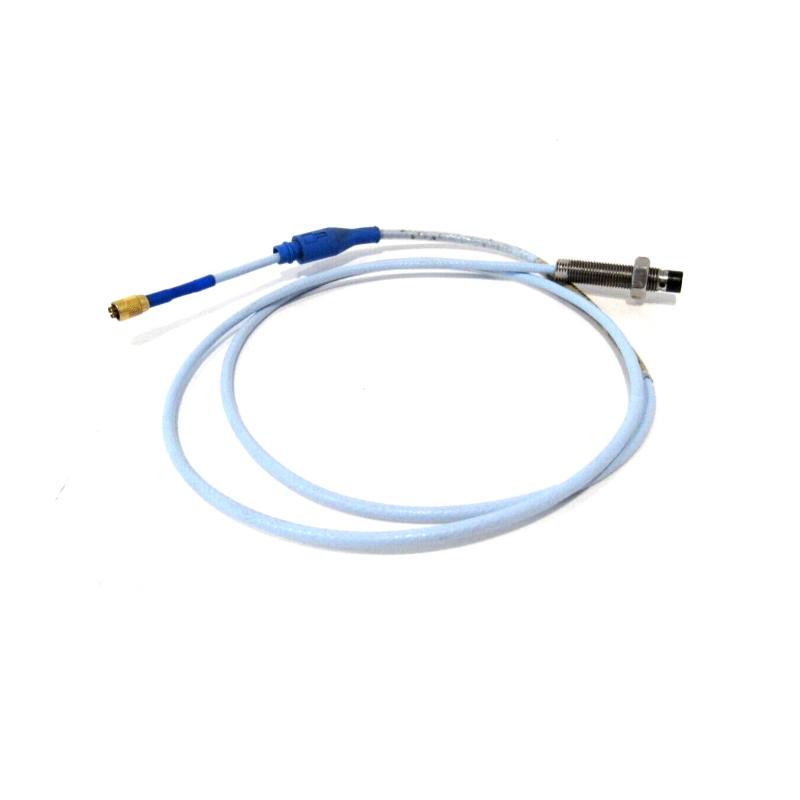

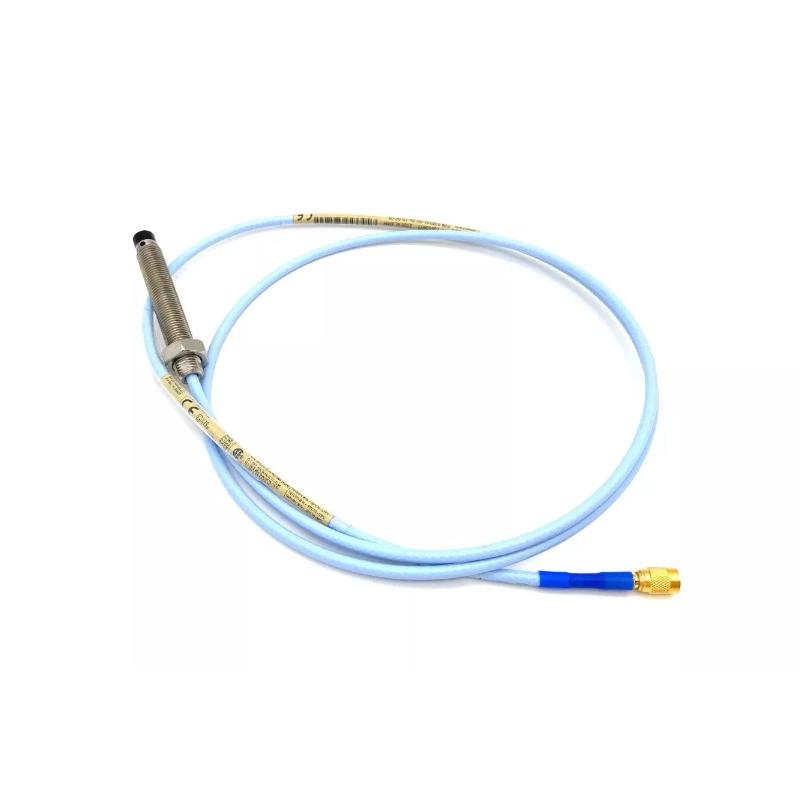

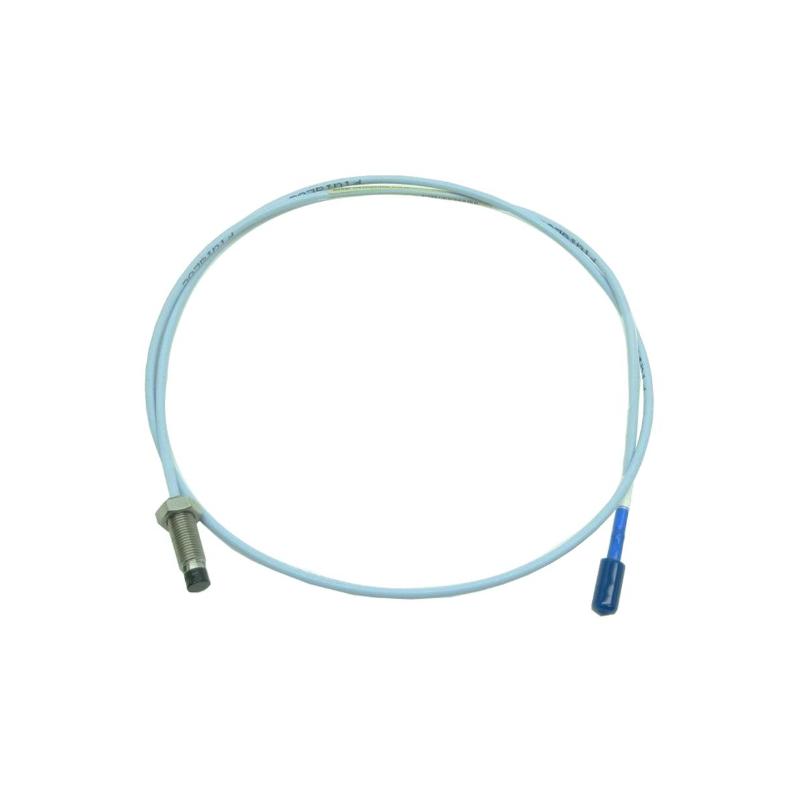

The Bently Nevada 330103-00-05-05-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for continuous monitoring of vibration, shaft displacement, and position in rotating machinery. As part of the widely deployed 3300 XL proximity transducer system, it provides stable measurement output, excellent linear response, and long-term reliability in industrial environments.
The “05-05” configuration typically indicates a 0.5 m cable length with a 50 mm case length, making this version suitable for compact installations where short signal routing is required while maintaining high measurement accuracy and system stability.
Technical Specifications — Mechanical Design & Configuration Overview
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330103-00-05-05-02-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 50 mm |
| Cable Length | 0.5 m (approx.) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | 75 Ω triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| System Compatibility | Bently Nevada 3300 XL system |
| Estimated Weight | ~0.3–0.4 kg |
