Introduction — Extended Cable Configuration for Flexible Industrial Installation

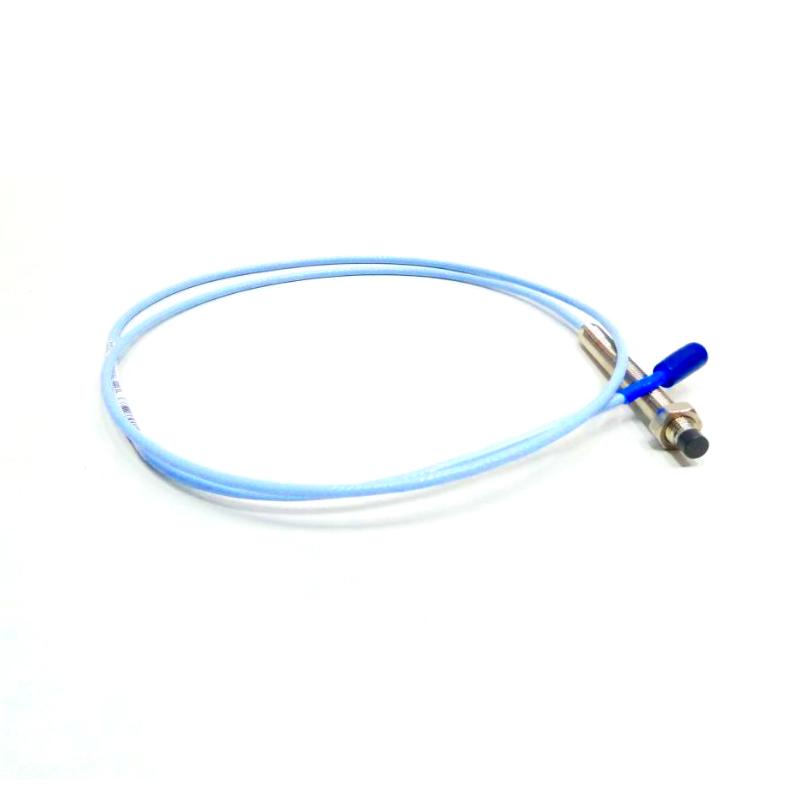

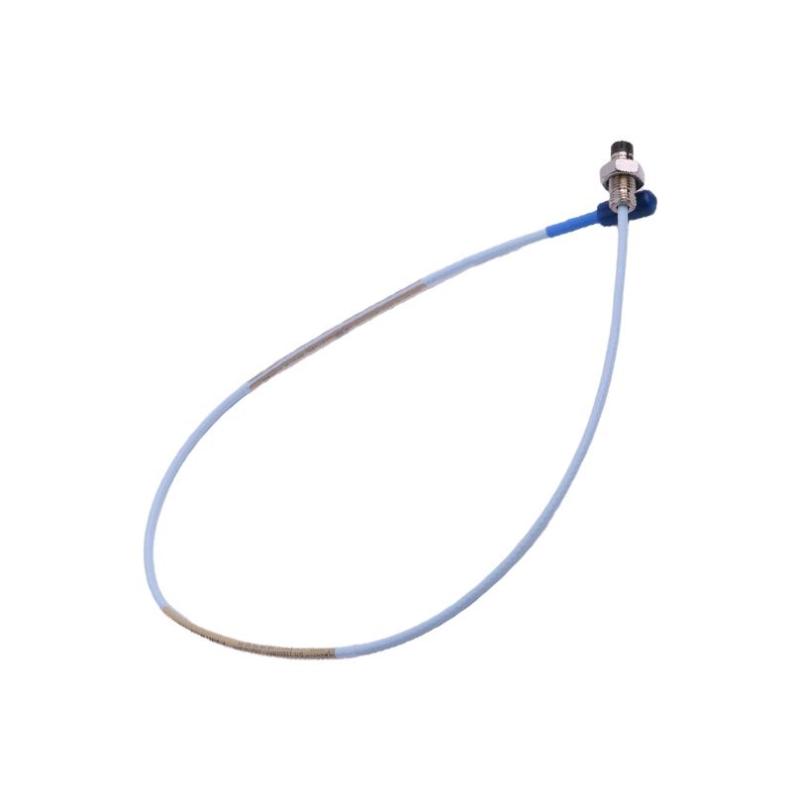

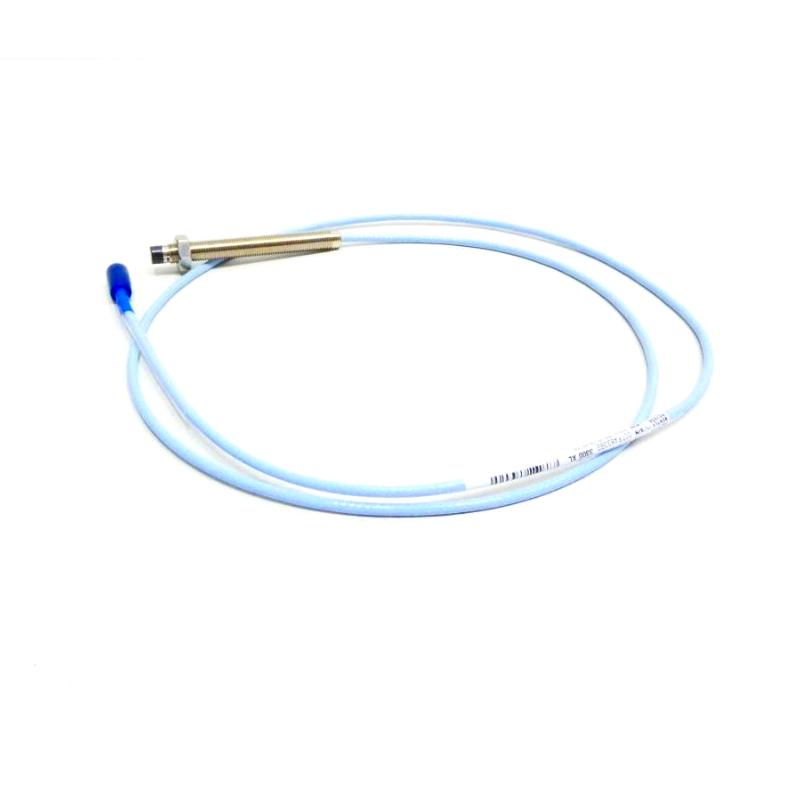

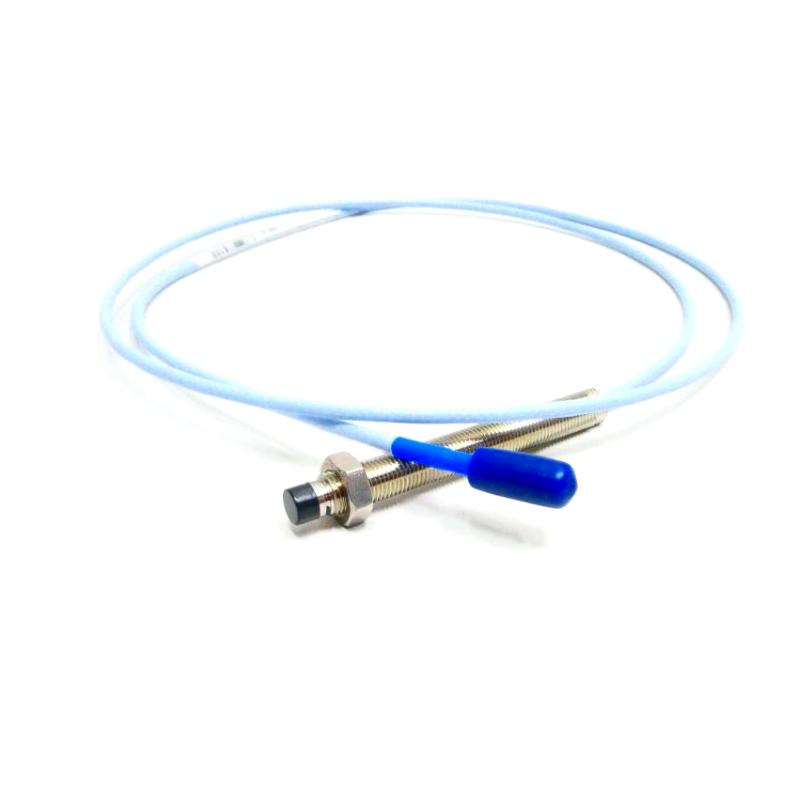

The Bently Nevada 330103-00-04-50-02-00 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for continuous monitoring of vibration, shaft position, and displacement in rotating machinery. As part of the widely used 3300 XL proximity transducer system, it delivers stable signal output, strong environmental durability, and long-term measurement reliability in demanding industrial environments.
The “50” configuration segment indicates a 5.0 m cable length, making this version suitable for installations where the probe must be located farther from the Proximitor® sensor while maintaining signal integrity and measurement accuracy.
Technical Specifications — Mechanical Design & Configuration Breakdown
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330103-00-04-50-02-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 40 mm |
| Cable Length | 5.0 m (16.4 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | 75 Ω triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| System Compatibility | Bently Nevada 3300 XL system |
| Estimated Weight | ~0.3–1.0 kg (configuration dependent) |
