Introduction — Stable Measurement Performance for Industrial Rotating Machinery

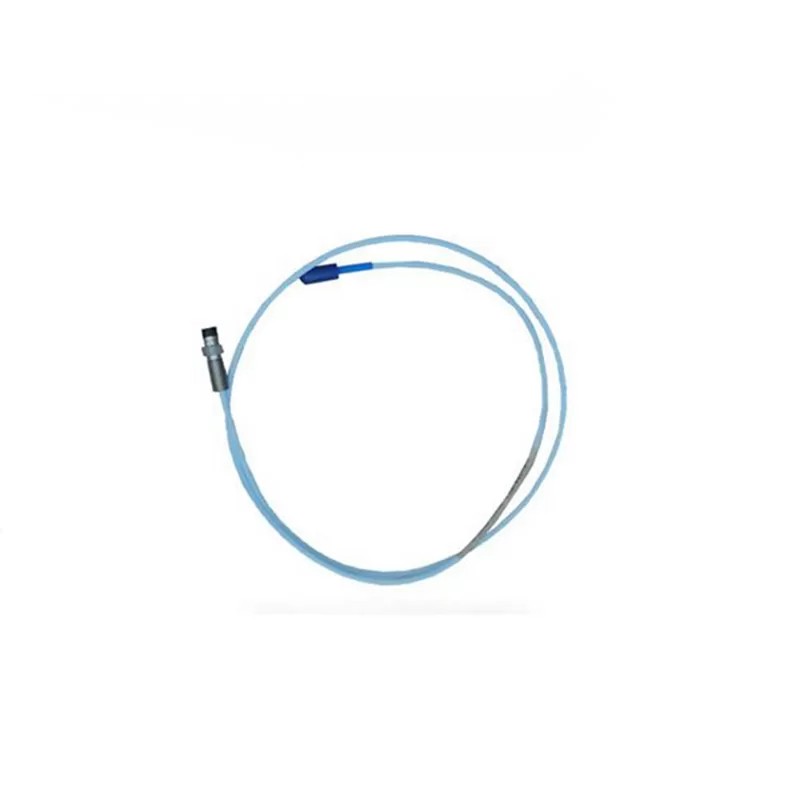

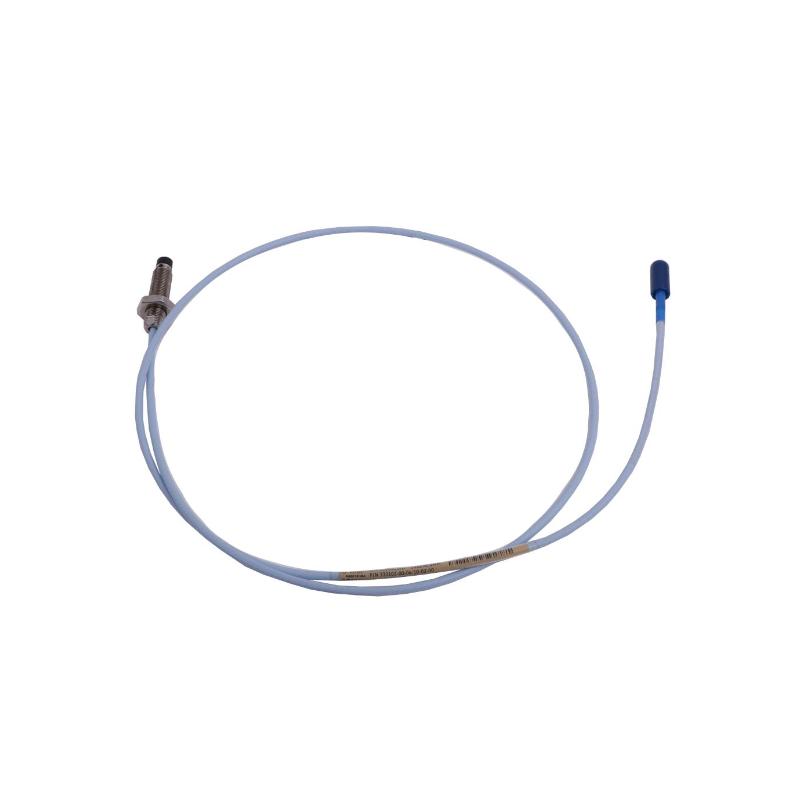

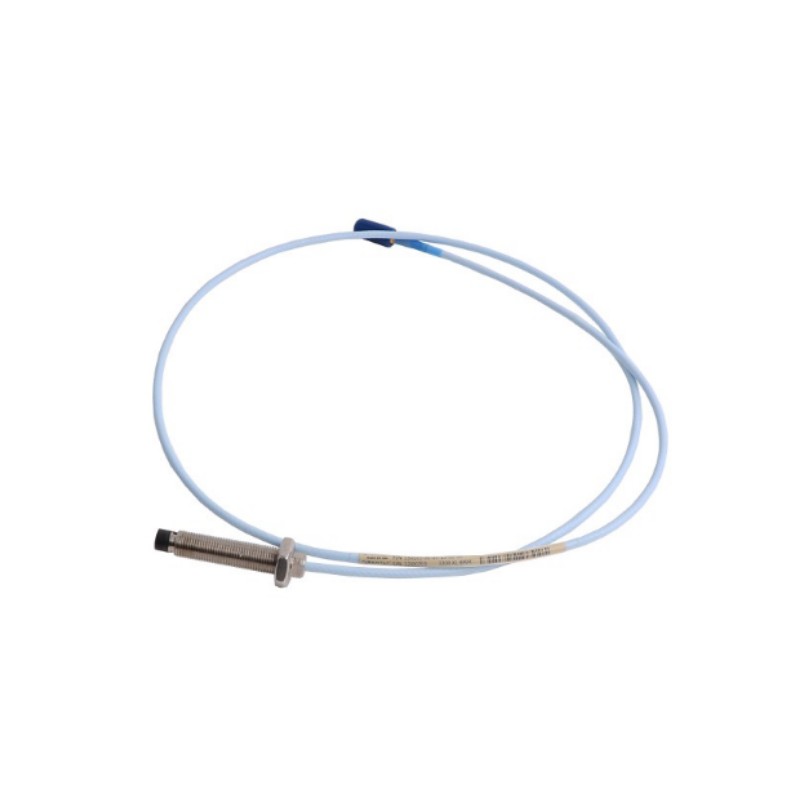

The Bently Nevada 330103-00-04-20-02-00 3300 XL 8 mm Proximity Probe is a precision eddy current sensor designed for continuous monitoring of shaft vibration, displacement, and position in critical rotating equipment. As part of the established 3300 XL proximity transducer system, it provides reliable signal stability, high linear accuracy, and long-term durability in harsh industrial environments.
The “20” configuration segment typically corresponds to a 2.0 m cable length option, making this model suitable for installations requiring extended routing between the probe and Proximitor® sensor while maintaining signal integrity and measurement accuracy across industrial systems.
Technical Specifications — Mechanical Structure & System Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330103-00-04-20-02-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 40 mm |
| Cable Length | 2.0 m (typical configuration) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | 75 Ω triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| System Compatibility | Bently Nevada 3300 XL transducer system |
| Estimated Weight | ~0.3–0.8 kg (configuration dependent) |
