Introduction — Standard-Configuration Precision for Industrial Machinery Protection

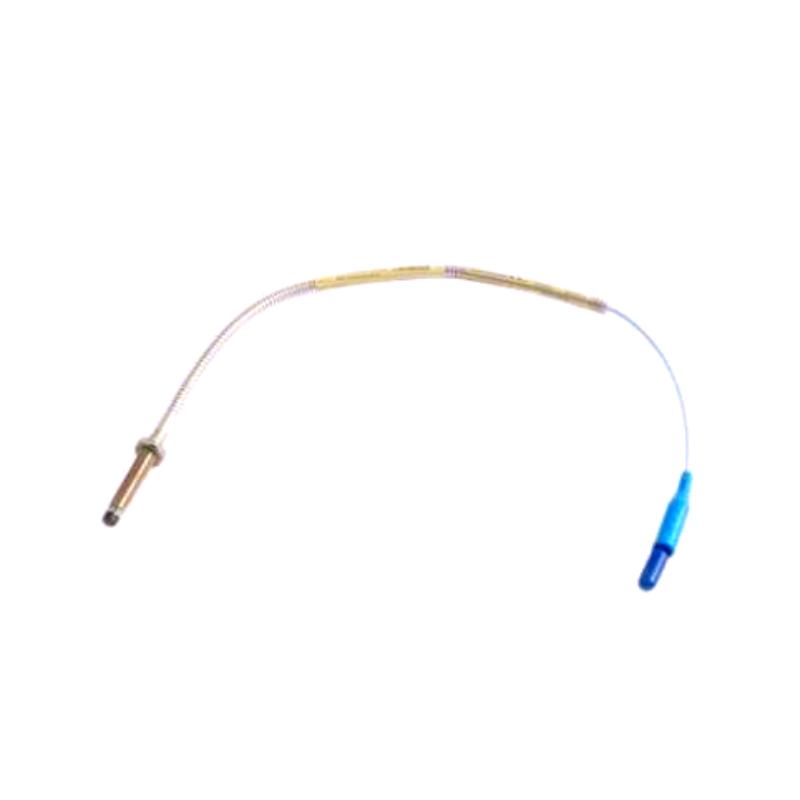

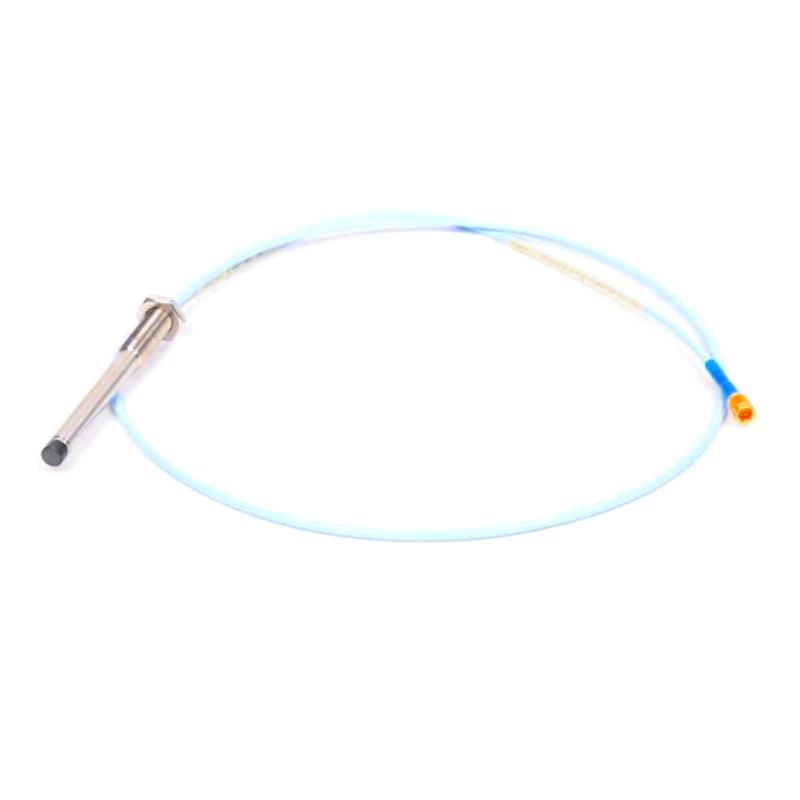

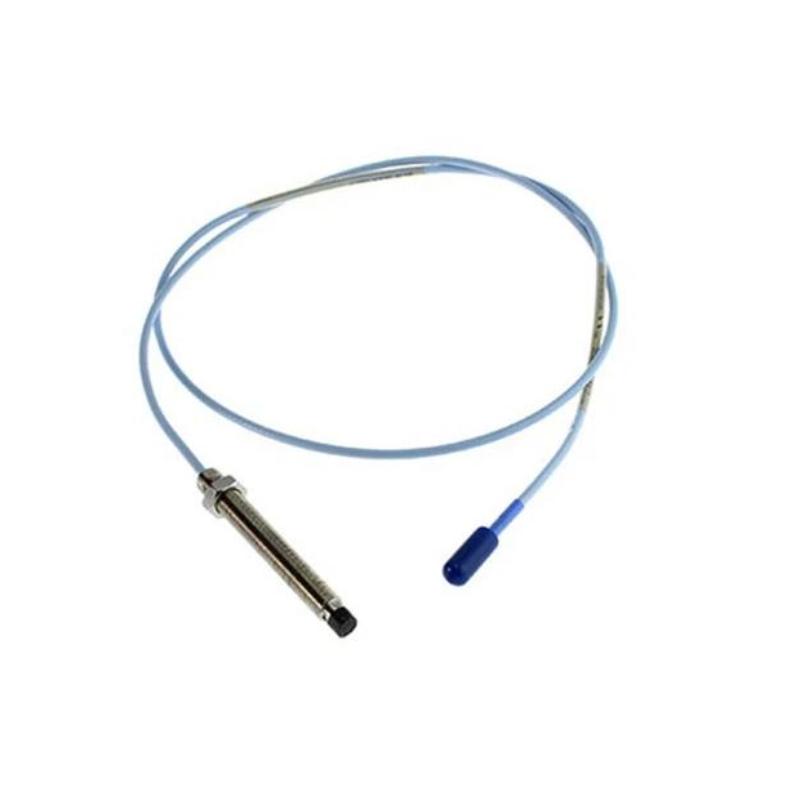

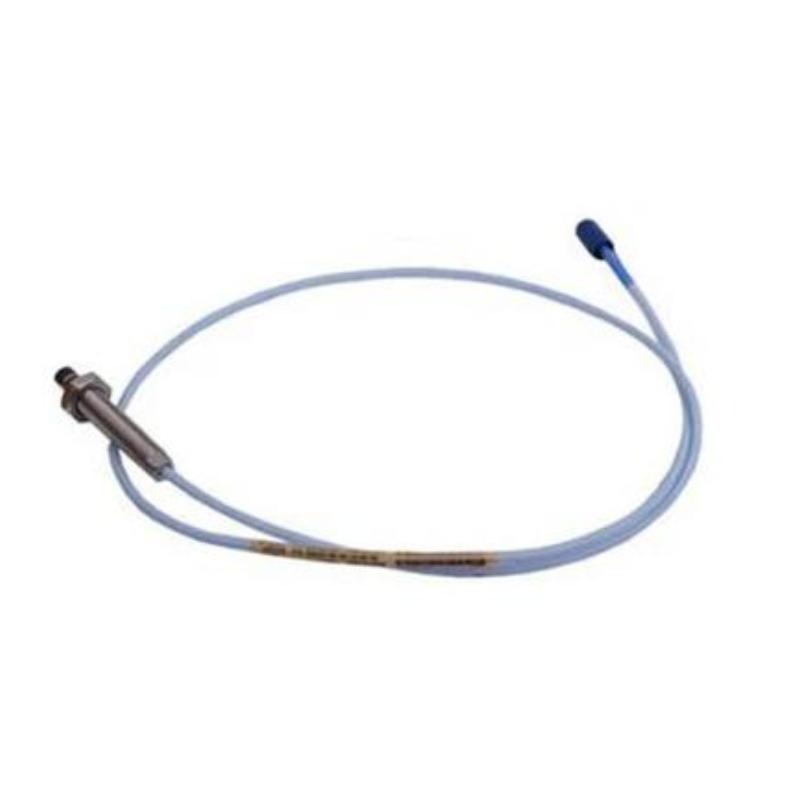

The Bently Nevada 330103-00-04-20-02-00 3300 XL 8 mm Proximity Probe is a high-accuracy eddy current sensor designed for continuous monitoring of vibration, shaft position, and displacement in rotating machinery. As part of the established 3300 XL proximity transducer system, it delivers stable measurement output, strong environmental robustness, and long-term reliability for industrial condition monitoring applications.
The “20” segment in the model configuration typically corresponds to a 2.0 m cable length, making this version suitable for installations requiring slightly longer routing between probe and Proximitor® system while maintaining signal integrity and measurement accuracy.
Technical Specifications — Mechanical Design & System Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330103-00-04-20-02-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 40 mm |
| Cable Length | 2.0 m (approx.) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | 75 Ω triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| System Compatibility | Bently Nevada 3300 XL transducer system |
| Estimated Weight | ~0.3–0.8 kg (configuration dependent) |
