Introduction — Certified Configuration for Reliable Machinery Protection

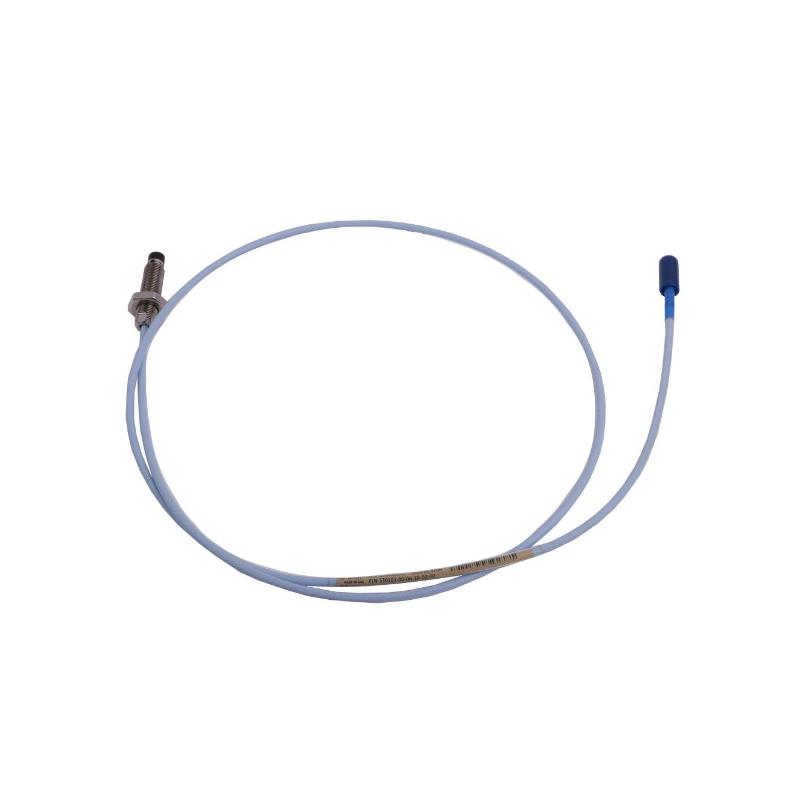

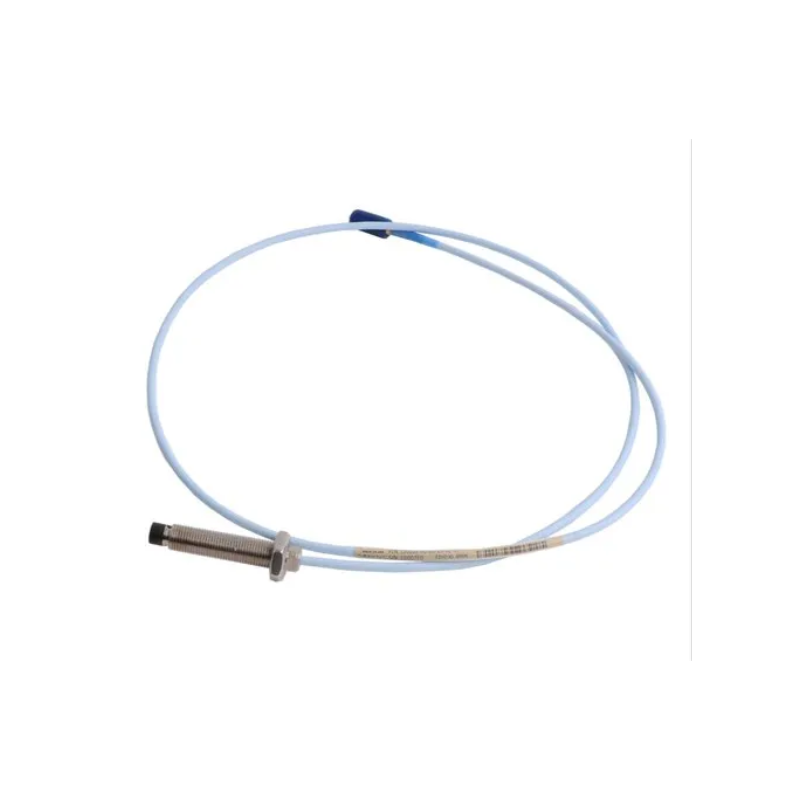

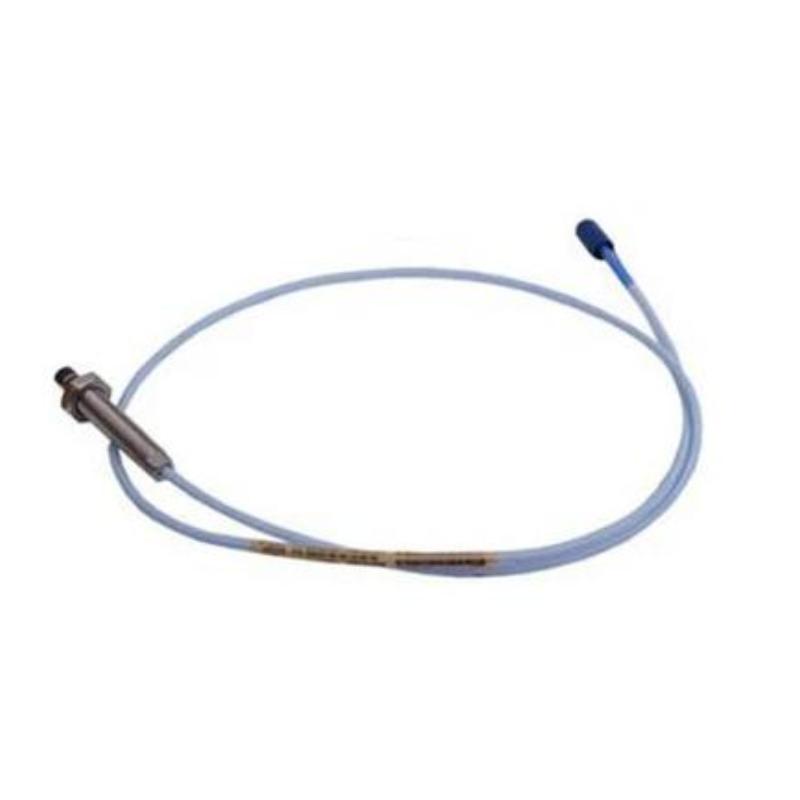

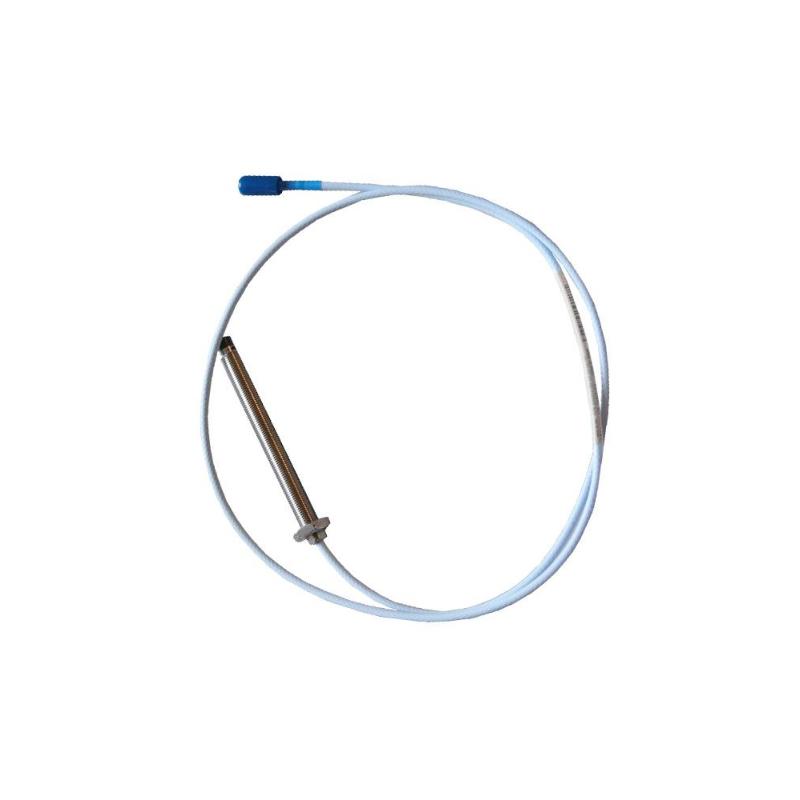

The Bently Nevada 330103-00-04-15-02-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for continuous monitoring of vibration, shaft displacement, and position in rotating machinery. As part of the widely adopted 3300 XL proximity transducer system, it delivers stable measurement output, strong environmental durability, and long-term reliability in critical industrial applications.
The “-CN” suffix typically indicates a China-region compliance and documentation configuration, while maintaining full compatibility with the standard 3300 XL probe, cable, and Proximitor® sensor architecture used in global machinery protection systems.
Technical Specifications — Mechanical Design & Configuration Overview
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330103-00-04-15-02-CN |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 40 mm |
| Cable Length | 1.5 m (typical for “15” configuration) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | 75 Ω triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| System Compatibility | Bently Nevada 3300 XL system |
| Estimated Weight | ~0.3–0.7 kg (configuration dependent) |
