Introduction — Certified Configuration for Global Machinery Protection Systems

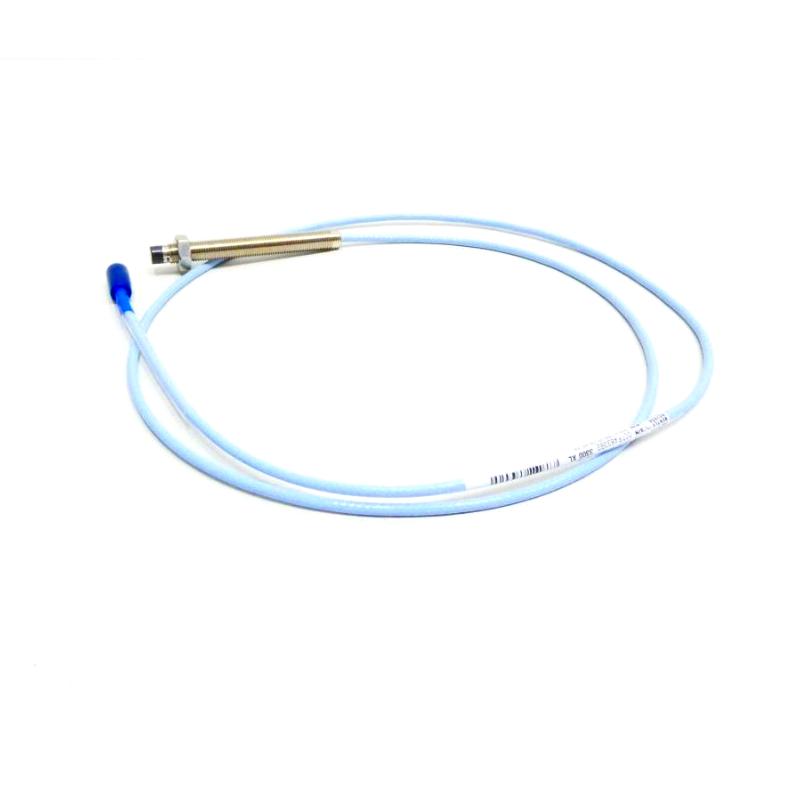

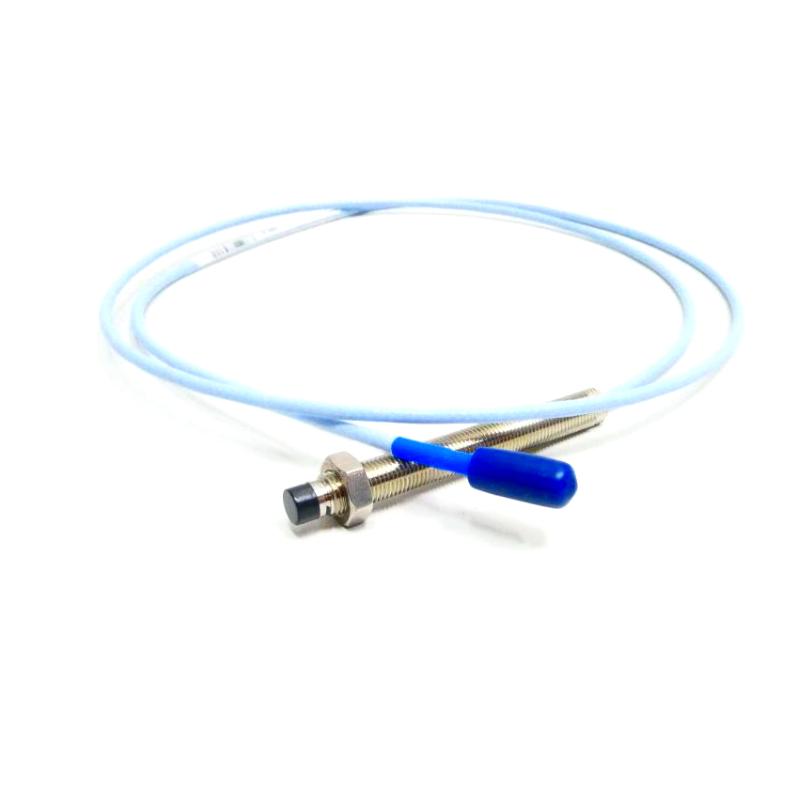

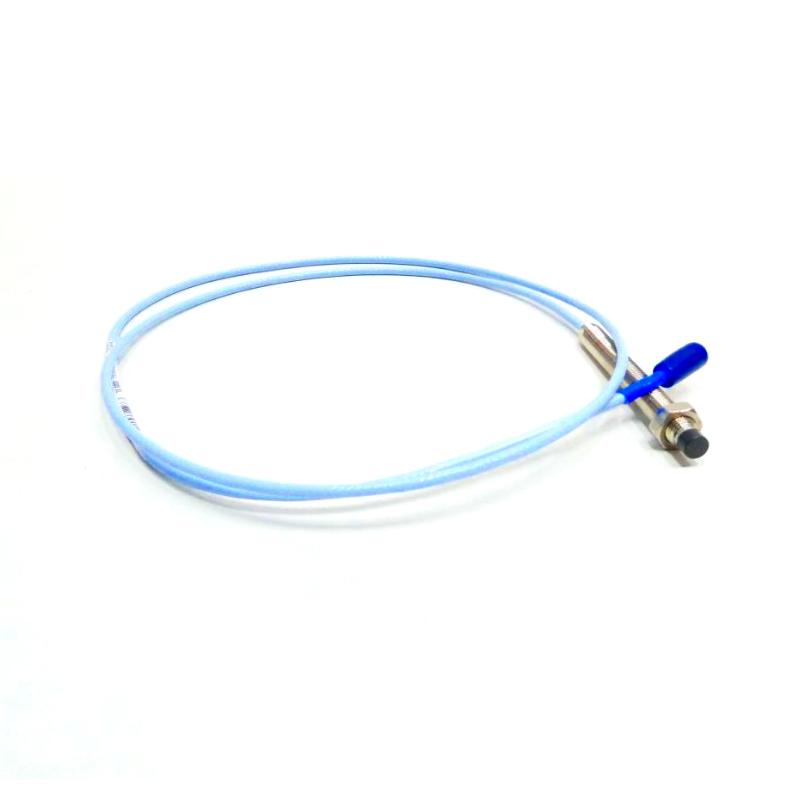

The Bently Nevada 330103-00-04-10-12-CN 3300 XL 8 mm Proximity Probe is a high-precision eddy current sensor designed for continuous monitoring of vibration, shaft position, and displacement in rotating machinery. As part of the widely adopted 3300 XL proximity transducer system, it provides stable output performance, strong environmental resistance, and long-term measurement reliability for critical industrial assets.
The “-CN” suffix indicates a configuration aligned with China-specific regulatory and application requirements, while maintaining full compatibility with the global 3300 XL probe, cable, and Proximitor® sensor ecosystem.
Technical Specifications — Configuration & Mechanical Design
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330103-00-04-10-12-CN |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 40 mm |
| Cable Length | 1.0 m (standard configuration) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | FluidLoc / 75 Ω triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| System Compatibility | Bently Nevada 3300 XL transducer system |
| Typical Weight | ~0.323 kg |
