Introduction — Reliable Precision for Critical Rotating Equipment Monitoring

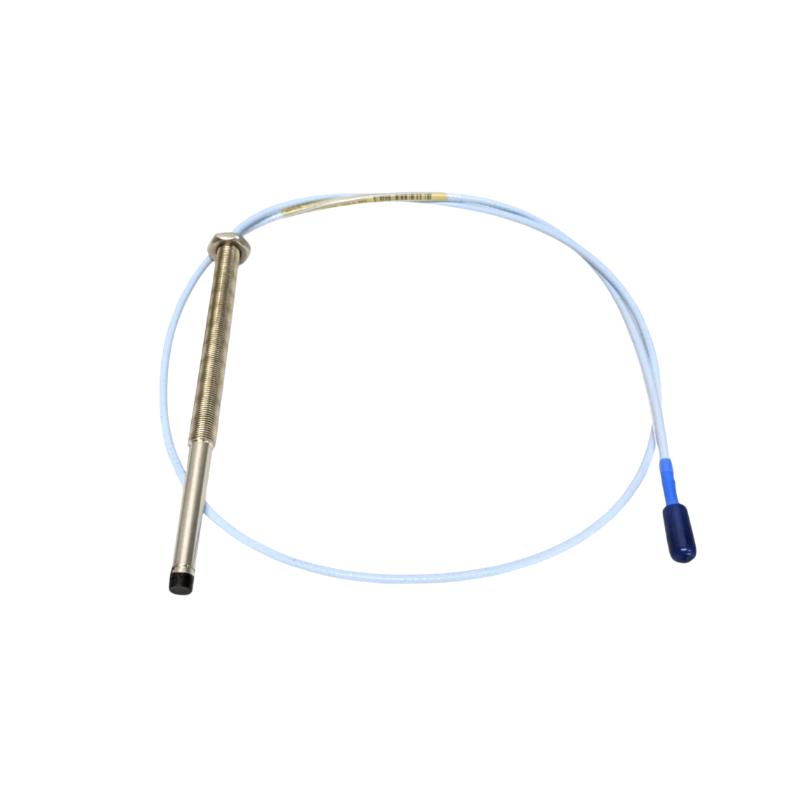

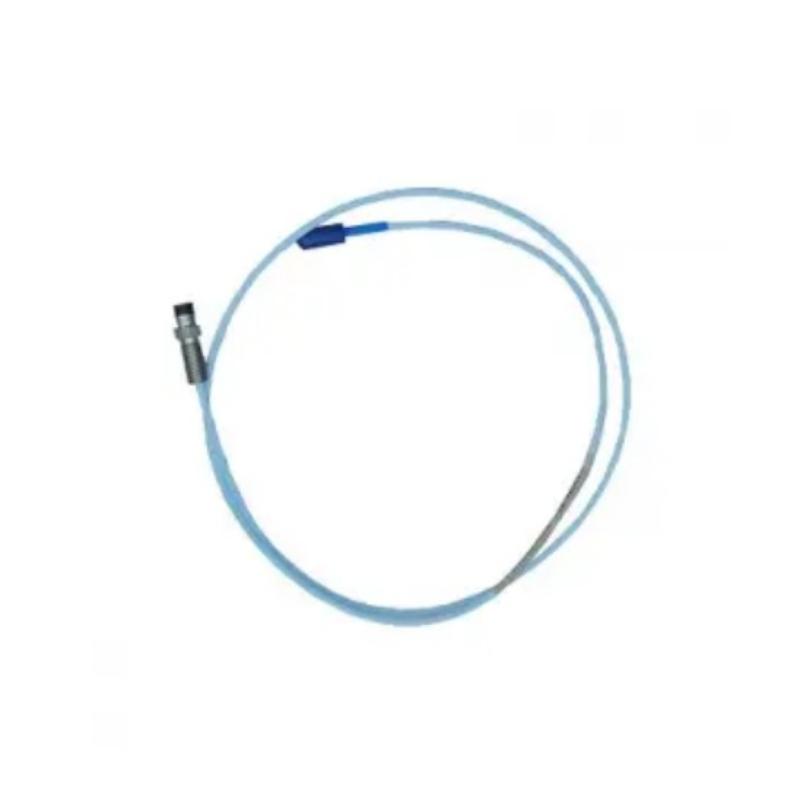

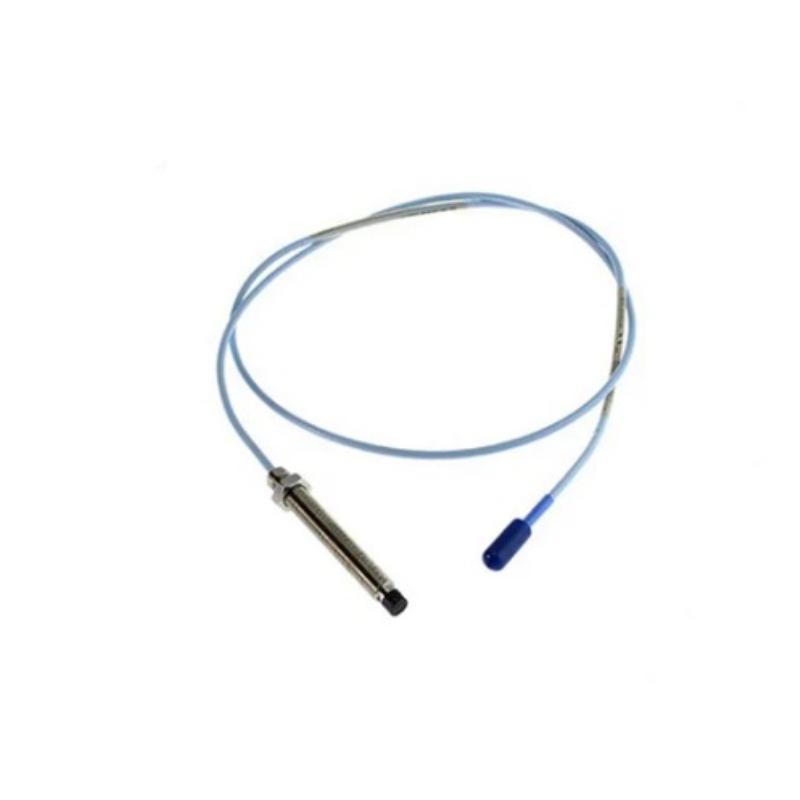

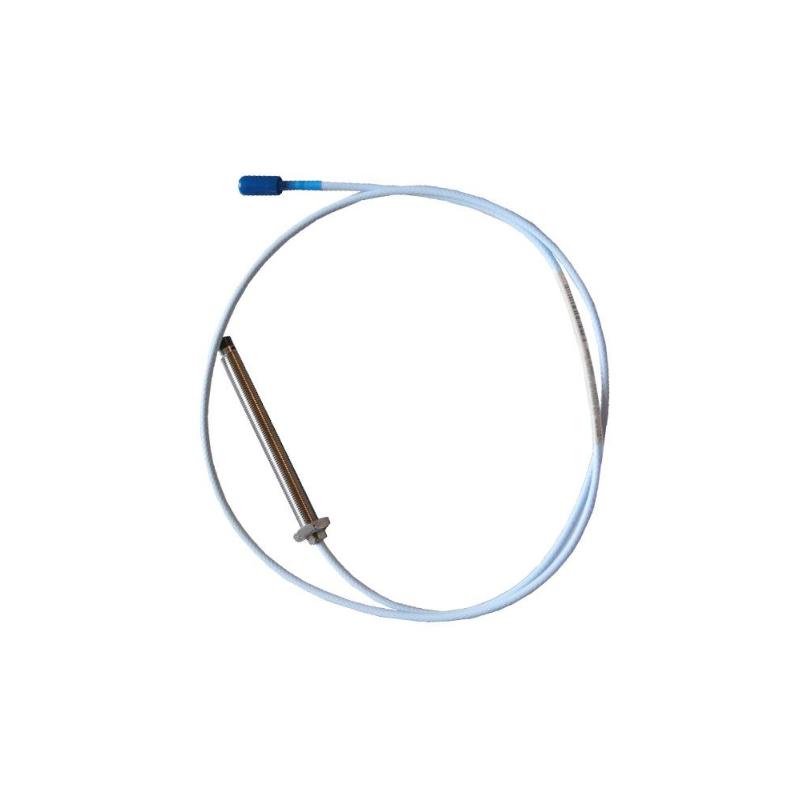

The Bently Nevada 330103-00-04-10-12-00 3300 XL 8 mm Proximity Probe is a high-performance eddy current sensor engineered for continuous measurement of shaft vibration, displacement, and position in industrial rotating machinery. As part of the widely used 3300 XL proximity transducer system, it delivers stable signal output, excellent measurement repeatability, and strong resistance to harsh industrial conditions.
This configuration (10-12-00 suffix) typically represents a 1.0 m cable, ClickLoc connector with FluidLoc cable option, and no agency approval option, making it suitable for standard industrial installations requiring reliable vibration monitoring performance.
Technical Specifications — Mechanical Build & System Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model Number | 330103-00-04-10-12-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 40 mm |
| Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | FluidLoc / triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| System Compatibility | Bently Nevada 3300 XL transducer system |
| Estimated Weight | ~0.3–0.7 kg (configuration dependent) |
