Introduction — Industrial-Grade Precision for Continuous Machinery Protection

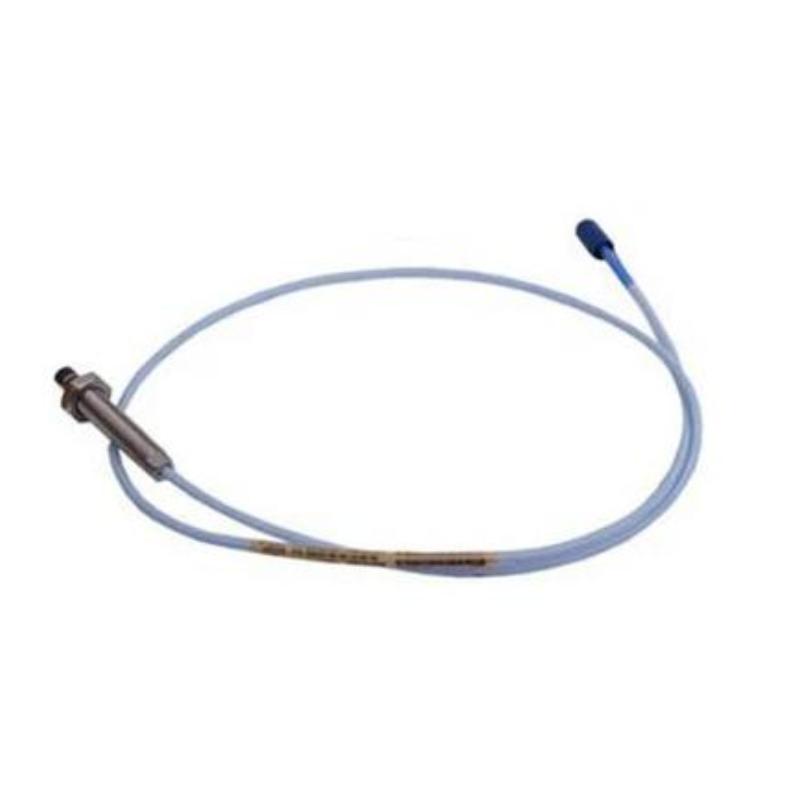

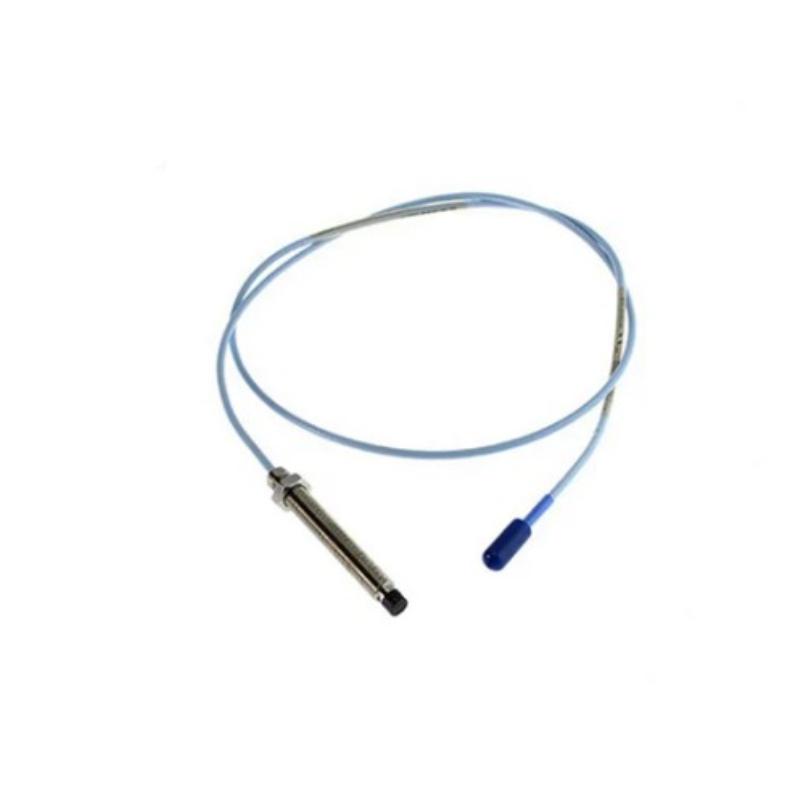

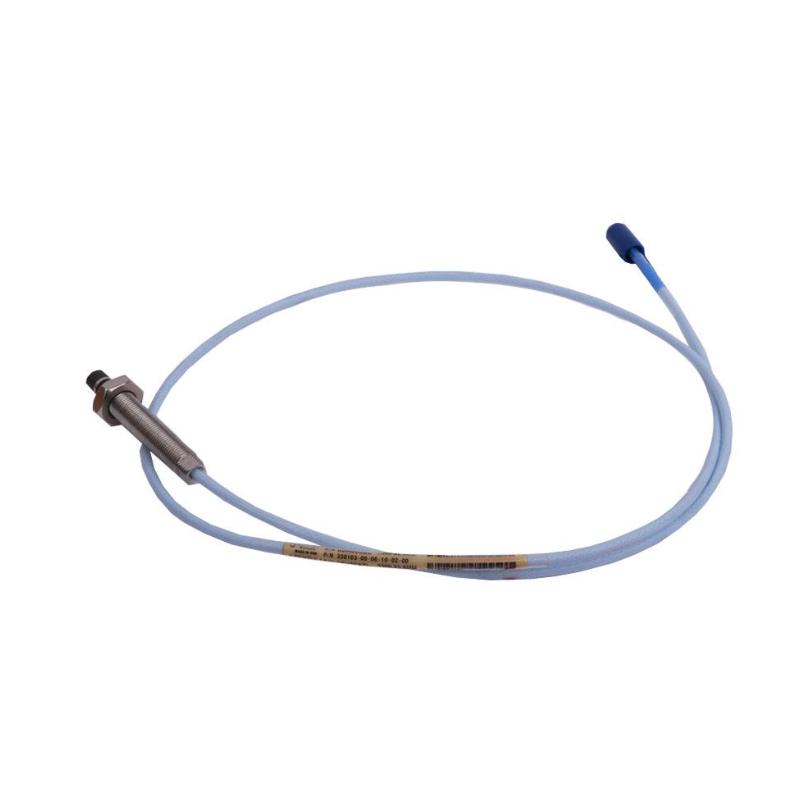

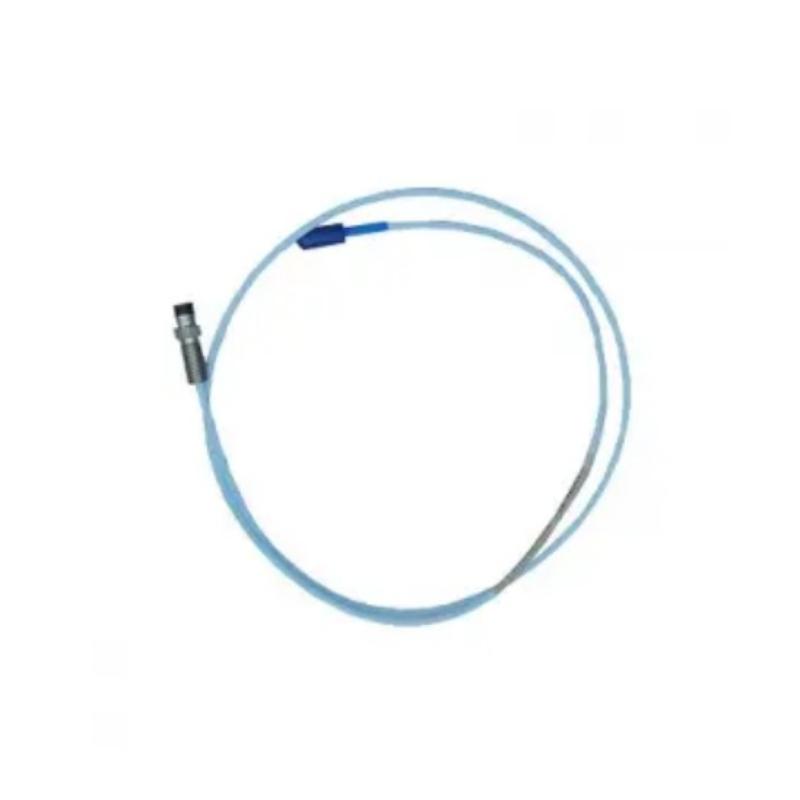

The Bently Nevada 330103-00-04-10-02-05 3300 XL 8 mm Proximity Probe is a high-reliability eddy current sensor designed for continuous monitoring of vibration, shaft position, and displacement in rotating machinery. As part of the proven 3300 XL series, it delivers stable measurement performance, strong environmental resistance, and long-term operational consistency in critical industrial applications.
This configuration (00-04-10-02-05) typically supports a compact 40 mm case design, 1.0 m cable length, ClickLoc connector system, and CSA/ATEX/IECEx hazardous-area approvals, making it suitable for globally deployed machinery protection systems.
Technical Specifications — Sensor Build & Configuration Overview
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model / Part Number | 330103-00-04-10-02-05 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Case Length | 40 mm |
| Cable Length | 1.0 m (approx.) |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Type | 75 Ω triaxial industrial cable |
| Measurement Principle | Eddy current non-contact sensing |
| Measured Parameters | Vibration, displacement, shaft position |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Approvals | CSA / ATEX / IECEx |
| Estimated Weight | ~0.3–0.35 kg |
