Introduction — Precision Shaft Monitoring for Industrial Reliability

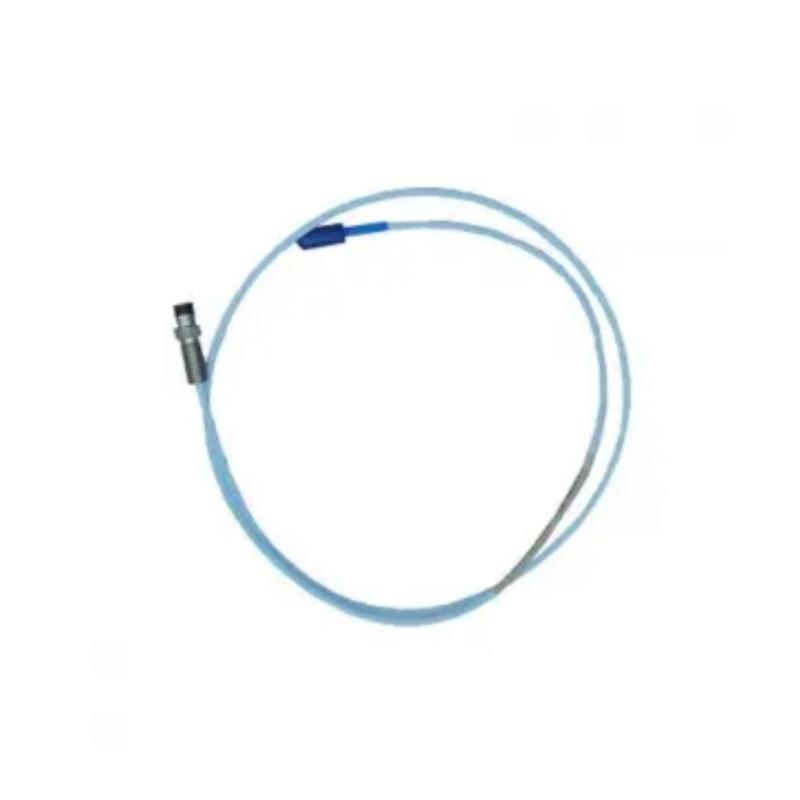

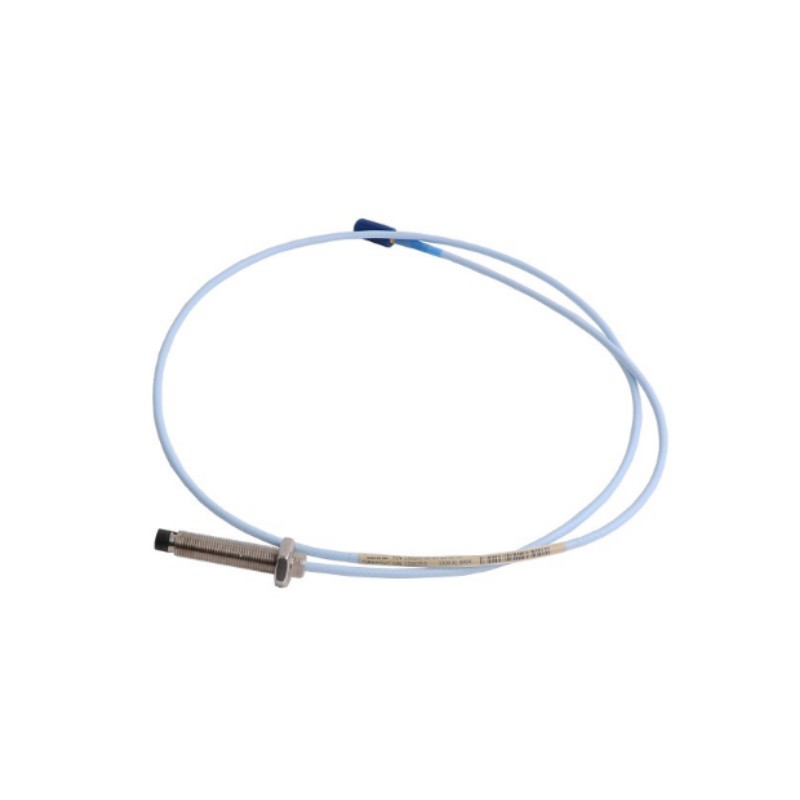

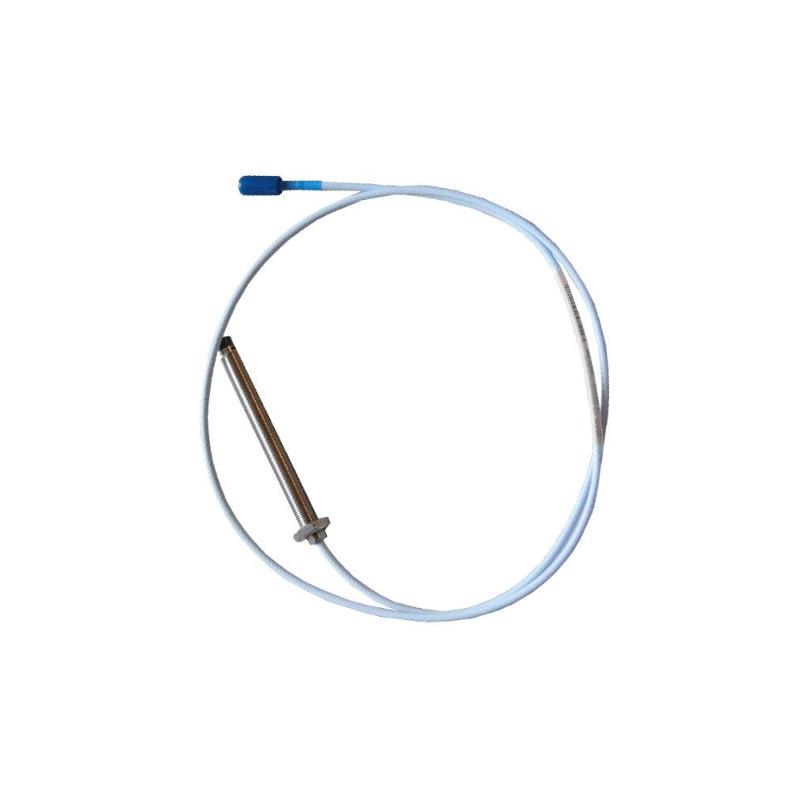

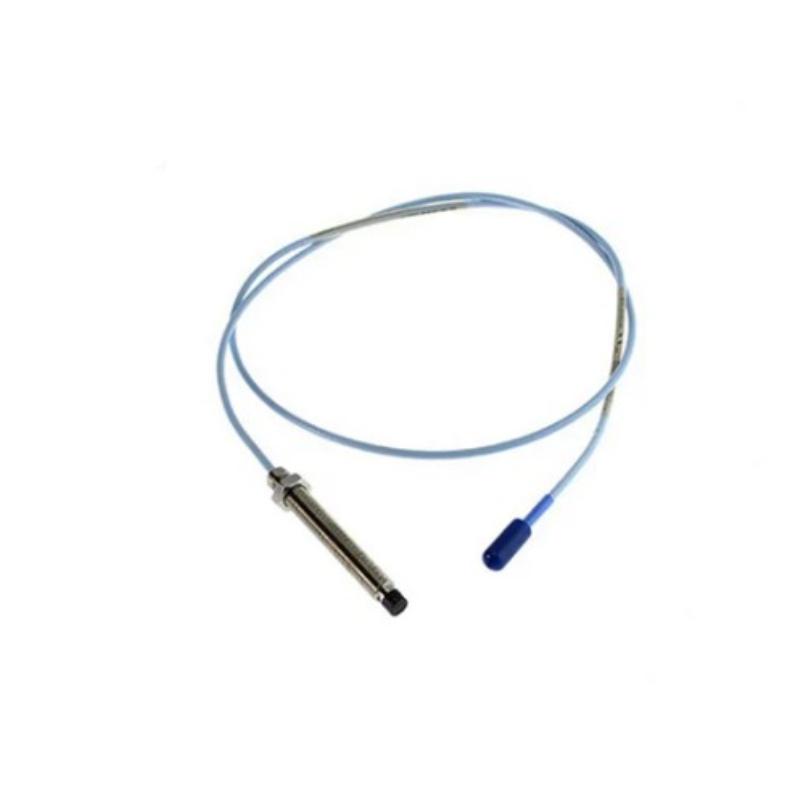

The Bently Nevada 330103-00-04-10-02-01 3300 XL 8 mm Proximity Probe is a high-accuracy eddy current sensor designed for continuous measurement of vibration, shaft position, and displacement in rotating machinery. As part of the proven 3300 XL probe family, it delivers stable signal performance, strong mechanical robustness, and long-term reliability in demanding industrial environments.
This configuration is commonly used in critical machinery protection systems where compact installation design and dependable monitoring accuracy are essential for operational safety and predictive maintenance strategies.
Technical Specifications — Mechanical Design & Sensor Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model / Part Number | 330103-00-04-10-02-01 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 40 mm |
| Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | 75 Ω triaxial industrial cable (typical 3300 XL configuration) |
| Measurement Technology | Eddy current non-contact sensing |
| Monitoring Functions | Vibration, displacement, shaft position |
| Probe Housing Material | Stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Installation Method | Direct machine mounting |
| Operating Environment | Industrial rotating machinery systems |
| Estimated Weight | ~0.42 kg (typical for 40 mm case variant) |
