Introduction — Precision Eddy Current Monitoring for Critical Rotating Machinery

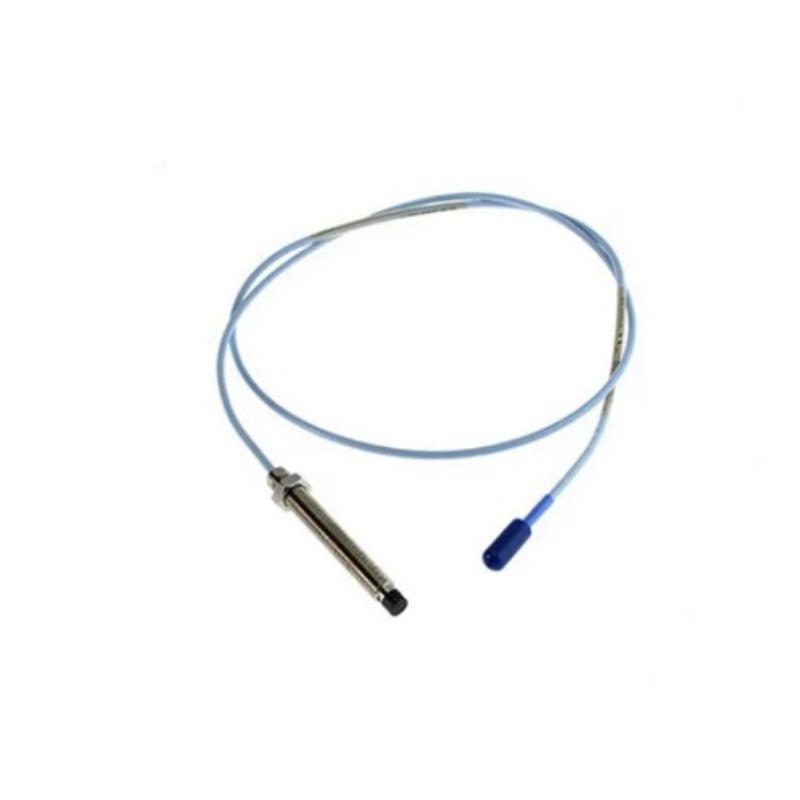

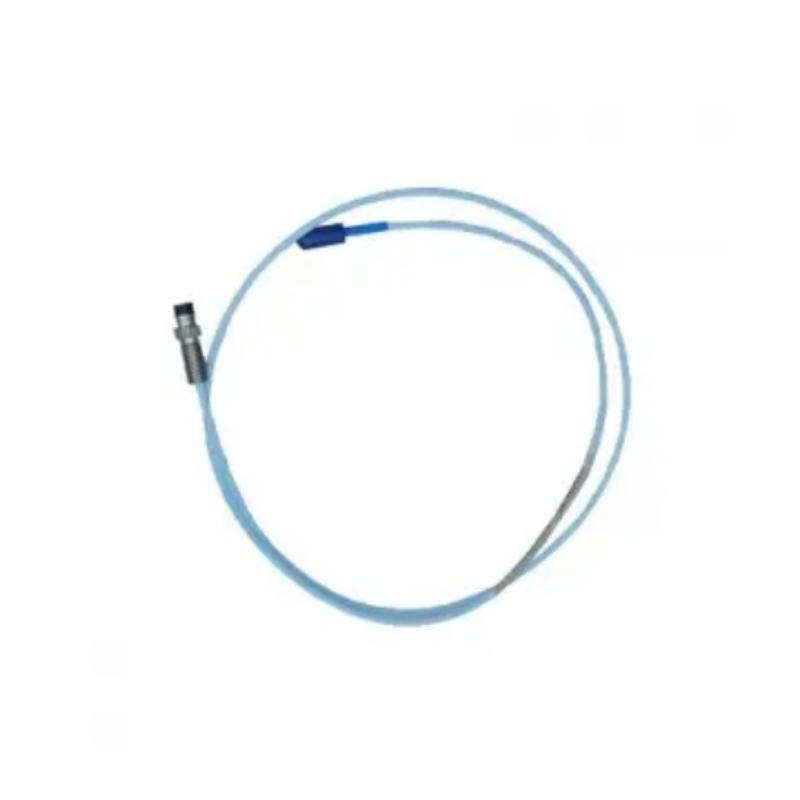

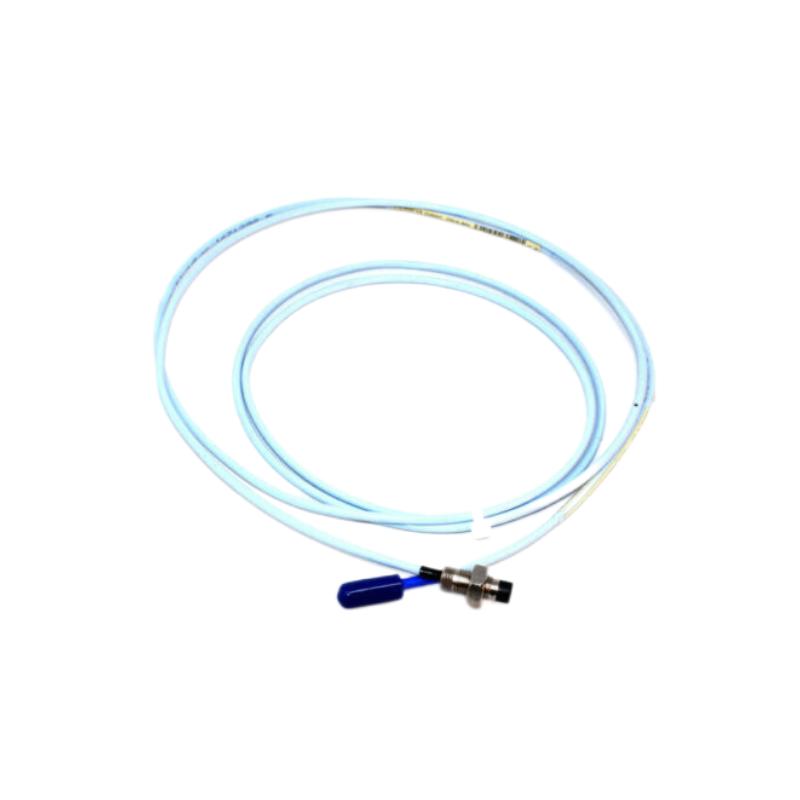

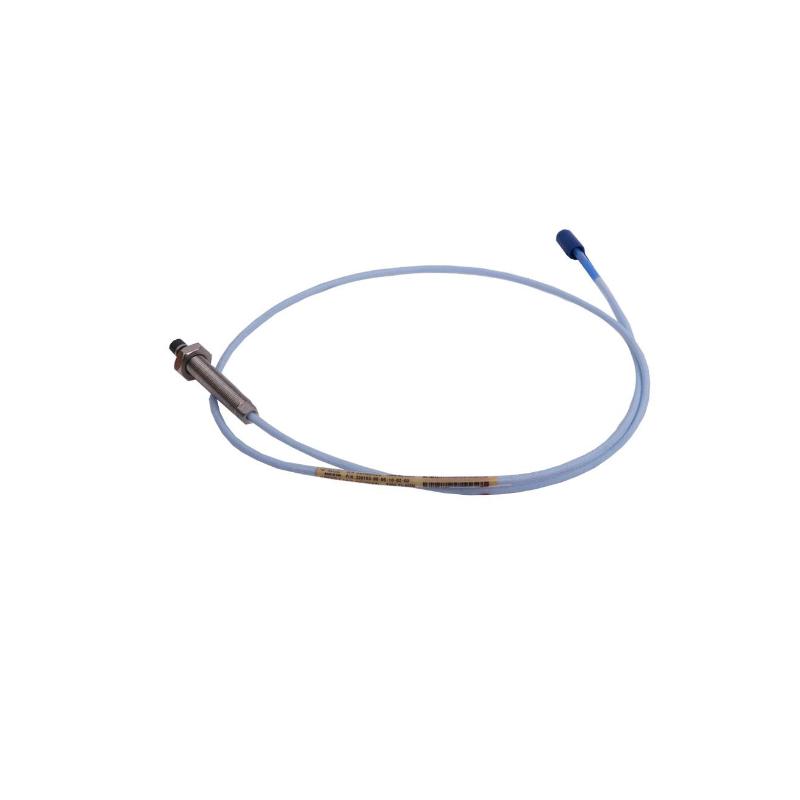

The Bently Nevada 330103-00-04-10-01-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact sensor designed for continuous measurement of vibration, shaft position, and displacement in rotating machinery. As part of the trusted 3300 XL transducer system, it provides stable signal output, excellent linearity, and long-term reliability in harsh industrial environments.
This configuration is widely used in turbine, compressor, and pump protection systems where accurate real-time monitoring is essential for equipment safety and predictive maintenance strategies.
Technical Specifications — Mechanical Structure & Signal Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model / Part Number | 330103-00-04-10-01-05 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 40 mm |
| Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | 75 Ω triaxial industrial cable |
| Measurement Technology | Eddy current non-contact sensing |
| Monitoring Functions | Vibration, displacement, shaft position |
| Probe Housing Material | Stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Installation Method | Direct machine mounting |
| Operating Environment | Industrial rotating machinery systems |
| Estimated Weight | ~0.3 kg |
