Introduction — Long-Reach Vibration Monitoring for Critical Industrial Machinery

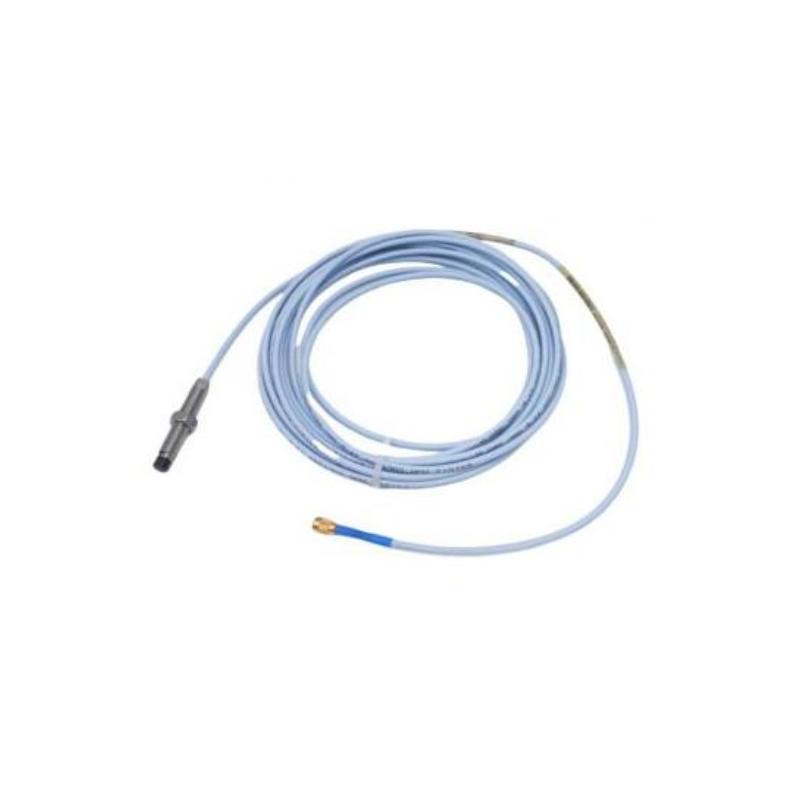

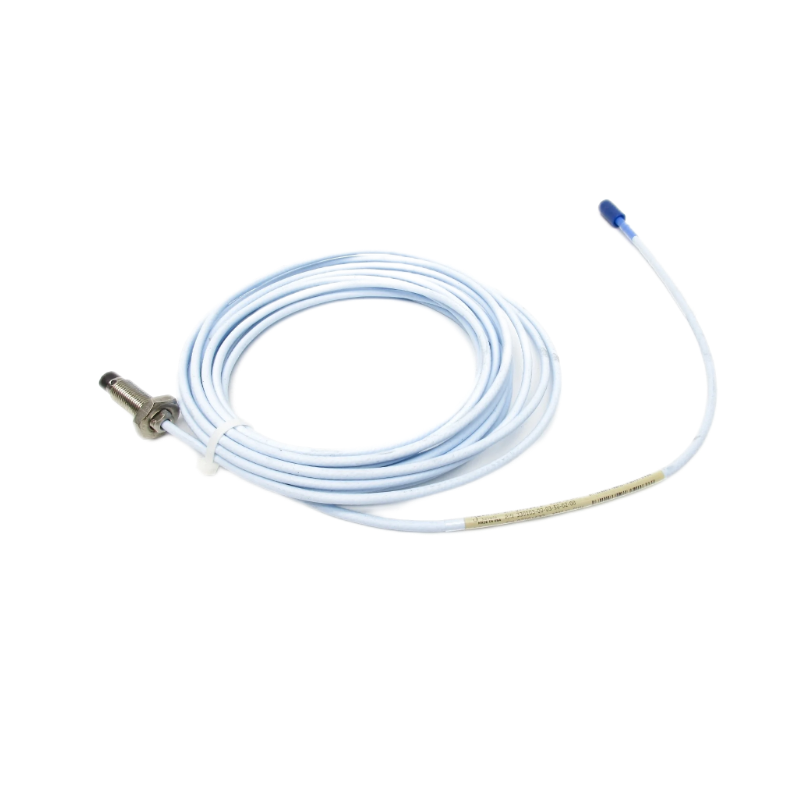

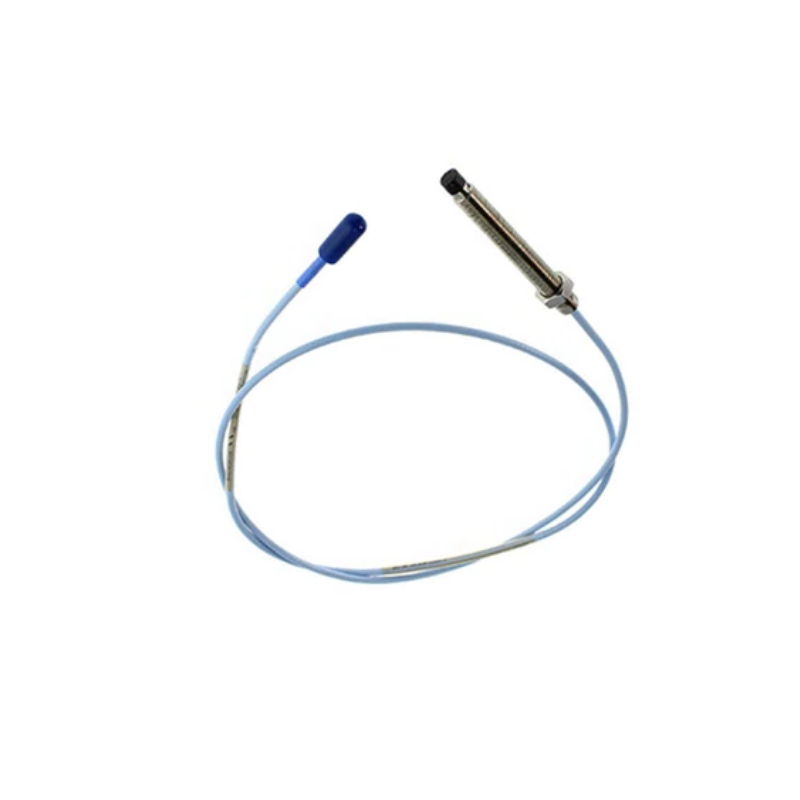

The Bently Nevada 330103-00-03-90-12-05 3300 XL 8mm Proximity Probe is a premium non-contact eddy current sensor developed for continuous vibration, displacement, and shaft position monitoring in rotating equipment. As part of the trusted 3300 XL transducer platform, this probe delivers highly stable measurement performance, rugged industrial durability, and dependable long-term operation in demanding process environments.
Equipped with a 9-meter extended cable assembly and hazardous-area certification support, this model is ideal for large industrial installations where long cable routing and reliable machinery diagnostics are essential.
Technical Specifications — Probe Configuration & Mechanical Design
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8mm Proximity Probe |
| Model / Part Number | 330103-00-03-90-12-05 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Total Cable Length | 9.0 meters (29.5 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Configuration | FluidLoc industrial cable |
| Agency Approval | CSA / ATEX / IECEx approved |
| Measurement Technology | Eddy current non-contact sensing |
| Monitoring Functions | Vibration, displacement, shaft position |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Housing Material | AISI 303 / 304 stainless steel |
| Operating Environment | Industrial-duty applications |
| Dimensions (Approx.) | ~30 mm probe body with integrated cable |
| Weight | Approx. 0.323 kg |
