Introduction — Extended-Length Proximity Monitoring for Industrial Rotating Equipment

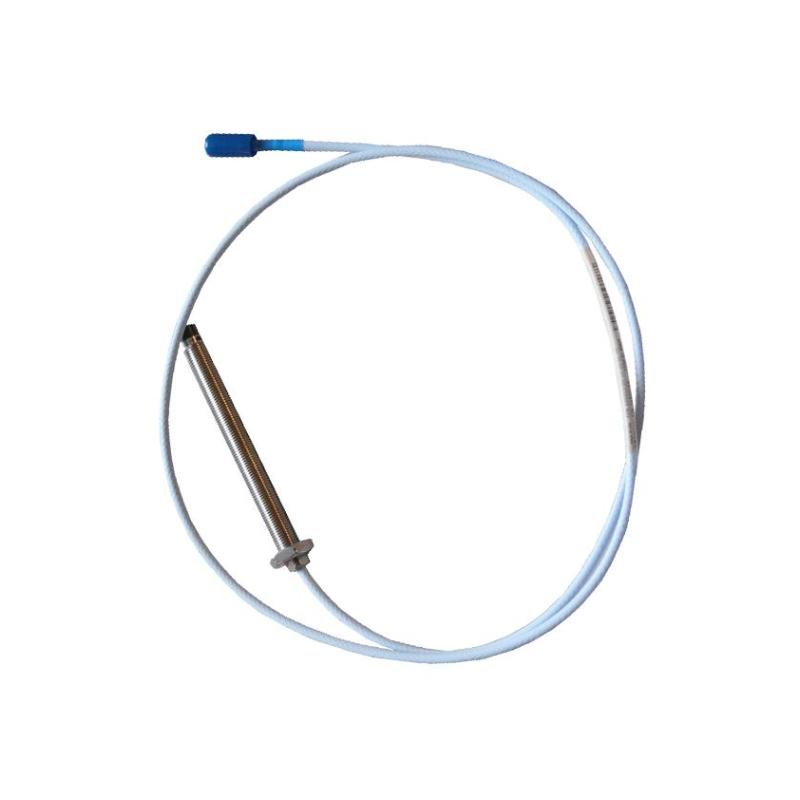

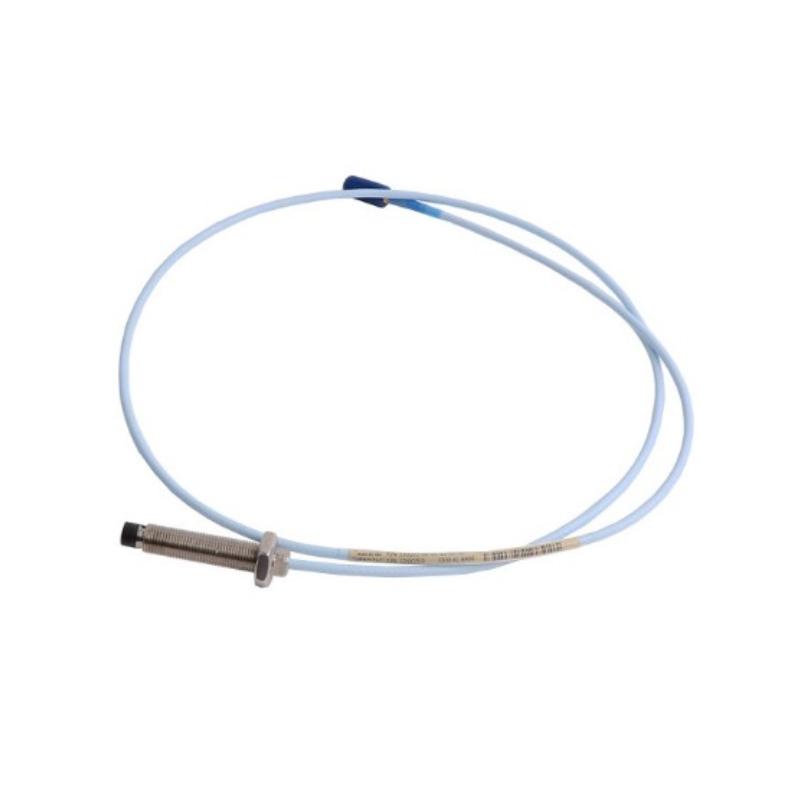

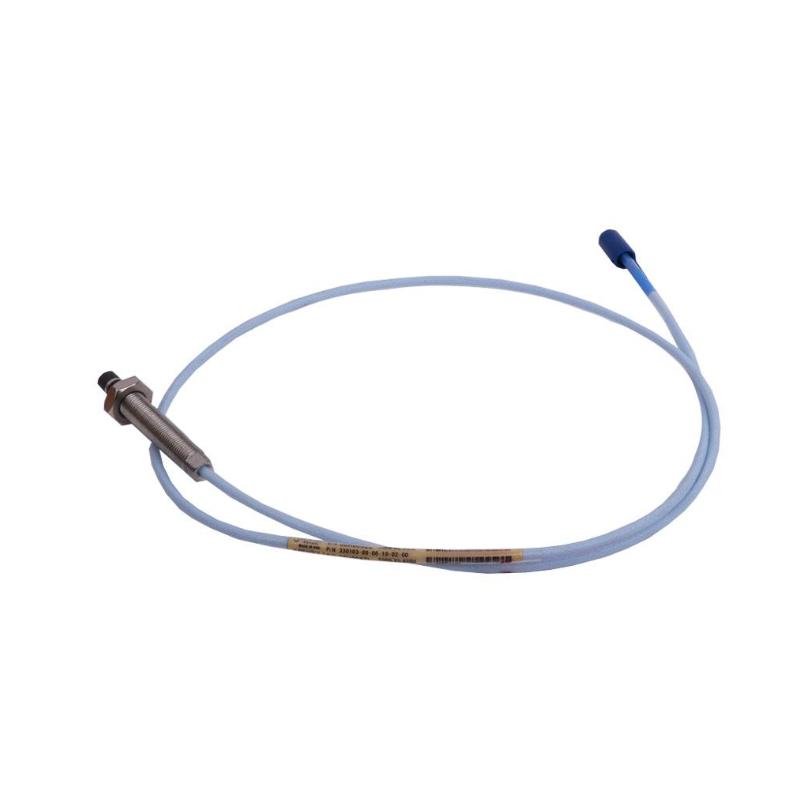

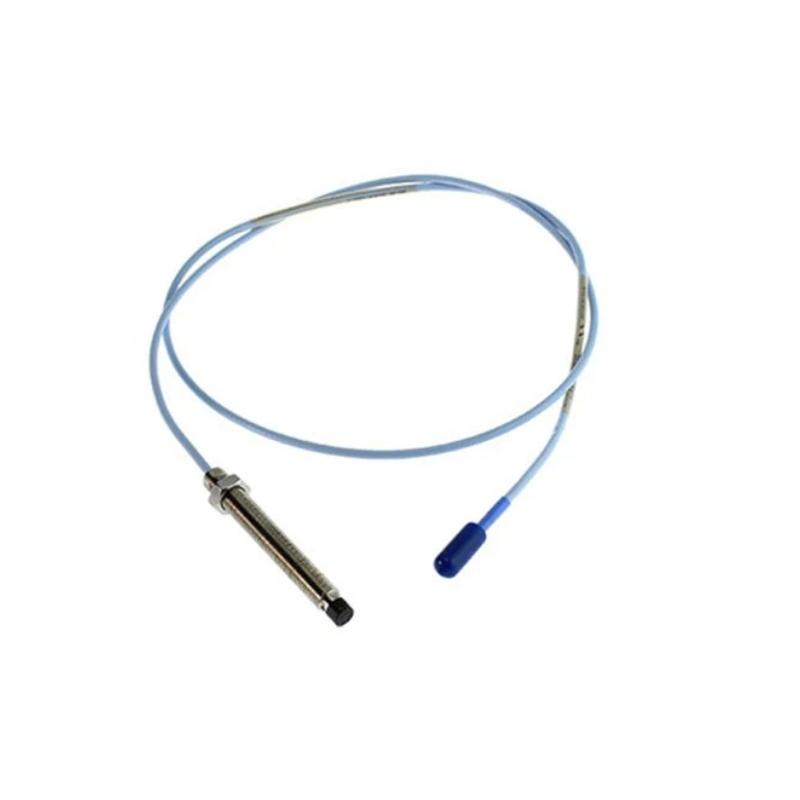

The Bently Nevada 330103-00-03-20-02-00 3300 XL 8 mm Proximity Probe is a high-precision non-contact sensor developed for continuous vibration, shaft position, and displacement monitoring in critical rotating machinery. As a member of the trusted 3300 XL transducer family, this probe combines accurate eddy current sensing technology with rugged industrial construction for dependable long-term operation.
Featuring a compact 30 mm probe body and a 2-meter integrated cable, this model is especially suitable for installations where extended cable reach and stable signal performance are essential for machinery protection systems.
Technical Specifications — Probe Design & Mechanical Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model / Part Number | 330103-00-03-20-02-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Total Cable Length | 2.0 meters (6.6 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Configuration | Standard industrial cable |
| Probe Housing Material | AISI 303 / 304 stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Measurement Technology | Eddy current non-contact sensing |
| Monitoring Functions | Vibration, displacement, shaft position |
| Linear Measurement Range | Approx. 2 mm |
| Operating Environment | Industrial-duty applications |
| Dimensions (Approx.) | ~30 mm probe body with integrated cable |
| Weight | Approx. 0.14–0.32 kg |
