Introduction — Advanced Vibration Monitoring for Critical Rotating Machinery

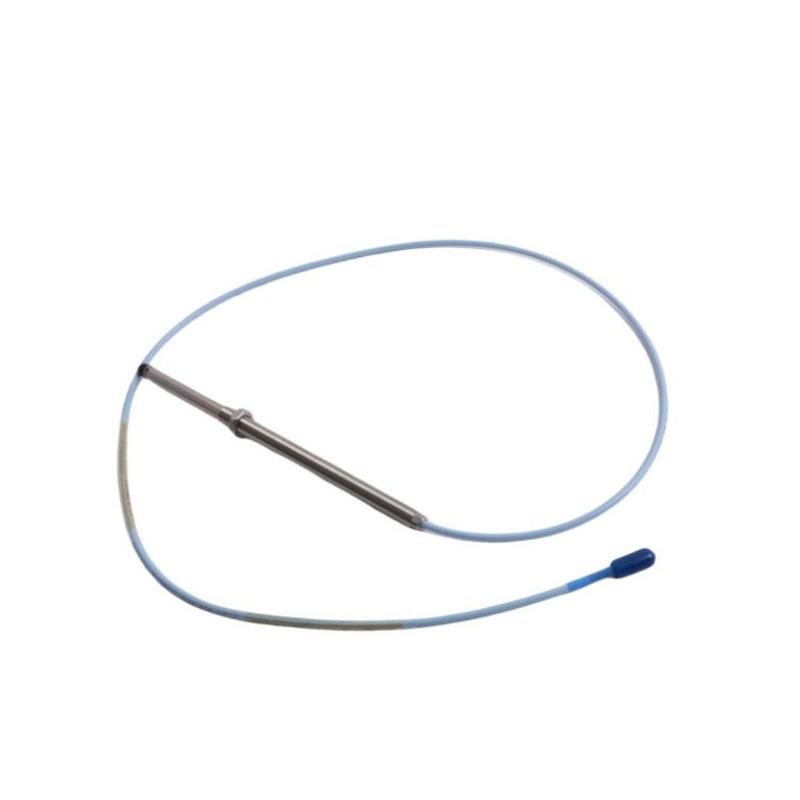

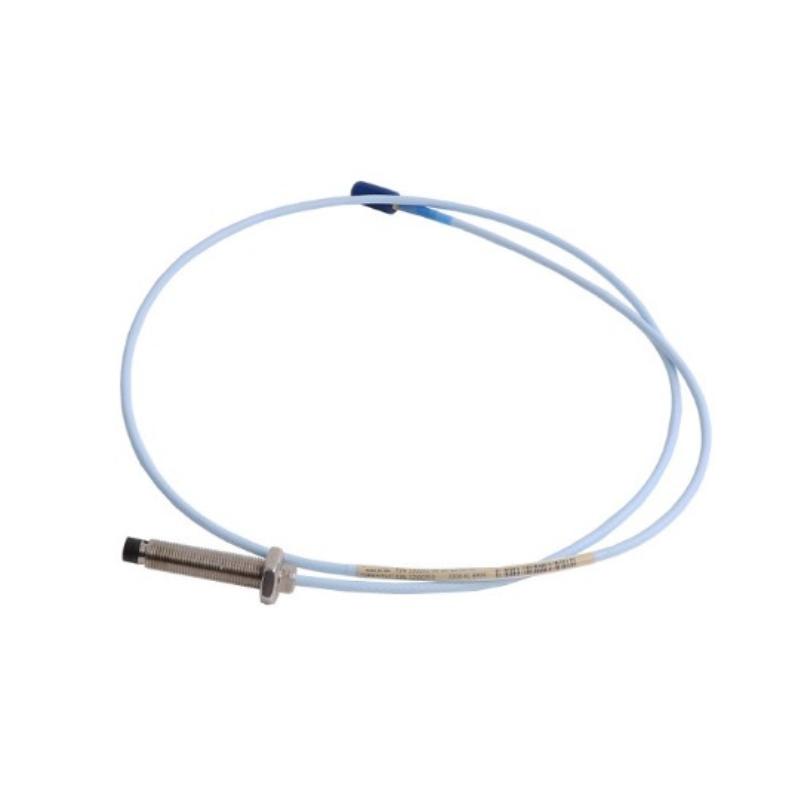

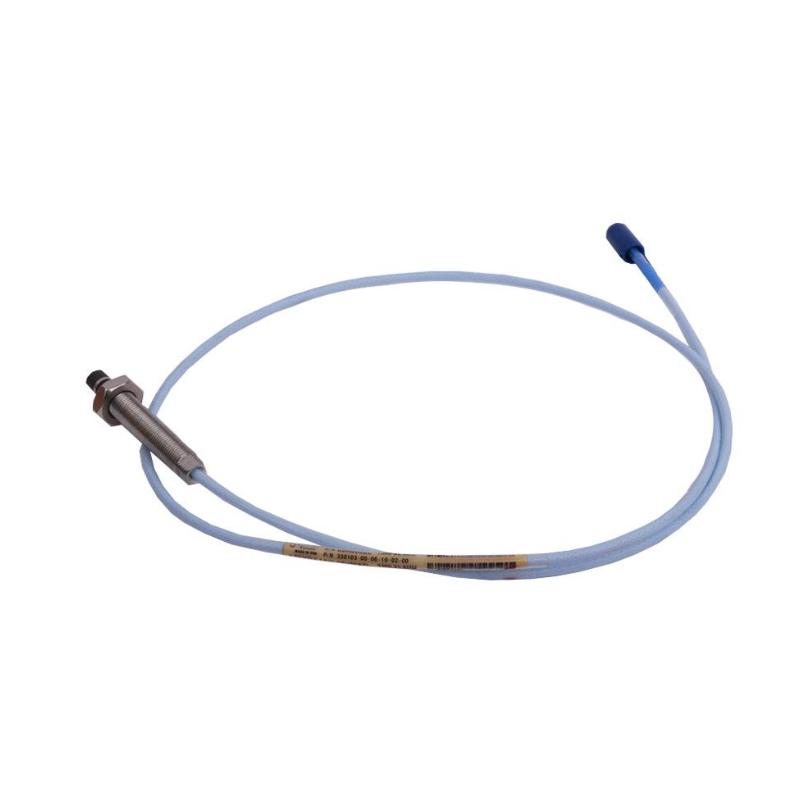

The Bently Nevada 330103-00-03-10-01-05 3300 XL 8mm Proximity Probe is a precision non-contact sensor engineered for continuous vibration and shaft position monitoring in industrial rotating equipment. Designed as part of the trusted 3300 XL series, this probe delivers dependable signal accuracy, excellent environmental durability, and stable long-term operation in demanding industrial applications.
With its compact probe body, 1-meter cable configuration, and certified industrial design, this model is ideal for machinery protection systems where precision monitoring and operational reliability are essential.
Technical Specifications — Probe Configuration & Mechanical Details
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8mm Proximity Probe |
| Model / Part Number | 330103-00-03-10-01-05 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Cable Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | Standard industrial cable |
| Agency Approval | CSA / ATEX / IECEx approved |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Housing Material | AISI 303 / 304 stainless steel |
| Measurement Method | Eddy current non-contact sensing |
| Monitoring Functions | Shaft vibration, displacement, position |
| Operating Temperature | Industrial-duty temperature range |
| Dimensions (Approx.) | ~81 mm × 50 mm × 63 mm |
| Weight | Approx. 0.323 kg |
