Introduction — Compact Non-Contact Probe for Precision Machinery Monitoring

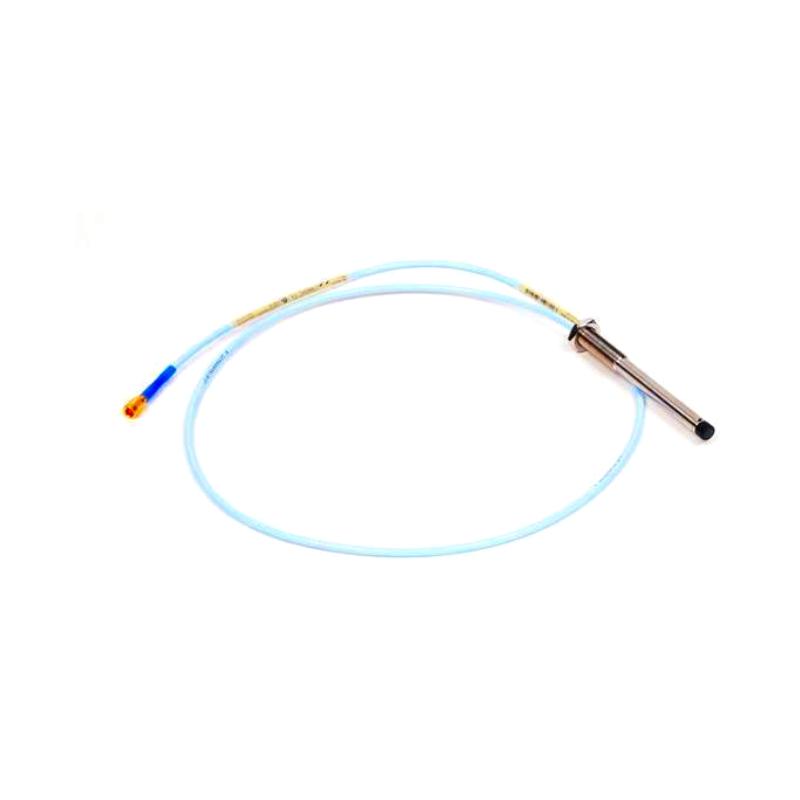

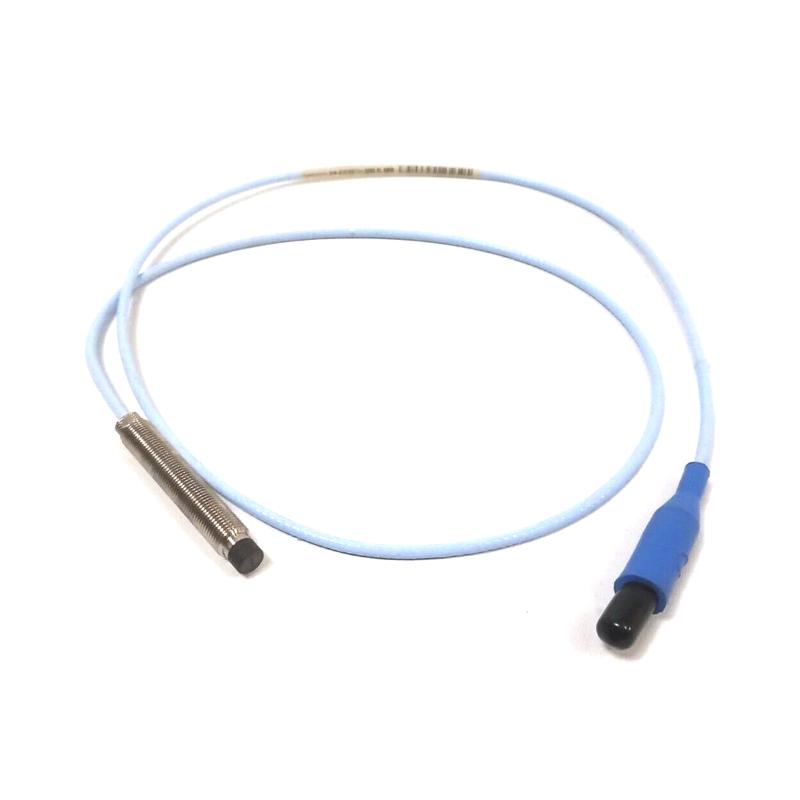

The Bently Nevada 330103-00-03-10-01-00 3300 XL 8 mm Proximity Probe is a high-accuracy eddy current sensor designed for continuous vibration and shaft position monitoring in industrial rotating equipment. As part of the globally recognized 3300 XL transducer family, this probe provides dependable signal stability, durable construction, and excellent compatibility with machinery protection systems.
Featuring a compact 30 mm case and 1-meter cable configuration, this probe is ideal for applications where installation space is limited but precise condition monitoring remains critical for operational reliability.
Technical Specifications — Probe Structure & Sensor Characteristics
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model / Part Number | 330103-00-03-10-01-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Total Length | 1.0 meter (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Configuration | Standard industrial cable |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Probe Housing Material | AISI 303 / 304 stainless steel |
| Measurement Method | Eddy current non-contact sensing |
| Monitoring Functions | Vibration, displacement, shaft position |
| Installation Method | Direct machinery mounting |
| Operating Environment | Industrial-duty applications |
| Dimensions (Approx.) | ~30 mm case body with integrated cable |
| Weight | Approx. 0.2–1.5 kg |
