Introduction — Compact Eddy Current Probe for Continuous Machinery Monitoring

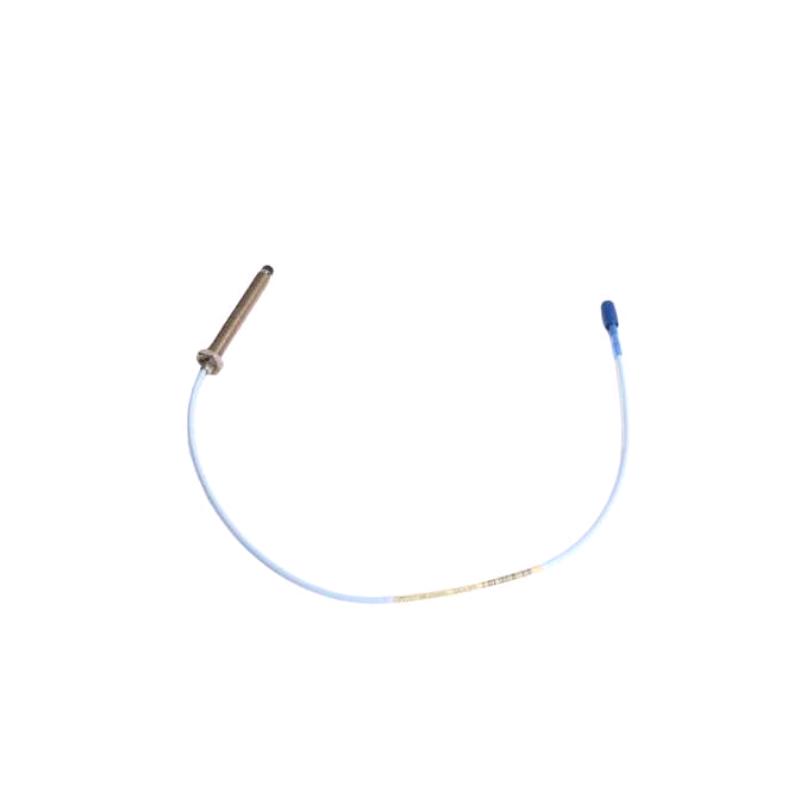

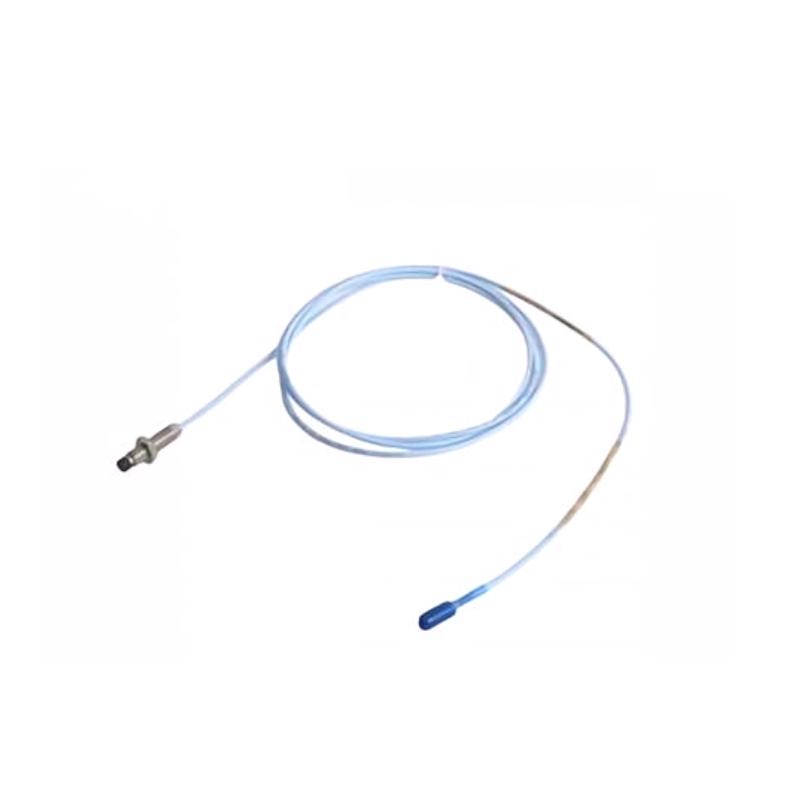

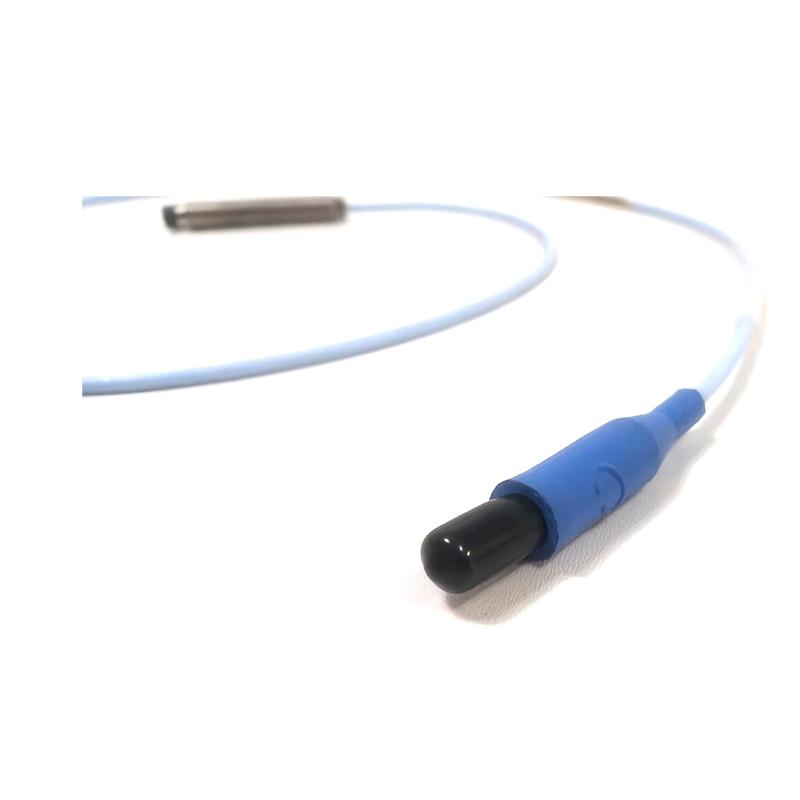

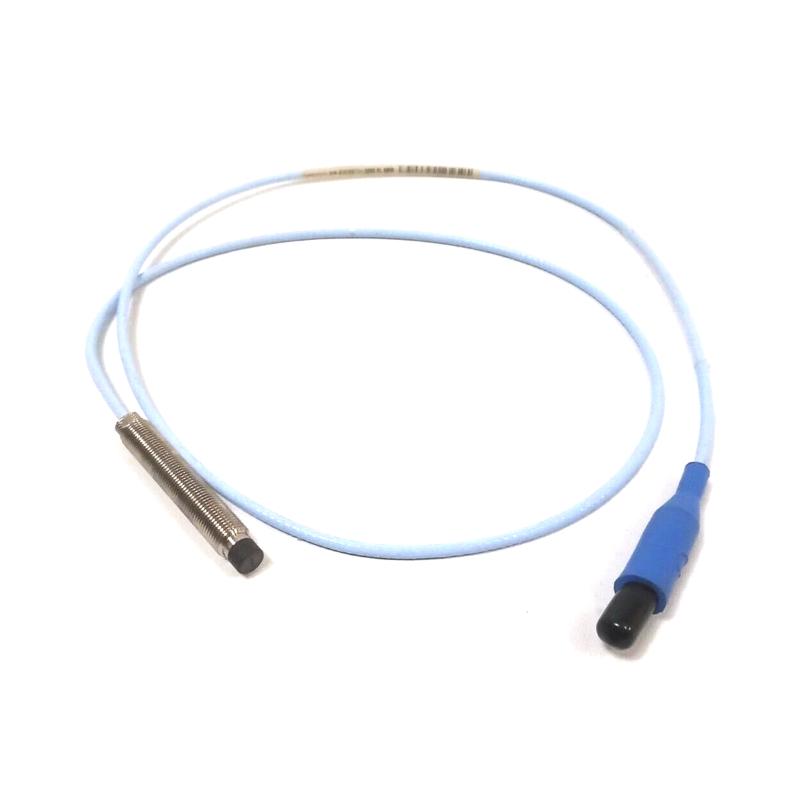

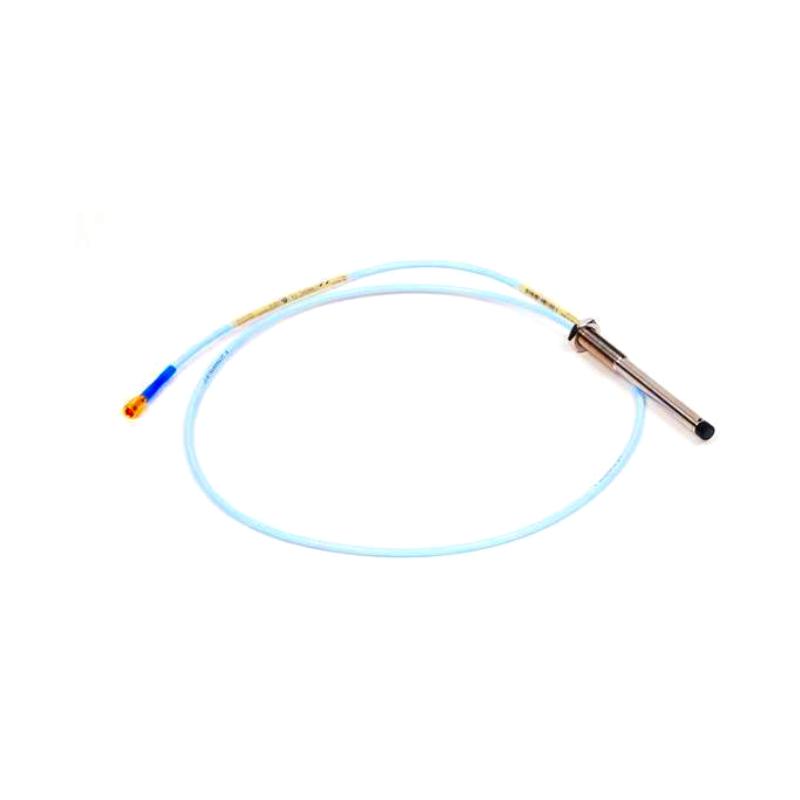

The Bently Nevada 330103-00-03-05-12-00 3300 XL 8 mm Proximity Probe is a precision non-contact sensor engineered for vibration, shaft position, and displacement monitoring in rotating machinery applications. As part of the trusted 3300 XL transducer family, this probe delivers stable signal quality, excellent environmental durability, and reliable long-term performance in industrial monitoring systems.
Its compact 30 mm case design combined with FluidLoc cable technology makes it ideal for installations where space efficiency and dependable signal integrity are critical for equipment protection and predictive maintenance programs.
Technical Specifications — Mechanical & Sensor Configuration
| Specification | Details |
|---|---|
| Product Type | 3300 XL 8 mm Proximity Probe |
| Model / Part Number | 330103-00-03-05-12-00 |
| Probe Diameter | 8 mm |
| Thread Type | M10 × 1 metric thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 30 mm |
| Cable Length | 0.5 meter |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Configuration | FluidLoc industrial cable |
| Probe Case Material | Stainless steel |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Measurement Method | Eddy current non-contact sensing |
| Monitoring Functions | Vibration, displacement, shaft position |
| Installation Style | Direct machine mounting |
| Operating Environment | Industrial-duty applications |
| Dimensions (Approx.) | ~81 mm × 50 mm × 63 mm |
| Weight | Approx. 0.32 kg |
