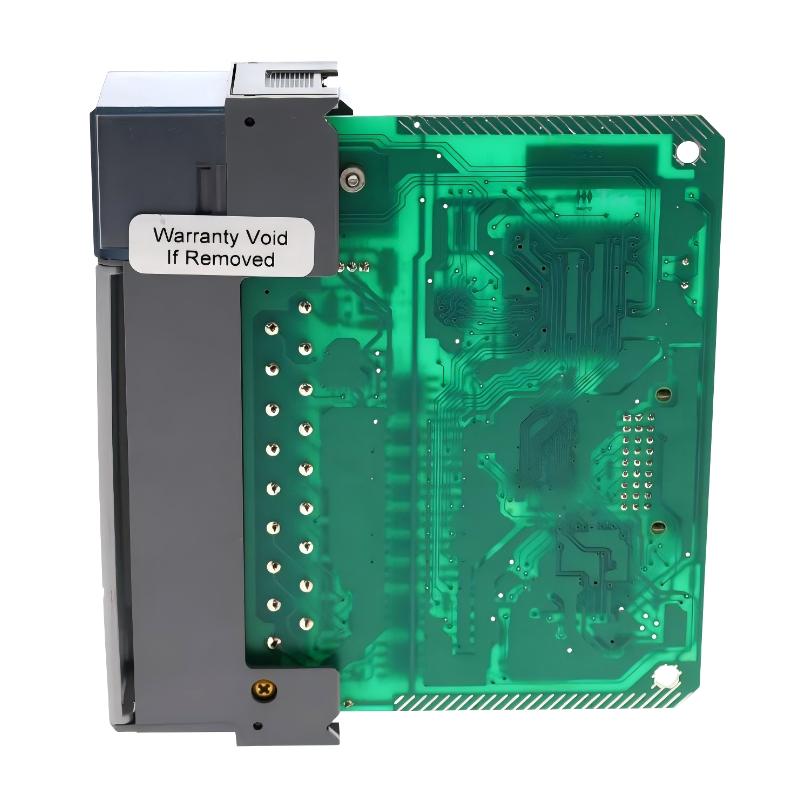

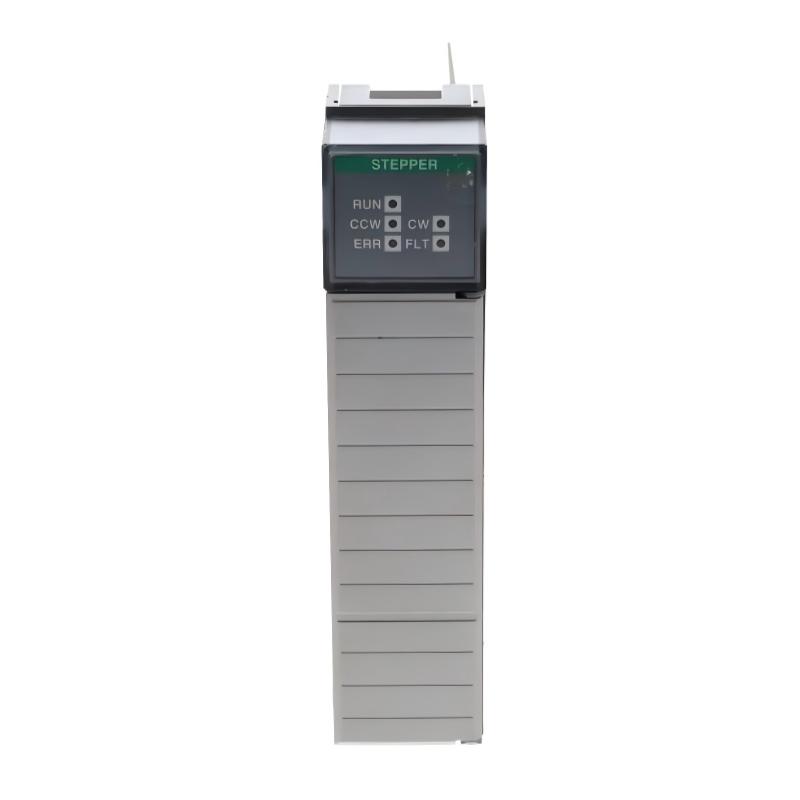

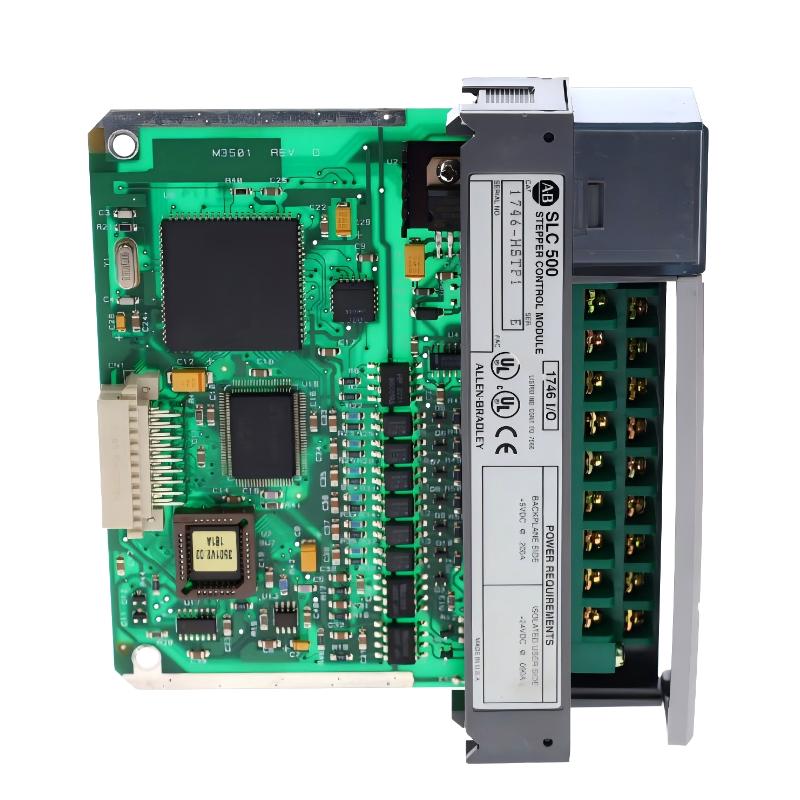

Intelligent High-Performance Stepper Motion Control for Precision Industrial Automation
The Allen Bradley 1746-HSTP1 SLC 500 Stepper Controller Module is a dedicated single-axis motion control solution designed for precise stepper motor positioning within the SLC 500 automation platform. Engineered for open-loop and encoder-assisted motion control, this module delivers high-speed pulse generation and accurate positioning control for demanding industrial machinery.
Unlike standard digital I/O modules, the 1746-HSTP1 operates as an intelligent motion controller, generating pulse train signals and direction commands for stepper motor drivers while independently handling acceleration, velocity profiling, and positioning tasks. It supports both incremental and absolute motion profiles, making it suitable for applications requiring precise control over speed, distance, and movement coordination.
Designed for integration into SLC 5/01 through 5/05 systems, the module enables reliable stepper control without external motion controllers, simplifying system architecture while maintaining industrial-grade performance.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Family | SLC 500 |
| Model Number | 1746-HSTP1 |
| Module Type | Stepper Controller Module |
| Control Type | Single-axis open-loop stepper control |
| Output Type | Pulse train + direction (CW/CCW selectable) |
| Output Frequency | Up to 250 kHz |
| Speed Range | 1 to 250,000 pulses per second |
| Acceleration Profile | Trapezoidal velocity profile |
| Encoder Feedback | Optional differential or single-ended |
| Max Position Count | ±8,000,000 counts (absolute positioning) |
| Inputs | Differential encoder / auxiliary inputs |
| Outputs | Digital pulse outputs for stepper driver |
| Backplane Current | Approx. 200–300 mA @ 5V DC |
| Update Time | Approx. 4 ms |
| Step Response | ~100 ms input / 2.5 ms output |
| Communication | SLC 500 backplane |
| Mounting Type | 1746 chassis slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Weight | Approx. 0.2–0.45 kg |
Applications
The 1746-HSTP1 is widely used in industrial automation systems requiring accurate stepper motor positioning and pulse-based motion control.
Typical applications include:
-
CNC auxiliary axis control systems
-
Packaging machinery
-
Labeling and printing systems
-
Conveyor positioning and indexing
-
Cut-to-length production machines
-
Automated assembly equipment
-
Textile and material processing machines
-
OEM machine automation platforms
-
Precision step-and-repeat positioning systems
Its ability to execute motion profiles directly within the module reduces PLC workload and improves timing consistency in high-speed production environments.
Advantages
Integrated Stepper Motion Intelligence
Handles motion profiling internally, reducing dependence on external motion controllers.
High-Speed Pulse Output Control
Supports up to 250 kHz pulse output for fast and accurate stepper motor driving.
Flexible Motion Configuration
Allows programmable acceleration, deceleration, velocity, and distance control.
Encoder Feedback Support
Optional feedback capability enables improved motion verification and positioning accuracy.
Independent Motion Execution
Motion control runs independently from PLC scan cycles for improved responsiveness.
Proven SLC 500 Integration
Designed specifically for Allen Bradley SLC systems, ensuring stable and long-term industrial compatibility.
Technical FAQs
1. What is the main function of the 1746-HSTP1?
It provides single-axis stepper motor control using pulse train outputs within SLC 500 systems.
2. Does it support closed-loop control?
It is primarily open-loop, but it can use encoder feedback for position verification.
3. What is the maximum output frequency?
The module supports pulse outputs up to 250 kHz.
4. How many axes does it control?
It supports one motion axis.
5. What motion profiles are supported?
Trapezoidal acceleration, incremental moves, and absolute positioning.
6. Can it interface with stepper drivers directly?
Yes. It outputs pulse/direction or CW/CCW signals for stepper translators.
7. What processors are compatible?
It works with SLC 5/01 through SLC 5/05 processors.
8. Does it require external configuration switches?
No. Configuration is handled via software in the SLC data table.
9. What industries commonly use this module?
Packaging, manufacturing, printing, CNC, and OEM machine industries.
10. Why is the 1746-HSTP1 still widely used?
Because many industrial systems continue to rely on stable SLC 500-based motion control platforms for long lifecycle equipment.
