Precision Single-Axis Motion Control for Legacy Industrial Automation Systems

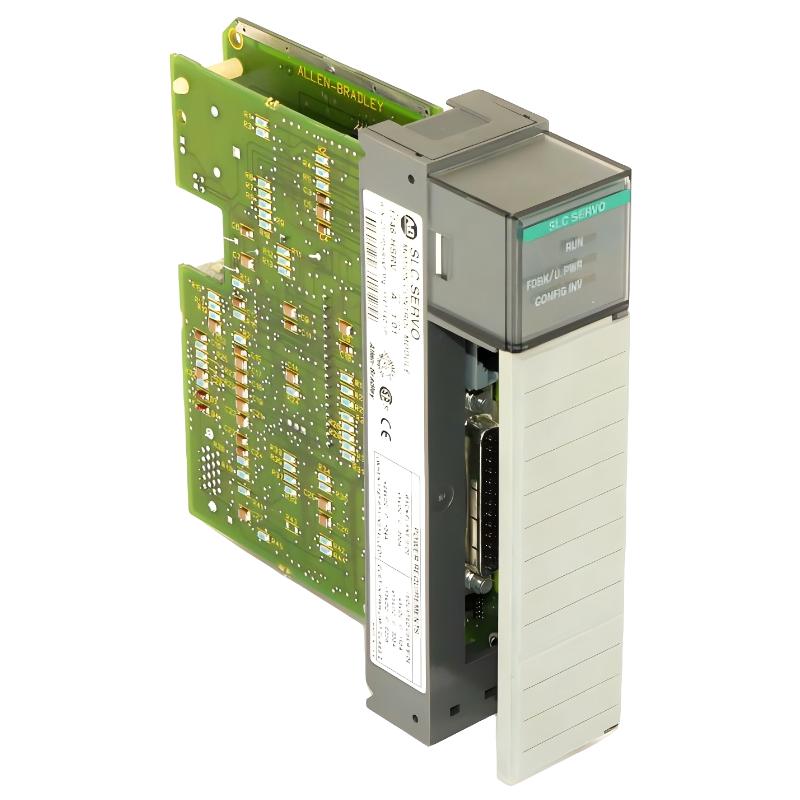

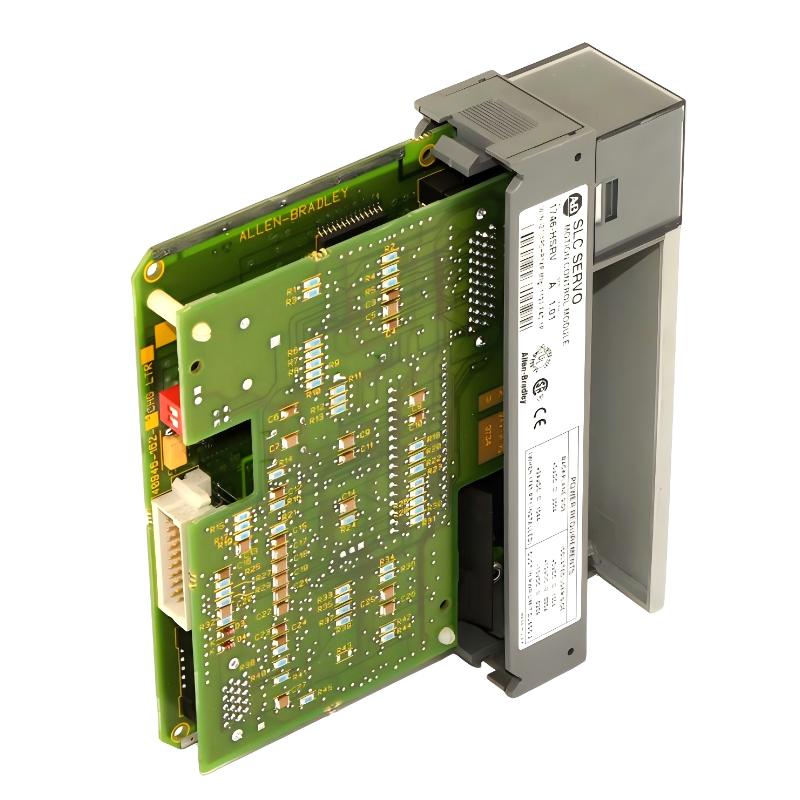

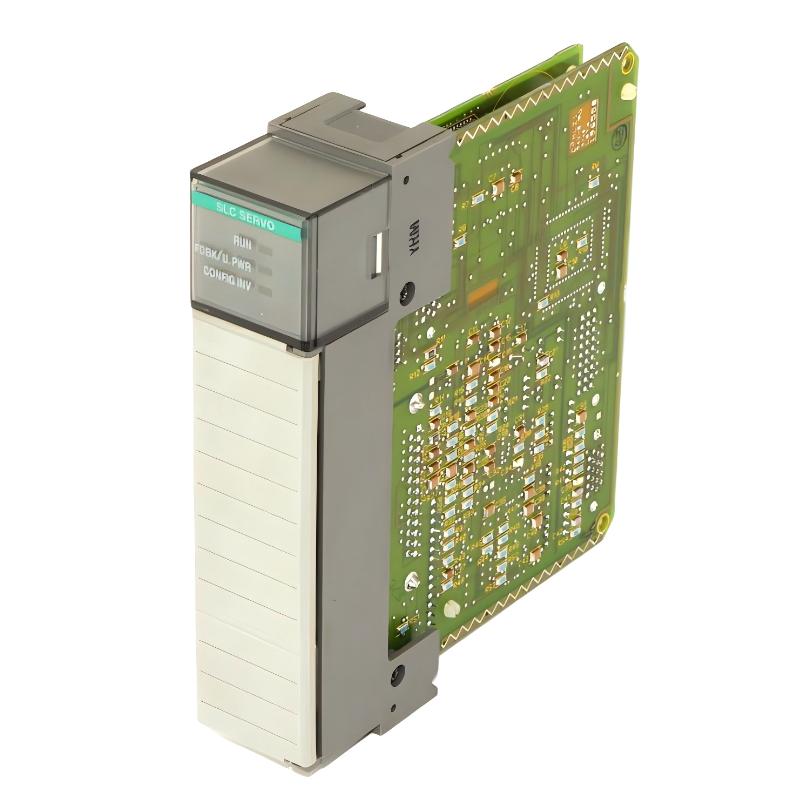

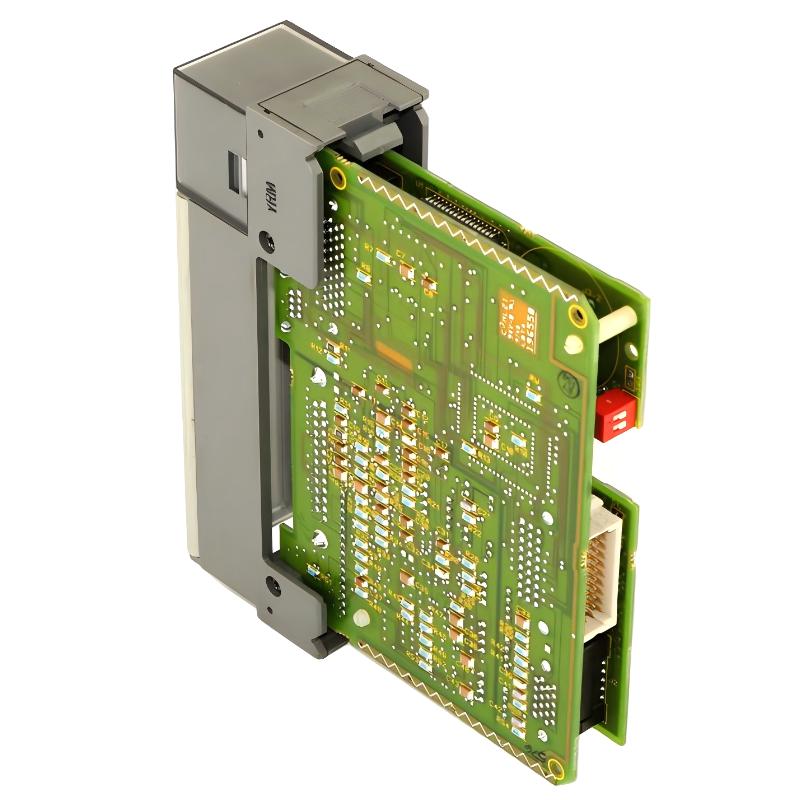

The Allen Bradley 1746-HSRV SLC 500 Servo Control Module is a dedicated motion control solution designed for single-axis servo applications within the SLC 500 automation platform. Built for precision positioning, velocity control, and coordinated motion execution, this module integrates directly into the SLC backplane to deliver reliable real-time motion performance in industrial environments.
Unlike standard I/O modules, the 1746-HSRV operates as an intelligent motion controller, generating analog velocity or position commands and coordinating with servo drives through encoder feedback and fast input/output processing. It supports advanced motion profiles, including incremental, absolute, speed, and blended multi-segment moves, making it suitable for complex machine automation tasks requiring smooth and accurate motion control.
Designed for SLC 5/03, 5/04, and 5/05 processors, the module executes motion independently from PLC scan cycles, improving responsiveness and system determinism in precision automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Family | SLC 500 |
| Model Number | 1746-HSRV |
| Module Type | Servo Control / Motion Control Module |
| Motion Type | Single-axis servo control |
| Control Output | Analog velocity command (up to ±10V DC) |
| Inputs | Fast inputs (encoder / limit / reference signals) |
| Outputs | 1 analog control output + fast I/O signals |
| Input Frequency | Up to ~300 kHz |
| Motion Profiles | Absolute, incremental, speed, blended moves |
| Control Modes | Position, velocity, homing, synchronized motion |
| Processor Compatibility | SLC 5/03 (FRN 5.0+), 5/04, 5/05 |
| Programming Software | RSLogix 500 / AI500 / APS |
| Backplane Power | Powered via SLC chassis |
| Module Execution | Independent of PLC scan cycle |
| Mounting Type | 1746 SLC chassis slot |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 145 mm × 35 mm × 152 mm |
| Weight | Approx. 0.2–0.5 kg |
Applications
The 1746-HSRV is widely used in industrial automation systems that require precise single-axis motion coordination and servo control.
Typical applications include:
-
Servo positioning systems
-
Packaging and labeling machinery
-
Conveyor synchronization systems
-
Printing and converting equipment
-
CNC auxiliary axis control
-
Cut-to-length machines
-
Automated assembly equipment
-
Material handling motion systems
-
OEM machine builds with legacy SLC architecture
Its ability to execute complex motion profiles makes it particularly effective in machines requiring smooth acceleration, deceleration, and repeatable positioning accuracy.
Advantages
Integrated Motion Control Architecture
Combines motion control logic and I/O processing within the SLC 500 ecosystem, reducing external hardware dependency.
High-Precision Servo Coordination
Supports accurate analog command output for servo drive positioning and velocity regulation.
Advanced Motion Profiling Capability
Enables blended multi-segment motion for smoother machine operation and reduced mechanical stress.
Independent Motion Execution
Motion tasks run independently of PLC scan time, improving response consistency.
Reliable Industrial Integration
Designed for long-term operation in demanding manufacturing environments.
Flexible System Compatibility
Works with multiple SLC processor generations, supporting retrofit and upgrade applications.
Technical FAQs
1. What is the primary function of the 1746-HSRV?
It provides single-axis servo motion control for SLC 500 systems with advanced positioning and velocity capabilities.
2. Does the module support multiple motion types?
Yes. It supports absolute, incremental, speed, and blended motion profiles.
3. What type of output does it generate?
It generates an analog velocity command signal (typically up to ±10V DC) for servo drives.
4. Which processors are compatible?
It is compatible with SLC 5/03 (FRN 5.0+), SLC 5/04, and SLC 5/05 processors.
5. Does motion execution depend on PLC scan time?
No. Motion execution is handled independently from the PLC scan cycle.
6. How many axes can it control?
The module supports single-axis motion control only.
7. What communication or feedback signals are supported?
It supports fast inputs including encoder and limit/reference signals for motion control feedback.
8. What programming tools are used?
RSLogix 500, AI500, or APS software is used for configuration and programming.
9. What industries commonly use this module?
Packaging, manufacturing, CNC auxiliary systems, and OEM machine building industries commonly use it.
10. Is the 1746-HSRV still relevant today?
Yes. It remains widely used in legacy SLC 500 systems that require stable and proven motion control solutions.
