Advanced Multi-Channel Pulse Processing for Precision Industrial Automation

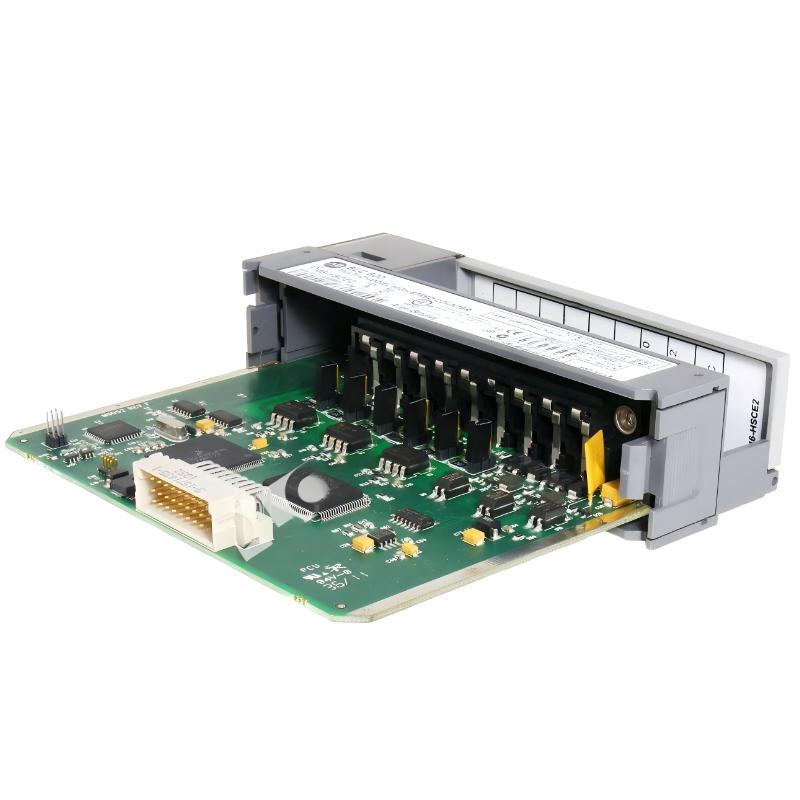

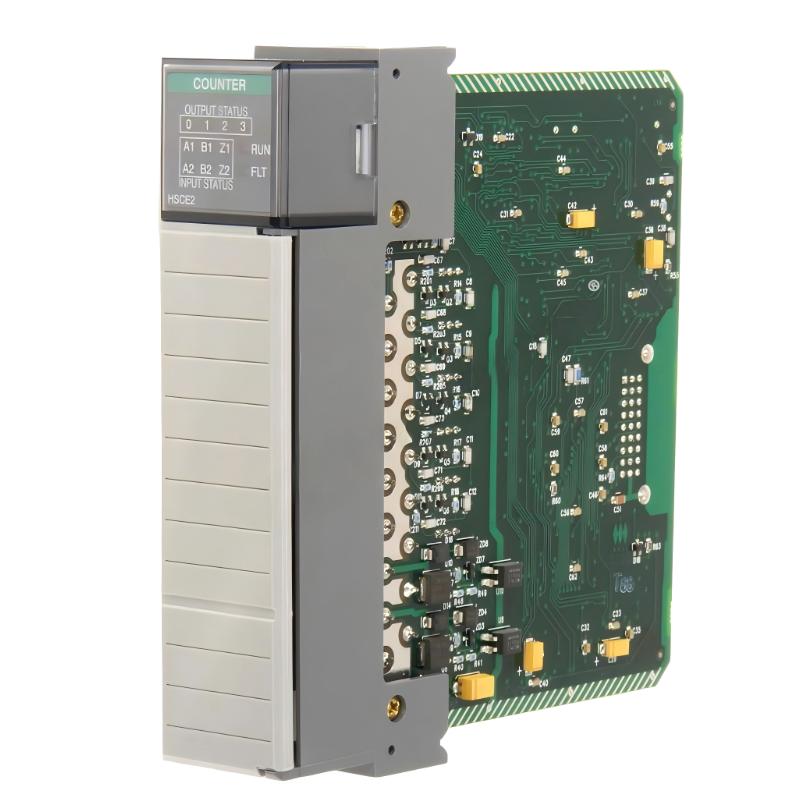

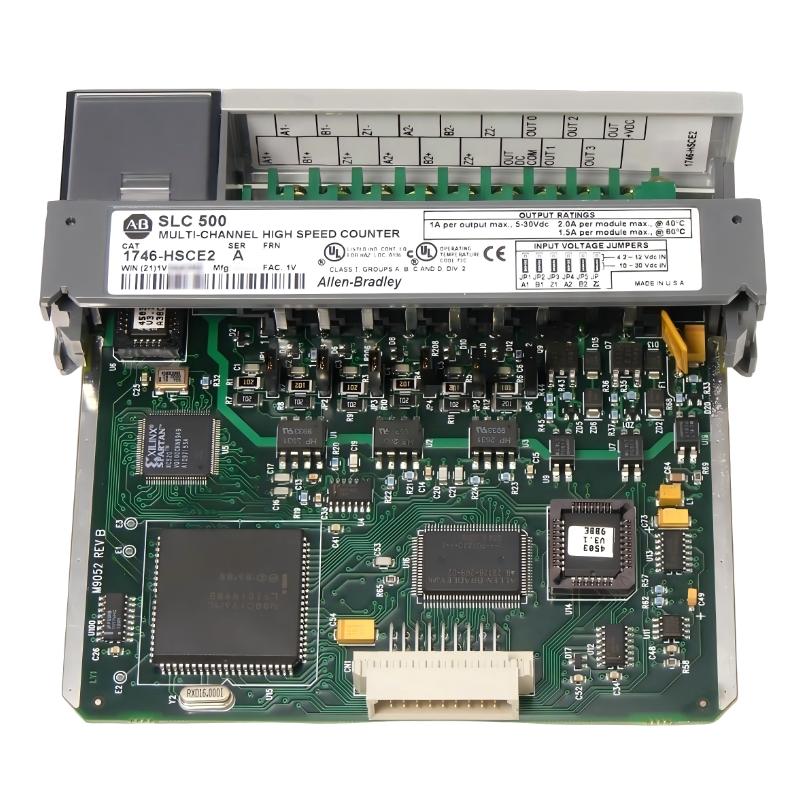

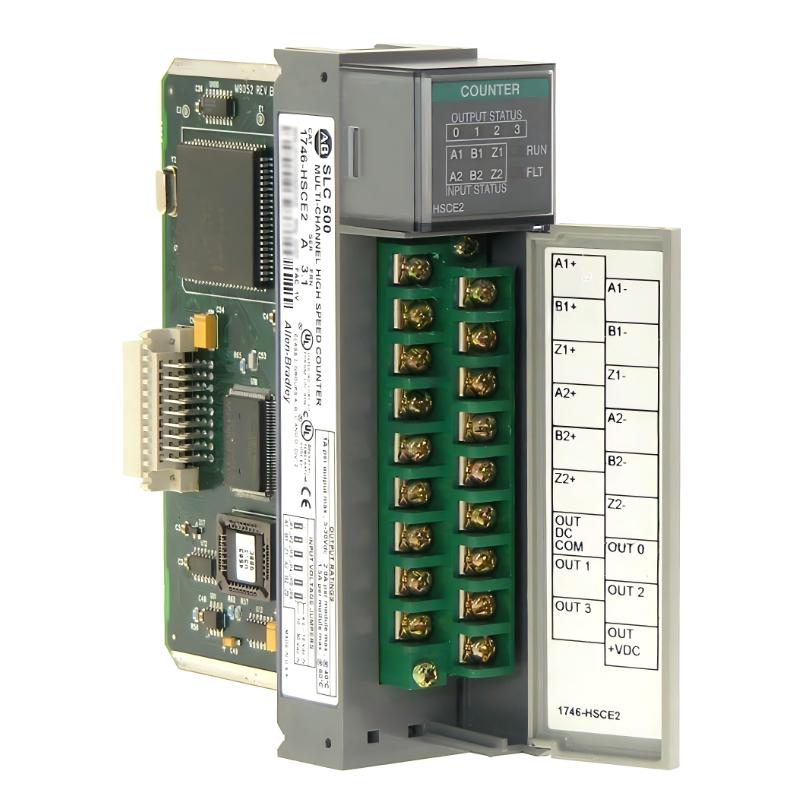

The Allen Bradley 1746-HSCE2 SLC 500 Multi-Channel High Speed Counter Module is an intelligent, high-performance counting solution designed for complex motion monitoring and high-frequency signal processing within SLC 500 control systems. Engineered for applications requiring multi-axis encoder tracking and rapid pulse evaluation, this module delivers independent onboard processing that significantly reduces PLC scan load while improving real-time responsiveness.
With support for multiple input configurations, including differential and single-ended quadrature signals, the 1746-HSCE2 is built for demanding industrial environments where precise position tracking, speed measurement, and synchronized multi-channel counting are essential. Its flexible architecture allows it to handle several high-speed inputs simultaneously, making it ideal for advanced automation systems requiring scalability and accuracy.
This module is widely used in production lines and OEM machinery where consistent performance, multi-channel capability, and reliable high-speed signal interpretation are critical for operational efficiency.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Family | SLC 500 |
| Model Number | 1746-HSCE2 |
| Module Type | Multi-Channel High Speed Counter |
| Input Channels | 4 single-ended or 2 differential quadrature inputs |
| Encoder Support | A/B/Z quadrature encoders |
| Input Voltage Range | 5V, 12V, or 24V DC (configurable) |
| Input Type | Differential / Single-ended |
| Maximum Input Frequency | Up to 1 MHz |
| Minimum Pulse Width | ~475 ns |
| Minimum Phase Separation | ~200 ns |
| Counter Range | ±8,388,607 (24-bit) |
| Counting Modes | Linear, ring, up/down, rate modes |
| Output Channels | 8 outputs (4 real + 4 virtual) |
| Output Type | Sourcing outputs (5–30V DC) |
| Backplane Current | Approx. 250–320 mA @ 5V DC |
| Update Time | Approx. 1.5 ms |
| Isolation | Backplane and channel isolation |
| Mounting Type | Single-slot SLC 500 chassis module |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 145 mm × 35 mm × 152 mm |
| Weight | Approx. 0.4–0.6 kg |
Applications
The 1746-HSCE2 is designed for high-precision industrial systems requiring synchronized multi-channel counting and encoder-based control.
Typical applications include:
-
Multi-axis encoder tracking systems
-
High-speed packaging machinery
-
Conveyor synchronization and speed monitoring
-
Printing and labeling systems
-
Cut-to-length production lines
-
Robotics and motion coordination systems
-
Industrial inspection and measurement equipment
-
OEM automation platforms
-
High-speed manufacturing processes
Its multi-channel capability makes it particularly effective in systems where multiple sensors or encoders must be processed simultaneously without sacrificing timing accuracy.
Advantages
Multi-Channel High-Speed Processing
Supports multiple encoder inputs simultaneously for complex industrial motion tracking.
Independent Onboard Intelligence
Processes high-speed signals internally, reducing load on the SLC processor and improving system responsiveness.
Flexible Encoder Compatibility
Works with differential and single-ended quadrature encoders across multiple voltage levels.
Ultra-Fast Signal Handling
Handles high-frequency pulse inputs up to the megahertz range for precise measurement applications.
Scalable Motion Monitoring
Ideal for systems requiring synchronized tracking across multiple production points.
Proven Industrial Stability
Built for continuous operation in demanding manufacturing and automation environments.
Technical FAQs
1. What is the main function of the 1746-HSCE2?
It provides multi-channel high-speed counting and encoder signal processing for SLC 500 systems.
2. How many input channels does it support?
It supports up to 4 single-ended or 2 differential quadrature input channels.
3. What types of encoders are compatible?
It supports A/B/Z quadrature encoders and pulse-based input devices.
4. What is the maximum input frequency?
The module can handle input frequencies up to 1 MHz.
5. Does it operate independently from the PLC scan cycle?
Yes. It has onboard processing that executes counting tasks independently from the SLC CPU.
6. What output capabilities does it provide?
It includes 8 configurable outputs, consisting of real and virtual channels for control logic.
7. What counting modes are available?
Linear, ring, up/down counting, and rate-based measurement modes are supported.
8. Is it suitable for multi-machine synchronization?
Yes. It is commonly used in synchronized production and multi-axis tracking systems.
9. What industries commonly use the 1746-HSCE2?
Manufacturing, packaging, logistics, printing, and OEM machinery industries frequently use it.
10. Why is the 1746-HSCE2 still widely used today?
Because many industrial facilities continue relying on SLC 500 systems for stable, long-life automation infrastructure.
