Precision High-Speed Encoder Processing for Advanced Industrial Automation

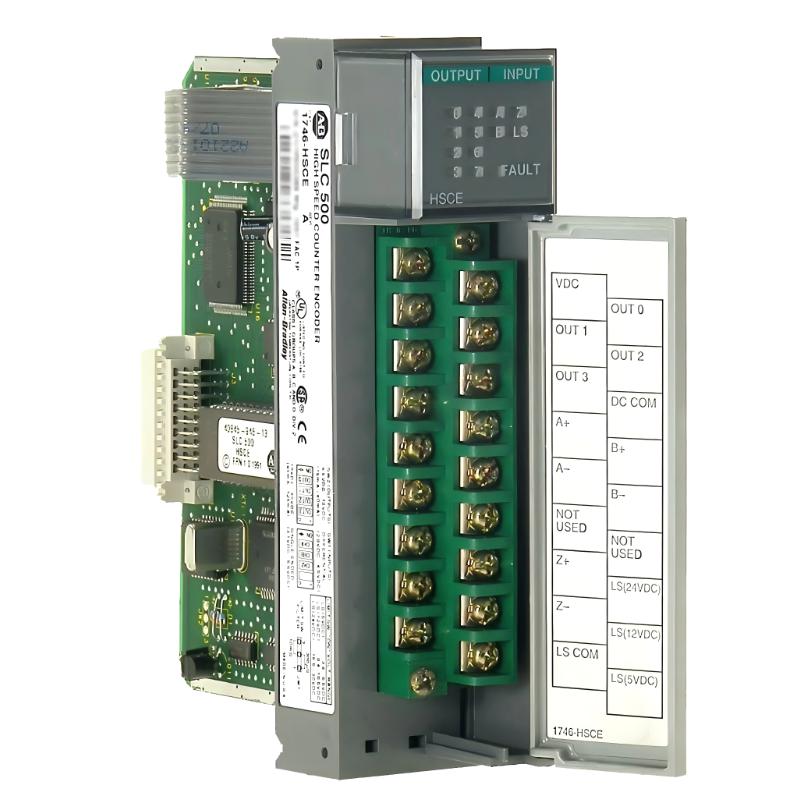

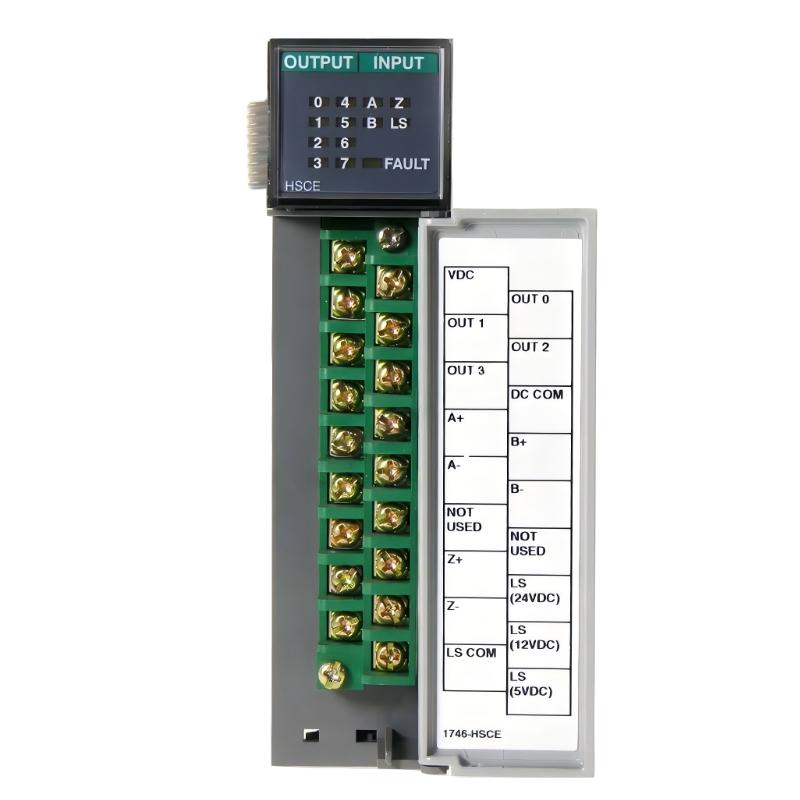

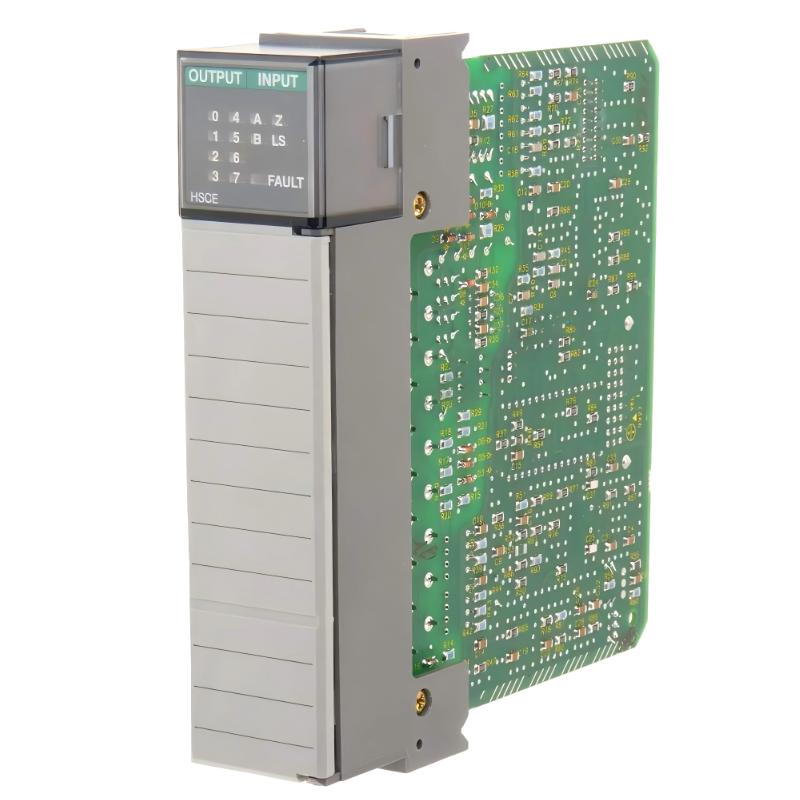

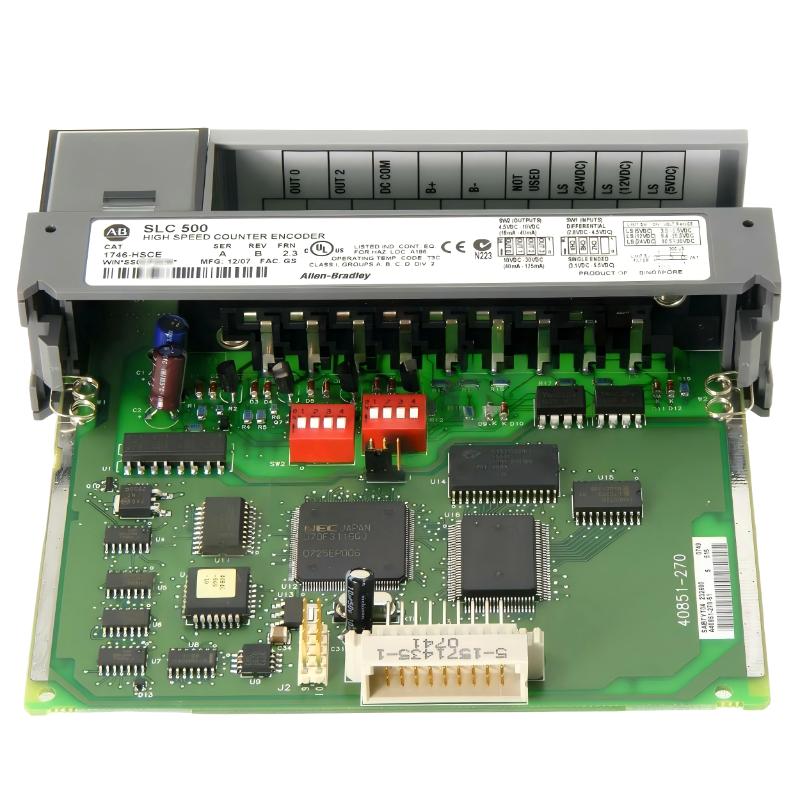

The Allen Bradley 1746-HSCE SLC 500 High Speed Counter Module is a specialized motion and pulse-processing module engineered for applications requiring accurate high-frequency counting and encoder feedback within SLC 500 control systems. Designed for precision automation tasks, the module processes rapid pulse inputs independently from normal PLC scan time, enabling fast and highly reliable response performance.
With support for quadrature encoder signals, bidirectional counting, and multiple operating modes, the 1746-HSCE is widely used in motion monitoring, conveyor synchronization, packaging machinery, and positioning systems. Its advanced counting capabilities make it ideal for industrial environments where accurate speed detection, length measurement, and motion tracking are critical to production efficiency.
The module integrates seamlessly into Allen Bradley SLC 500 racks and provides a dependable solution for high-speed industrial signal processing in legacy and long-term automation systems.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Family | SLC 500 |
| Model Number | 1746-HSCE |
| Module Type | High-Speed Counter Module |
| Counting Channels | 1 High-Speed Counter Channel |
| Input Types | Quadrature A/B/Z, Pulse/Direction, Up/Down |
| Input Voltage | ±5V DC Differential / 0–5V DC Single-Ended |
| Maximum Input Frequency | 50 kHz |
| Rate Mode Frequency | 32.767 kHz |
| Outputs | 4 Open-Collector Outputs |
| Output Voltage Range | 4.5–30V DC |
| Maximum Output Current | Up to 125 mA |
| Minimum Pulse Width | 10 µs |
| Minimum Pulse Separation | 4.5 µs |
| Update Time | Approx. 4.8 ms |
| Isolation Voltage | 1500V |
| Backplane Current | 320 mA @ 5V DC |
| Mounting Type | Rack-mounted (1 slot) |
| Compatible Processors | SLC 5/02 and higher |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Recommended Cable | Belden 9503 or equivalent |
| Maximum Cable Length | 305 m |
| Dimensions | Approx. 145 mm × 35 mm × 152 mm |
| Weight | Approx. 0.30–0.50 kg |
Applications
The 1746-HSCE module is designed for industrial systems requiring fast pulse counting and precise encoder signal processing.
Typical applications include:
-
Rotary encoder feedback systems
-
Conveyor speed monitoring
-
Servo positioning applications
-
Cut-to-length machinery
-
Packaging and labeling systems
-
Motion synchronization equipment
-
Industrial counting and totalizing systems
-
CNC and indexing machinery
-
Material handling automation
Its ability to process high-speed inputs independently from PLC scan timing improves accuracy and responsiveness in dynamic industrial environments.
Advantages
High-Speed Pulse Processing
Supports pulse frequencies up to 50 kHz for accurate encoder and motion feedback applications.
Flexible Encoder Compatibility
Handles quadrature, pulse/direction, and up/down input configurations for broad industrial integration.
Independent Counter Operation
Processes high-speed signals separately from standard PLC scan cycles for improved precision.
Reliable Motion Monitoring
Provides accurate speed, direction, and position tracking in demanding automation systems.
Multiple Operating Modes
Supports Range, Rate, and Sequencer modes for flexible application deployment.
Proven Industrial Reliability
Designed for continuous operation within long-standing Allen Bradley SLC 500 automation platforms.
Technical FAQs
1. What is the primary function of the 1746-HSCE?
It performs high-speed counting and encoder signal processing for SLC 500 automation systems.
2. What types of encoder inputs are supported?
The module supports quadrature A/B/Z, pulse/direction, and up/down encoder signals.
3. What is the maximum counting frequency?
The module supports input frequencies up to 50 kHz.
4. How many outputs are included?
It includes four configurable open-collector outputs.
5. Does the module support bidirectional counting?
Yes. It can detect motion and count pulses in both directions.
6. Which SLC processors are compatible?
It works with SLC 5/02 and higher processors.
7. What operating modes are available?
The module supports Sequencer, Range, and Rate operating modes.
8. Is the module suitable for noisy industrial environments?
Yes. Differential encoder inputs improve electrical noise immunity in industrial installations.
9. What industries commonly use the 1746-HSCE?
Manufacturing, packaging, material handling, motion control, and automation industries commonly use this module.
10. Why is the 1746-HSCE still widely used?
Many facilities continue using reliable SLC 500 systems for long-term industrial automation and retrofit support.
