High-Speed Analog Signal Processing for Precision SLC 500 Automation

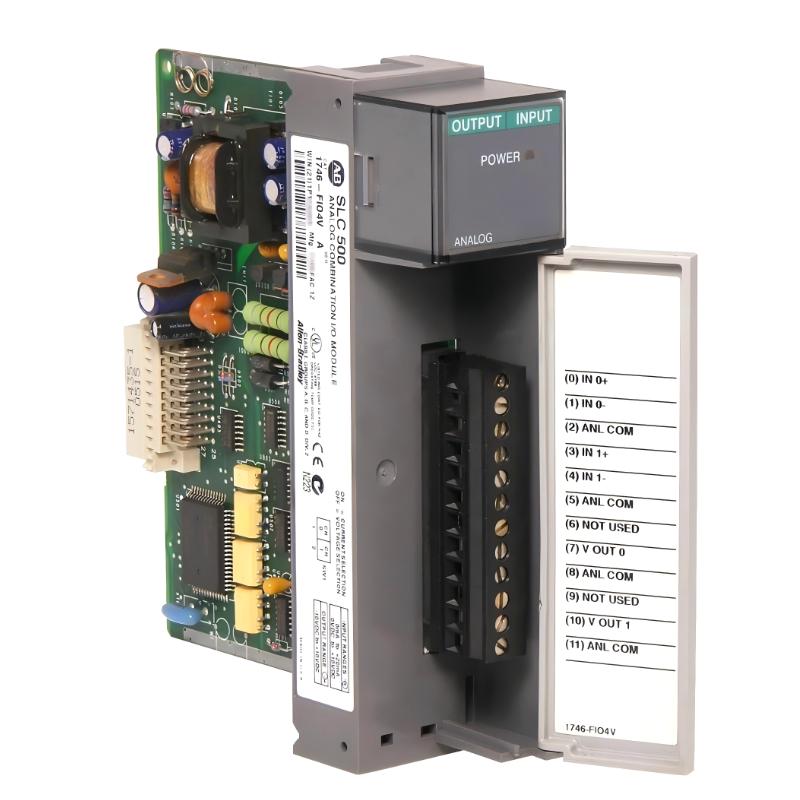

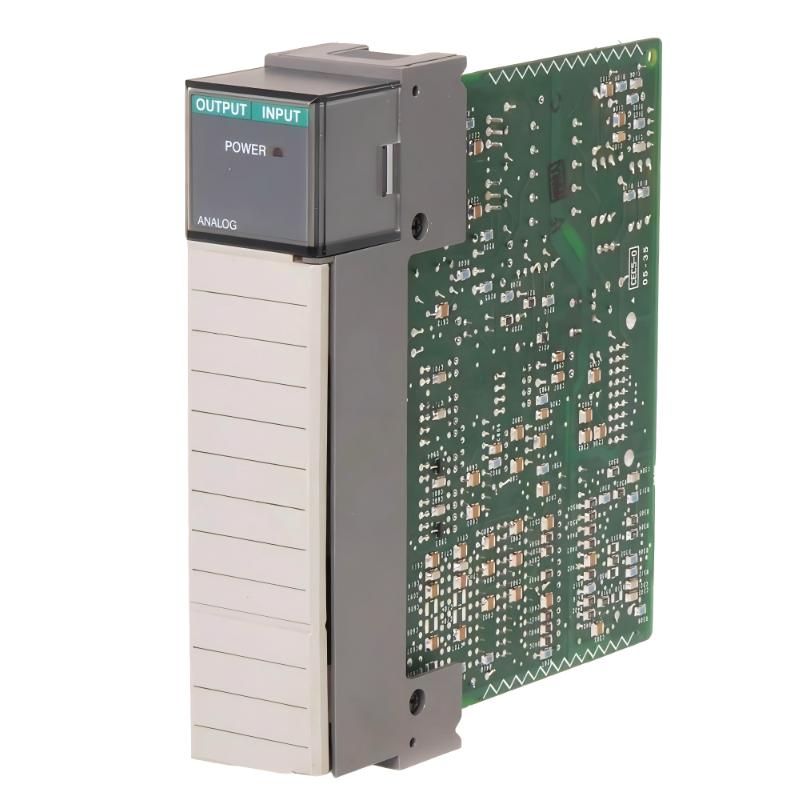

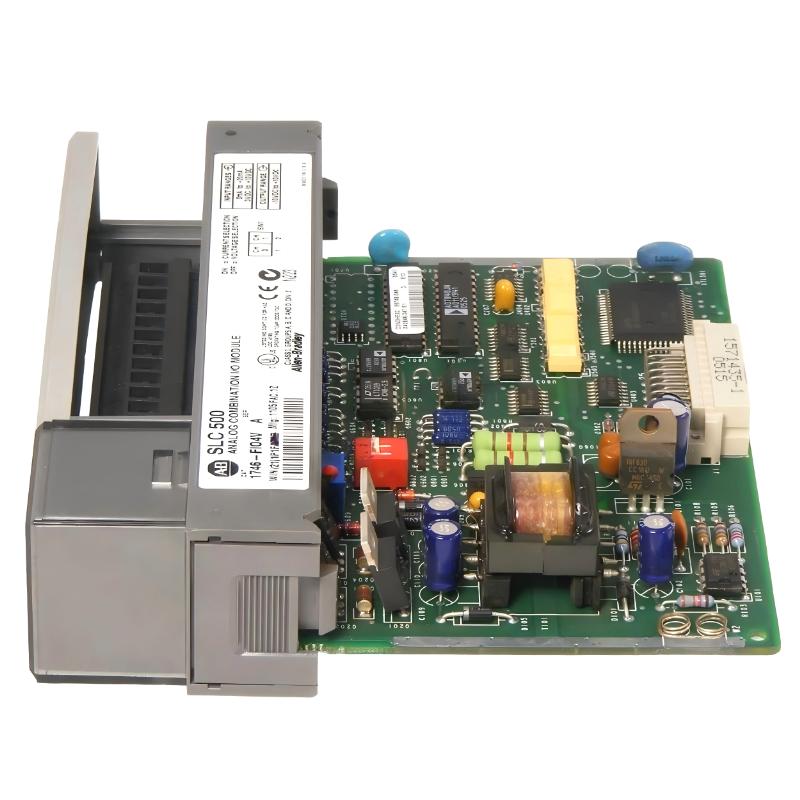

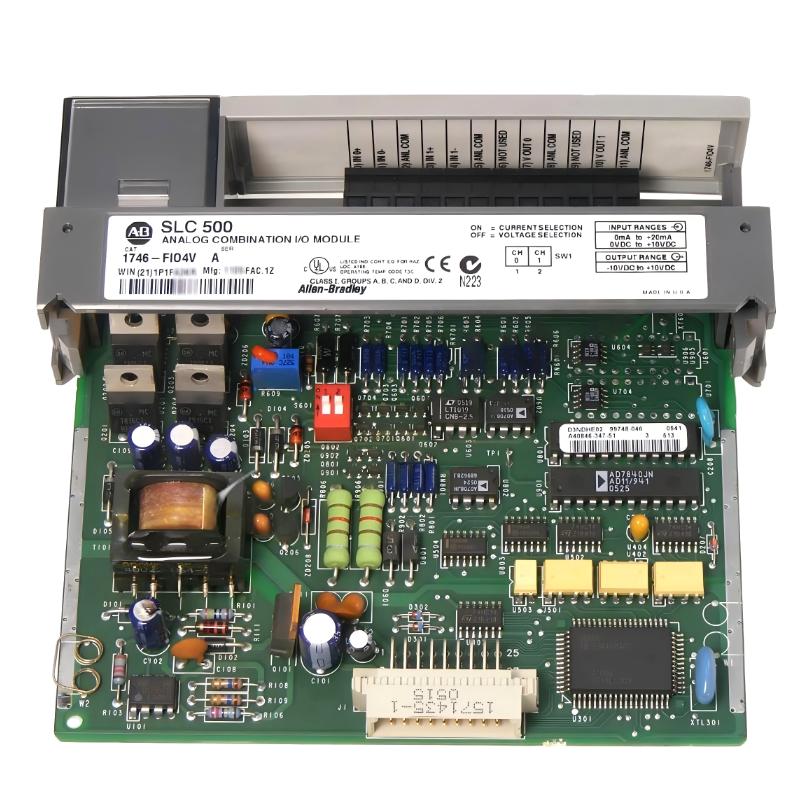

The Allen Bradley 1746-FIO4V Fast Analog I/O Module is a specialized high-performance analog combination module engineered for the SLC 500 control platform. Designed for applications requiring rapid analog signal acquisition and output response, this module delivers precise real-time processing for demanding industrial automation systems.
Featuring two fast differential analog inputs and two high-speed analog voltage outputs, the 1746-FIO4V is ideal for motion control, servo positioning, closed-loop regulation, and high-speed instrumentation environments where standard analog modules may not provide sufficient response performance.
Its fast conversion capability, stable signal handling, and reliable SLC 500 integration make it a trusted solution for manufacturers operating precision automation systems that demand accurate analog control and consistent process responsiveness.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Family | SLC 500 |
| Model Number | 1746-FIO4V |
| Module Type | Fast Analog I/O Module |
| Input Channels | 2 Differential Analog Inputs |
| Output Channels | 2 Analog Voltage Outputs |
| Input Signal Types | Voltage / Current |
| Input Voltage Range | ±10V DC |
| Input Current Range | 0–20 mA |
| Output Voltage Range | -10V to +10V DC |
| Input Resolution | 12-bit |
| Output Resolution | 14-bit |
| Typical Conversion Time | Approx. 7.5 µs |
| Update Time | Approx. 512 µs |
| Bandwidth | 7 kHz |
| Step Response | 100 ms input / 2.5 ms output |
| Backplane Current | 55 mA @ 5V DC |
| Backplane Current | 150 mA @ 24V DC |
| Isolation Voltage | 500V DC |
| Mounting Type | Rack-mounted in SLC chassis |
| Operating Temperature | 0°C to 60°C |
| Dimensions | Approx. 145 mm × 35 mm × 152 mm |
| Weight | Approx. 0.23–0.30 kg |
Industrial Applications
The 1746-FIO4V is designed for industrial systems requiring rapid analog response and precise signal control.
Typical applications include:
-
Servo and motion positioning systems
-
High-speed closed-loop process control
-
CNC and precision machinery
-
Industrial testing and measurement systems
-
Packaging automation equipment
-
Web tension and speed control systems
-
Dynamic analog signal monitoring
-
OEM automation platforms
-
High-speed actuator control applications
Its fast analog processing capability makes it especially valuable in systems where timing precision and stable analog feedback are critical.
Performance Advantages
Ultra-Fast Analog Response
The module delivers rapid conversion and update speeds for demanding real-time automation applications.
Precision Closed-Loop Control
Supports accurate analog feedback and output control for servo, motion, and process systems.
Flexible Input Compatibility
Accepts both voltage and current input signals for broader industrial integration flexibility.
Reliable SLC 500 Integration
Designed specifically for seamless operation within Allen Bradley SLC 500 architectures.
High Analog Signal Accuracy
Differential analog inputs improve signal stability and reduce electrical noise interference.
Space-Efficient Modular Design
Single-slot construction helps optimize cabinet space while expanding system capability.
Technical FAQs
1. What is the primary function of the 1746-FIO4V?
It provides high-speed analog input and output processing for SLC 500 automation systems.
2. How many analog channels are included?
The module includes two analog inputs and two analog voltage outputs.
3. What input signal types are supported?
It supports voltage and current analog input signals.
4. What output signal range does it provide?
The outputs support approximately -10V to +10V DC analog signals.
5. Why is this module considered “fast”?
It features very rapid analog conversion and update times for real-time control applications.
6. What systems is it compatible with?
It is designed for Allen Bradley SLC 500 chassis systems.
7. Is it suitable for motion control applications?
Yes. It is commonly used in servo positioning and dynamic motion systems.
8. What resolution does the module provide?
It provides 12-bit input resolution and 14-bit output resolution.
9. Does the module support electrical isolation?
Yes. It includes field wiring to backplane isolation protection.
10. What industries commonly use the 1746-FIO4V?
Manufacturing, motion control, packaging, testing, and precision industrial automation industries commonly use this module.
