Rugged Machine-Mount Digital Input Solution for Harsh Industrial Environments

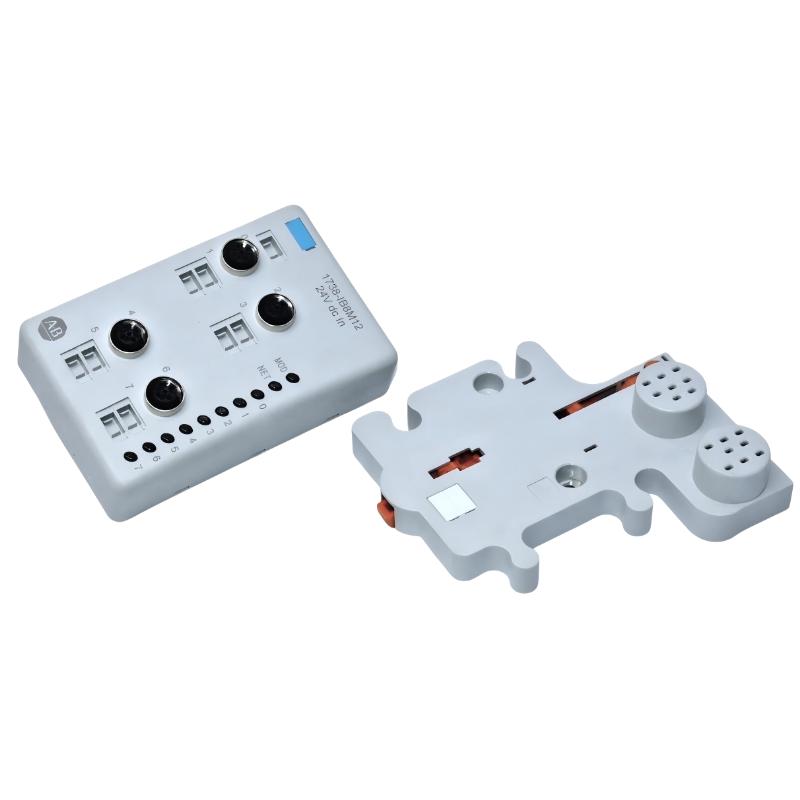

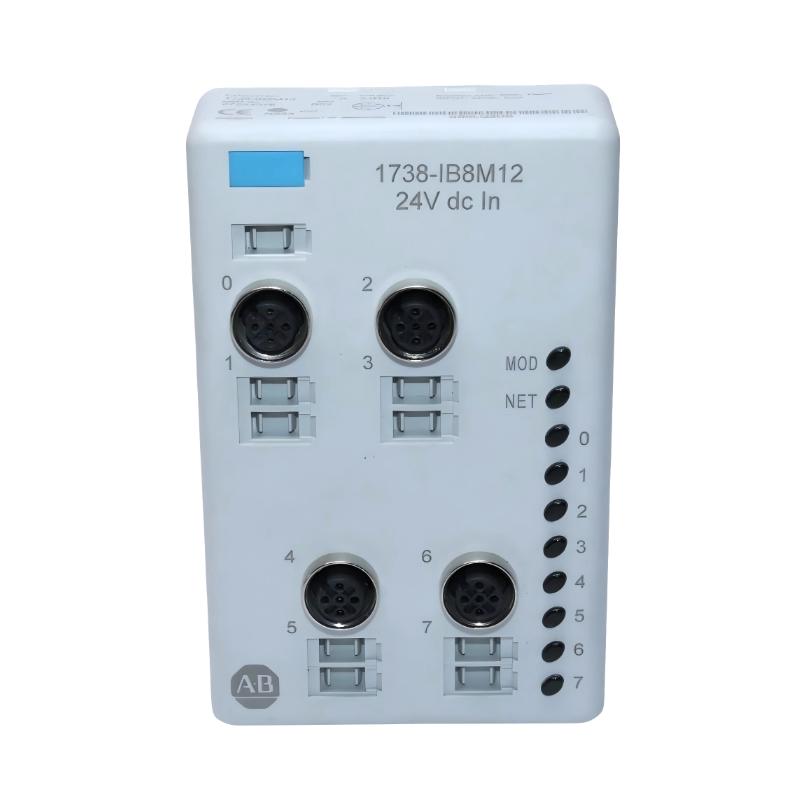

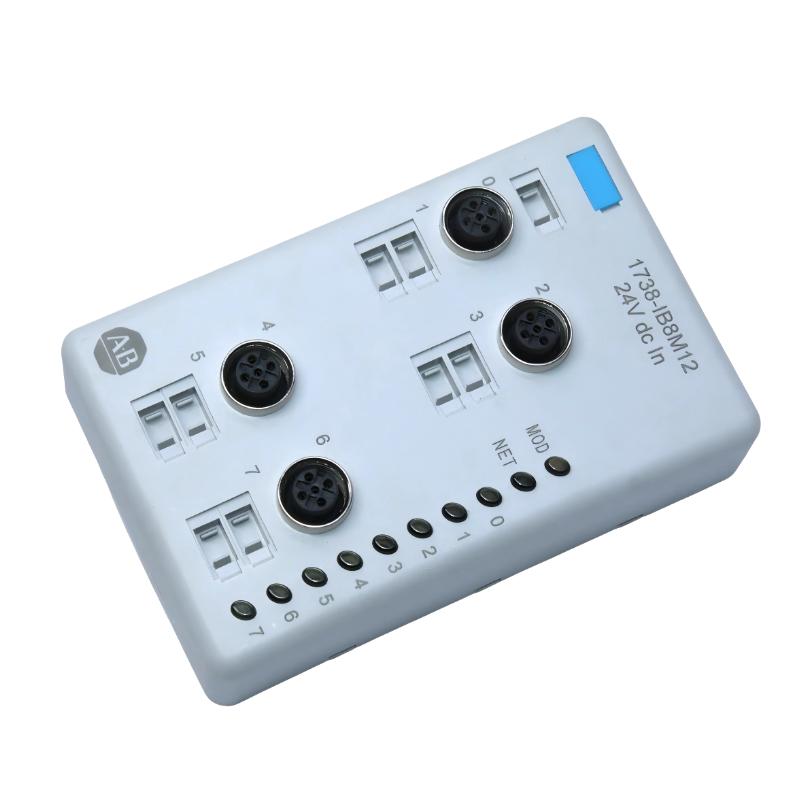

The Allen Bradley 1738-IB8M12 ArmorPoint Digital Input Module is a high-performance distributed I/O module designed for demanding machine-level automation applications. As part of the ArmorPOINT I/O family, this module delivers reliable 24V DC sinking digital input capability while supporting direct on-machine installation in harsh industrial environments.
Equipped with eight digital sinking inputs and rugged M12 micro connectors, the 1738-IB8M12 simplifies field wiring and reduces the need for traditional control cabinets. Its sealed IP67-rated housing provides excellent resistance against dust, moisture, vibration, and washdown conditions, making it ideal for decentralized industrial automation systems.
Designed for seamless integration with EtherNet/IP and other ArmorPOINT communication architectures, the module helps manufacturers improve installation flexibility, wiring efficiency, and machine uptime in modern industrial operations.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Family | ArmorPOINT I/O |
| Model Number | 1738-IB8M12 |
| Module Type | Digital Input Module |
| Input Channels | 8 Sinking Inputs |
| Input Type | 24V DC Sink |
| Nominal Input Voltage | 24V DC |
| Voltage Range | 10–28.8V DC |

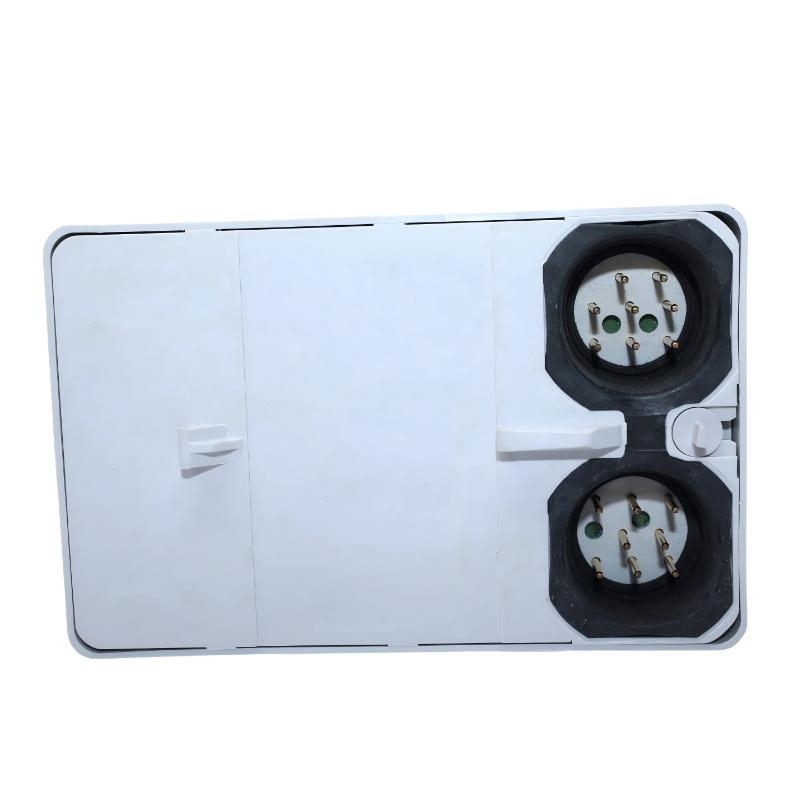

| Connector Type | DC Micro M12 |
| Input Configuration | 1 Group of 8 Non-Isolated Inputs |
| On-State Input Current | 4 mA @ 24V DC |
| Off-State Input Current | ≤1.5 mA |
| Input Delay Time | 0.5 ms hardware + selectable filtering |
| PointBus Current | Approx. 75 mA |
| Power Dissipation | Approx. 1.6 W |
| Housing Protection | IP65 / IP66 / IP67 / IP69K |
| Mounting Type | On-machine installation |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 111.6 × 71.6 × 37.8 mm |
| Weight | Approx. 0.35–0.43 kg |
Industrial Applications
The 1738-IB8M12 is widely used in distributed industrial automation systems where rugged machine-level digital input connectivity is required.
Typical applications include:
-
Automotive production systems
-
Conveyor and material handling equipment
-
Packaging and labeling machinery
-
Robotics and assembly automation
-
Food and beverage production lines
-
Distributed sensor integration systems
-
OEM machine platforms
-
Washdown industrial environments
Its compact sealed design makes it especially suitable for decentralized installations close to field devices and sensors.
Key Advantages
Rugged IP67/IP69K Machine-Mount Design
The sealed enclosure supports direct installation on machinery without requiring additional protective cabinets.
Simplified Sensor Connectivity
Integrated M12 connectors reduce installation time and improve wiring efficiency in distributed automation systems.
Reliable High-Speed Input Performance
Fast input response and selectable filtering improve signal accuracy in high-speed industrial applications.
Reduced Cabinet Wiring
On-machine I/O deployment minimizes long cable runs and helps optimize panel space.
Flexible Distributed Architecture
Works seamlessly within ArmorPOINT EtherNet/IP and distributed industrial control systems.
Excellent Harsh Environment Resistance
Designed to withstand moisture, vibration, dust, and demanding industrial operating conditions.
Technical FAQs
1. What is the primary function of the 1738-IB8M12?
It provides eight 24V DC digital sinking inputs for ArmorPOINT distributed automation systems.
2. What type of inputs does the module support?
It supports sinking digital DC inputs.
3. How many input channels are available?
The module includes 8 digital input channels grouped together.
4. What connector type is used?
It uses rugged DC Micro M12 industrial connectors.
5. Is the module suitable for harsh environments?
Yes. It supports IP65, IP66, IP67, and IP69K environmental protection ratings.
6. What voltage range does it support?
The operating voltage range is approximately 10–28.8V DC.
7. Can it be mounted directly on machinery?
Yes. The module is designed specifically for on-machine distributed I/O installation.
8. What communication systems is it compatible with?
It integrates with ArmorPOINT EtherNet/IP, ControlNet, and DeviceNet architectures through compatible adapters.
9. Does it include status diagnostics?
Yes. Individual LED indicators provide channel and module diagnostic status information.
10. What industries commonly use the 1738-IB8M12?
Automotive, packaging, manufacturing, robotics, and process automation industries commonly use this module.
