Compact One-Piece Terminal Base for High-Density Industrial I/O Wiring

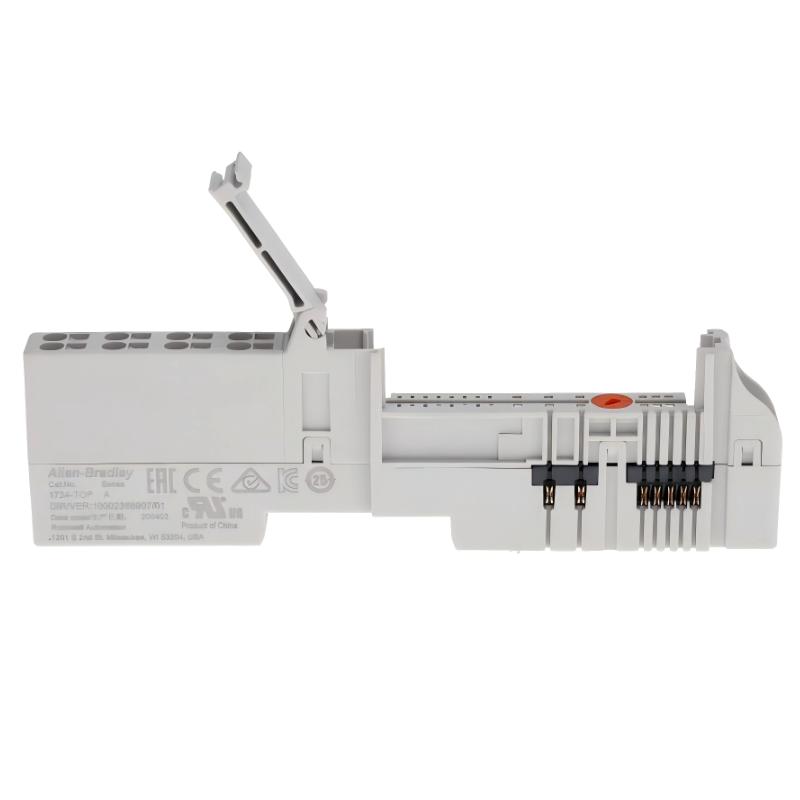

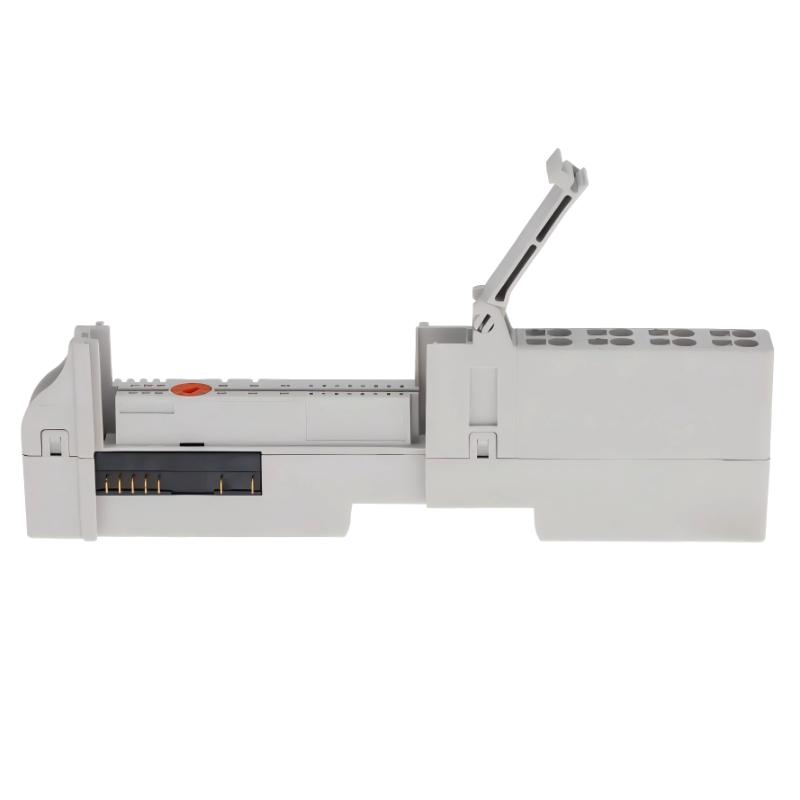

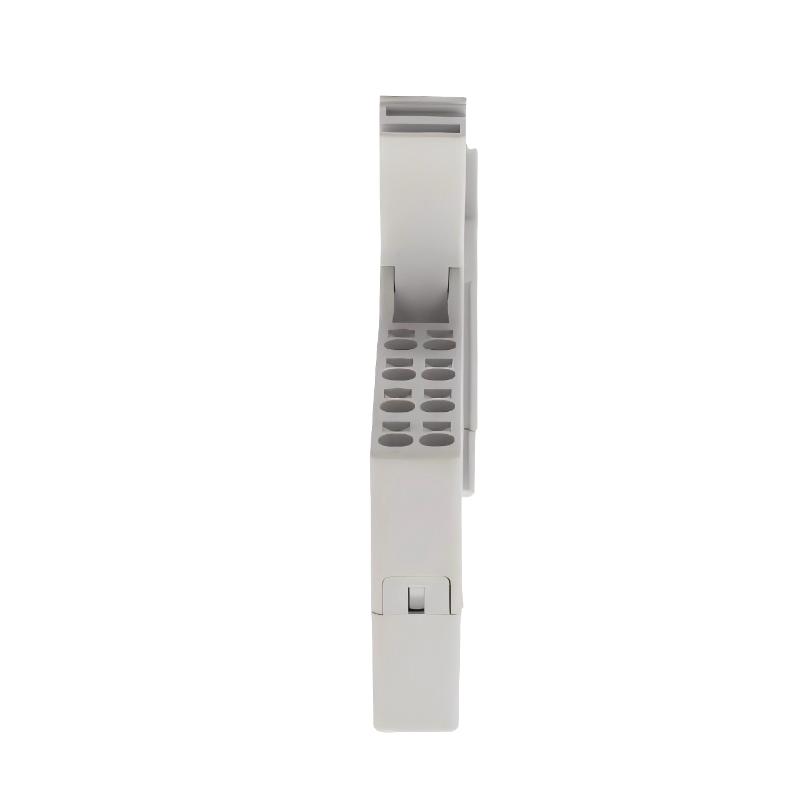

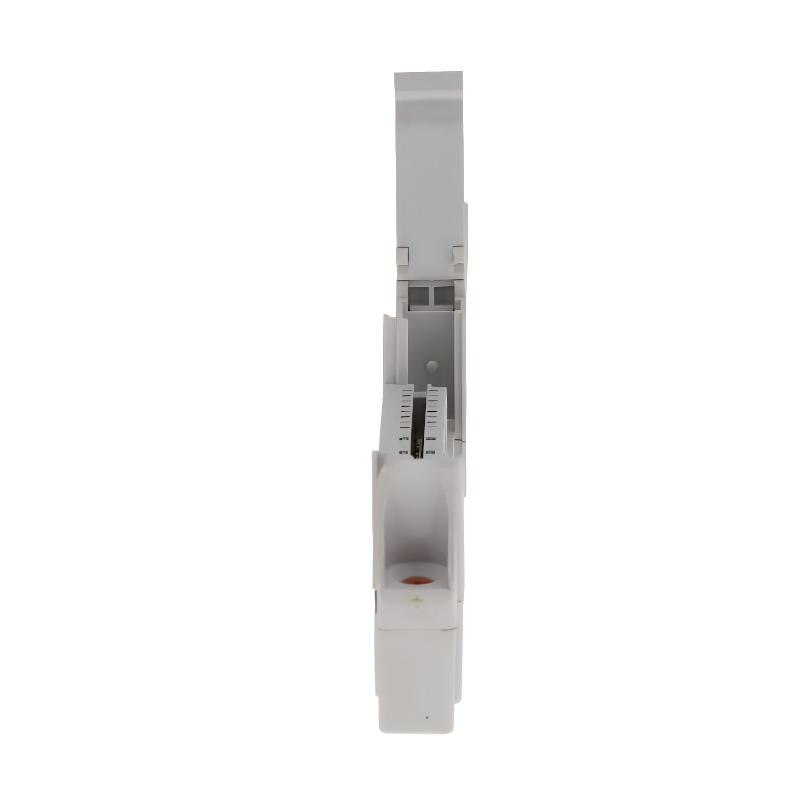

The Allen Bradley 1734-TOPS Terminal Base is a one-piece POINT I/O wiring foundation designed to provide secure electrical termination and mechanical support for POINT I/O modules in distributed industrial automation systems. It integrates spring-clamp terminal technology with a compact DIN rail-mounted structure, enabling fast installation, simplified maintenance, and reliable field wiring connectivity.
Engineered for modular automation architectures, the 1734-TOPS allows direct connection of field devices while maintaining a removable I/O module design. This ensures that modules can be replaced without disturbing existing wiring, significantly improving uptime and service efficiency in industrial environments such as manufacturing, packaging, and process control systems.
As part of the Allen Bradley POINT I/O ecosystem, the 1734-TOPS is widely used in scalable control systems requiring high wiring density, structured panel layout, and robust operational reliability.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Family | POINT I/O |
| Model Number | 1734-TOPS |
| Module Type | One-Piece Terminal Base |
| Terminal Type | Spring-clamp |
| Number of Terminals | 8 |
| Wire Size Range | 22–14 AWG |
| Mounting Method | DIN rail |
| Input Voltage Rating | 24V DC / 120–240V AC (system dependent) |
| Terminal Voltage Rating | Up to 300V |
| Maximum Terminal Current | Up to 8A |
| Operating Temperature | -20°C to 55°C |
| Installation Style | Open-style modular base |
| Dimensions | Approx. 144 mm × 12 mm × 49 mm |
| Weight | Approx. 0.06 kg |
Applications
The 1734-TOPS is used as the structural and electrical foundation for POINT I/O modules in distributed control systems where compact wiring and fast serviceability are required.
Typical applications include:
-
Industrial machine automation panels
-
Packaging and assembly systems
-
Conveyor and logistics control systems
-
OEM equipment integration
-
Remote distributed I/O nodes
-
Process automation systems
-
Factory production lines
-
Modular control cabinet designs
Its one-piece structure is especially suitable for high-density wiring environments requiring consistent installation standards.
Advantages
One-Piece Integrated Design
The all-in-one terminal base simplifies installation by combining mechanical support and wiring termination into a single compact unit.
Fast Maintenance and Module Replacement
POINT I/O modules can be removed and replaced without rewiring field connections, improving system uptime.
High-Density Wiring Capability
Eight spring-clamp terminals allow efficient use of cabinet space while maintaining organized wiring layout.
Vibration-Resistant Connections
Spring-clamp technology provides stable and secure connections in industrial environments with mechanical vibration.
Flexible System Architecture
Supports scalable POINT I/O expansion for evolving automation system requirements.
Improved Installation Efficiency
Reduces wiring time and simplifies panel assembly compared to traditional terminal block systems.
Technical FAQs
1. What is the main function of the 1734-TOPS?
It provides a one-piece terminal base for wiring and mounting POINT I/O modules.
2. How many terminals does it include?
It includes 8 spring-clamp terminals for field wiring connections.
3. What type of wiring connection does it use?
It uses spring-clamp terminals for fast and secure wiring.
4. Is it compatible with all POINT I/O modules?
It is designed for use with Allen Bradley POINT I/O module families, depending on configuration requirements.
5. What is its mounting method?
It mounts on a standard DIN rail system.
6. Can modules be replaced without rewiring?
Yes. Field wiring remains connected to the terminal base during module replacement.
7. What voltage levels does it support?
It supports system-dependent AC and DC field power configurations up to industrial ratings.
8. Is it suitable for vibration-heavy environments?
Yes. Spring-clamp terminals improve resistance to loosening caused by vibration.
9. What industries commonly use it?
Manufacturing, packaging, logistics, automotive, and process automation industries.
10. Why is it used in POINT I/O systems?
Because it enables modular wiring, fast maintenance, and scalable distributed I/O architecture.
