Efficient Electronic Output Control for High-Performance Automation Systems

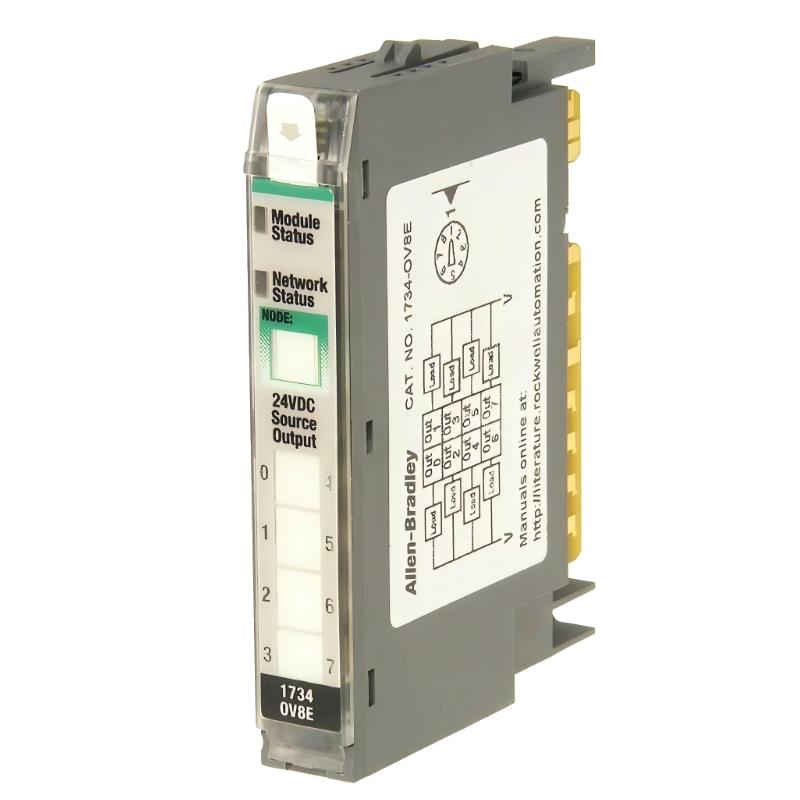

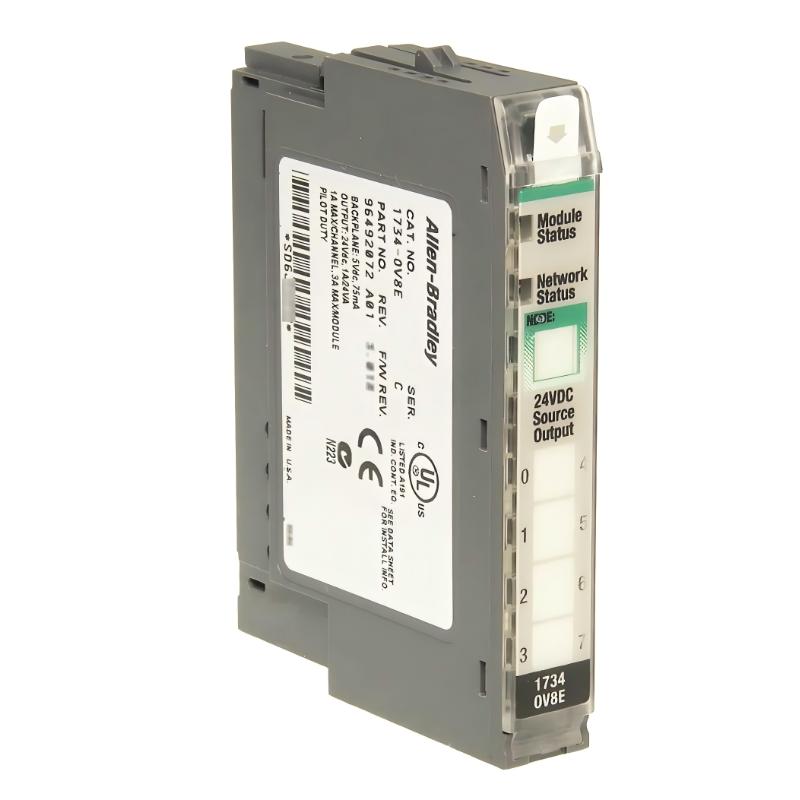

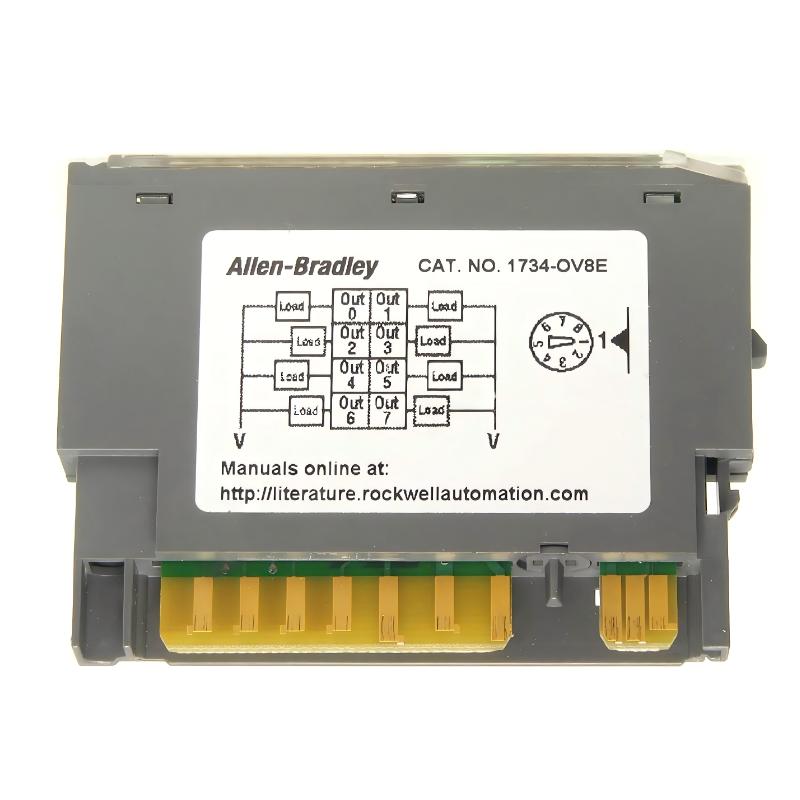

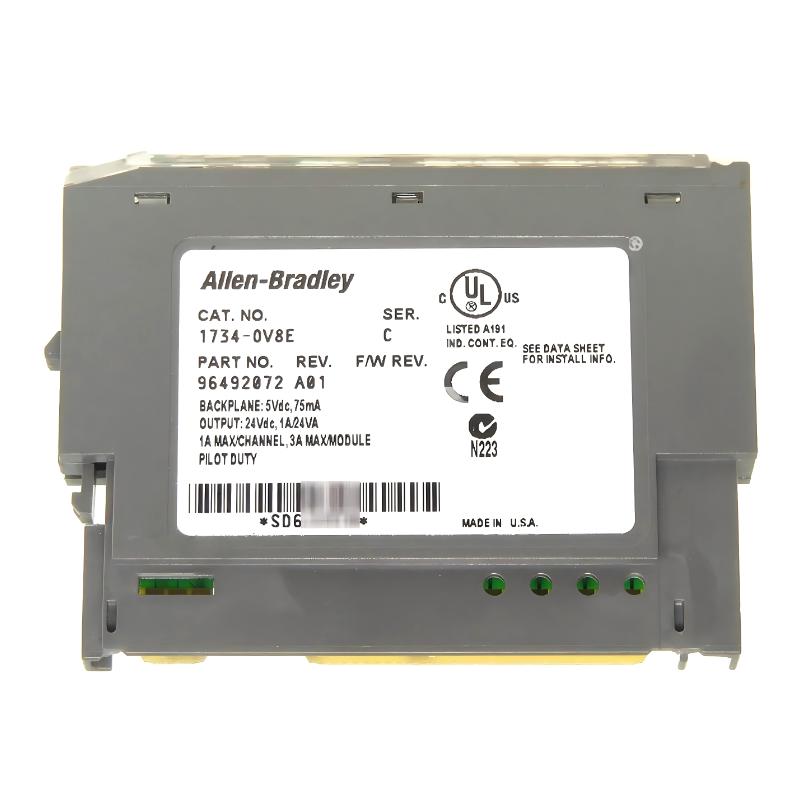

The Allen Bradley 1734-OV8E Digital Output Module is a compact POINT I/O solution developed for industrial applications requiring reliable DC electronic output control and flexible distributed I/O integration. Designed to support modern machine automation systems, this module delivers fast switching performance, simplified installation, and dependable operation in demanding production environments.
With eight electronically protected 24V DC sourcing output channels, the 1734-OV8E provides stable signal transmission for actuators, relays, solenoids, and indicator devices. Its modular POINT I/O architecture helps manufacturers optimize cabinet space while enabling scalable system expansion and streamlined maintenance access.
The module is widely used in industrial automation projects where fast response time, reliable electronic protection, and efficient EtherNet/IP integration are essential for stable production performance.
Electrical & Mechanical Specifications
| Specification | Details |
|---|
| Manufacturer | Allen Bradley |
| Product Family | POINT I/O |
| Model Number | 1734-OV8E |
| Module Type | Digital Output Module |
| Output Channels | 8 Electronic Outputs |
| Output Voltage | 24V DC |
| Output Type | Sourcing DC Output |
| Rated Output Current | 1.0 A per Channel |
| Total Module Current | 8 A Maximum |
| Output Protection | Electronic Short-Circuit Protection |
| POINTBus Current | 75 mA @ 5V DC |
| Isolation Voltage | 50V Continuous |
| Mounting Method | DIN Rail |
| Compatible Terminal Bases | 1734-TB / 1734-TBS |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 56 mm × 12 mm × 75.5 mm |
| Weight | Approx. 0.036 kg |
| Enclosure Type | Open Style |
Industrial Application Areas
The 1734-OV8E module is designed for automation systems requiring reliable DC output switching and compact distributed I/O deployment.
Typical applications include:
-
Automated packaging equipment
-
Conveyor and sorting systems
-
Assembly line automation
-
Industrial material handling systems
-
Process control machinery
-
Robotic production cells
-
OEM machine building
-
Automotive manufacturing systems
-
Distributed EtherNet/IP control architectures
Its compact form factor and electronic protection features make it highly suitable for modern industrial control panels and remote I/O assemblies.
Product Advantages
Electronic Output Protection
The module includes integrated electronic short-circuit protection to help improve system reliability and reduce downtime caused by output overload conditions.
Compact High-Density Design
Its slim POINT I/O structure allows efficient cabinet organization and maximized installation flexibility in space-limited environments.
Fast Switching Performance
The 1734-OV8E delivers responsive digital output control for industrial actuators and automation devices requiring stable switching capability.
Simplified System Expansion
As part of the POINT I/O platform, the module supports scalable distributed automation architectures with flexible future expansion options.
Easy Diagnostics and Maintenance
Integrated LED indicators provide fast visual status monitoring, helping technicians identify channel activity and fault conditions quickly.
Reliable Integration with Logix Platforms
The module integrates efficiently with Allen Bradley Logix controllers and POINT I/O adapters, simplifying engineering and commissioning processes.
Technical FAQs
1. What is the primary function of the 1734-OV8E module?
The module provides electronically protected digital DC output control for industrial automation devices.
2. How many output channels are included?
The 1734-OV8E features eight digital output channels.
3. What output voltage does the module support?
It operates with 24V DC sourcing outputs.
4. Does the module include electronic protection?
Yes. Integrated electronic short-circuit protection helps safeguard output channels during abnormal load conditions.
5. Is the module compatible with POINT I/O systems?
Yes. It is fully designed for Allen Bradley POINT I/O distributed automation architectures.
6. What mounting method is required?
The module is installed using standard DIN rail mounting.
7. Which terminal bases are compatible?
The 1734-TB and 1734-TBS terminal bases are commonly used with this module.
8. What industries commonly use the 1734-OV8E?
Manufacturing, logistics, packaging, automotive, and machine automation industries frequently deploy this module.
9. Is the module suitable for compact control cabinets?
Yes. Its narrow housing design is optimized for high-density industrial panel installations.
10. Can the module operate continuously in industrial environments?
Yes. The 1734-OV8E is engineered for stable long-term industrial automation operation.
