Reliable Multi-Channel Input Control for Distributed Automation Systems

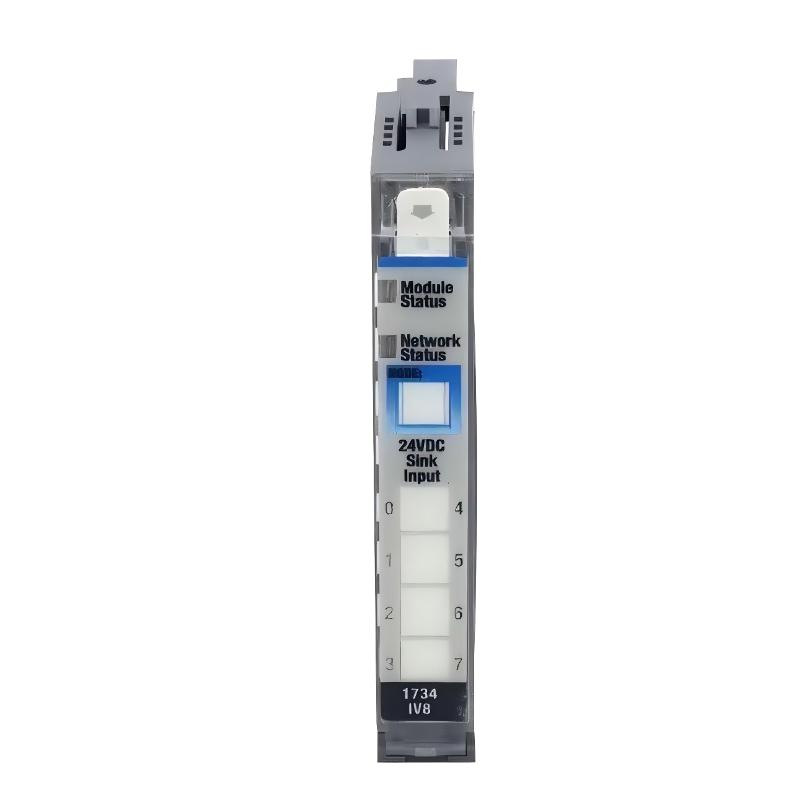

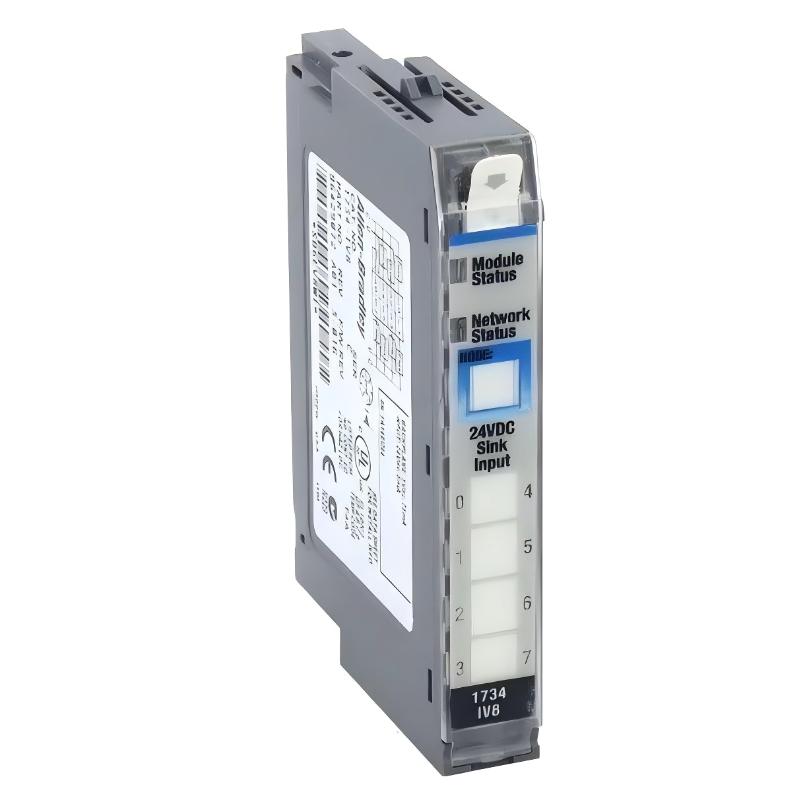

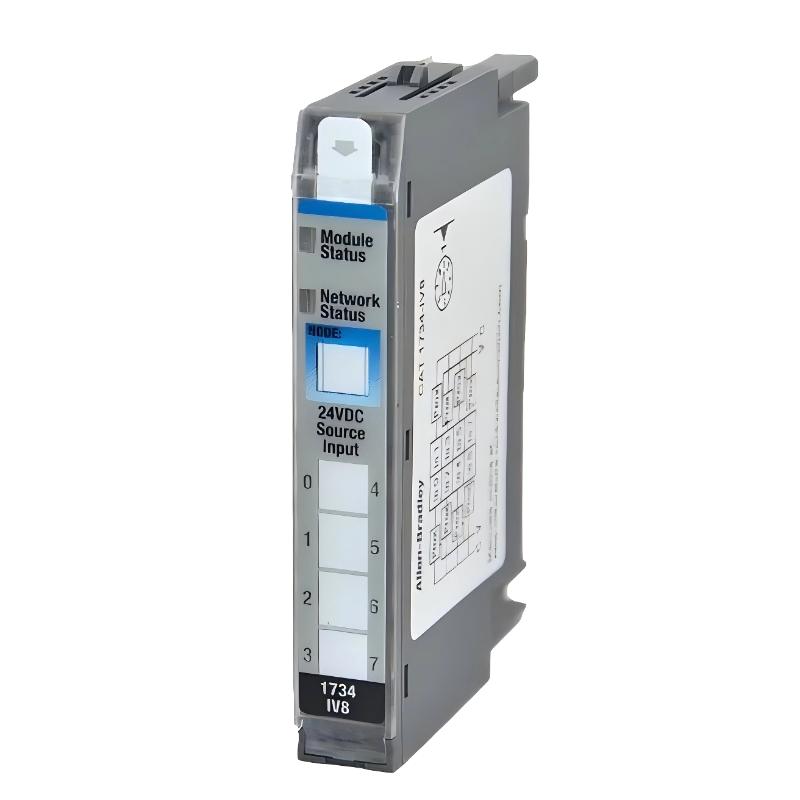

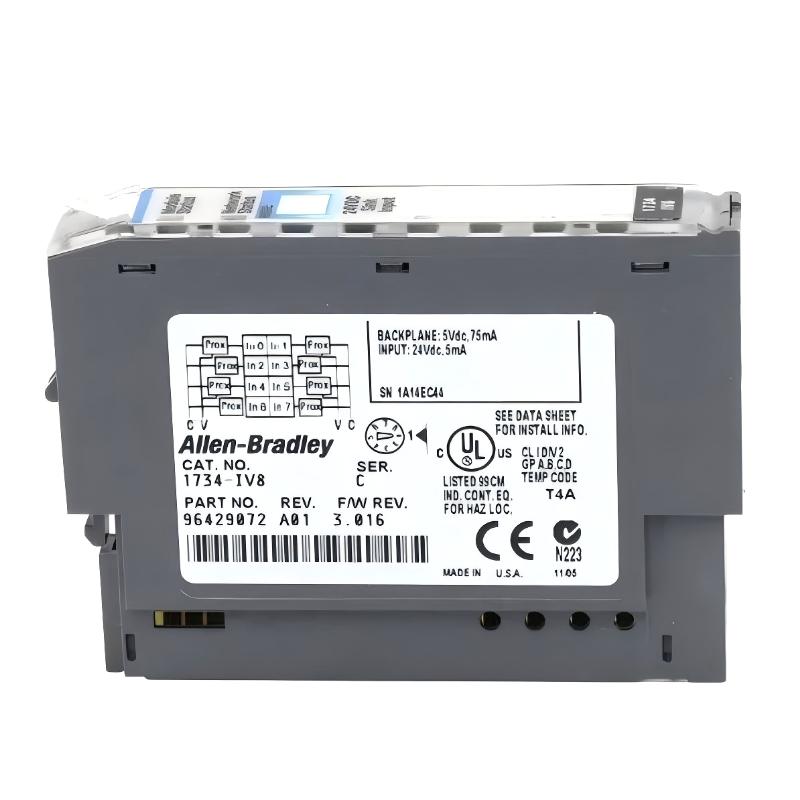

The Allen Bradley 1734-IV8 Digital Input Module is a compact and high-efficiency POINT I/O component designed for industrial automation systems that demand dependable signal acquisition and flexible installation. Engineered to support modern distributed control architectures, this module delivers stable digital input performance while helping reduce cabinet space and wiring complexity.
Featuring eight 24V DC sourcing input channels, the 1734-IV8 is ideal for integrating sensors, push buttons, proximity switches, and other field devices into machine control systems. Its modular POINT I/O structure allows users to build scalable automation networks with improved maintenance accessibility and streamlined expansion capability.
The module is widely trusted in manufacturing and process automation environments where reliable data collection, fast response time, and long-term operational stability are essential.
Product Configuration Details
| Technical Item | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Family | POINT I/O |
| Model Number | 1734-IV8 |
| Module Category | Digital Input Module |
| Number of Inputs | 8 Digital Inputs |
| Input Type | DC Sourcing Input |
| Rated Voltage | 24V DC |
| Input Voltage Range | 10–28.8V DC |
| Mounting Method | DIN Rail |
| Enclosure Style | Open Style |
| Isolation Voltage | 50V Continuous |
| POINTBus Current | 75 mA @ 5V DC |
| Power Dissipation | 1.6 W |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 56 mm × 12 mm × 75.5 mm |
| Weight | Approx. 0.03 kg |
| Compatible Terminal Bases | 1734-TB / 1734-TBS |
Common Industrial Applications
The 1734-IV8 module is designed for industrial environments where accurate digital input monitoring and compact I/O deployment are critical.
Typical applications include:
-
Automated production equipment
-
Conveyor and logistics systems
-
Packaging machinery
-
Process control systems
-
Automotive manufacturing lines
-
Material handling systems
-
Compact machine panels
-
Distributed EtherNet/IP I/O networks
-
Sensor monitoring stations
Its modular configuration makes it especially valuable in systems requiring flexible expansion and simplified maintenance.
Performance Highlights
Compact Modular Footprint
The slim housing design helps maximize cabinet space while allowing efficient high-density I/O installation.
Stable Signal Acquisition
The module delivers reliable digital input monitoring for industrial sensors and switching devices operating under demanding conditions.
Easy System Expansion
As part of the POINT I/O platform, the 1734-IV8 supports scalable automation architectures that can grow alongside production requirements.
Simplified Maintenance and Diagnostics
Integrated LED channel indicators provide fast visual status monitoring, helping reduce troubleshooting time during maintenance operations.
Efficient Integration with Allen Bradley Systems
The module works seamlessly with POINT I/O adapters and Logix-based controllers, supporting efficient configuration and commissioning.
Durable Industrial Operation
Designed for continuous industrial use, the 1734-IV8 maintains dependable performance in environments affected by vibration, electrical noise, and temperature variation.
Technical FAQs
1. What is the primary purpose of the 1734-IV8 module?
The module is used to collect digital input signals from industrial field devices and transmit them to the control system.
2. How many digital inputs are included?
The 1734-IV8 provides eight digital input channels.
3. What input voltage does the module support?
It is designed for 24V DC operation with an input range of 10–28.8V DC.
4. Is the module compatible with POINT I/O systems?
Yes. It is fully designed for Allen Bradley POINT I/O distributed I/O architectures.
5. What mounting method is required?
The module installs directly onto a standard DIN rail assembly.
6. Which terminal bases are compatible with this module?
The 1734-TB and 1734-TBS terminal bases are commonly used with the 1734-IV8.
7. Does the module provide visual diagnostics?
Yes. Individual LED indicators display the operational status of each input channel.
8. What industries commonly use this module?
Manufacturing, packaging, logistics, automotive, and process automation industries widely use the 1734-IV8.
9. Is the module suitable for compact control cabinets?
Yes. Its narrow form factor is optimized for high-density cabinet installations.
10. Can the module operate continuously in industrial environments?
Yes. The 1734-IV8 is engineered for reliable long-term industrial operation in demanding automation systems.
