Compact High-Speed Input Performance for Modern Control Systems

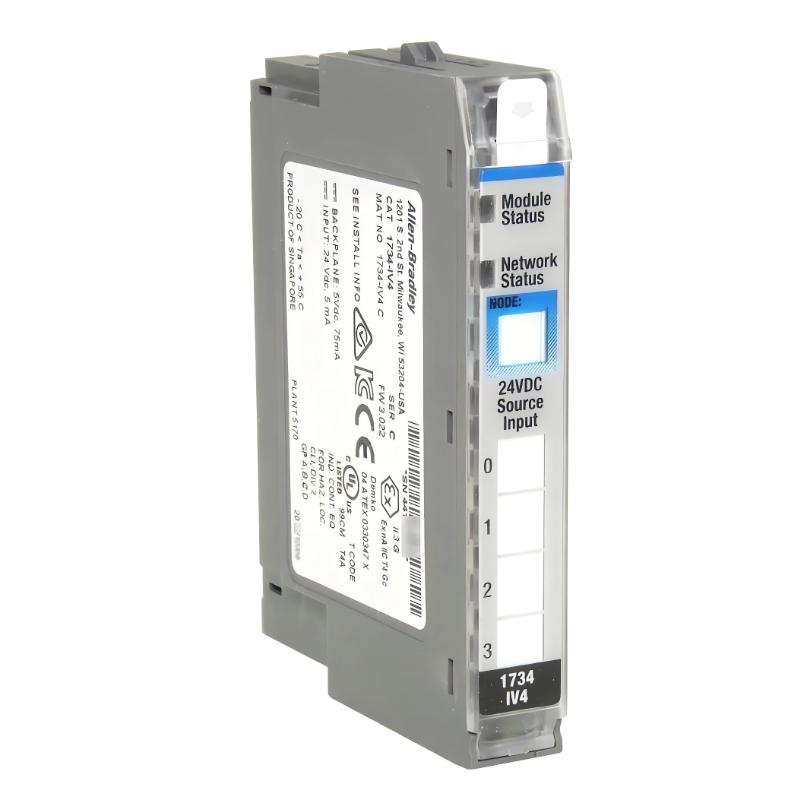

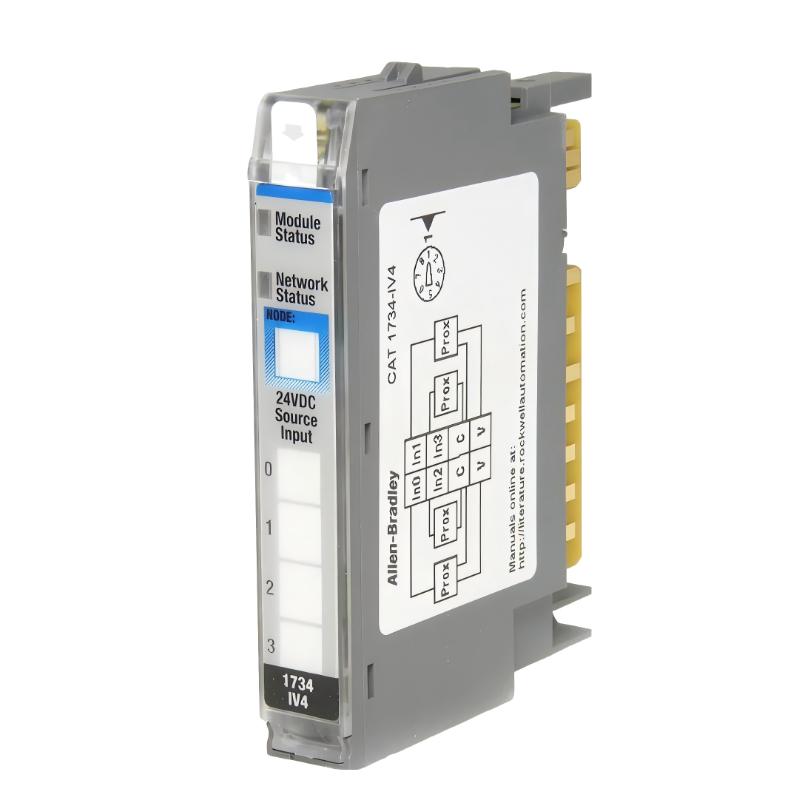

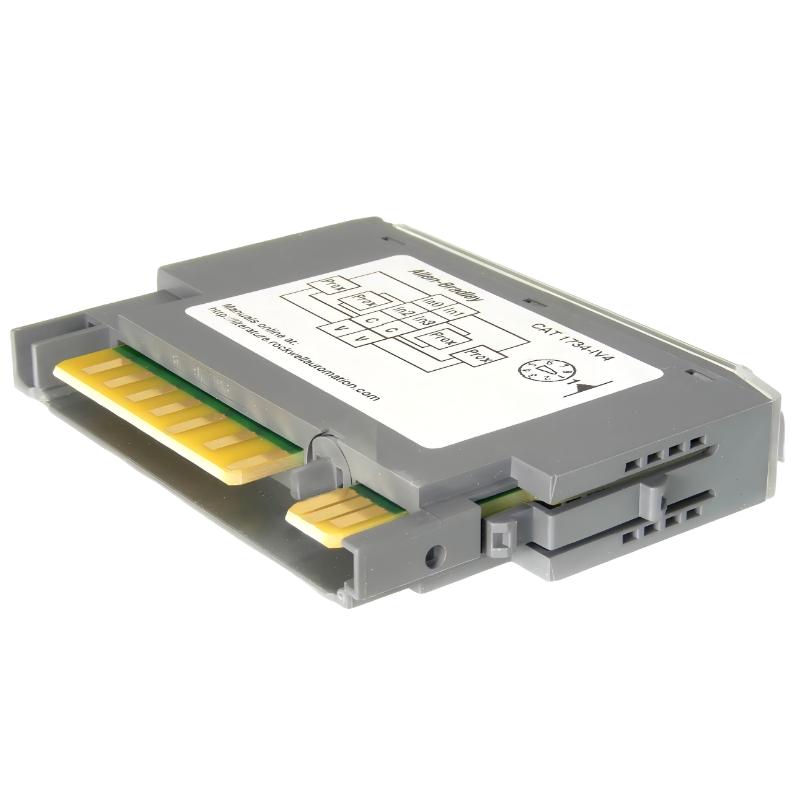

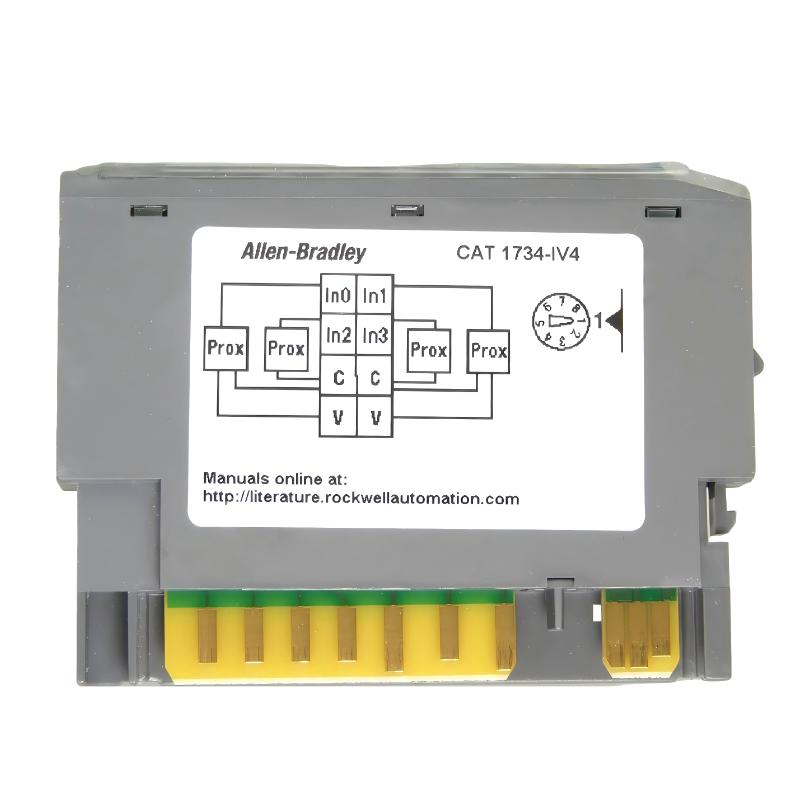

The Allen Bradley 1734-IV4 Digital Input Module is designed to provide reliable and accurate signal monitoring in distributed industrial automation environments. As part of the trusted POINT I/O family, this compact module delivers efficient integration for machine control, process automation, and remote I/O architectures where space optimization and dependable communication are critical.
With four high-quality 24V DC digital input channels, the 1734-IV4 helps manufacturers achieve responsive field-level monitoring while reducing panel footprint and simplifying installation. Its modular structure allows flexible expansion, making it an excellent choice for scalable industrial systems across a wide range of applications.
Engineered for long-term industrial reliability, the module supports fast diagnostics, stable signal processing, and seamless compatibility with modern Allen Bradley control platforms.
Product Technical Overview
| Parameter | Specification |
|---|
| Manufacturer | Allen Bradley |
| Product Series | POINT I/O |
| Model Number | 1734-IV4 |
| Module Type | Digital Input Module |
| Input Channels | 4 Digital Inputs |
| Input Voltage | 24V DC |
| Signal Type | Sinking Input |
| Communication Compatibility | POINT I/O System |
| Mounting Type | DIN Rail |
| Wiring Configuration | Removable Terminal Base |
| Isolation Voltage | 50V Continuous |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | Approx. 56 mm × 12 mm × 75.5 mm |
| Weight | Approx. 0.04 kg |
| Certifications | CE, UL, CSA |
Industrial Usage Scenarios
The 1734-IV4 module is commonly deployed in automation systems requiring compact and dependable digital signal acquisition.
Typical industries and applications include:
-
Packaging and labeling machinery
-
Conveyor monitoring systems
-
Factory automation lines
-
Material handling equipment
-
Food and beverage production
-
Assembly stations
-
Process monitoring systems
-
Automated inspection equipment
-
Distributed remote I/O networks
Its slim profile makes it especially suitable for installations where cabinet space is limited but reliable input performance is still required.
Key Product Strengths
Space-Efficient Design
The narrow POINT I/O form factor allows more modules to be installed within smaller control panels, improving cabinet organization and flexibility.
Fast and Stable Input Processing
The module delivers dependable digital signal acquisition for industrial sensors, switches, and field devices operating in demanding environments.
Flexible System Expansion
Its modular architecture enables users to easily expand automation systems without redesigning the entire control structure.
Simplified Maintenance
Clear channel indicators provide quick visual diagnostics, helping maintenance teams identify operational status efficiently.
Reliable Industrial Durability
Designed for continuous industrial operation, the 1734-IV4 supports stable performance under vibration, temperature fluctuation, and electrical noise conditions.
Efficient Integration
The module integrates smoothly with Allen Bradley POINT I/O adapters and Logix-based control systems, reducing engineering complexity during deployment.
Technical FAQs
1. What is the main function of the 1734-IV4 module?
The module monitors and transmits digital input signals from field devices to the industrial control system.
2. How many input points are available?
The 1734-IV4 provides four digital input channels.
3. What voltage does the module support?
It operates using 24V DC input signals.
4. Is the module compatible with POINT I/O systems?
Yes. It is specifically designed for Allen Bradley POINT I/O architectures.
5. What mounting method is used?
The module is installed on standard DIN rail systems.
6. Can the module be used in distributed automation systems?
Yes. It is commonly used in remote and distributed I/O applications.
7. Does the module include status indicators?
Yes. LED indicators provide visual channel and operational diagnostics.
8. What industries typically use the 1734-IV4?
Manufacturing, packaging, logistics, food processing, and machine automation industries frequently use this module.
9. Is the module suitable for compact control cabinets?
Yes. Its slim footprint is ideal for installations with limited panel space.
10. Can the 1734-IV4 operate continuously in industrial environments?
Yes. The module is engineered for stable long-term industrial operation under standard automation conditions.
