Introduction

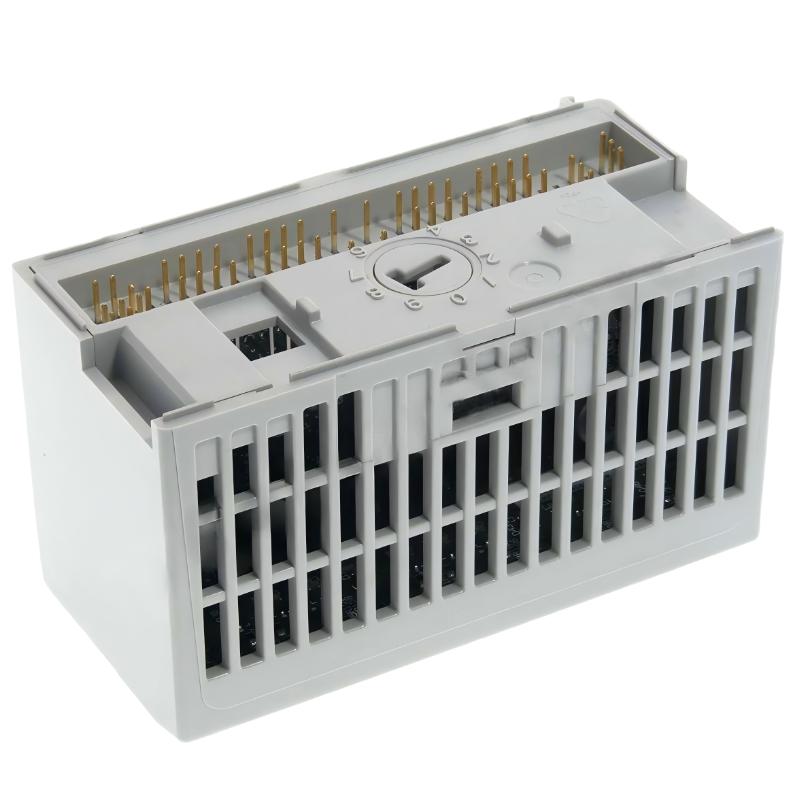

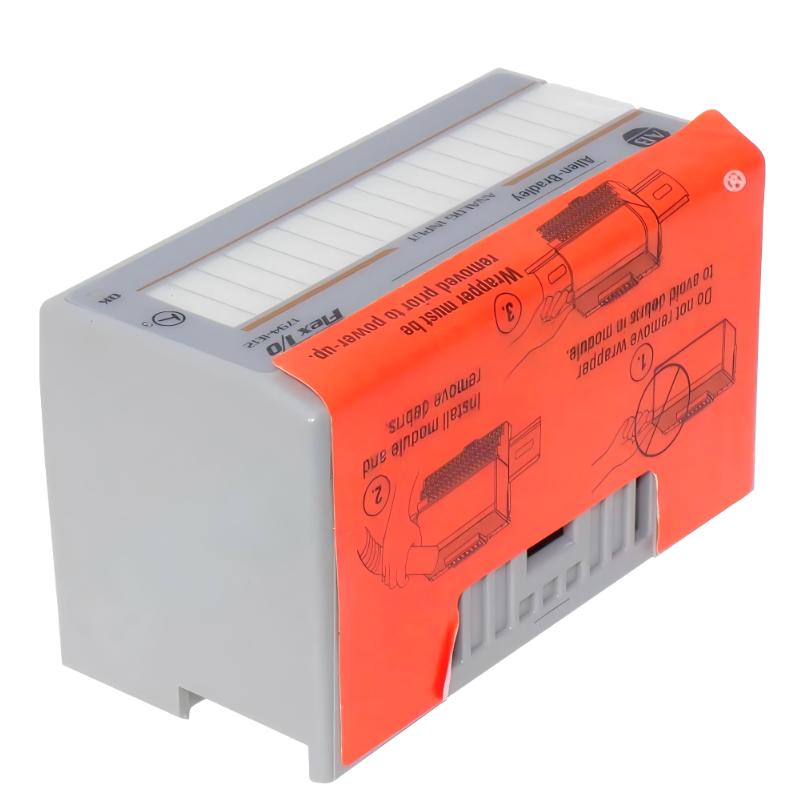

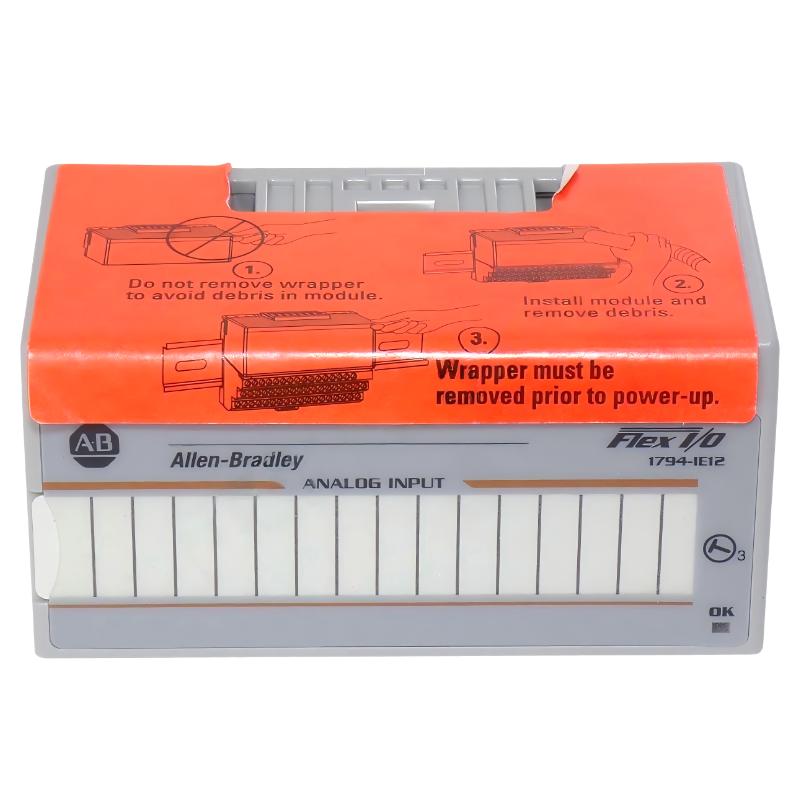

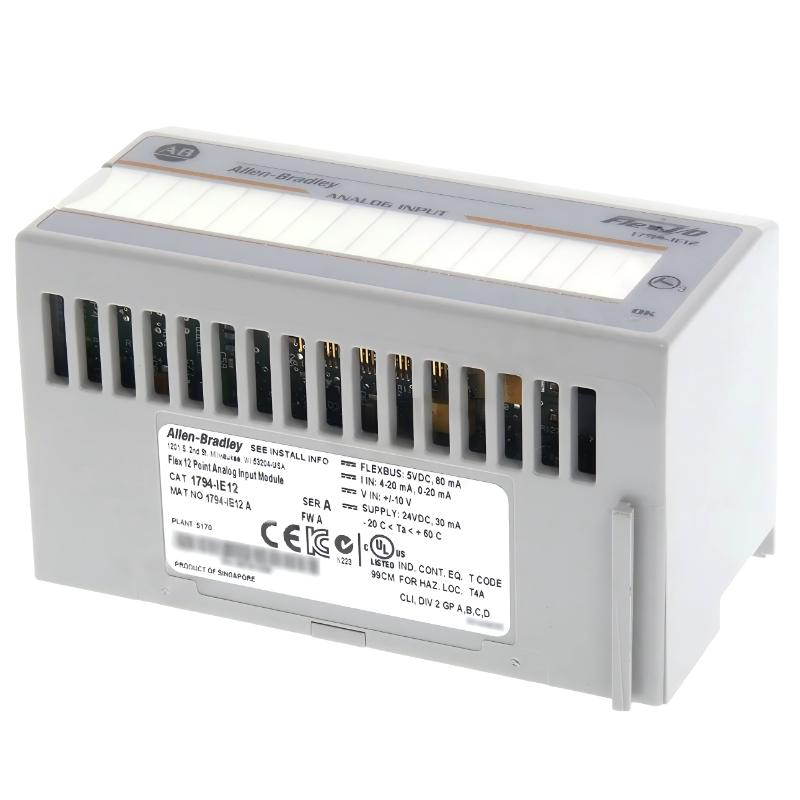

The Allen Bradley 1794-IE12 FLEX I/O Analog Input Module is a high-performance analog signal acquisition module designed for distributed automation systems requiring precise measurement and stable data conversion. As part of the FLEX I/O family, it enables efficient integration of analog field signals into PLC architectures while maintaining a compact footprint and scalable system design.
Built for industrial environments where accuracy and consistency matter, the 1794-IE12 is widely used in process monitoring, machine control, and remote I/O applications that rely on dependable analog data interpretation.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model Number | 1794-IE12 |
| Module Type | FLEX I/O Analog Input Module |
| Input Channels | 12 Single-Ended Inputs |
| Input Signal Types | Voltage / Current (configurable per channel) |
| Voltage Input Range | ±10V DC (typical) |
| Current Input Range | 0–20 mA / 4–20 mA |
| Resolution | 12-bit (typical) |
| Conversion Type | Successive approximation |
| Update Time | Fast scanning per channel |
| Backplane Current | ~120 mA @ 5V DC |
| Power Dissipation | ~6 W (max) |
| Isolation | Channel-to-backplane isolation |
| Communication | Via FLEX I/O adapter (EtherNet/IP, ControlNet, etc.) |
| Terminal Base | 1794-TB3 / 1794-TB3S compatible |
Applications
The 1794-IE12 is designed for precision analog monitoring in a wide range of industrial automation environments:
-
Process control systems (flow, pressure, temperature monitoring)
-
Industrial machinery condition monitoring
-
Energy management and utility systems
-
Remote analog signal acquisition stations
-
Packaging and production line feedback systems
-
OEM equipment requiring scalable analog I/O
Its flexible signal handling makes it suitable for both voltage and current-based instrumentation systems.
Technical FAQs
1. What type of signals does the 1794-IE12 support?
It supports analog voltage (±10V) and current signals (4–20 mA, 0–20 mA).
2. How many input channels are available?
It provides 12 analog input channels.
3. Is each channel configurable?
Yes, channels can typically be configured for voltage or current input types.
4. What is the resolution of the module?
It provides 12-bit analog resolution.
5. What is the typical application of this module?
It is used in process monitoring, machine control, and industrial data acquisition systems.
6. Does it require a terminal base?
Yes, it must be installed on a FLEX I/O terminal base such as 1794-TB3.
7. Is it compatible with ControlLogix systems?
Yes, through FLEX I/O communication adapters.
8. What is the weight of the module?
Approximately 0.30 kg.
9. Can it be used in remote I/O setups?
Yes, it is designed for distributed and remote I/O architectures.
10. What makes it suitable for industrial environments?
Its robust design, signal accuracy, and isolation features ensure reliable operation in demanding applications.
