Introduction

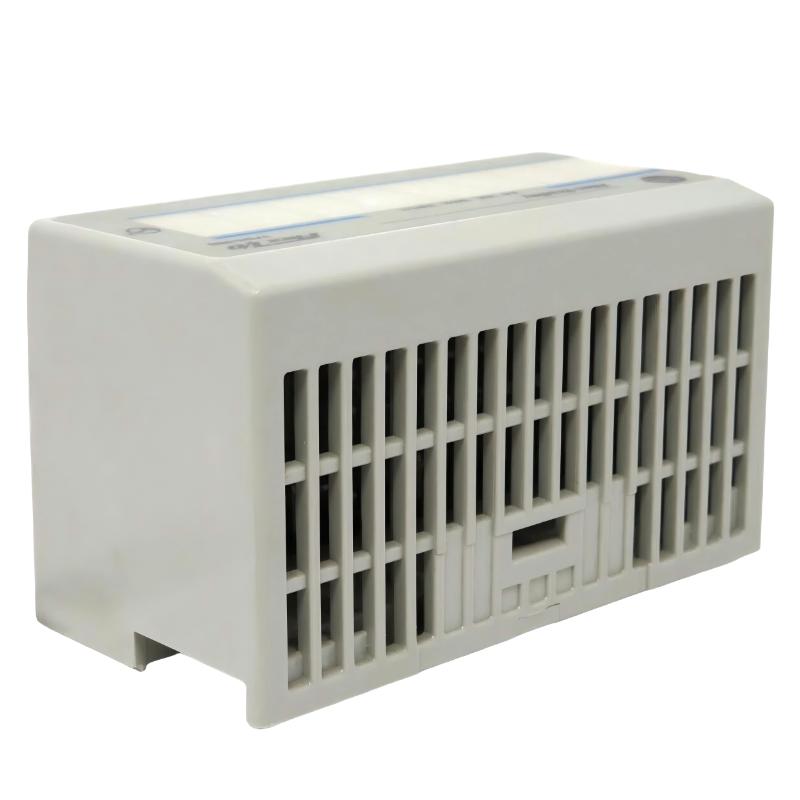

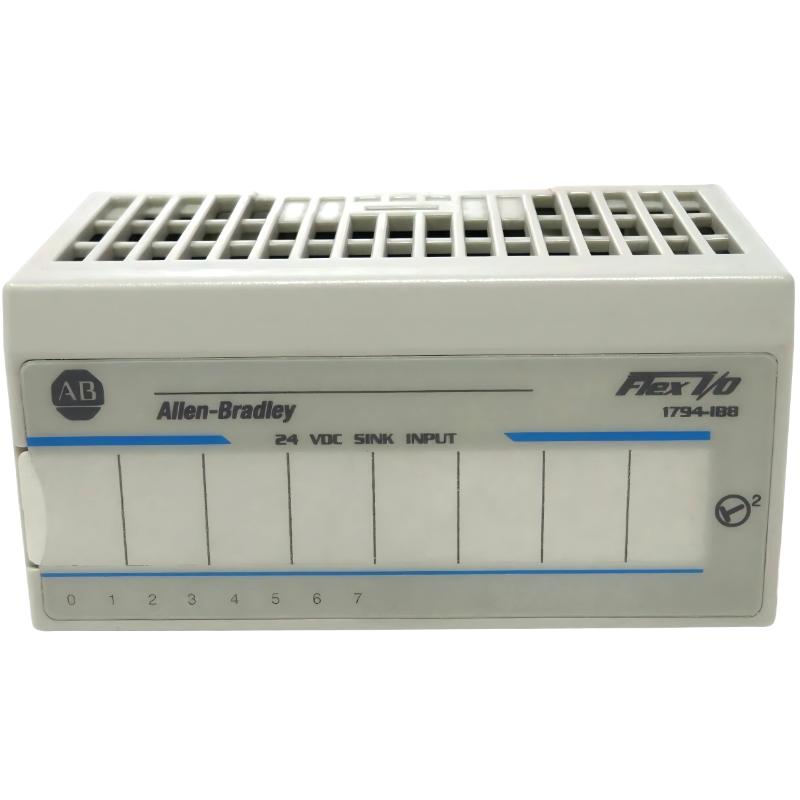

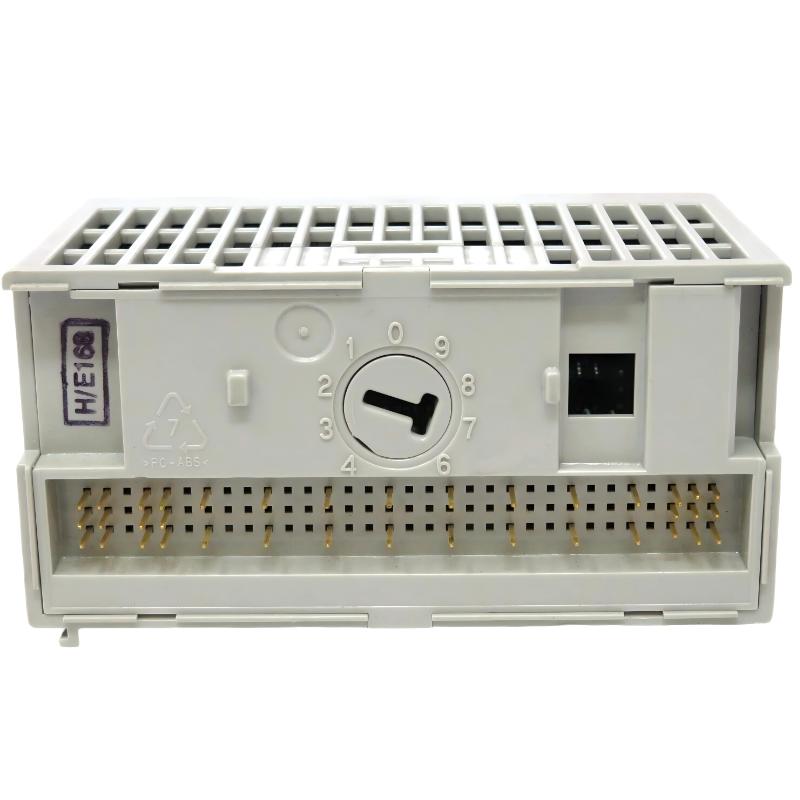

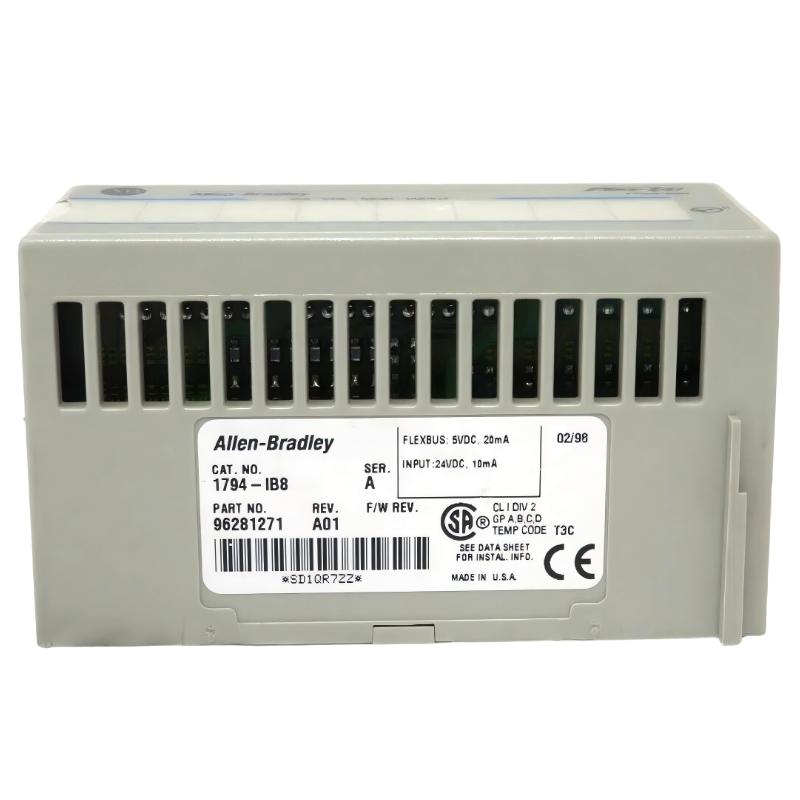

The Allen Bradley 1794-IB8 FLEX I/O DC Digital Input Module is a compact and reliable 8-point input solution designed for distributed automation systems that require flexible expansion and precise field signal acquisition. As part of the FLEX I/O platform, it enables seamless integration of discrete devices into PLC-based architectures while maintaining a minimal footprint and high system scalability.
Built for industrial-grade environments, the 1794-IB8 is widely used in machine-level control, process monitoring, and remote I/O applications where efficiency, modularity, and stable signal performance are essential.
Technical Specifications
| Parameter | Specification |
|---|
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Model Number | 1794-IB8 |
| Module Type | FLEX I/O DC Digital Input Module |
| Input Channels | 8 Points |
| Input Type | 24V DC Sinking Inputs |
| Operating Voltage Range | 10 – 31.2 V DC |
| Nominal Input Voltage | 24 V DC |
| Backplane Current | ~20 mA @ 5V DC |
| Power Dissipation | Max 3.5 W |
| Channel Isolation | None between inputs |
| Status Indicators | Individual LED per channel |
| Communication | Via FLEX I/O Adapter (EtherNet/IP, ControlNet, etc.) |
| Terminal Base | 1794-TB3 / 1794-TB3S compatible |
Applications
The 1794-IB8 is ideal for small to medium-scale input monitoring tasks in distributed control systems:
-
Compact machine automation systems
-
Conveyor and packaging equipment
-
Remote I/O panels in manufacturing plants
-
Process signal acquisition systems
-
OEM machinery control applications
-
Retrofit upgrades for legacy I/O systems
Its compact 8-channel design makes it especially useful where space is limited but reliability cannot be compromised.
Technical FAQs
1. What type of devices can be connected to the 1794-IB8?
It supports standard 24V DC field devices such as sensors, switches, and relay contacts.
2. Is this module compatible with modern PLC systems?
Yes, it integrates through FLEX I/O adapters with ControlLogix and CompactLogix systems.
3. How many inputs does it provide?
It provides 8 discrete digital input channels.
4. What is the operating voltage range?
The module operates from 10 to 31.2 V DC.
5. Does it require a terminal base?
Yes, it must be installed on a compatible FLEX terminal base such as 1794-TB3.
6. Is channel isolation available?
No, channels share a common design without individual isolation.
7. Can it be replaced under power?
Yes, FLEX I/O supports removal and insertion under power depending on system configuration.
8. What is the typical installation environment?
It is designed for industrial control cabinets using DIN rail mounting.
9. Is it suitable for high-speed input signals?
It is intended for standard discrete signals, not high-speed counting applications.
10. What is the main advantage over larger modules?
Its compact size makes it ideal for small I/O expansions and space-constrained installations.
