High-Density Mixed I/O Control for Scalable Industrial Automation Systems

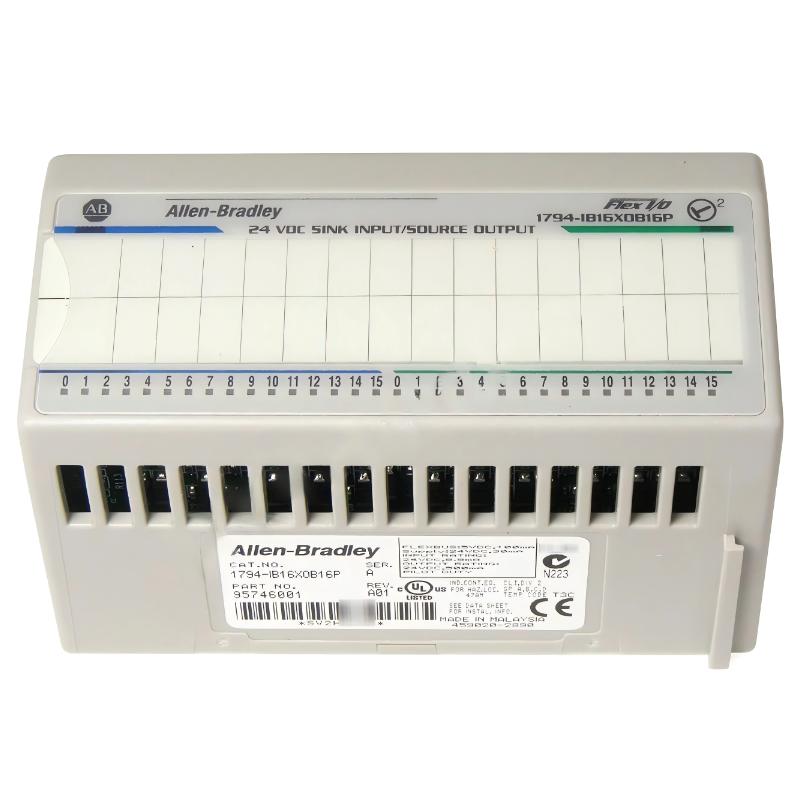

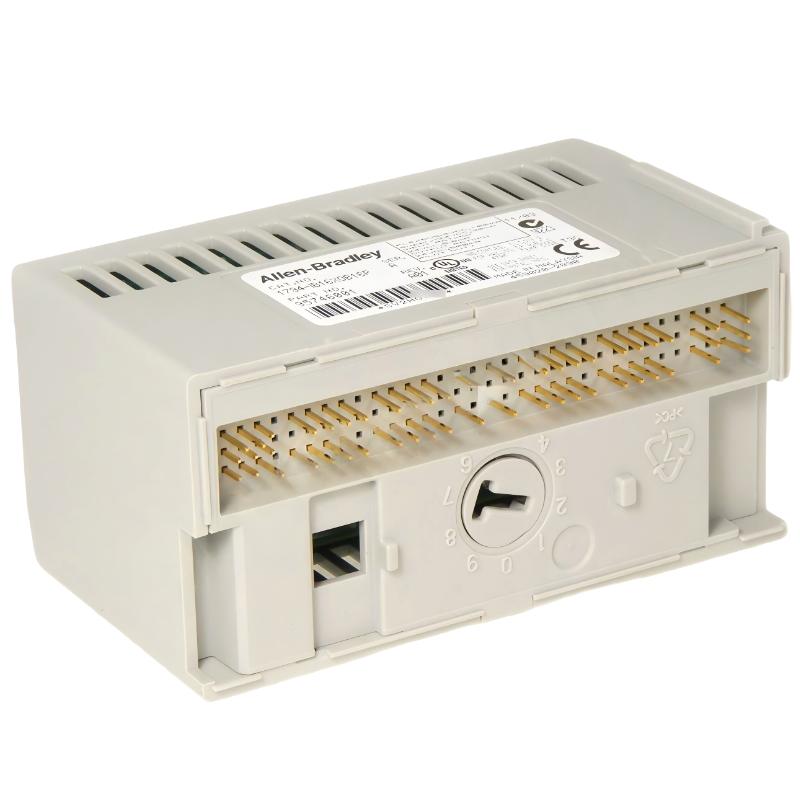

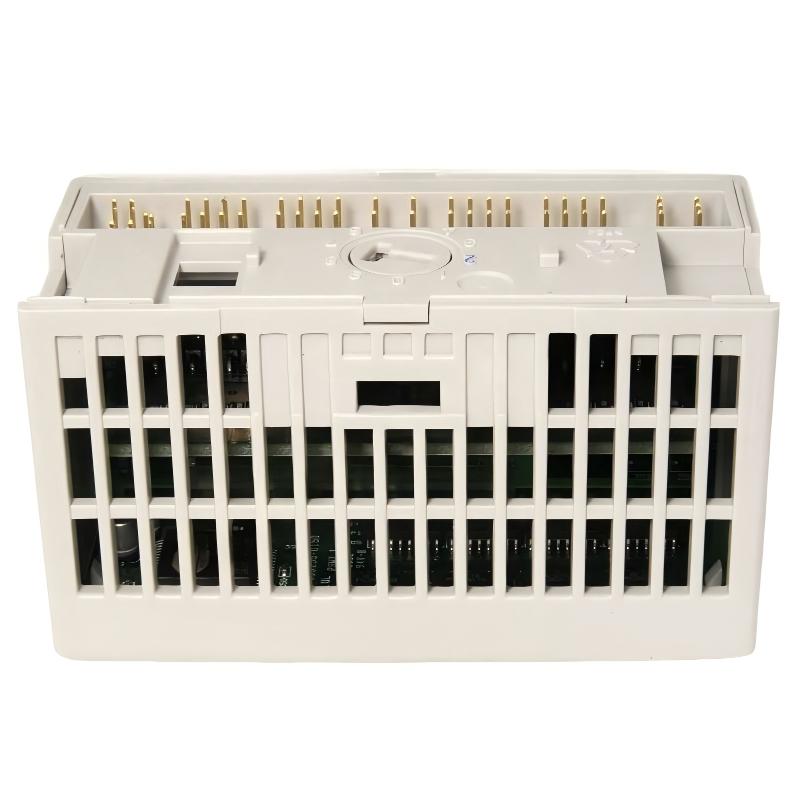

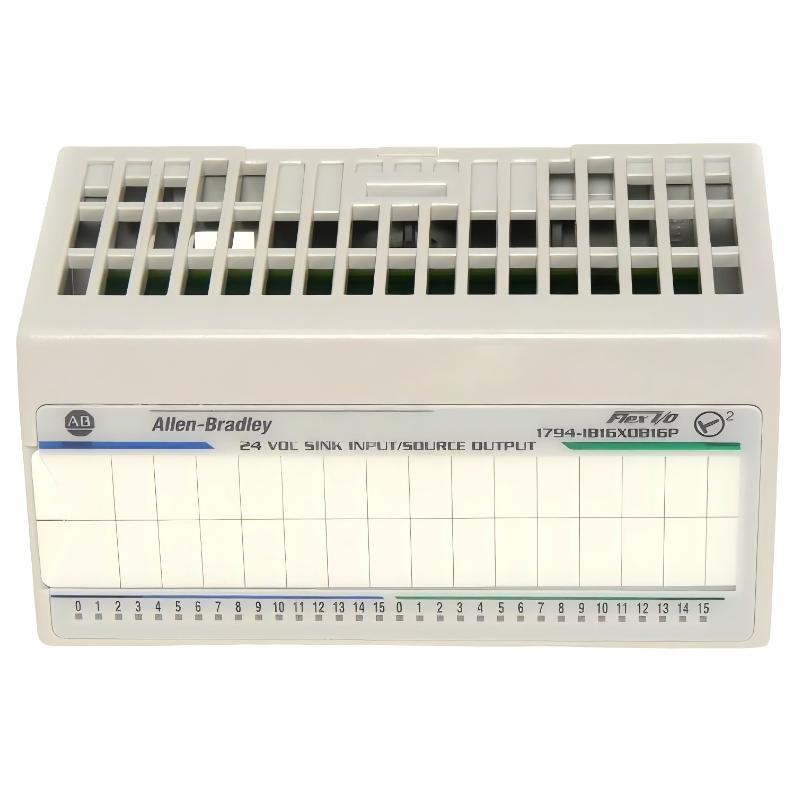

The Allen Bradley 1794-IB10XOB6P Flex I/O Digital DC Combination Module (commonly referenced as 1794-IB10XOB6 or 1794-IB10XOB6P variants in FLEX I/O documentation) is a robust mixed I/O solution designed for distributed automation architectures. It integrates digital inputs and outputs into a single compact module, reducing hardware complexity while maintaining reliable performance in demanding industrial environments.
With 10 DC sinking inputs and 6 DC sourcing outputs, this module is widely used in machine-level control systems where space optimization, simplified wiring, and flexible expansion are essential. Its electronically protected output design enhances operational stability in continuous-duty applications.
Technical Specifications & Physical Characteristics
| Specification Item | Details |
|---|
| Product Series | FLEX I/O |
| Module Type | Digital DC Combination Input/Output Module |
| Manufacturer | Allen Bradley |
| Model Number | 1794-IB10XOB6 / 1794-IB10XOB6P family |
| Input Channels | 10 DC sinking inputs |
| Output Channels | 6 DC sourcing outputs |
| Input Voltage Range | 10–31.2V DC |
| Output Voltage Range | 10–31.2V DC |
| Nominal Supply | 24V DC |
| Input Current (typical) | ~8–11 mA per channel |
| Output Current Rating | Up to 2.0A per channel |
| Max Module Output Load | Up to 10A total |
| FlexBus Current | ~35 mA |
| Power Dissipation | ~6.0 W max |
| Isolation | Basic field-to-system isolation |
| Response Time | ~1 ms typical switching |
| Indicators | 10 input LEDs + 6 output LEDs |
| Mounting Type | FLEX I/O terminal base (DIN rail system) |
| Compatible Bases | 1794-TB2 / TB3 / TB3S / TB3K |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Vibration Resistance | 5g (10–500 Hz) |
| Shock Resistance | 30g |
| Dimensions | Approx. 94 x 94 x 69 mm |
| Weight | Approx. 0.25 kg |
Industrial Application Areas
The 1794-IB10XOB6 family is widely used in distributed control systems requiring combined input/output handling in a compact footprint.
Typical applications include:
-
Factory automation and assembly systems
-
Packaging machinery control
-
Conveyor and material handling systems
-
Automotive production lines
-
OEM machine control platforms
-
Process monitoring and control systems
-
Remote I/O distributed cabinets
-
Industrial retrofit and modernization projects
-
Compact machine automation panels
-
High-density mixed signal control systems
Key Features & Operational Advantages
Integrated Input and Output Architecture
Combines 10 digital inputs and 6 digital outputs in one module, reducing system footprint and simplifying panel design.
Efficient Space Utilization
Ideal for applications where cabinet space is limited but mixed I/O functionality is required.
Fast Industrial Signal Processing
Provides approximately 1 ms response time for fast and reliable control operations.
Flexible FLEX I/O Compatibility
Works with EtherNet/IP, ControlNet, DeviceNet, PROFIBUS, and Remote I/O adapters.
Electrically Protected Output Design
Outputs are designed with protection features that enhance durability in industrial load conditions.
Clear Diagnostic Indicators
LED status indicators provide immediate visibility of input and output states for faster troubleshooting.
Reduced Wiring Complexity
Consolidates multiple I/O points into a single module, minimizing wiring effort and installation time.
Technical FAQs
1. What is the main function of the 1794-IB10XOB6 module?
It is a FLEX I/O combination module that provides both digital DC inputs and outputs in one unit.
2. How many inputs and outputs does it have?
It provides 10 DC inputs and 6 DC outputs.
3. What is the input voltage range?
It operates from 10 to 31.2V DC, typically at 24V DC nominal.
4. What type of outputs does it use?
It uses DC sourcing outputs rated up to 2.0A per channel.
5. What is the total output capacity?
Up to approximately 10A total module load.
6. What is the switching speed?
Typical response time is around 1 millisecond.
7. Does it require a FLEX I/O adapter?
Yes, it must be used with a compatible FLEX I/O communication adapter.
8. Is it suitable for modern automation systems?
Yes, it is widely used in both modern distributed and legacy industrial systems.
9. Does it support diagnostics?
Yes, LED indicators provide real-time status monitoring for all channels.
10. Is it suitable for industrial environments?
Yes, it is designed for stable operation in standard industrial conditions.
