High-Performance Mixed I/O for Extreme Industrial Environments

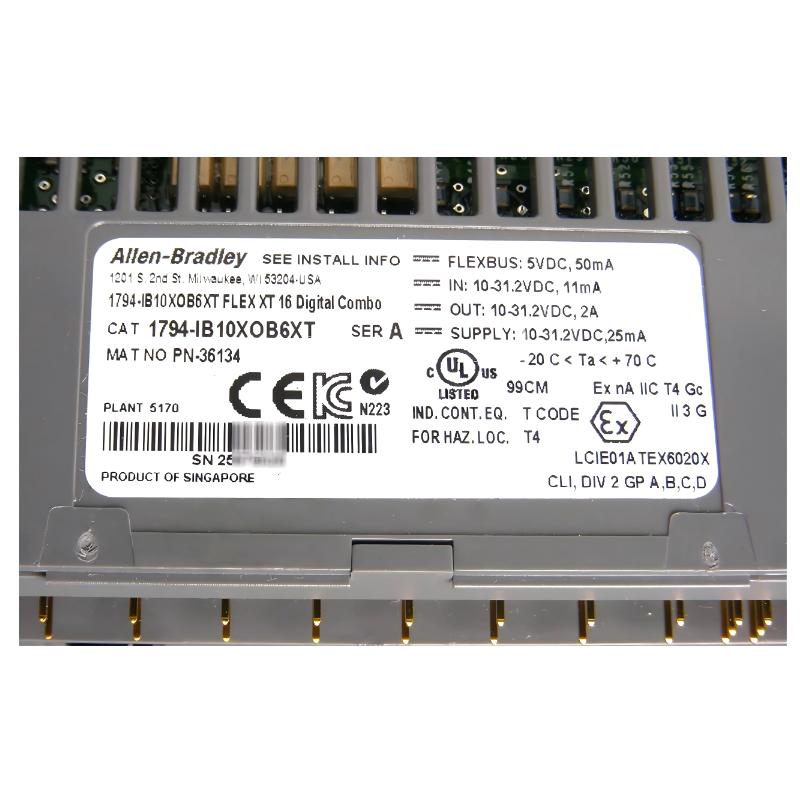

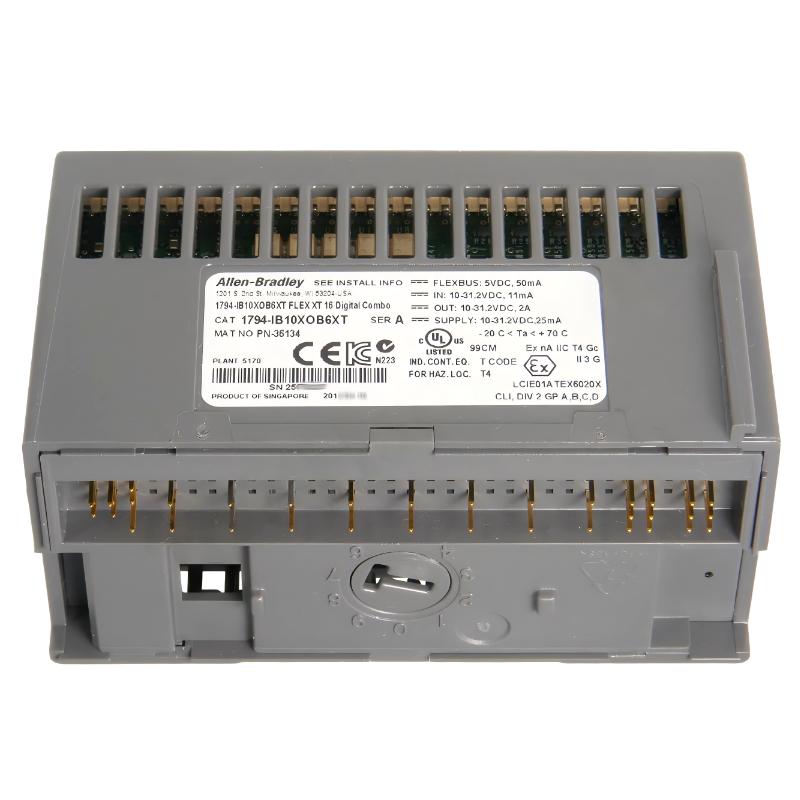

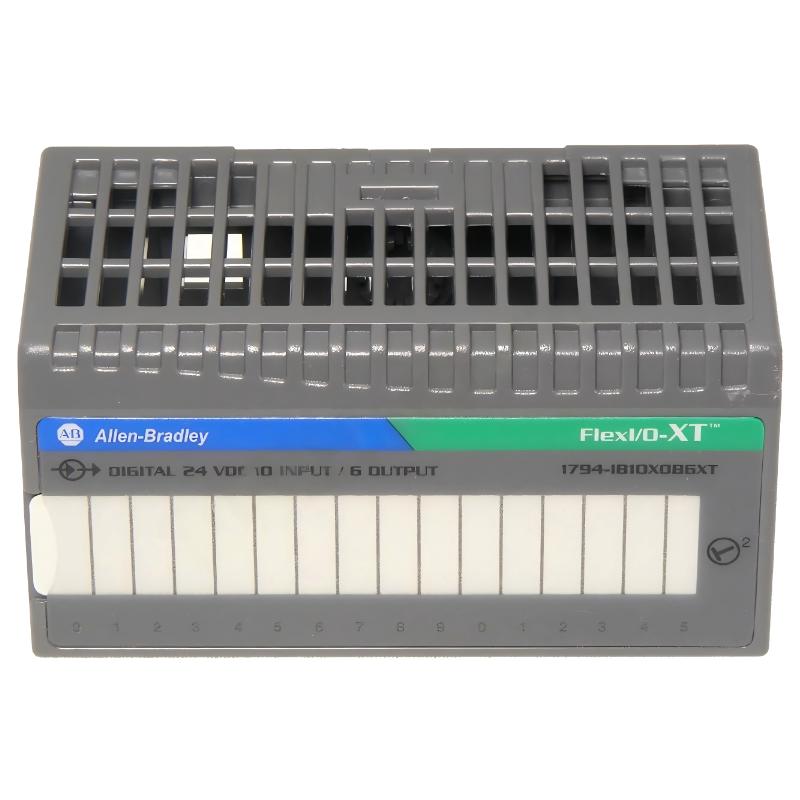

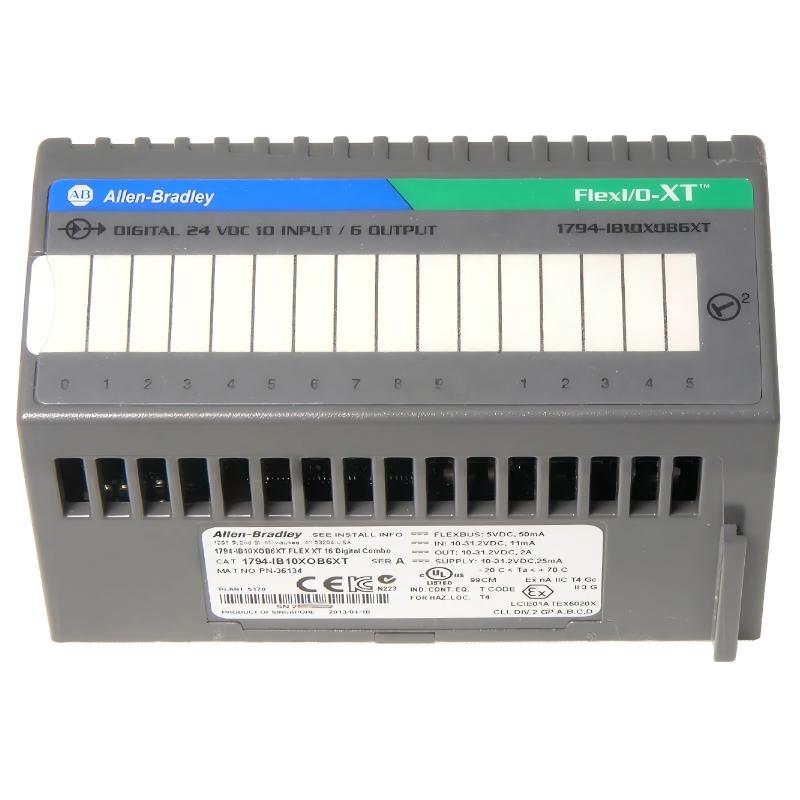

The Allen Bradley 1794-IB10XOB6XT Flex I/O-XT Combination Module is engineered as an advanced distributed I/O solution designed for harsh and temperature-extreme industrial environments. Combining 10 digital DC inputs and 6 digital DC outputs in a single module, it reduces cabinet space, simplifies wiring, and improves system efficiency in compact automation architectures.
Built on the FLEX I/O-XT platform, this module is specifically designed for extended temperature operation and long-term reliability in demanding applications such as outdoor installations, heavy industry, and process environments where stable I/O performance is critical.
Technical Specifications & Mechanical Details
| Specification Item | Details |
|---|
| Product Series | FLEX I/O-XT |
| Module Type | Digital DC Combination Input/Output Module |
| Manufacturer | Allen Bradley |
| Model Number | 1794-IB10XOB6XT |
| Input Channels | 10 DC sinking inputs |
| Output Channels | 6 DC sourcing outputs |
| Input Voltage Range | 24V DC nominal |
| Output Voltage Range | 10–31.2V DC |
| Output Current | 2.0A per channel (up to ~10A total module load) |
| Input Current | Approx. 8–11 mA per channel |
| Power Consumption | ~6 W maximum |
| FlexBus Current | ~35 mA |
| Surge Current | Up to 4.0A (50 ms, repeatable) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Isolation | Industrial-grade field-to-system isolation |
| Status Indicators | Individual channel + module diagnostics LEDs |
| Mounting Type | FLEX I/O terminal base (DIN rail system) |
| Enclosure Rating | IP20 |
| Dimensions | Approx. 100 x 120 x 50 mm |
| Weight | Approx. 1.4 kg |
Industrial Application Areas
The 1794-IB10XOB6XT is widely used in industrial systems where mixed I/O functionality must operate reliably in extreme temperature and demanding environments.
Typical applications include:
-
Outdoor automation systems
-
Oil & gas processing facilities
-
Heavy manufacturing equipment
-
Packaging and production machinery
-
Material handling and conveyor systems
-
Remote industrial control stations
-
Automotive production environments
-
Process control installations
-
Machine-level distributed control systems
-
Harsh-environment OEM equipment
Key Features & Operational Advantages
Integrated Mixed I/O Architecture
Combines 10 inputs and 6 outputs in a single compact module, significantly reducing hardware count and simplifying system design.
FLEX I/O-XT Extreme Temperature Design
Designed for reliable operation in environments from -20°C to +70°C, supporting both indoor and outdoor industrial installations.
High Output Capability
Each output supports up to 2.0A, enabling direct control of many industrial loads without additional switching hardware in some applications.
Reduced Panel Space & Wiring
Consolidating input and output channels minimizes wiring complexity and allows denser control cabinet layouts.
Industrial-Grade Durability
Built for continuous-duty operation in environments with vibration, thermal cycling, and electrical noise.
Flexible System Integration
Fully compatible with FLEX I/O-XT adapters and can integrate into EtherNet/IP, ControlNet, DeviceNet, or other FLEX I/O network architectures.
Technical FAQs
1. What is the main function of the 1794-IB10XOB6XT module?
It is a FLEX I/O-XT combination module providing both digital DC inputs and outputs for distributed control systems.
2. What makes the XT version different?
The XT version is designed for extreme temperature environments, supporting -20°C to +70°C operation.
3. How many inputs and outputs does it have?
It has 10 DC inputs and 6 DC outputs.
4. What type of outputs does it use?
It uses DC sourcing outputs rated up to 2.0A per channel.
5. What type of inputs does it support?
It supports 24V DC sinking digital inputs.
6. Is it suitable for outdoor environments?
Yes, it is designed for harsh and extended temperature industrial applications.
7. What is the total output capacity?
Up to approximately 10A total module output capacity depending on configuration.
8. Does it require a FLEX I/O adapter?
Yes, it must be used with a compatible FLEX I/O-XT adapter system.
9. Can it reduce system wiring complexity?
Yes, combining inputs and outputs in one module reduces wiring and panel space requirements.
10. Is it suitable for modern automation systems?
Yes, it is used in both modern distributed architectures and industrial retrofit systems requiring ruggedized I/O.
