Compact 8-Point 120VAC Input Solution for Distributed Industrial Control

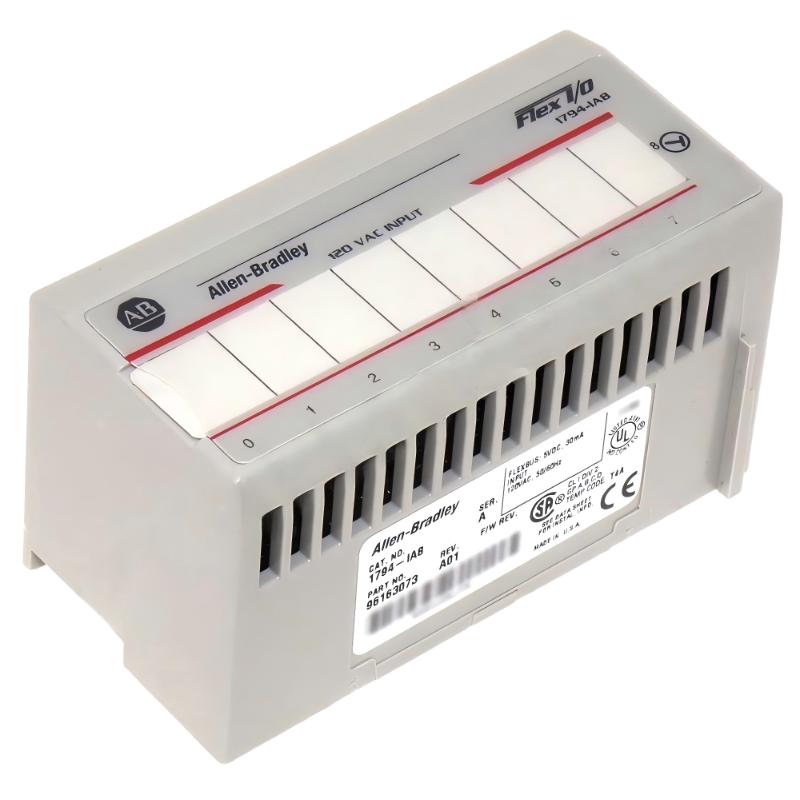

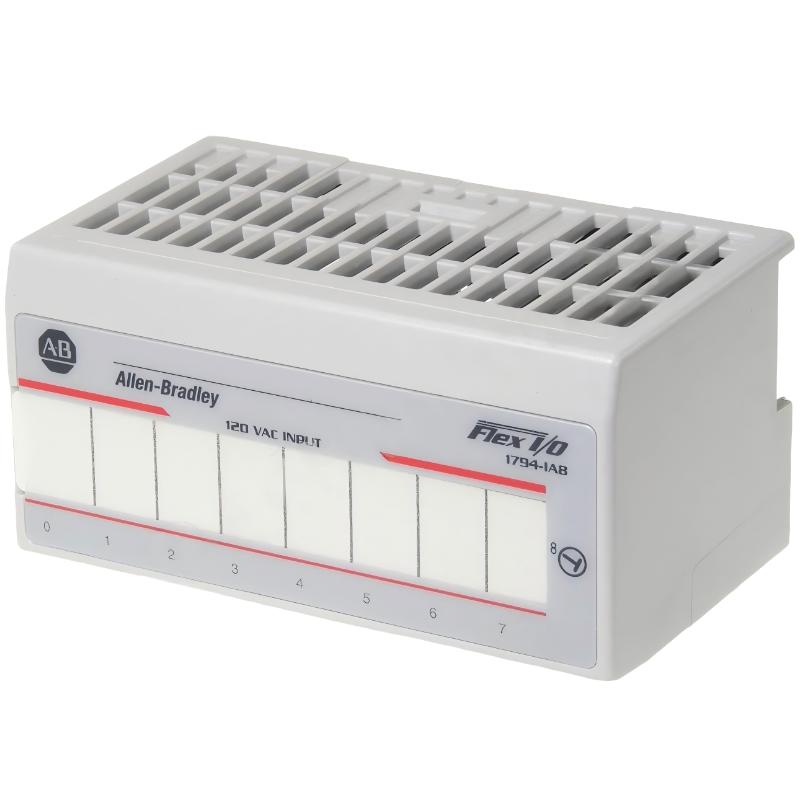

The Allen Bradley 1794-IA8 Flex I/O AC Digital Input Module is a reliable and space-efficient solution designed for reading 120VAC discrete signals in FLEX I/O distributed automation systems. Built for industrial environments where stable AC signal monitoring is required, this module delivers consistent performance, simplified wiring, and seamless integration with FLEX I/O adapters across multiple network types.
With its compact 8-channel design, the 1794-IA8 is ideal for small to medium-sized control applications, providing accurate status detection for field devices such as relays, switches, and contactor auxiliary contacts. Its rugged construction ensures long-term operational stability in demanding industrial conditions.
Technical Specifications & Mechanical Details
| Specification Item | Details |
|---|
| Product Series | FLEX I/O |
| Module Type | AC Digital Input Module |
| Manufacturer | Allen Bradley |
| Model Number | 1794-IA8 |
| Input Channels | 8 Non-isolated AC Inputs |
| Nominal Input Voltage | 120 VAC |
| Operating Voltage Range | 74–132 VAC |
| OFF-State Voltage Max | ~20 VAC |
| Input Current | Approx. 7–15 mA per channel |
| Power Dissipation | ~4–5 W (typical range) |
| Input Type | AC discrete signal |
| Channel Isolation | Non-isolated |
| Indicator LEDs | 8 Channel Status LEDs |
| FlexBus Current Load | Low backplane current requirement |
| Mounting Type | FLEX I/O Terminal Base (DIN rail system) |
| Compatible Bases | 1794-TB3, TB3S, TBN, TB3K series |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 85°C |
| Vibration Resistance | 5g (10–500 Hz) |
| Shock Resistance | 30g operating |
| Dimensions | Approx. 94 x 94 x 69 mm |
| Weight | Approx. 0.25 kg |
Industrial Application Areas
The 1794-IA8 module is widely used in industrial automation systems where compact AC input monitoring is required for distributed control architectures.
Typical applications include:
-
Factory automation systems
-
Packaging machinery control panels
-
Conveyor system status monitoring
-
Motor starter and contactor feedback
-
Industrial safety interlock systems
-
Process control input acquisition
-
OEM machine control systems
-
Material handling equipment
-
Retrofit upgrades of legacy systems
-
Distributed remote I/O panels
Key Features & Operational Advantages
Compact 8-Channel AC Input Design
Provides efficient monitoring of 8 independent 120VAC signals in a single modular unit, helping reduce cabinet space requirements.
Direct Industrial Voltage Compatibility
Supports standard 120VAC field signals, enabling direct connection to common industrial devices without additional signal conversion.
Clear Channel Status Indication
Each input channel includes LED indicators, allowing quick diagnostics and real-time status visibility.
Flexible FLEX I/O Integration
Compatible with multiple FLEX I/O adapters such as EtherNet/IP, ControlNet, DeviceNet, and Remote I/O systems.
Space-Efficient Modular Architecture
Designed for DIN rail-mounted FLEX I/O systems, supporting compact and scalable control panel layouts.
Stable Industrial Performance
Engineered for continuous operation in harsh environments with strong resistance to vibration and temperature variation.
Easy System Expansion
Can be combined with other FLEX I/O modules to build scalable distributed automation systems.
Technical FAQs
1. What is the main function of the 1794-IA8 module?
It is an 8-channel AC digital input module used to read 120VAC discrete field signals in FLEX I/O systems.
2. What is the nominal voltage of the module?
The module operates at 120VAC (74–132VAC range).
3. How many input channels does it provide?
It provides 8 AC input channels.
4. Is the module electrically isolated per channel?
No, it uses a non-isolated input design.
5. What types of devices can it read?
It reads AC devices such as switches, relays, contactors, and status contacts.
6. What system does it connect to?
It connects through FLEX I/O adapters like EtherNet/IP, ControlNet, DeviceNet, or Remote I/O modules.
7. Does it require a terminal base?
Yes, it must be installed on a compatible FLEX I/O terminal base.
8. Is it suitable for modern automation systems?
Yes, it is still widely used in both modern distributed systems and legacy installations.
9. What is the typical power consumption?
It typically consumes low power, around 4–5 watts depending on operating conditions.
10. Is it suitable for harsh industrial environments?
Yes, it is designed for reliable operation in industrial temperature, vibration, and electrical conditions.
