High-Speed Distributed I/O Connectivity for Demanding Industrial Networks

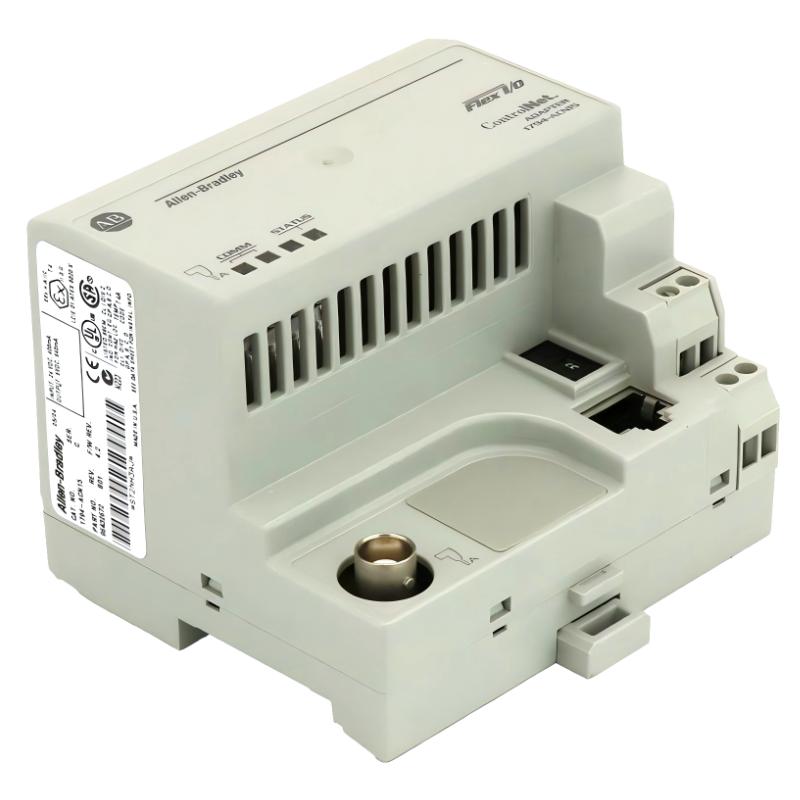

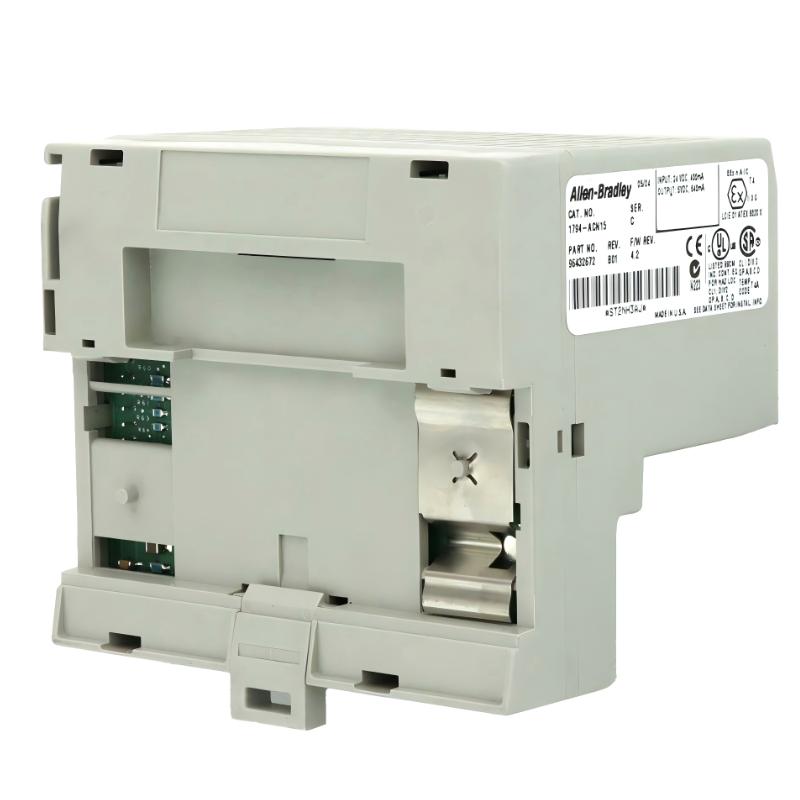

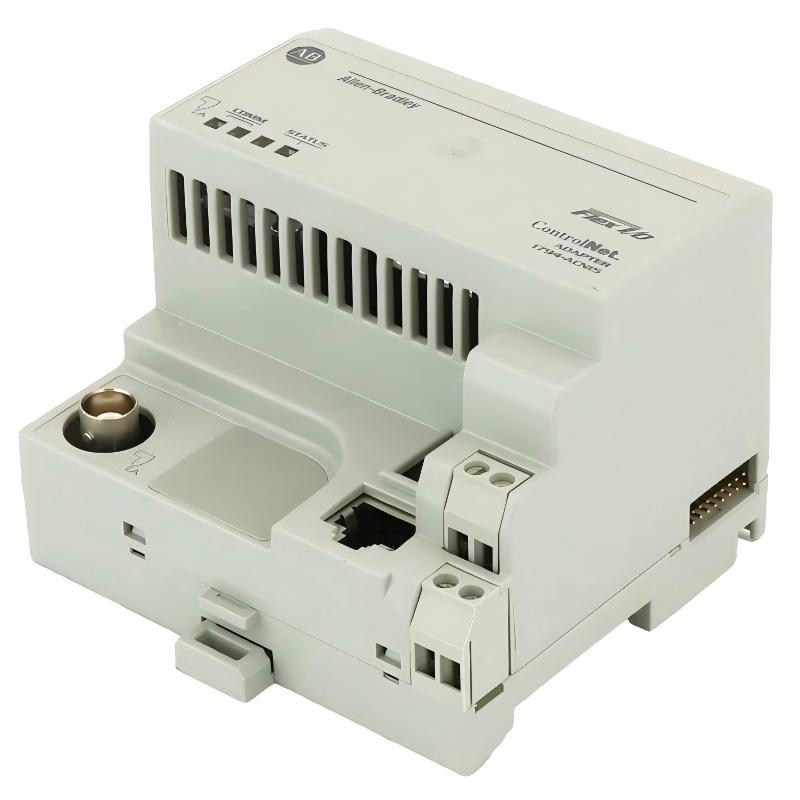

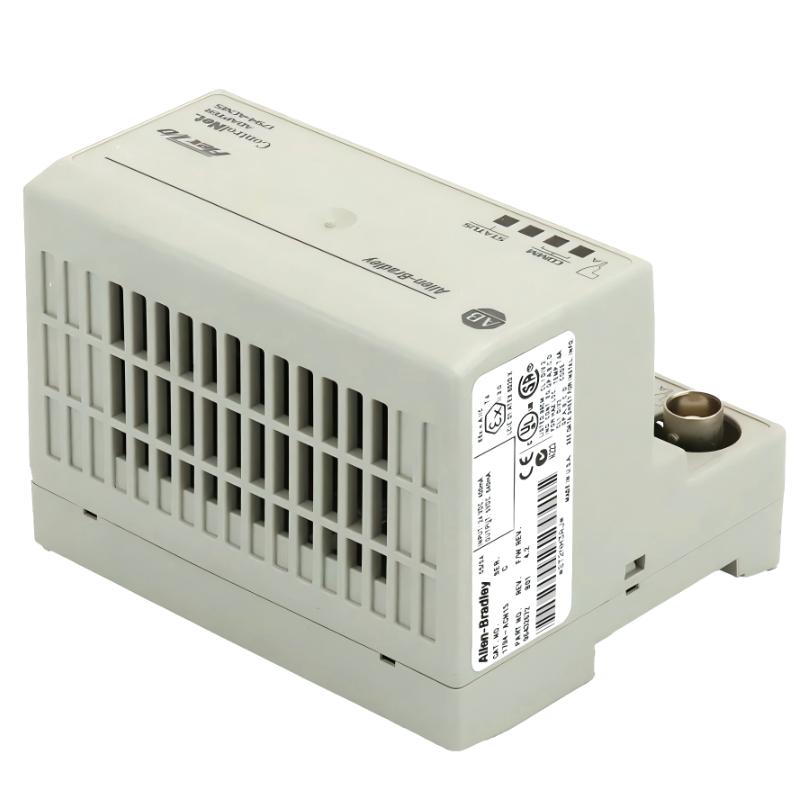

The Allen Bradley 1794-ACN15 Flex I/O ControlNet Adapter Module is engineered to deliver reliable and deterministic communication for FLEX I/O automation systems. Designed for ControlNet network environments, this adapter module enables seamless integration between controllers and distributed I/O devices while supporting high-performance industrial operations.
With its compact modular structure and dependable communication capability, the 1794-ACN15 helps manufacturers simplify system architecture, reduce installation complexity, and improve machine-level efficiency. Its support for FLEX I/O expansion makes it a practical solution for scalable automation projects across a wide range of industrial applications.
Technical Specifications & Mechanical Details
| Technical Parameter | Specification |
|---|
| Product Series | FLEX I/O |
| Module Type | ControlNet Adapter Module |
| Manufacturer | Allen Bradley |
| Model Number | 1794-ACN15 |
| Communication Protocol | ControlNet |
| Communication Speed | 5 Mbps |
| Supported FLEX I/O Modules | Up to 8 Modules |
| Input Voltage | 24V DC |
| Power Conversion | Integrated 24V DC to 5V DC Backplane Supply |
| Network Interface | ControlNet BNC Connector |
| Mounting Method | DIN Rail / Panel Mount |
| Housing Material | Industrial Thermoplastic |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -25°C to 75°C |
| Diagnostic Indicators | Network and I/O Status LEDs |
| Dimensions | Approx. 94 x 87 x 69 mm |
| Weight | Approx. 0.25 kg |
Industrial Application Areas
The 1794-ACN15 module is commonly used in distributed industrial automation systems requiring reliable remote I/O communication and deterministic network performance.
Typical applications include:
-
Automated manufacturing systems
-
Industrial production lines
-
Packaging and processing machinery
-
Material handling systems
-
Automotive assembly operations
-
Conveyor automation
-
Distributed machine control systems
-
Factory process monitoring
-
High-speed industrial communication networks
-
Remote I/O expansion installations
Performance Advantages & Operational Benefits
Deterministic ControlNet Communication
The module delivers stable and predictable network communication for time-sensitive industrial control applications.
Flexible FLEX I/O Expansion
Supporting up to eight FLEX I/O modules, the adapter enables scalable distributed automation architectures.
Compact Installation Design
Its space-saving form factor helps optimize control cabinet layouts and machine integration.
Integrated Backplane Power Supply
The built-in power conversion system simplifies installation while efficiently powering connected FLEX I/O modules.
Industrial-Grade Reliability
Built for continuous factory operation, the module offers dependable performance under demanding industrial conditions.
Simplified Maintenance and Diagnostics
Integrated status indicators allow technicians to quickly monitor communication and system health.
Faster System Deployment
The modular FLEX I/O platform helps reduce wiring complexity and accelerates commissioning procedures.
Technical FAQs
1. What is the primary function of the 1794-ACN15 module?
It is a FLEX I/O ControlNet adapter module used to connect distributed FLEX I/O systems to a ControlNet network.
2. Which communication protocol does this module support?
The module operates using the ControlNet industrial communication protocol.
3. How many FLEX I/O modules can the adapter support?
The adapter can support up to 8 FLEX I/O modules.
4. What communication speed does the module provide?
The module supports communication speeds up to 5 Mbps.
5. Is the module suitable for distributed automation systems?
Yes, it is specifically designed for distributed industrial I/O architectures.
6. What power supply does the module require?
The module typically operates with a 24V DC power supply.
7. Can the module help reduce wiring complexity?
Yes, distributed FLEX I/O integration simplifies field wiring and improves system organization.
8. Does the module support DIN rail mounting?
Yes, it supports both DIN rail and panel mounting configurations.
9. Is the module designed for industrial environments?
Yes, it is manufactured using industrial-grade materials for long-term reliability in demanding environments.
10. Does the module include diagnostic indicators?
Yes, integrated LED indicators provide communication and I/O status monitoring capabilities.
