Advanced Safety I/O Integration for Industrial Automation Systems

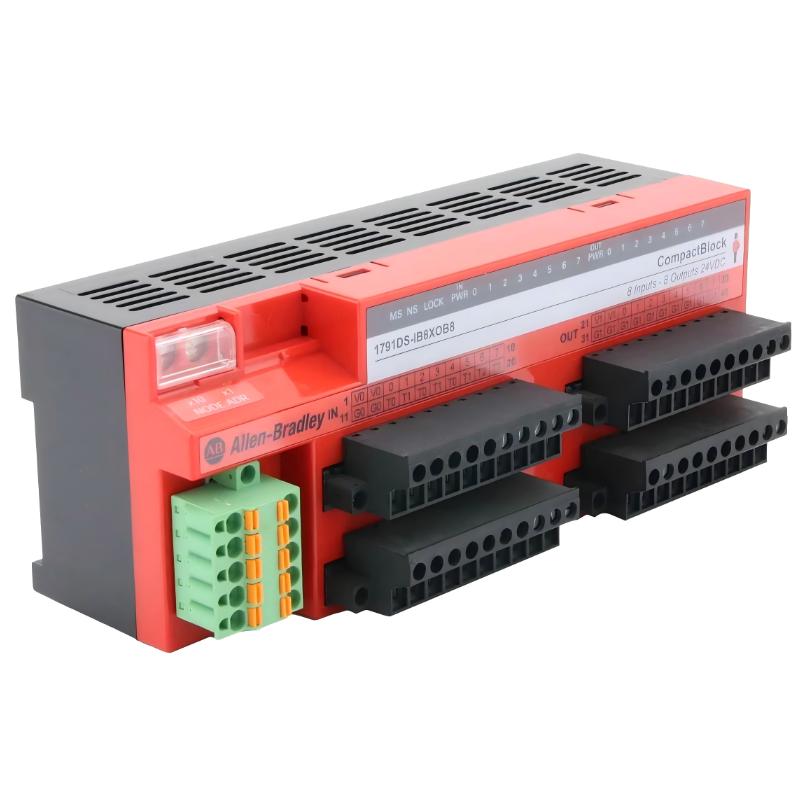

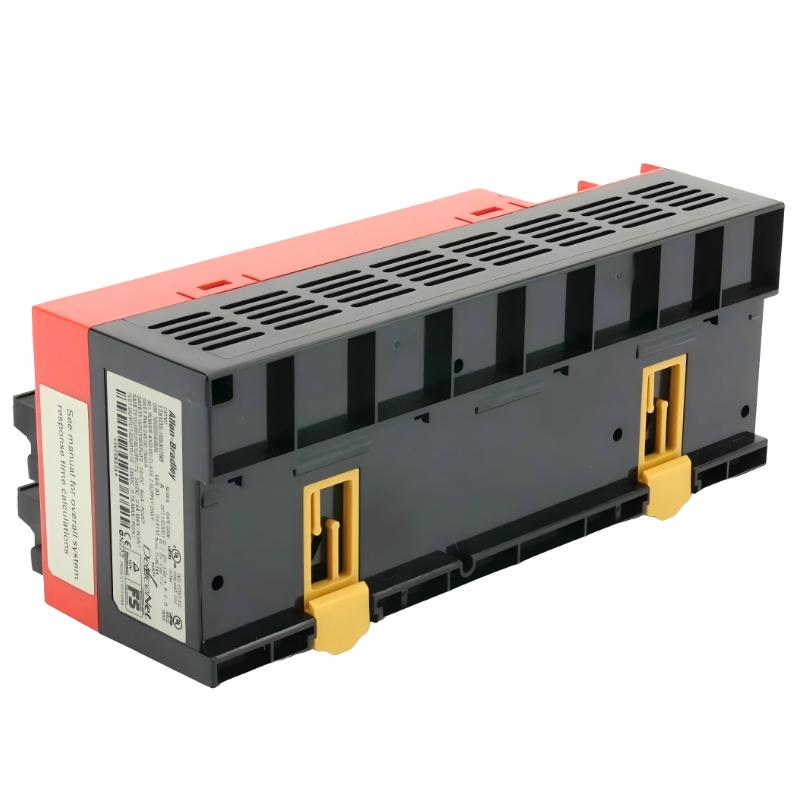

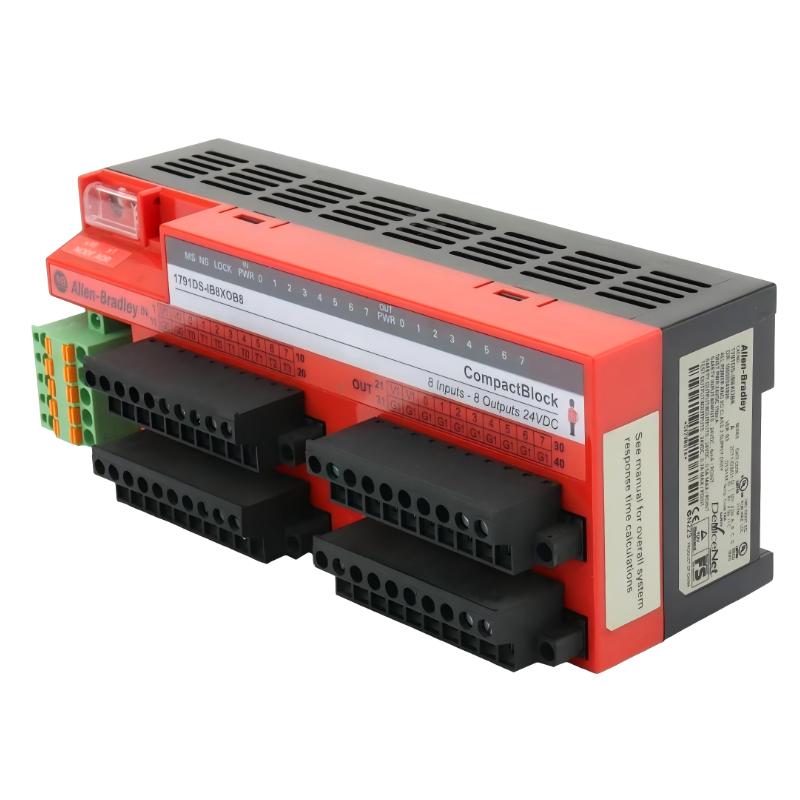

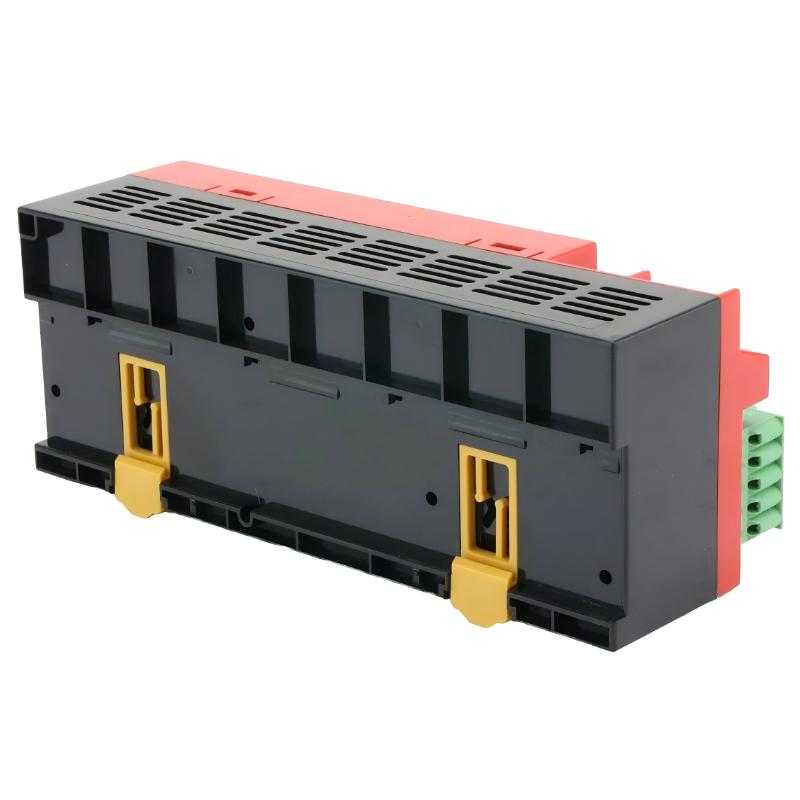

The Allen Bradley 1791DS-IB8XOB8 DeviceNet Safety CompactBlock Input Module is engineered to deliver dependable safety-focused distributed I/O control in demanding industrial environments. Combining standard and safety I/O functionality within a compact integrated platform, this module helps manufacturers improve machine protection, streamline installation, and optimize operational efficiency.
Designed for DeviceNet Safety communication architectures, the 1791DS-IB8XOB8 supports reliable signal monitoring and controlled output management for safety-critical automation applications. Its rugged construction and compact design make it an ideal solution for production systems requiring enhanced safety integration without increasing panel complexity.
Technical Specifications & Physical Details
| Parameter | Specification |
|---|
| Product Series | DeviceNet Safety CompactBlock |
| Module Type | Safety Input Combination Module |
| Manufacturer | Allen Bradley |
| Model Number | 1791DS-IB8XOB8 |
| Communication Network | DeviceNet Safety |
| Safety Inputs | 8 Safety Inputs |
| Standard Outputs | 8 Digital Outputs |
| Input Voltage | 24V DC |
| Output Type | DC Outputs |
| Safety Category Support | Integrated Machine Safety Applications |
| Mounting Type | DIN Rail / Panel Mount |
| Housing Material | Industrial-Grade Thermoplastic |
| Protection Rating | IP20 |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -25°C to 75°C |
| Isolation Protection | Industrial Electrical Isolation |
| Dimensions | Approx. 230 x 100 x 60 mm |
| Weight | Approx. 1.08 kg |
Industrial Application Areas
The 1791DS-IB8XOB8 module is commonly used in automation systems where both operational control and machine safety are required within a distributed I/O architecture.
Typical applications include:
-
Automated manufacturing lines
-
Robotic safety systems
-
Packaging machinery
-
Conveyor safety monitoring
-
Emergency stop circuit integration
-
Material handling systems
-
Automotive production equipment
-
Industrial assembly stations
-
Machine guarding systems
-
Distributed safety control installations
Key Features & Operational Benefits
Integrated Safety and Standard I/O
The module combines safety inputs and standard outputs within a single compact device, helping reduce hardware complexity and cabinet space usage.
Reliable DeviceNet Safety Communication
Designed for DeviceNet Safety environments, the module supports stable and secure communication across industrial safety networks.
Space-Saving CompactBlock Design
Its integrated structure minimizes installation footprint while simplifying machine-level wiring layouts.
Improved Installation Efficiency
Pre-integrated terminal architecture helps reduce field wiring time and speeds up system deployment.
Enhanced Operational Reliability
Built with industrial-grade materials, the module is designed for continuous operation in demanding factory environments.
Simplified Maintenance Procedures
Clearly organized terminals and modular connectivity help technicians perform faster diagnostics and maintenance.
Ideal for Safety-Critical Applications
The module supports industrial safety systems requiring dependable signal monitoring and controlled machine operation.
Technical FAQs
1. What is the main purpose of the 1791DS-IB8XOB8 module?
It is a DeviceNet Safety CompactBlock module designed to provide integrated safety input and digital output functionality for industrial automation systems.
2. How many safety inputs are included?
The module includes 8 dedicated safety input channels.
3. How many outputs are available?
The module provides 8 standard digital output channels.
4. Which communication protocol does this module support?
It supports DeviceNet Safety communication.
5. Is the module suitable for machine safety applications?
Yes, it is specifically designed for industrial safety monitoring and control applications.
6. What operating voltage does the module require?
The module typically operates on a 24V DC power system.
7. Can the module help reduce cabinet space requirements?
Yes, the compact integrated design supports efficient space utilization in industrial control panels.
8. What industries commonly use this module?
It is widely used in manufacturing, automotive, packaging, robotics, and material handling industries.
9. Does the module support DIN rail mounting?
Yes, it supports both DIN rail and panel mounting options.
10. Is the module designed for continuous industrial operation?
Yes, it is built for reliable long-term performance in demanding industrial environments.
