High-Performance Distributed Input Control for Industrial Automation

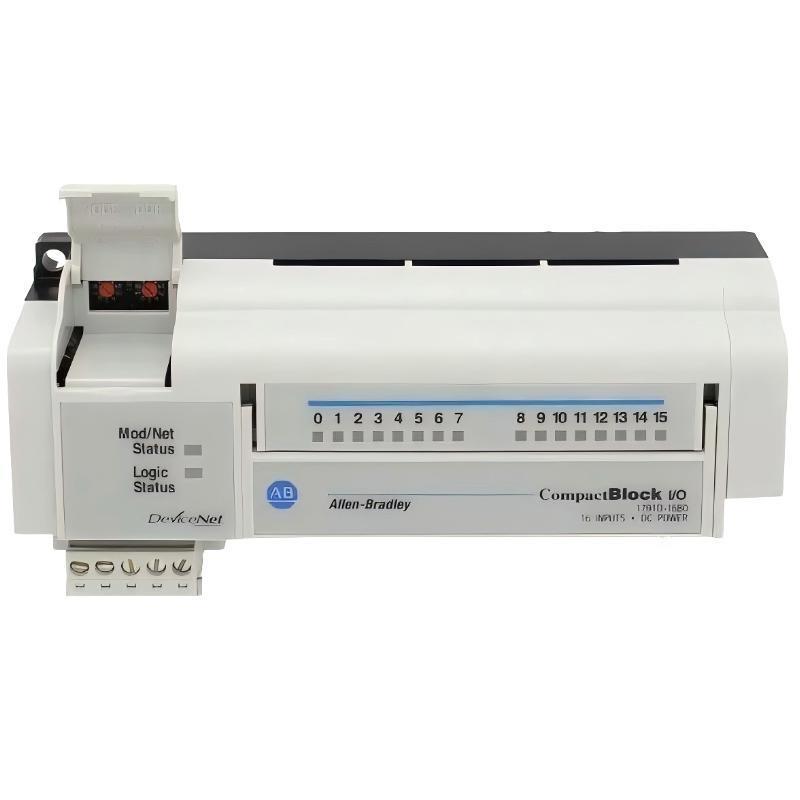

The Allen Bradley 1791D-16B0 CompactBlock I/O Input Base Module is designed to provide efficient and dependable digital input processing for industrial control systems. Combining DeviceNet communication with integrated I/O functionality, this module helps simplify machine architecture while improving installation flexibility across demanding automation environments.
Its rugged compact structure makes it ideal for production facilities requiring reliable field-level signal monitoring with reduced wiring complexity. Engineered for long operational life and stable communication performance, the 1791D-16B0 supports modern distributed automation applications where efficiency and uptime are critical.
Product Specifications & Physical Details
| Specification | Details |
|---|
| Product Name | CompactBlock I/O Input Base Module |
| Manufacturer | Allen Bradley |
| Model Number | 1791D-16B0 |
| Communication Interface | DeviceNet |
| Module Category | Digital Input Module |
| Number of Inputs | 16 Inputs |
| Input Type | DC Digital Inputs |
| Operating Voltage | 24V DC |
| Mounting Method | DIN Rail / Panel Mount |
| Enclosure Material | Industrial Thermoplastic |
| Protection Class | IP20 |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -25°C to 75°C |
| Electrical Isolation | Integrated Industrial Isolation Design |
| Dimensions | Approx. 224 x 98 x 58 mm |
| Weight | Approx. 1.0 kg |
Typical Industrial Applications
The 1791D-16B0 is widely deployed in distributed automation systems where accurate input signal acquisition and reliable communication are required.
Common application areas include:
-
Automated conveyor systems
-
Packaging and bottling equipment
-
Automotive assembly operations
-
Material handling systems
-
Industrial machine monitoring
-
Factory production lines
-
Robotic automation cells
-
Warehouse and logistics automation
-
Process control installations
Operational Advantages & Performance Benefits
Integrated CompactBlock Design
The integrated design combines I/O and communication functionality within a single compact housing, reducing cabinet space requirements.
Stable DeviceNet Networking
Reliable DeviceNet communication enables smooth data exchange between field devices and central controllers.
Simplified System Wiring
Integrated terminals help minimize wiring complexity and support faster installation procedures.
Enhanced Reliability
Built for continuous industrial operation, the module delivers dependable long-term performance in demanding environments.
Faster Commissioning
Its practical installation structure allows technicians to reduce setup time during automation deployment.
Flexible Installation Options
Compatible with both DIN rail and panel mounting, the module supports a wide range of industrial configurations.
Lower Maintenance Requirements
Durable construction and organized terminal access simplify troubleshooting and ongoing maintenance activities.
Technical FAQs
1. What is the primary role of the 1791D-16B0 module?
It is a distributed digital input base module used for monitoring field input signals within DeviceNet automation systems.
2. How many input channels are available?
The module provides 16 digital DC input channels.
3. Which communication protocol does this module support?
The module communicates through the DeviceNet industrial network.
4. Is this module suitable for compact control cabinets?
Yes, its compact integrated structure is designed for space-efficient installations.
5. What type of voltage does the module use?
It typically operates with a 24V DC input system.
6. Can the module be mounted on a DIN rail?
Yes, it supports both DIN rail and direct panel mounting.
7. What industries commonly use this module?
It is commonly used in manufacturing, packaging, automotive, logistics, and industrial automation sectors.
8. Does the module reduce field wiring requirements?
Yes, the integrated CompactBlock design helps simplify field-level wiring connections.
9. Is the module intended for industrial environments?
Yes, it is built using industrial-grade materials for reliable operation under continuous workloads.
10. Can the module support distributed automation architectures?
Yes, it is specifically designed for distributed DeviceNet-based I/O systems.
