High-Precision Industrial Vibration Monitoring for Critical Rotating Assets

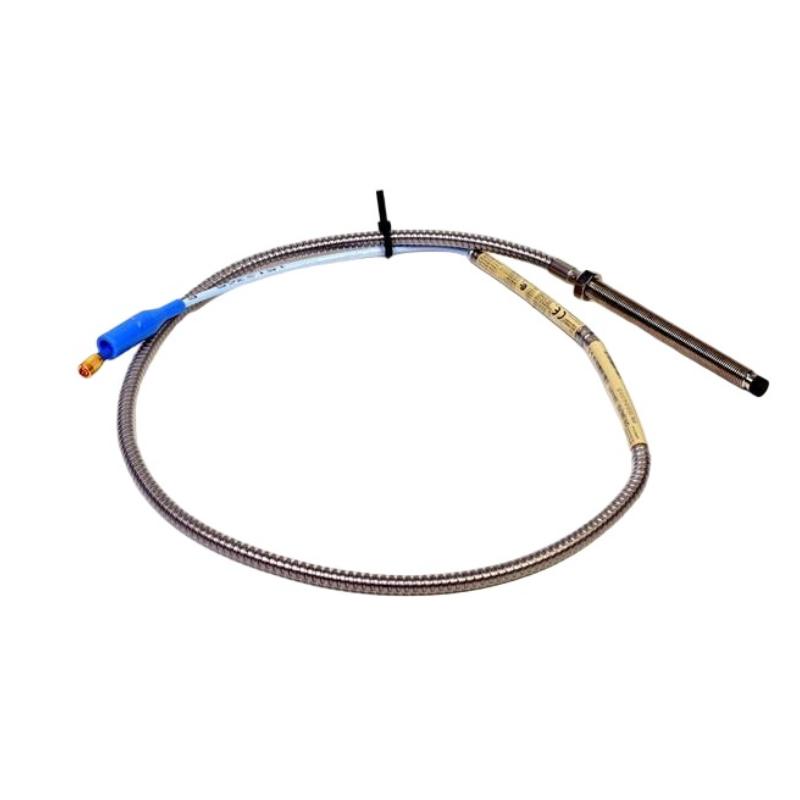

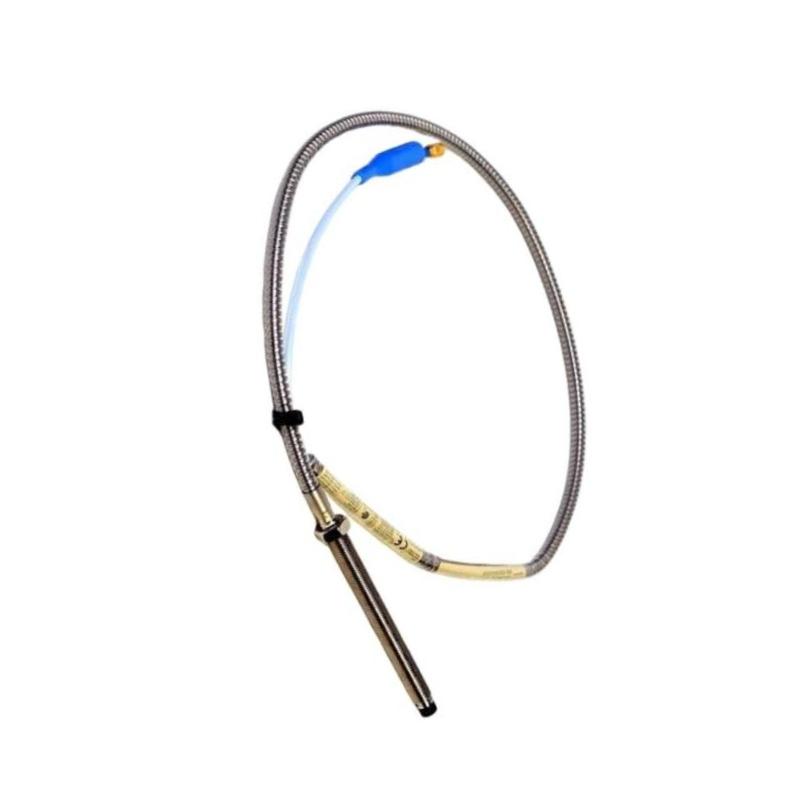

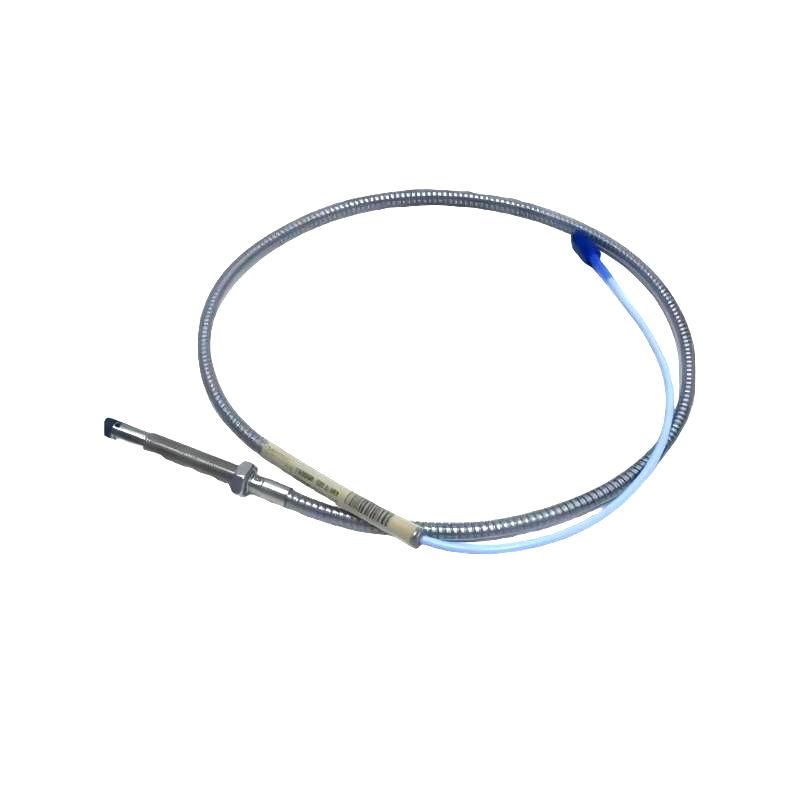

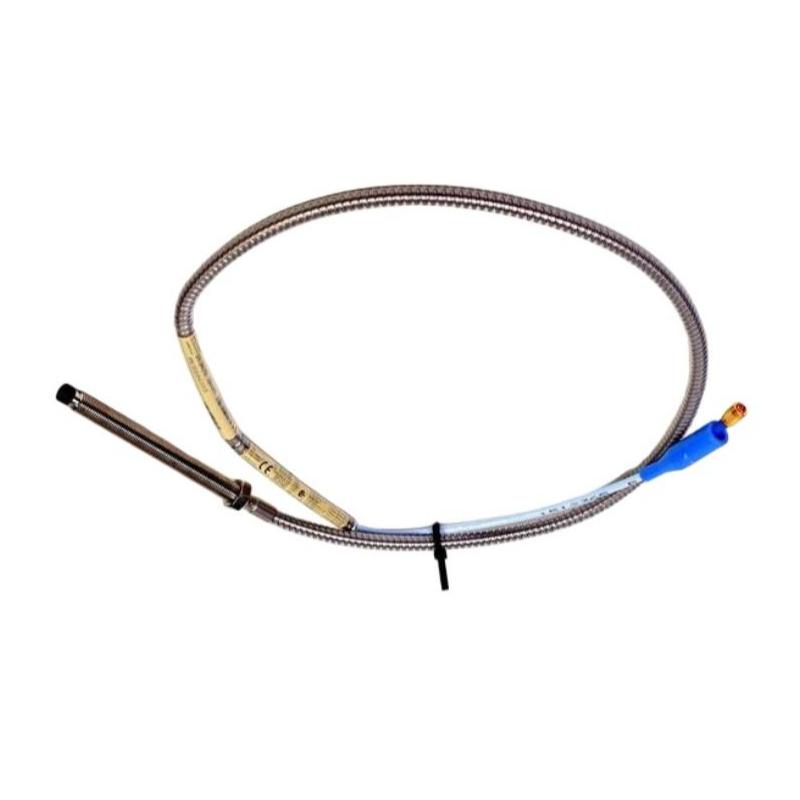

The Bently Nevada 330102-10-40-05-01-00 3300 XL 8 mm Proximity Probe is a rugged, non-contact eddy current sensor designed for accurate measurement of shaft vibration and radial displacement in rotating machinery. As part of the industry-proven 3300 XL proximity transducer system, this probe delivers stable signal performance, strong mechanical durability, and reliable long-term operation in demanding industrial environments.
This configuration is commonly selected for machinery protection systems where consistent measurement accuracy, robust installation, and compatibility with 3300 XL monitoring architecture are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-10-40-05-01-00 |
| Series | 3300 XL 8 mm |
| Product Type | Proximity Probe |
| Measurement Principle | Eddy current non-contact sensing |
| Probe Diameter | 8 mm |
| Case Length | 4.0 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Thread Type | 3/8-24 UNF |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Configuration | Standard armored industrial cable |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | 3300 XL Proximitor systems |
| Installation Method | Threaded mounting |
| Operating Temperature Range | -51°C to +177°C |
| Approximate Dimensions | 190 mm × 18 mm × 18 mm |
| Approximate Weight | 0.32 kg |
