Advanced Shaft Monitoring Solution for Industrial Rotating Machinery

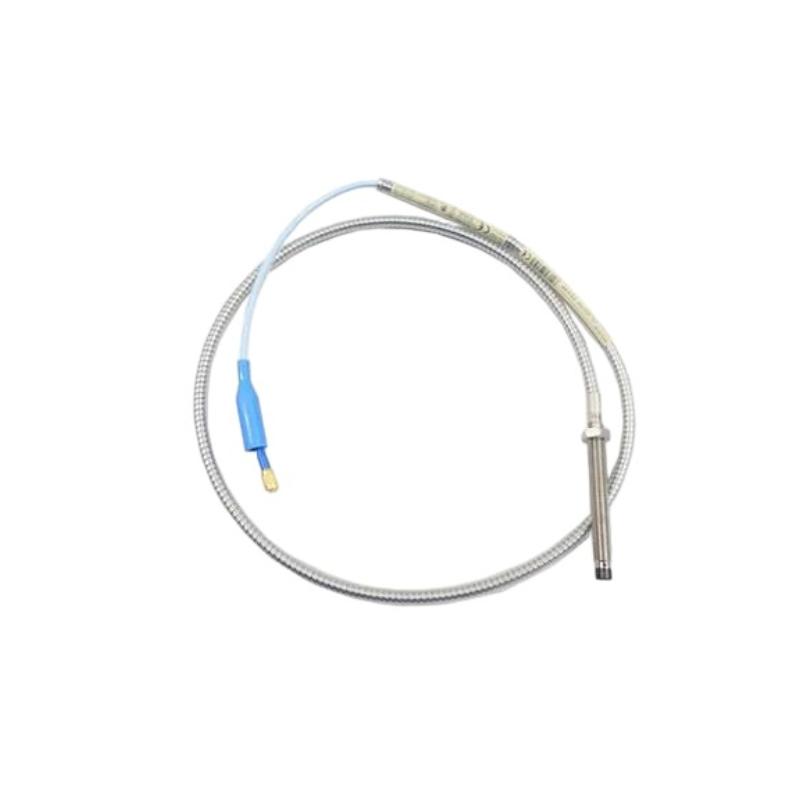

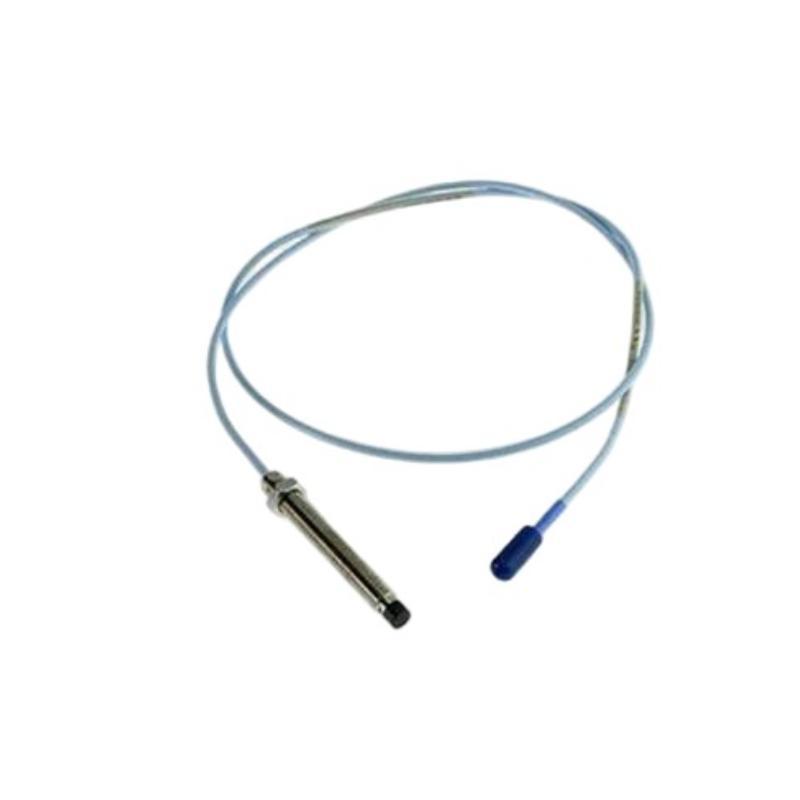

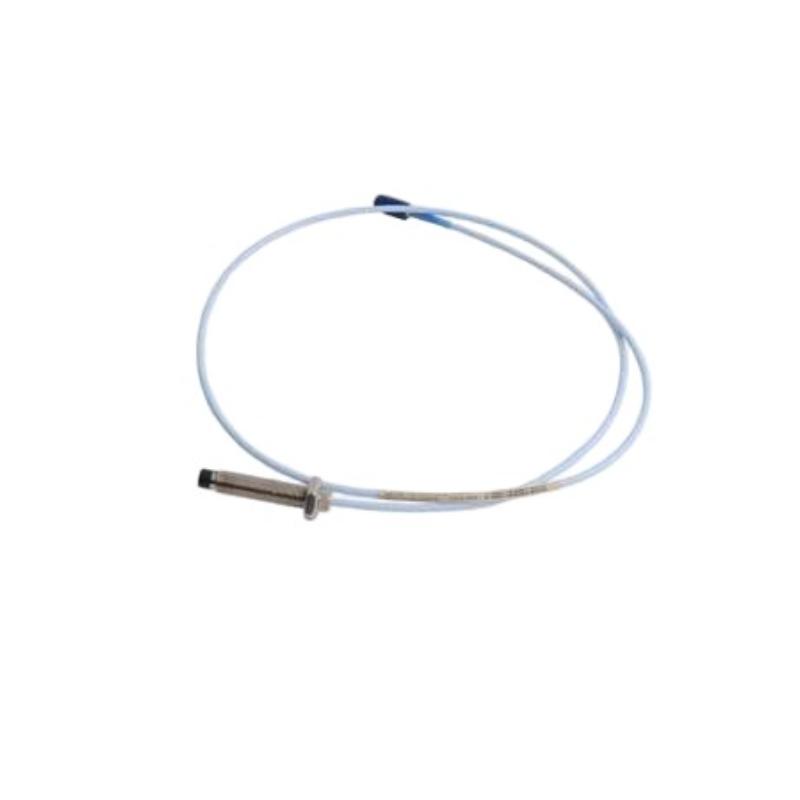

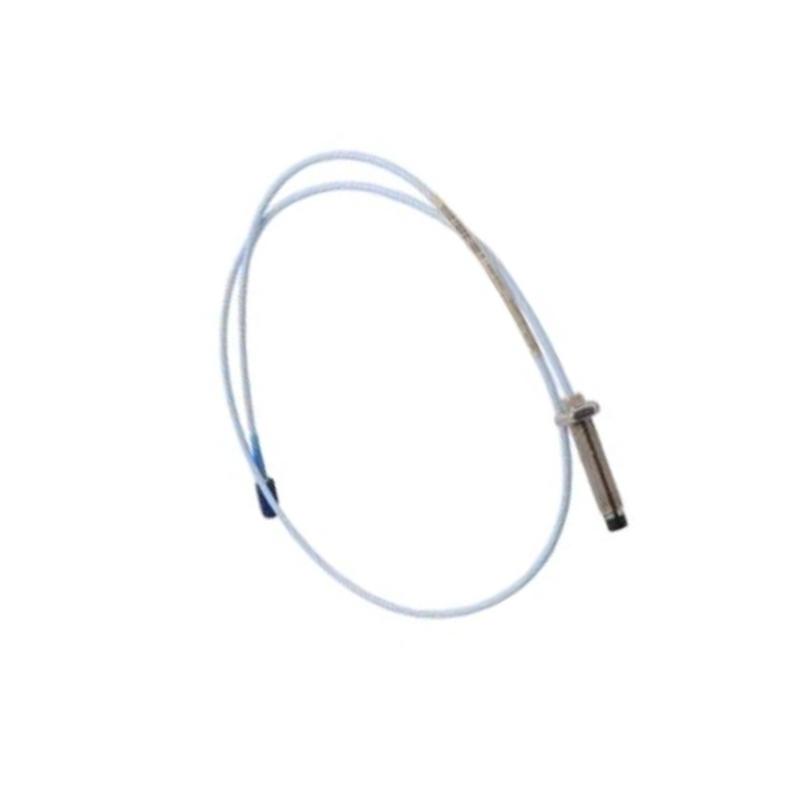

The Bently Nevada 330102-05-40-05-02-05 3300 XL 8 mm Proximity Probe is a precision-engineered non-contact sensor designed for continuous vibration and displacement monitoring in critical rotating equipment. Built on the dependable 3300 XL platform, this probe delivers exceptional signal accuracy, rugged industrial durability, and stable long-term operation in demanding process environments.
With its compact cable configuration and reinforced industrial cable protection, this model is ideal for machinery protection systems where installation flexibility, monitoring precision, and operational reliability are essential.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-05-40-05-02-05 |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe |
| Measurement Technology | Eddy current non-contact sensing |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0.5 in |
| Case Length | 4.0 in |
| Total Cable Length | 0.5 m (1.64 ft) |
| Thread Type | 3/8-24 UNF |
| Connector Type | Miniature coaxial ClickLoc |
| Cable Configuration | Armored industrial cable |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | 3300 XL Proximitor systems |
| Installation Method | Threaded mounting |
| Operating Temperature Range | -51°C to +177°C |
| Approximate Dimensions | 182 mm × 18 mm × 18 mm |
| Approximate Weight | 0.31 kg |
Industrial Applications
This proximity probe is widely used in machinery protection systems where accurate shaft vibration monitoring improves equipment reliability and operational continuity.
Typical Applications
-
Steam turbine monitoring systems
-
Gas turbine protection equipment
-
Industrial compressor diagnostics
-
Centrifugal pump monitoring
-
Electric motor vibration analysis
-
Generator shaft displacement measurement
-
Petrochemical processing systems
-
Refinery rotating machinery
Its stable sensing capability enables early detection of imbalance, shaft instability, bearing wear, and alignment deviations before operational performance is affected.
Product Advantages
Compact Installation Design
The 0.5-meter cable configuration supports installation in confined machinery spaces and compact monitoring systems.
High Signal Stability
Provides dependable vibration and displacement measurements for accurate machinery diagnostics.
Reinforced Industrial Durability
The armored cable and stainless steel housing improve resistance to vibration, heat, and industrial contamination.
Predictive Maintenance Support
Continuous condition monitoring helps maintenance teams reduce downtime risk and improve service planning efficiency.
Reliable 3300 XL Compatibility
Fully compatible with Bently Nevada monitoring platforms for seamless integration and simplified replacement.
Technical FAQs
1. What is the main function of this proximity probe?
It measures shaft vibration and radial displacement in rotating industrial machinery using non-contact sensing technology.
2. What does the 0.5 in unthreaded length indicate?
It refers to the probe body configuration designed for specific mounting and installation requirements.
3. What is the cable length of this model?
The total cable length is 0.5 meter (1.64 ft).
4. Which machines commonly use this probe?
It is commonly installed on turbines, compressors, pumps, motors, and generators.
5. Is the probe suitable for continuous industrial operation?
Yes, it is engineered for continuous-duty machinery monitoring applications.
6. What sensing technology does this probe use?
It uses eddy current non-contact sensing technology.
7. What industries commonly use this model?
Power generation, petrochemical, oil & gas, and heavy industrial manufacturing sectors.
8. What mounting configuration does it use?
It uses a 3/8-24 UNF threaded mounting design.
9. Can it operate in harsh industrial environments?
Yes, it is designed for environments exposed to vibration, thermal stress, and industrial contaminants.
10. Is this model suitable for retrofit projects?
Yes, it is widely used for machinery upgrades, replacement installations, and monitoring system modernization.
