High-Reliability Shaft Vibration Monitoring for Industrial Machinery

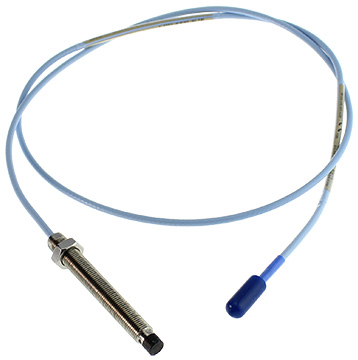

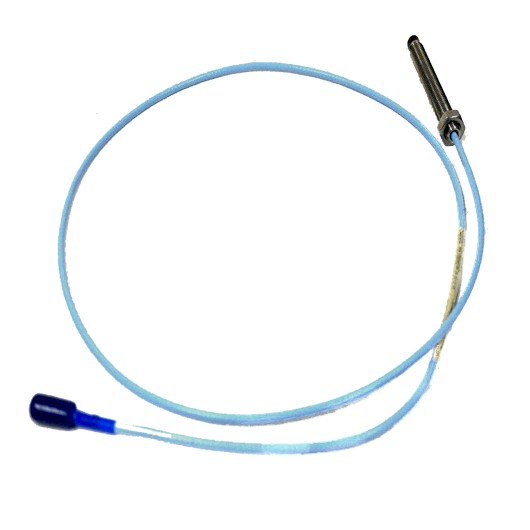

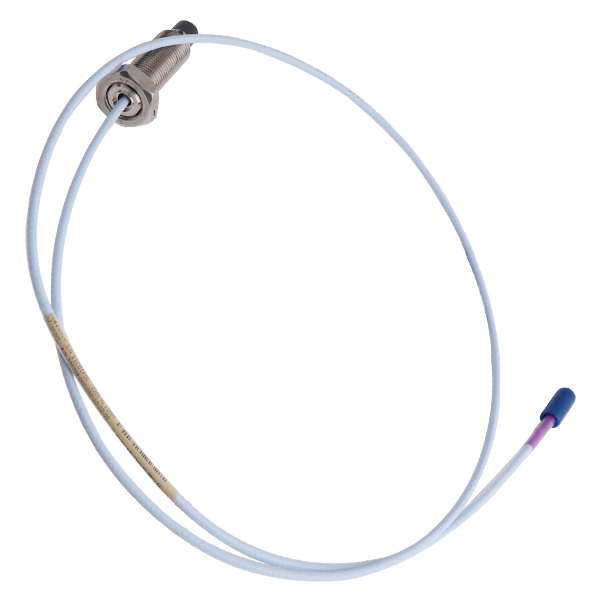

The Bently Nevada 330102-00-50-10-01-05 3300 XL 8 mm Proximity Probe is engineered for precise non-contact measurement of shaft vibration and radial displacement in rotating equipment. As part of the trusted 3300 XL transducer family, this probe provides stable signal integrity, rugged industrial durability, and dependable long-term performance for continuous machinery protection systems.
Designed for mission-critical industrial environments, this model combines high measurement accuracy with reinforced cable protection, making it suitable for demanding applications where operational reliability and predictive maintenance are essential.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-50-10-01-05 |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe |
| Measurement Principle | Eddy current non-contact sensing |
| Probe Diameter | 8 mm |
| Case Length | 5.0 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Thread Type | 3/8-24 UNF |
| Connector Style | Miniature coaxial ClickLoc |
| Cable Configuration | Reinforced industrial armored cable |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | 3300 XL Proximitor systems |
| Installation Method | Threaded mounting |
| Operating Environment | Continuous industrial-duty service |
| Approximate Dimensions | 192 mm × 18 mm × 18 mm |
| Approximate Weight | 0.32 kg |
Industrial Applications
This proximity probe is widely used in rotating machinery systems that require accurate vibration monitoring and dependable machinery protection.
Typical Application Areas
-
Steam turbine monitoring systems
-
Industrial gas turbine protection
-
Compressor vibration diagnostics
-
Centrifugal pump monitoring
-
Electric motor shaft analysis
-
Generator displacement monitoring
-
Petrochemical process equipment
-
Refinery rotating machinery systems
Its high-stability sensing capability helps maintenance teams identify shaft movement abnormalities, imbalance, misalignment, and bearing wear before operational disruptions occur.
Key Advantages
Stable High-Precision Measurement
Provides accurate shaft displacement and vibration data for critical machinery diagnostics and performance monitoring.
Reinforced Industrial Cable Protection
The armored cable structure improves resistance to vibration stress and harsh industrial operating conditions.
Rugged Mechanical Construction
Stainless steel housing ensures long-term durability in environments exposed to heat, vibration, and contamination.
Supports Predictive Maintenance Programs
Continuous monitoring capability helps reduce unplanned downtime and optimize maintenance scheduling.
Seamless 3300 XL System Integration
Fully compatible with Bently Nevada monitoring systems for efficient installation and replacement.
Technical FAQs
1. What is the primary function of this probe?
It measures shaft vibration and radial displacement in rotating machinery using non-contact sensing technology.
2. What sensing technology does this model use?
It uses eddy current non-contact sensing technology.
3. What is the cable length of this probe?
The total cable length is 1.0 meter (3.3 ft).
4. Which machines commonly use this probe?
It is commonly installed on turbines, compressors, pumps, motors, and generators.
5. Is this probe suitable for continuous operation?
Yes, it is engineered for continuous-duty industrial monitoring applications.
6. What industries commonly use this model?
Power generation, petrochemical, oil & gas, and heavy manufacturing industries.
7. What mounting configuration does the probe use?
It uses a 3/8-24 UNF threaded mounting design.
8. Can the probe operate in harsh industrial environments?
Yes, it is designed for environments with vibration, temperature fluctuation, and industrial contamination exposure.
9. What are the benefits of the 3300 XL platform?
The platform delivers stable signal performance, long operational lifespan, and high monitoring accuracy.
10. Is this model suitable for retrofit projects?
Yes, it is widely used in replacement applications, machinery upgrades, and monitoring system modernization.
