Compact Industrial Vibration Monitoring with Proven 3300 XL Reliability

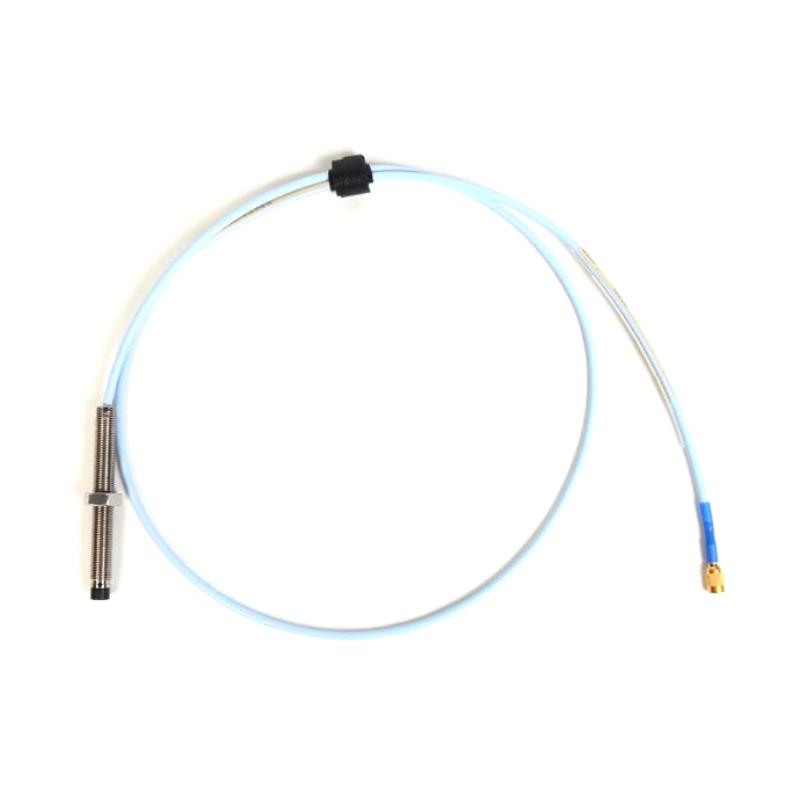

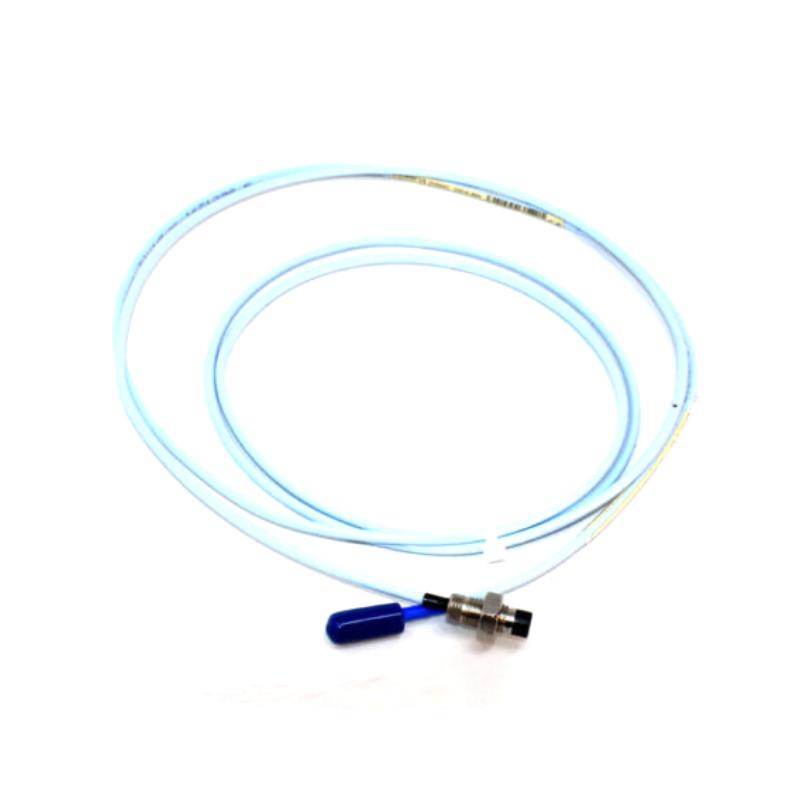

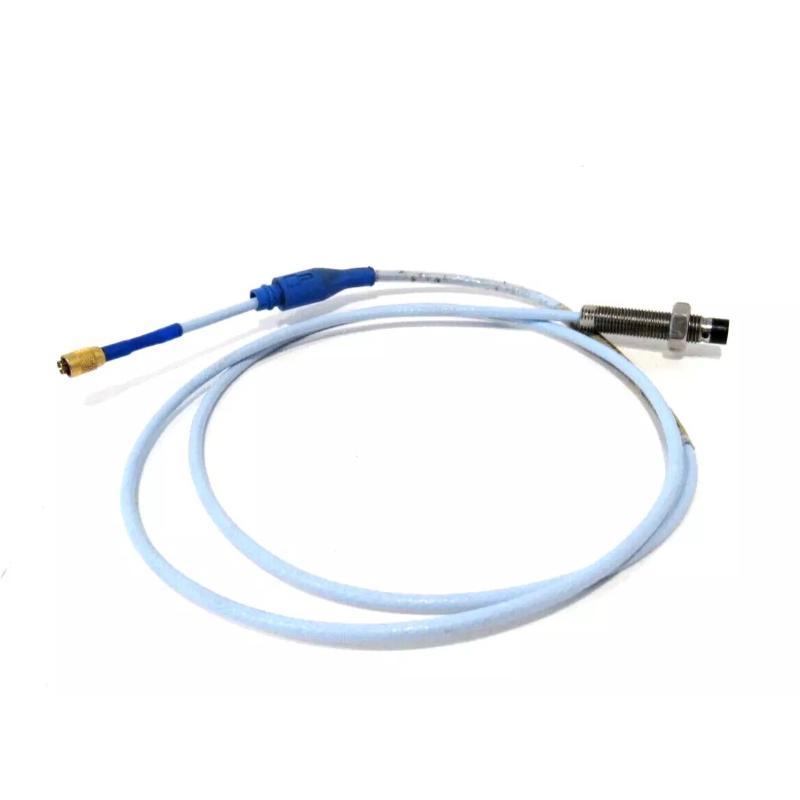

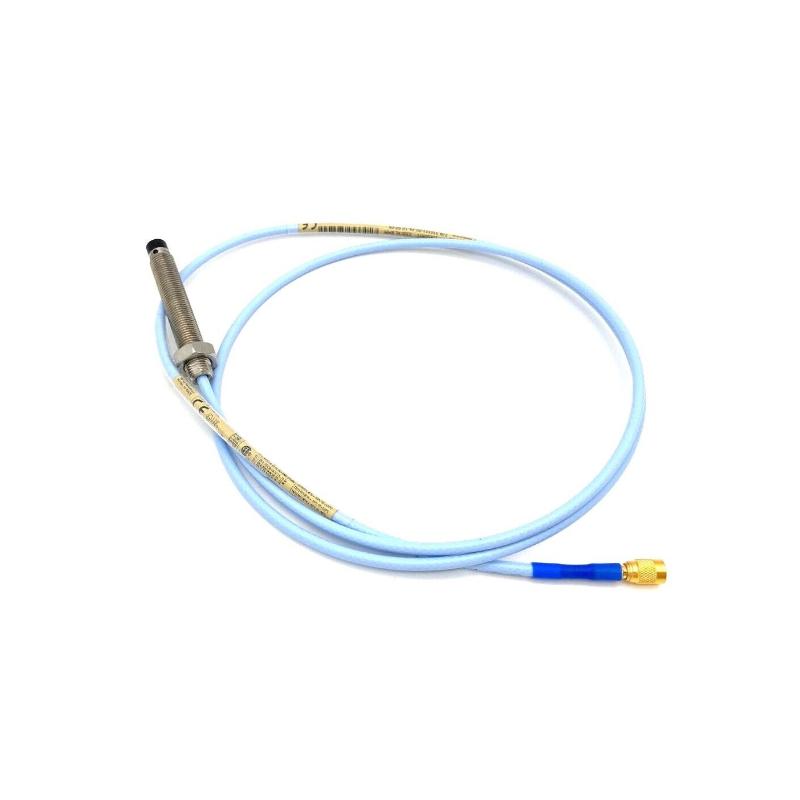

The Bently Nevada 330102-00-48-05-02-00 3300 XL 8 mm Proximity Probe is designed for high-precision shaft vibration and displacement measurement in rotating machinery applications. As part of the trusted 3300 XL transducer system, this probe delivers dependable signal accuracy, rugged mechanical durability, and stable long-term performance for continuous industrial monitoring environments.
Its compact 0.5-meter cable configuration makes it especially suitable for installations where space efficiency and precise sensing performance are equally important. The probe supports predictive maintenance strategies by helping operators identify early mechanical abnormalities before they affect production reliability.
Technical Specifications
| Specification | Details |
|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-48-05-02-00 |
| Product Series | 3300 XL 8 mm |
| Product Type | Proximity Probe |
| Measurement Technology | Eddy current non-contact sensing |
| Probe Diameter | 8 mm |
| Unthreaded Length | 0 in |
| Overall Case Length | 4.8 in |
| Total Cable Length | 0.5 m (1.6 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Thread Specification | 3/8-24 UNF |
| Cable Type | Standard armored industrial cable |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Housing Material | AISI 303/304 stainless steel |
| Operating Temperature Range | -51°C to +177°C |
| System Compatibility | 3300 XL Proximitor systems |
| Approximate Net Weight | 0.323 kg |
| Approximate Dimensions | 185 mm × 18 mm × 18 mm |
Industrial Applications
This proximity probe is widely deployed in critical rotating equipment where accurate shaft monitoring improves operational safety and machinery lifespan.
Typical Applications
-
Steam turbine monitoring
-
Gas turbine protection systems
-
Centrifugal compressor diagnostics
-
Industrial pump vibration analysis
-
Electric motor monitoring
-
Generator shaft displacement measurement
-
Petrochemical rotating equipment
-
Refinery machinery systems
Its stable sensing capability helps maintenance teams detect imbalance, shaft movement deviation, misalignment, and bearing wear trends during early operational stages.
Product Advantages
Compact Installation Flexibility
The 0.5-meter cable design allows installation in confined machinery spaces while maintaining precise signal transmission.
High-Accuracy Monitoring Performance
Provides stable displacement and vibration measurements for reliable condition-based maintenance programs.
Rugged Industrial Construction
Stainless steel housing and armored cable design improve durability in harsh industrial operating environments.
Excellent Environmental Resistance
Designed to withstand temperature fluctuations, vibration exposure, and industrial contamination.
Proven 3300 XL System Integration
Fully compatible with Bently Nevada 3300 XL monitoring architecture for streamlined deployment and replacement procedures.
Technical FAQs
1. What is the primary function of this probe?
It measures shaft vibration and radial displacement in rotating industrial machinery using non-contact sensing technology.
2. What is the cable length of this model?
The total cable length is 0.5 meter (1.6 ft).
3. What sensing technology does the probe use?
It uses eddy current non-contact sensing technology.
4. Which machines commonly use this probe?
It is commonly installed on turbines, compressors, pumps, motors, and generators.
5. Is this probe suitable for continuous industrial operation?
Yes, it is designed for continuous-duty machinery monitoring applications.
6. What is the operating temperature range?
The probe supports operating temperatures from -51°C to +177°C.
7. What industries commonly use this model?
Power generation, oil & gas, petrochemical, and heavy manufacturing industries.
8. What mounting configuration does it use?
It uses a 3/8-24 UNF threaded mounting design.
9. What materials are used in the probe construction?
The housing is made from AISI 303/304 stainless steel, and the probe tip uses PPS material.
