Precision Condition Monitoring for Critical Rotating Machinery Systems

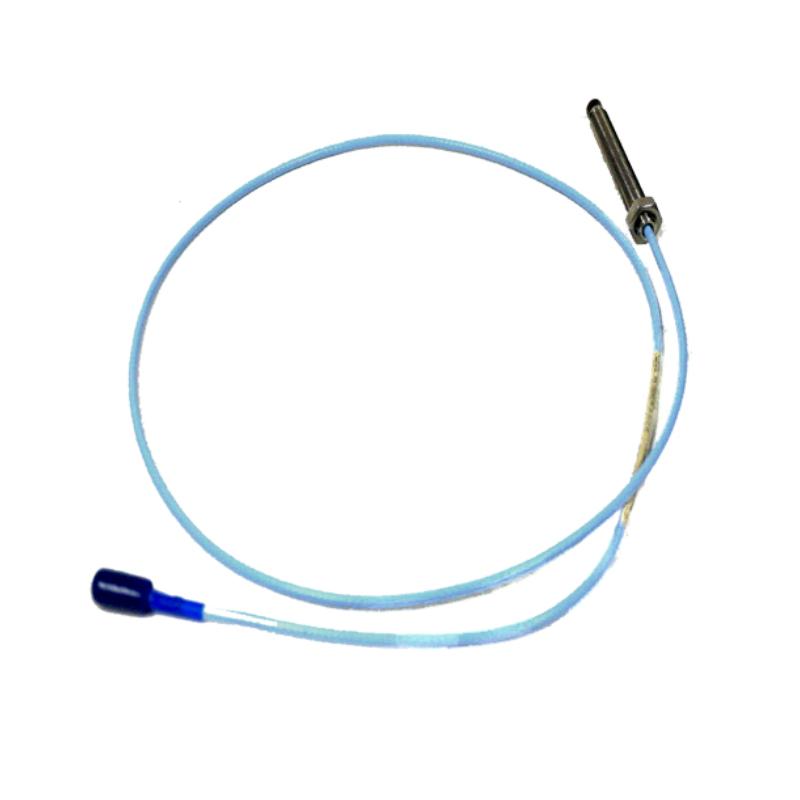

The Bently Nevada 330102-00-28-10-02-05 3300 XL 8 mm Proximity Probe is a high-reliability eddy current sensor designed for accurate shaft vibration and radial displacement measurement in industrial rotating equipment. Built on the proven 3300 XL platform, it delivers stable signal output, strong environmental resistance, and long-term measurement consistency in demanding operational environments.
Engineered for continuous machinery protection systems, this probe is widely used in industries where early detection of mechanical changes is essential to prevent unplanned downtime and maintain operational efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 330102-00-28-10-02-05 |
| Series | 3300 XL 8 mm |
| Probe Type | Proximity Probe |
| Measurement Principle | Eddy current non-contact sensing |
| Probe Diameter | 8 mm |
| Case Length | 2.8 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Thread Size | 3/8-24 UNF |
| Cable Type | Standard armored industrial cable |
| Housing Material | Stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| System Compatibility | 3300 XL Proximitor systems |
| Operating Environment | Industrial continuous-duty use |
| Approx. Weight | 0.323 kg |
| Temperature Range | -51°C to +177°C (typical industrial grade) |
