High-Precision Non-Contact Vibration Monitoring for Critical Rotating Machinery

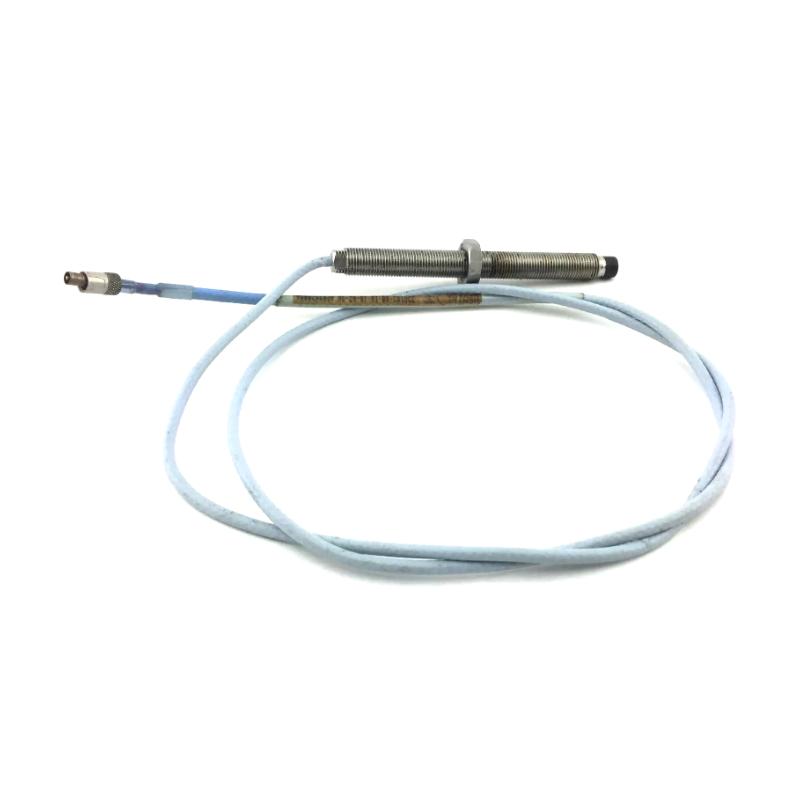

The Bently Nevada 330102-00-12-10-02-05 3300 XL 8 mm Proximity Probe is a robust eddy current sensor designed for continuous shaft vibration and position monitoring in industrial rotating equipment. As part of the widely adopted 3300 XL transducer system, this probe delivers stable, high-accuracy non-contact measurement performance for turbines, compressors, pumps, motors, and generators operating in demanding industrial environments.
Built for reliability and long service life, this model supports predictive maintenance strategies by enabling early detection of mechanical issues such as imbalance, misalignment, shaft instability, and bearing wear. The 3300 XL platform is also known for full interchangeability across probe, cable, and proximitor components, simplifying maintenance and system expansion.
Technical Specifications
| Specification Item | Details |
|---|
| Model Number | 330102-00-12-10-02-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Sensing Technology | Eddy Current Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Measurement Function | Shaft vibration and position monitoring |
| Thread Type | 3/8-24 UNF |
| Unthreaded Length | 0.0 in |
| Case Length | 1.2 in |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc |
| Material | Stainless steel (probe body) |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temperature | approx. -51°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL Systems |
| Weight | ~0.323 kg |
Industrial Applications
The 330102-00-12-10-02-05 probe is widely used in condition monitoring and machinery protection systems where accurate vibration and displacement measurement is critical for safe operation.
Typical applications include:
-
Steam turbine monitoring systems
-
Gas turbine vibration protection
-
Industrial compressor diagnostics
-
Centrifugal pump condition monitoring
-
Electric motor shaft monitoring
-
Generator rotor position detection
-
Oil & gas production equipment
-
Petrochemical processing plants
-
Power generation systems
Its high sensitivity and stable output make it suitable for continuous 24/7 industrial operation.
Key Features and Advantages
High-Accuracy Eddy Current Sensing
Provides precise, non-contact measurement of shaft vibration and position, ensuring stable readings without mechanical wear.
API 670-Grade System Design
Part of a transducer system designed to meet stringent industrial monitoring standards for rotating machinery protection.
Fully Interchangeable System Architecture
Probe, cable, and proximitor components can be replaced independently without recalibration, reducing maintenance complexity.
Rugged Stainless Steel Construction
Built for harsh environments with strong resistance to vibration, oil exposure, and industrial contamination.
Predictive Maintenance Ready
Supports early fault detection strategies, improving equipment uptime and reducing unplanned shutdown risks.
Stable Long-Term Signal Output
Engineered for consistent performance in high-speed rotating machinery applications.
Technical FAQs
1. What is the main function of this probe?
It measures shaft vibration and position in rotating industrial machinery.
2. What technology does it use?
It uses eddy current non-contact sensing technology.
3. What is the probe size?
It is an 8 mm proximity probe.
4. What system is it compatible with?
It works with Bently Nevada 3300 XL monitoring systems.
5. What is included in the 3300 XL system concept?
Probe, extension cable, and proximitor sensor as a complete measurement chain.
6. What industries commonly use it?
Oil & gas, power generation, petrochemical, and heavy industry.
7. Why is non-contact measurement important?
It reduces wear and ensures long-term measurement stability.
8. What material is used for the probe?
Stainless steel with a PPS tip.
9. Can it support predictive maintenance?
Yes, it is widely used in condition monitoring systems.
10. Why is the 3300 XL series widely trusted?
Because of its interchangeability, stability, and proven performance in critical machinery protection systems.
