Precision Non-Contact Monitoring Solution for Industrial Rotating Equipment

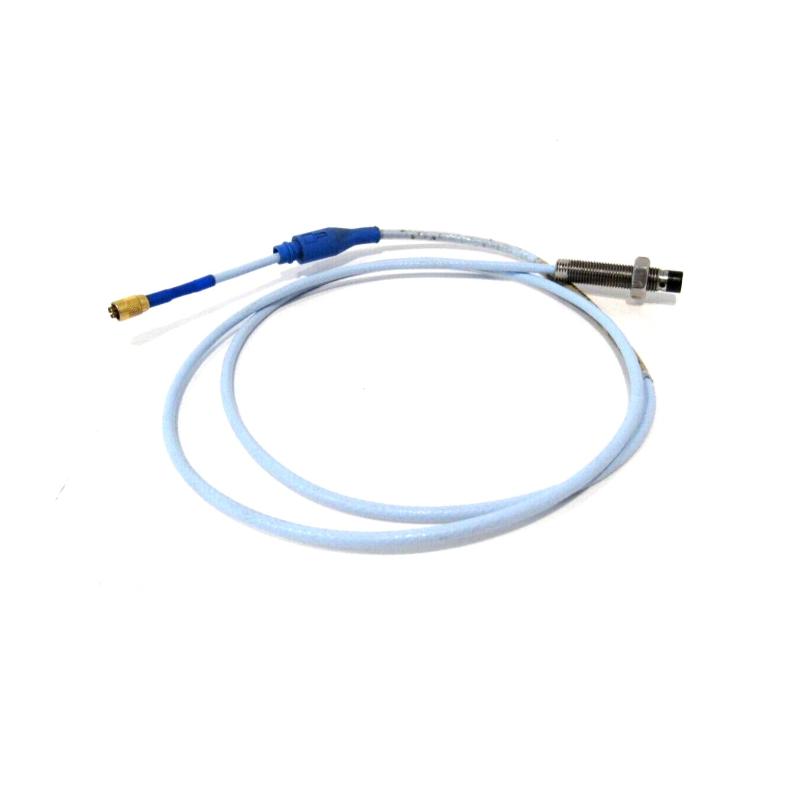

The Bently Nevada 330101-45-57-05-02-05 3300 XL 8mm Eddy Current Probe is a high-performance vibration and displacement sensing device developed for continuous condition monitoring of critical rotating machinery. As part of the renowned 3300 XL series, this probe provides accurate non-contact shaft vibration and position measurements using advanced eddy current sensing technology.
Built for demanding industrial environments, the probe delivers excellent signal stability, strong mechanical durability, and dependable long-term performance. It is widely applied in predictive maintenance and machinery protection systems where early fault detection is essential for reducing downtime and improving operational reliability.
Technical Specifications
| Specification Item | Details |
|---|---|
| Model Number | 330101-45-57-05-02-05 |
| Product Series | 3300 XL |
| Product Type | 8mm Eddy Current Probe |
| Manufacturer | Bently Nevada |
| Sensing Technology | Eddy Current Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Measurement Type | Shaft vibration and displacement monitoring |
| Unthreaded Length | 4.5 in |
| Case Length | 5.7 in |
| Total System Length | 0.5 meter |
| Connector Type | Miniature coaxial connector |
| Housing Material | Stainless steel |
| Probe Tip Material | High-performance PPS material |
| Linear Range | 2 mm (80 mils) |
| System Compatibility | 3300 XL Monitoring Systems |
| Mounting Method | Threaded industrial mounting |
| Operating Temperature | Extended industrial temperature range |
| Approximate Weight | ~0.32 kg |
