Industrial-Grade Vibration Monitoring for High-Critical Rotating Equipment

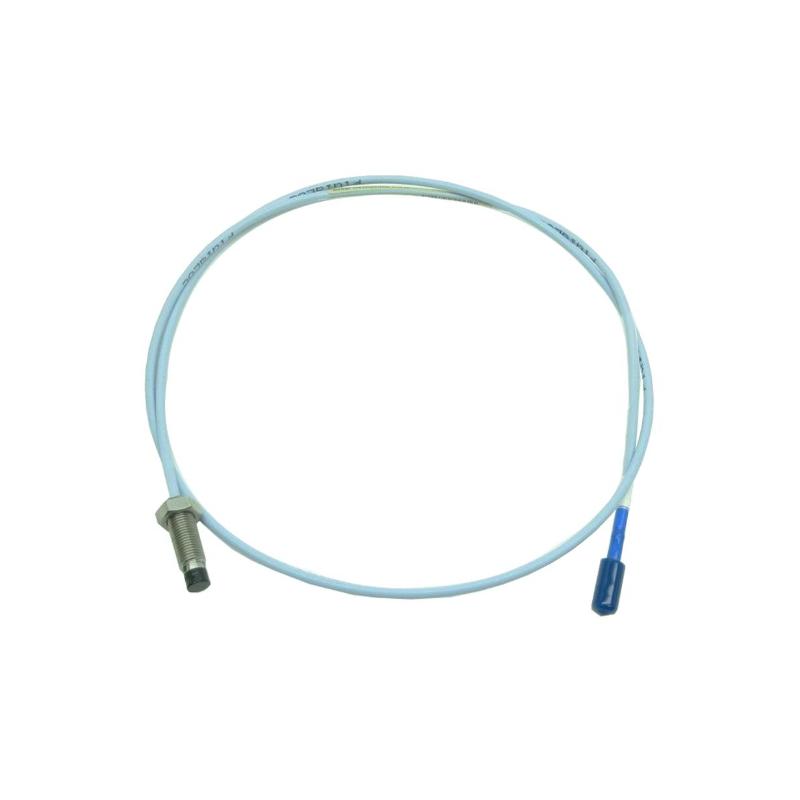

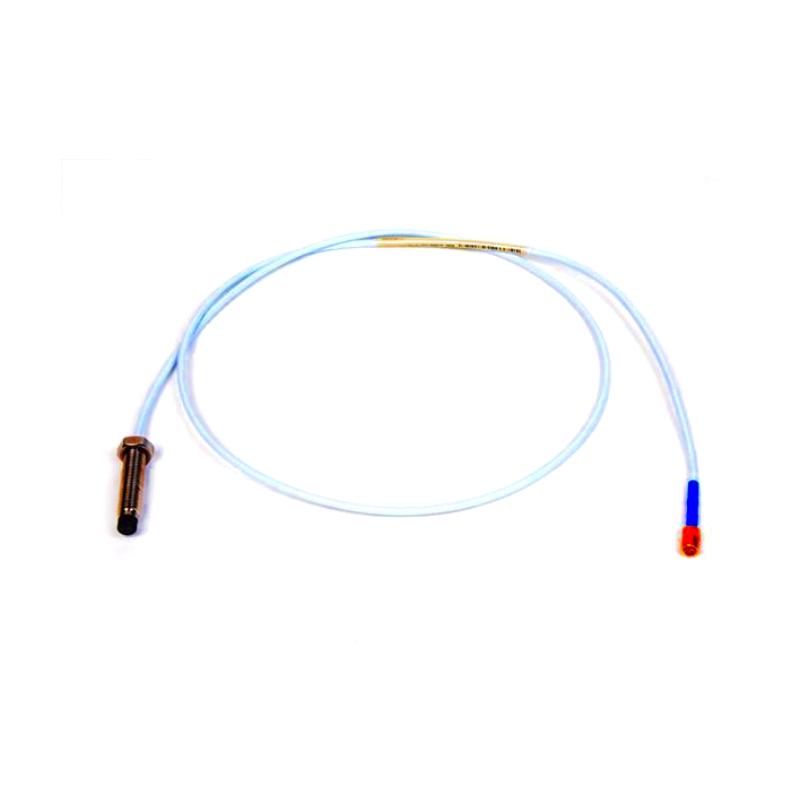

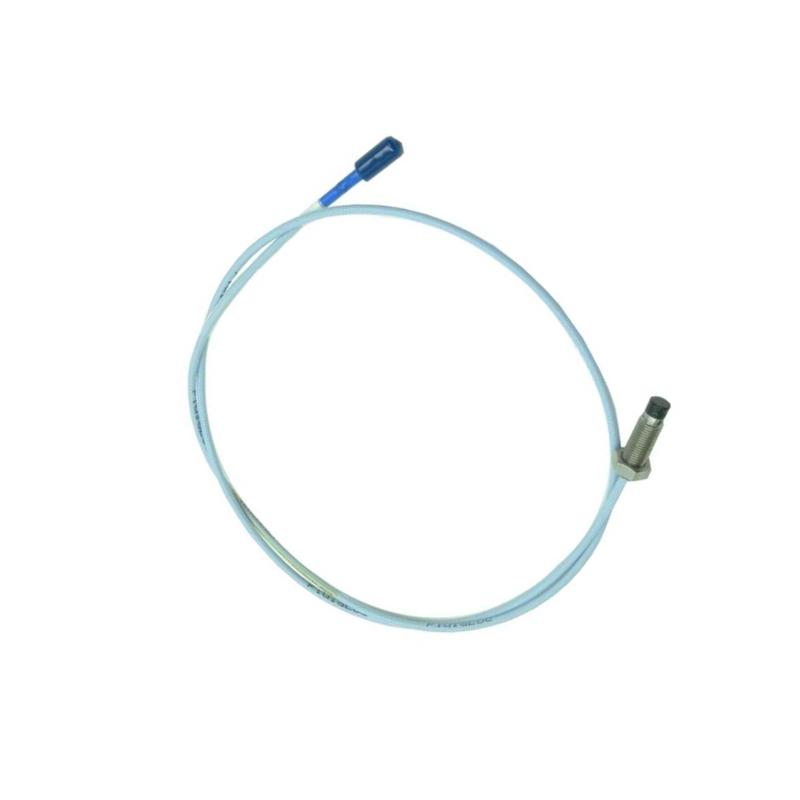

The Bently Nevada 330101-40-60-05-02-CN 3300 XL 8mm Proximity Probe is a high-precision non-contact sensor engineered for advanced shaft vibration and position monitoring in industrial rotating machinery. As part of the trusted 3300 XL series, this probe delivers reliable eddy current measurement technology for continuous machinery protection and predictive maintenance applications.
Designed for demanding industrial environments, the 3300 XL 8mm probe combines rugged mechanical construction with stable signal performance, making it ideal for turbines, compressors, pumps, motors, and other high-speed rotating assets. Its enhanced probe design and reinforced cable technology improve durability while maintaining exceptional measurement accuracy.
Technical Specifications
| Specification Item | Details |
|---|
| Model Number | 330101-40-60-05-02-CN |
| Product Series | 3300 XL |
| Product Type | 8mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Sensing Technology | Eddy Current Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Unthreaded Length | 4.0 in |
| Case Length | 6.0 in |
| Total Cable Length | 0.5 meter (1.6 ft) |
| Connector Type | Miniature ClickLoc coaxial connector |
| Cable Type | Standard industrial cable |
| Housing Material | AISI 303/304 stainless steel |
| Probe Tip Material | PPS (Polyphenylene Sulfide) |
| Linear Measurement Range | 2 mm (80 mils) |
| Scale Factor | 7.87 V/mm ±5% |
| Operating Temperature | -52°C to +177°C |
| Pull Strength | 330 N (75 lbf) CableLoc retention |
| System Compatibility | Bently Nevada 3300 XL Systems |
| Approximate Weight | ~0.323 kg |
| Approval Option | CN Country-Specific Approval |
Industrial Applications
The 330101-40-60-05-02-CN proximity probe is widely used in machinery condition monitoring systems where precise vibration analysis and shaft position measurement are essential for equipment reliability and operational safety.
Typical application environments include:
-
Steam turbine monitoring systems
-
Gas turbine protection systems
-
Industrial compressor monitoring
-
Centrifugal pump condition monitoring
-
Electric motor vibration analysis
-
Generator shaft position detection
-
Oil and gas production facilities
-
Petrochemical processing plants
-
Power generation systems
Its accurate non-contact sensing capability allows maintenance teams to identify early signs of imbalance, shaft instability, misalignment, and bearing degradation before major failures occur.
Key Features and Advantages
Advanced Non-Contact Measurement
Provides highly accurate shaft vibration and displacement monitoring without physical contact, minimizing wear and improving reliability.
Reinforced 8mm Probe Construction
The larger 8mm probe body offers enhanced mechanical durability and stronger resistance to industrial vibration and physical stress.
TipLoc and CableLoc Technology
Patented TipLoc molding and CableLoc cable retention improve probe durability and cable pull resistance in demanding environments.
Stable Signal Performance
Advanced eddy current sensing technology ensures consistent output under high-speed rotating machinery conditions.
Wide Industrial Temperature Capability
Designed for harsh environments with reliable operation across extended industrial temperature ranges.
Supports Predictive Maintenance Programs
Enables early fault detection to reduce unexpected downtime and improve long-term equipment reliability.
Technical FAQs
1. What is the main function of the 330101-40-60-05-02-CN probe?
It monitors shaft vibration and shaft position in rotating industrial machinery.
2. What sensing technology does the probe use?
It uses eddy current non-contact proximity sensing technology.
3. What is the probe diameter?
The probe diameter is 8 mm.
4. What is the total cable length?
The configured cable length is 0.5 meter (1.6 ft).
5. What is the operating temperature range?
The probe operates from -52°C to +177°C.
6. What is CableLoc technology?
CableLoc technology provides enhanced cable retention strength to improve probe durability.
7. Which systems are compatible with this probe?
It is designed for Bently Nevada 3300 XL monitoring systems.
8. Which industries commonly use this probe?
Oil and gas, power generation, petrochemical, and industrial manufacturing industries.
9. What material is used for the probe housing?
The housing is constructed from industrial-grade stainless steel.
10. Why is the 3300 XL series widely trusted in industrial monitoring?
Because of its measurement accuracy, rugged industrial design, and proven long-term reliability in critical machinery protection systems.
