Advanced Eddy Current Sensor for Precision Machinery Protection

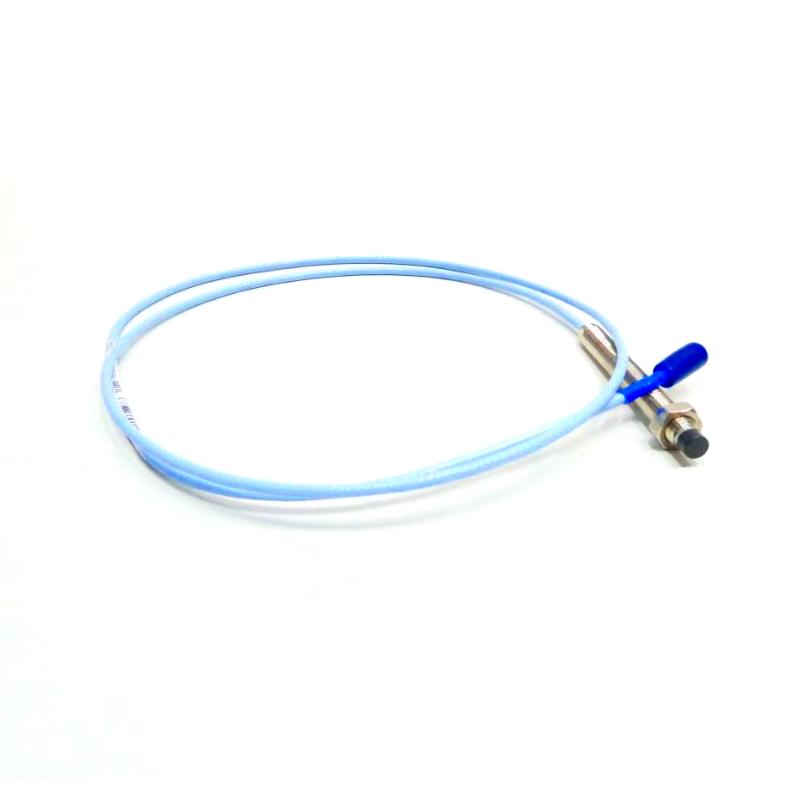

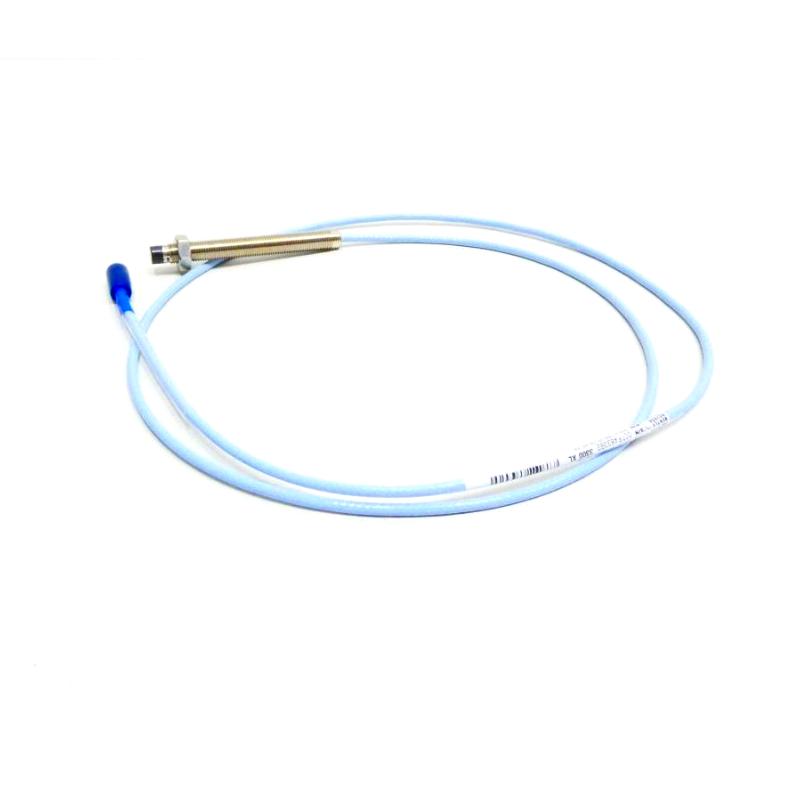

The Bently Nevada 330101-39-63-15-12-05 3300 XL 8 mm Proximity Probe is a premium industrial vibration monitoring sensor designed for accurate non-contact measurement of shaft vibration, position, and displacement in rotating machinery. As part of the highly trusted 3300 XL series, this probe provides dependable condition monitoring performance for mission-critical industrial equipment operating in demanding environments.
Built with rugged stainless steel construction and advanced eddy current sensing technology, the probe delivers exceptional signal stability and long-term durability. Its precision measurement capability helps maintenance teams identify early-stage machinery issues such as imbalance, shaft misalignment, rotor instability, and bearing wear before serious failures occur.
Technical Specifications
| Specification Item | Details |
|---|
| Model Number | 330101-39-63-15-12-05 |
| Product Series | 3300 XL |
| Product Type | 8 mm Proximity Probe |
| Manufacturer | Bently Nevada |
| Sensing Technology | Eddy Current Non-Contact Measurement |
| Probe Diameter | 8 mm |
| Measurement Function | Shaft vibration and position monitoring |
| System Compatibility | 3300 XL Monitoring Systems |
| Unthreaded Length | 3.9 in (99 mm) |
| Case Length | 6.3 in (160 mm) |
| Total Length | 1.5 meters (4.9 ft) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Cable Type | FluidLoc industrial cable |
| Housing Material | Stainless steel |
| Linear Measurement Range | 2 mm (80 mils) |
| Operating Temperature | -52°C to +177°C |
| Approximate Weight | ~0.32 kg |
Industrial Applications
The 330101-39-63-15-12-05 proximity probe is widely used in rotating equipment protection systems where continuous machinery condition monitoring is essential for operational safety and reliability.
Typical application environments include:
-
Steam turbine monitoring systems
-
Gas turbine protection systems
-
Industrial compressor monitoring
-
Centrifugal pump vibration analysis
-
Generator shaft position monitoring
-
Electric motor condition monitoring
-
Oil and gas processing facilities
-
Petrochemical production plants
-
Power generation stations
Its stable signal output and rugged construction make it highly suitable for continuous industrial operation in harsh process environments.
Key Features and Advantages
High-Precision Non-Contact Monitoring
Provides accurate shaft displacement and vibration measurement without physical contact, minimizing mechanical wear and improving long-term reliability.
Optimized 3300 XL Compatibility
Fully compatible with Bently Nevada 3300 XL monitoring systems for seamless integration and dependable performance.
FluidLoc Cable Protection
The FluidLoc cable option helps prevent fluid migration through the cable interior, improving operational reliability in oil-rich environments.
Rugged Industrial Construction
Stainless steel housing and reinforced cable design provide excellent durability under demanding industrial conditions.
Excellent Temperature Resistance
Designed for operation across wide industrial temperature ranges, supporting stable performance in harsh environments.
Supports Predictive Maintenance Programs
Helps maintenance teams identify developing machinery faults early, reducing downtime and extending equipment life.
Technical FAQs
1. What is the primary function of the 330101-39-63-15-12-05 probe?
It measures shaft vibration and shaft position in rotating industrial machinery.
2. What sensing technology does this probe use?
It uses eddy current non-contact proximity sensing technology.
3. What is the probe diameter?
The probe diameter is 8 mm.
4. What is the total cable length?
The configured total system length is 1.5 meters (4.9 ft).
5. What is the purpose of the FluidLoc cable?
FluidLoc technology helps prevent oil or liquid migration through the cable assembly.
6. Which systems is the probe compatible with?
It is designed for Bently Nevada 3300 XL monitoring systems.
7. What industries commonly use this probe?
Oil and gas, power generation, petrochemical, and heavy industrial manufacturing sectors.
8. What material is used for the probe housing?
The housing is constructed from industrial-grade stainless steel.
9. Is the probe suitable for harsh industrial environments?
Yes, it is engineered for continuous operation in demanding industrial conditions.
10. Why is the 3300 XL series widely trusted in industry?
Because of its high measurement accuracy, rugged design, API-compliant performance, and long-term reliability.
