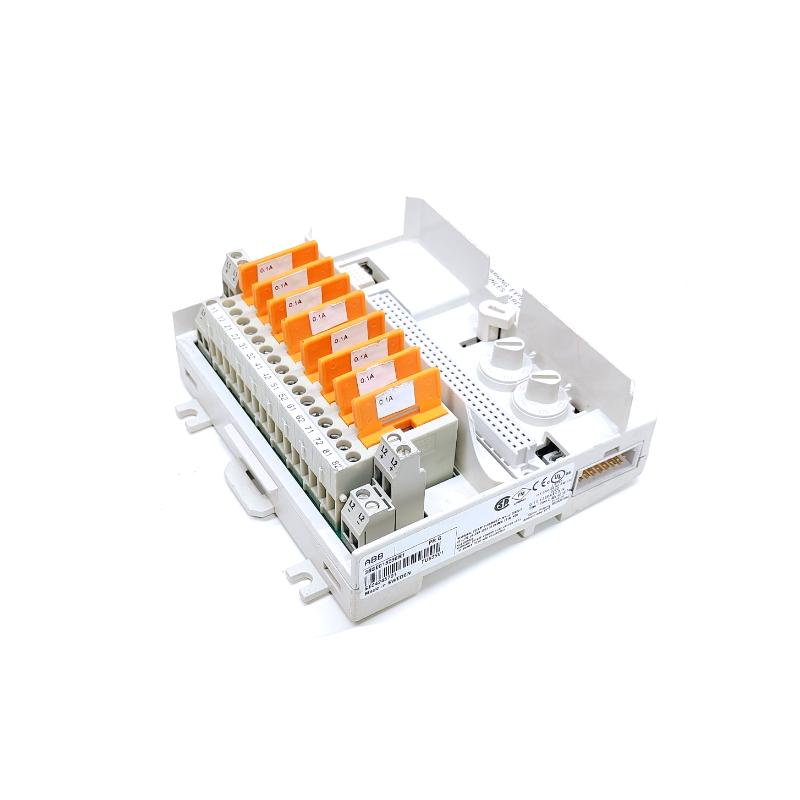

Extended High-Reliability MTU for Advanced ABB S800 I/O Applications
The ABB TU835V1 (3BSE013236R1) Extended Module Termination Unit is a robust passive interface component designed for ABB S800 I/O and 800xA automation systems. It provides structured field wiring termination, dependable signal distribution, and stable ModuleBus communication for industrial control environments requiring scalable and high-density I/O integration.
Designed for demanding process industries, the TU835V1 supports organized cable management and efficient module connectivity while improving maintenance accessibility and long-term operational reliability. Its extended termination architecture makes it particularly suitable for complex automation cabinets where space optimization and system stability are critical.
Technical Specifications
| Specification Item | Details |
|---|
| Model | TU835V1 |
| Order Number | 3BSE013236R1 |
| Manufacturer | ABB |
| Product Type | Extended Module Termination Unit (MTU) |
| System Platform | ABB S800 I/O / 800xA |
| Channel Capacity | Up to 16 channels |
| Terminal Structure | Extended dual-row terminal layout |
| Rated Voltage | 50 V |
| Maximum Current per Channel | up to 2 A |
| Function | Field wiring termination + ModuleBus distribution |
| Process Voltage Groups | 2 isolated groups |
| Fuse Protection | Integrated industrial fuse protection |
| Mounting Method | DIN rail mounting |
| Mechanical Keying | Supported |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Approximate Dimensions | 120 × 110 × 64 mm |
| Approximate Weight | ~0.25 kg |
Industrial Application Areas
The TU835V1 is widely used in industrial automation systems where reliable field wiring management and scalable I/O architecture are essential for process stability and operational efficiency.
Typical application environments include:
-
ABB 800xA distributed control systems
-
S800 I/O automation cabinets
-
Oil and gas processing facilities
-
Chemical and petrochemical plants
-
Power generation systems
-
Water treatment automation systems
-
Industrial manufacturing facilities
-
Utility and infrastructure control systems
Its extended MTU structure enables clean and organized cabinet design while supporting stable communication across connected I/O modules.
Key Features and Engineering Advantages
Extended High-Density Wiring Design
Supports multiple field connections within a compact footprint, simplifying large-scale I/O cabinet integration.
Reliable Signal Termination
Provides stable electrical termination for field devices, helping maintain signal consistency and reduce interference risks.
Integrated ModuleBus Communication
Supports internal ModuleBus routing between connected S800 I/O modules for synchronized system operation.
Dual Isolated Voltage Groups
Separated voltage grouping improves electrical segmentation and enhances operational safety.
Mechanical Keying Protection
Prevents incorrect module insertion and helps reduce installation and maintenance errors.
Industrial-Grade Durability
Designed for continuous operation in demanding process environments with strong long-term reliability.
Technical FAQs
1. What is the primary function of the TU835V1 module?
It provides field wiring termination and ModuleBus communication support for ABB S800 I/O systems.
2. Is TU835V1 an active control module?
No, it is a passive Module Termination Unit without signal processing functionality.
3. How many channels does the module support?
It supports up to 16 field wiring channels.
4. Which systems are compatible with TU835V1?
It is designed for ABB S800 I/O and ABB 800xA automation platforms.
5. Does the module support voltage group isolation?
Yes, it includes dual isolated process voltage groups.
6. What is ModuleBus used for?
ModuleBus enables internal communication between I/O modules within the ABB S800 system.
7. How is the TU835V1 installed?
It is mounted on a standard DIN rail inside industrial control cabinets.
8. Does the module include electrical protection?
Yes, integrated fuse protection supports safer industrial operation.
9. Which industries commonly use TU835V1?
Oil and gas, petrochemical, power generation, manufacturing, and water treatment industries.
10. Why is TU835V1 suitable for large automation systems?
Its extended wiring architecture, stable communication support, and compact design make it ideal for scalable industrial applications.
