Flexible Safety I/O Architecture for High-Integrity Industrial Control

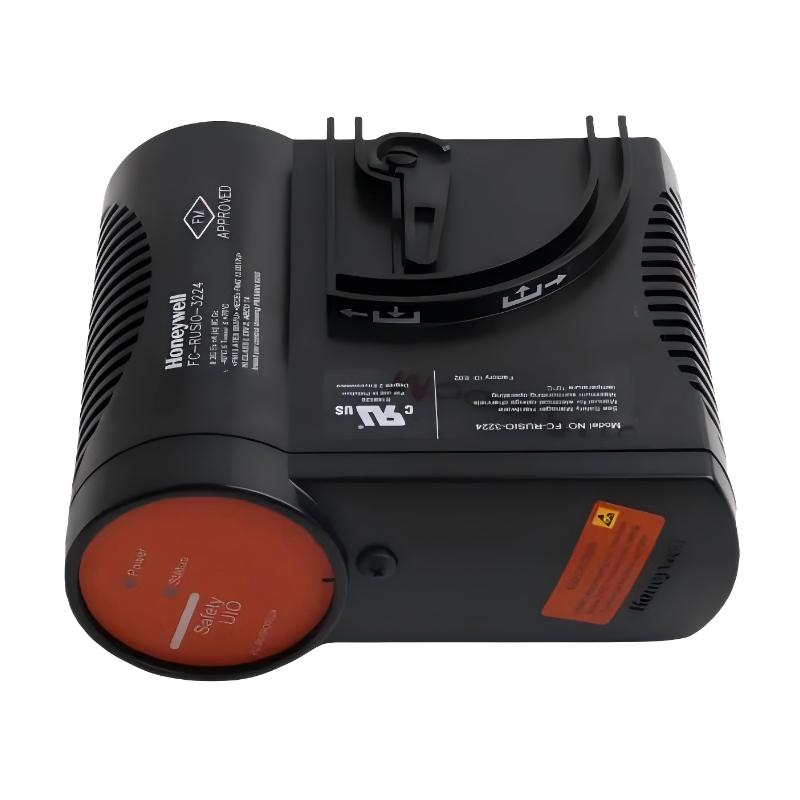

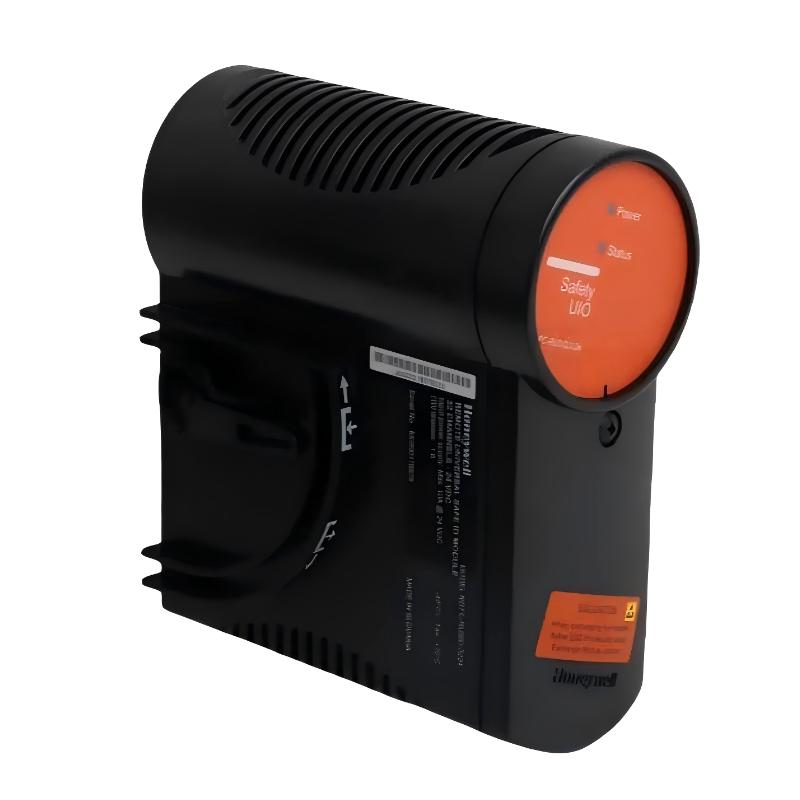

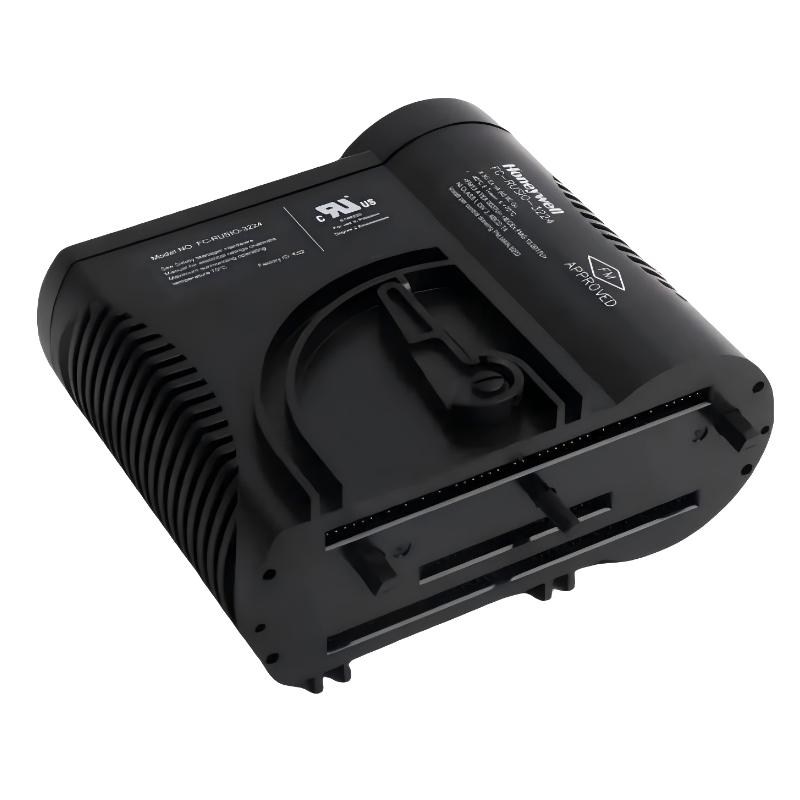

The Honeywell FC-RUSLS-3224 Remote Universal Safety I/O Module is a high-density, safety-rated field I/O solution designed for distributed control and safety systems. It provides flexible, configurable input and output channels for safety-critical automation environments, enabling seamless integration between field devices and Honeywell Safety Manager or Experion PKS platforms.
Engineered for SIL-rated applications, this module is built to support high-integrity signal processing while maintaining strong diagnostics, fault detection, and remote communication capabilities in complex industrial networks.
Technical Specifications
| Parameter | Specification |
|---|
| Model | FC-RUSLS-3224 |
| Product Type | Remote Universal Safety I/O Module |
| System Compatibility | Honeywell Safety Manager / Experion PKS |
| Channels | 32 configurable safety I/O channels |
| Channel Types | DI / DO / AI / AO configurable |
| Power Supply | 24 VDC (–15% to +30%) |
| Current Consumption | Max ~300 mA (no field load) |
| Communication | Redundant RUSIO links (100 Mbaud) |
| Safety Integrity Level | Up to SIL 3 capable architecture |
| Operating Temperature | –40°C to +70°C (external) |
| Storage Temperature | –40°C to +85°C |
| Humidity | 10% to 95% RH (non-condensing) |
| Dimensions | 7.24 × 16.51 × 14.5 cm |
| Weight | ~0.2–0.7 kg |
Application Scenarios
This safety I/O module is widely used in high-risk industrial environments where deterministic control and fail-safe operation are required:
-
Safety Instrumented Systems (SIS)
-
Oil & gas production and refining facilities
-
Petrochemical processing plants
-
Power generation safety control systems
-
Burner management and process safety applications
-
Offshore and hazardous zone installations
It acts as a distributed safety interface between field instruments and central safety controllers, reducing wiring complexity while maintaining high reliability.
Engineering Strengths and Design Value
The FC-RUSLS-3224 is built for high-integrity safety automation, offering flexible configuration and strong diagnostic coverage. Its universal channel architecture allows each I/O point to be software-defined, significantly improving system design flexibility.
Key advantages include:
-
32 universal safety channels, configurable per application requirement
-
SIL 3-capable architecture, suitable for critical safety loops
-
Flexible I/O configuration (digital, analog, monitoring-supported signals)
-
Redundant communication via RUSIO links, enhancing system availability
-
Wide industrial temperature tolerance, ensuring stable operation in harsh environments
-
Compact modular design, enabling high-density cabinet integration
Its architecture is designed to reduce engineering overhead while increasing safety coverage across distributed field systems.
Technical FAQs
1. What is the main function of this module?
It provides configurable safety-related input and output interfaces for industrial control systems.
2. How many channels does it support?
It supports 32 universal safety I/O channels.
3. What systems is it used with?
Honeywell Safety Manager and Experion PKS platforms.
4. Can channels be configured individually?
Yes, each channel can be set as DI, DO, AI, or AO depending on application needs.
5. Is it suitable for safety-critical applications?
Yes, it supports up to SIL 3 system architectures.
6. What is the operating voltage?
24 VDC industrial supply with tolerance range.
7. Does it support redundancy?
Yes, via dual RUSIO communication links.
8. What is the typical weight?
Approximately 0.2–0.7 kg depending on configuration.
9. What is the operating temperature range?
-40°C to +70°C (external module environment).
10. Why is it important in safety systems?
It enables distributed, fail-safe control of field devices in high-risk industrial processes.
