Advanced Flame Safety Control for Industrial Burner Systems

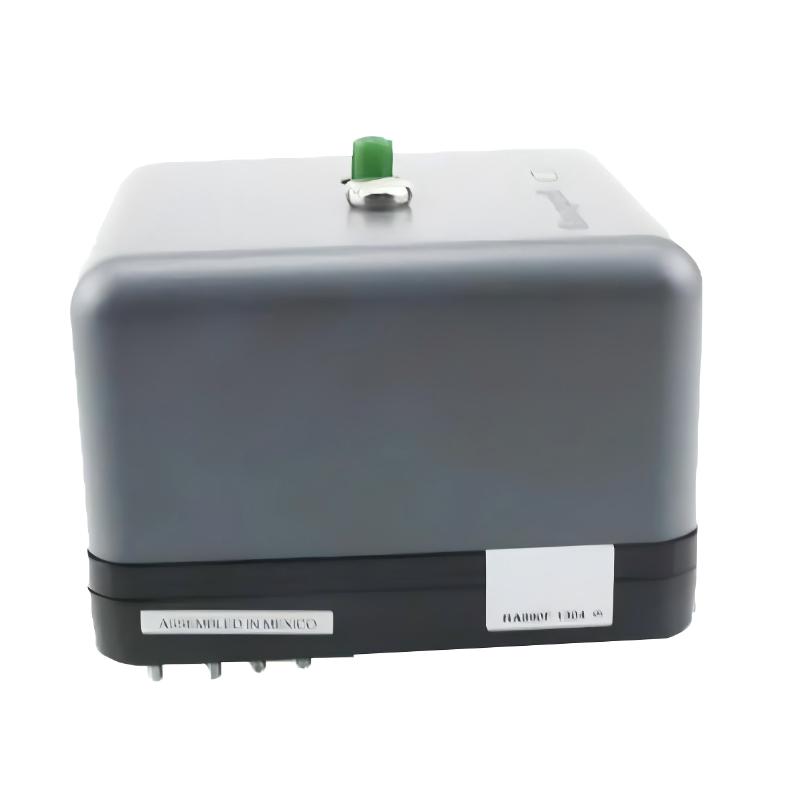

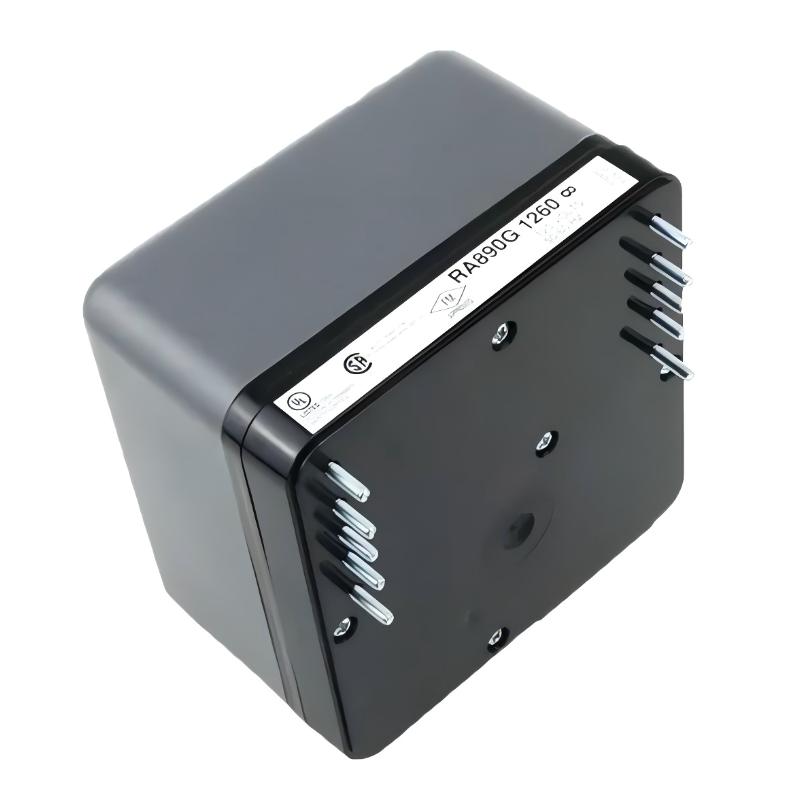

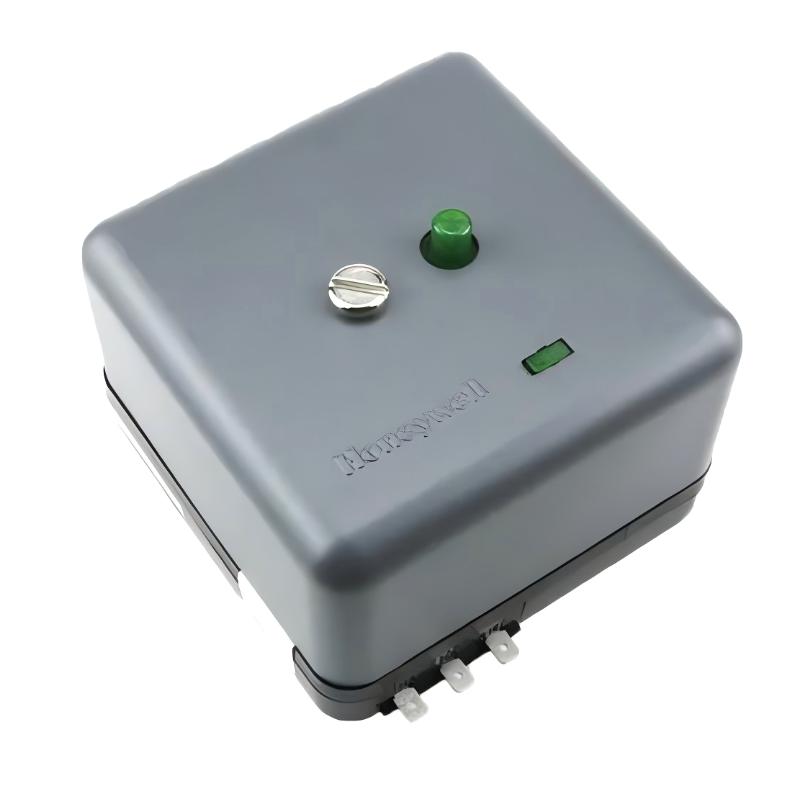

The Honeywell RA890G1245 Protectorelay Flame Safeguard Burner Control is a solid-state industrial safety controller designed to monitor flame presence and manage safe operation of gas, oil, or dual-fuel burner systems. It plays a critical role in combustion safety by continuously supervising flame conditions and initiating controlled shutdown or recycle sequences when abnormal conditions are detected.
Engineered for industrial and commercial heating applications, this controller integrates flame detection, ignition sequencing, and safety interlocking into a single robust module, ensuring reliable burner management in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|
| Model | RA890G1245 |
| Product Type | Flame Safeguard / Burner Control |
| Voltage Rating | 220–240 VAC |
| Frequency | 50/60 Hz |
| Flame Detection | UV flame sensors (C7027 / C7035 / C7044 compatible) |
| Ignition Type | Interrupted / intermittent pilot ignition |
| Response Time | ~0.8 seconds flame failure response |
| Safety Switch Timing | ~15 seconds |
| Alarm Output | SPDT relay contacts |
| Control Logic | Solid-state electronic sequencing |
| Operating Temperature | -40°C to +60°C |
| Mounting Type | Plug-in subbase mounting |
| Weight | ~1.0–2.3 kg |
Application Areas
This burner control module is commonly deployed in combustion systems where safety and reliability are critical:
-
Industrial boilers and steam systems
-
Process heating furnaces
-
Power plant burner management systems
-
Oil & gas combustion units
-
Chemical processing heaters
-
Waste incineration systems
It ensures that burners operate only under verified flame conditions, significantly reducing operational risk and improving system stability.
Engineering Strengths and Design Value
The RA890G1245 is built around a solid-state safety architecture that eliminates mechanical delay and enhances vibration resistance, making it suitable for harsh industrial environments.
Key advantages include:
-
Fast flame failure detection (~0.8 seconds) for rapid shutdown response
-
Safe-start verification, preventing ignition under false flame conditions
-
Automatic recycle or lockout logic, depending on flame stability
-
UV flame detector compatibility for precise flame sensing
-
Durable thermoplastic base and plug-in design, simplifying maintenance
-
Stable operation in high-vibration environments due to solid-state circuitry
Compared with traditional relay-based systems, it delivers faster response, higher reliability, and improved operational safety.
Technical FAQs
1. What is the main function of the RA890G1245?
It provides flame supervision and safety control for industrial burners.
2. What type of burners does it support?
Gas, oil, or dual-fuel burner systems.
3. Which flame detectors are compatible?
Honeywell UV detectors such as C7027, C7035, and C7044.
4. What happens if flame is lost during operation?
The system initiates recycle or lockout depending on configuration.
5. What is the response time for flame failure?
Approximately 0.8 seconds for rapid safety shutdown.
6. Does it support alarm outputs?
Yes, it includes SPDT alarm relay contacts.
7. Is it suitable for continuous industrial use?
Yes, it is designed for 24/7 burner management systems.
8. What mounting method is used?
Plug-in base mounting for easy installation and replacement.
9. Is it resistant to vibration?
Yes, solid-state circuitry improves resistance to mechanical vibration.
10. Why is it important in burner systems?
It ensures safe ignition, stable combustion, and automatic shutdown during unsafe conditions.
