Industrial Power Backbone for Mission-Critical Systems

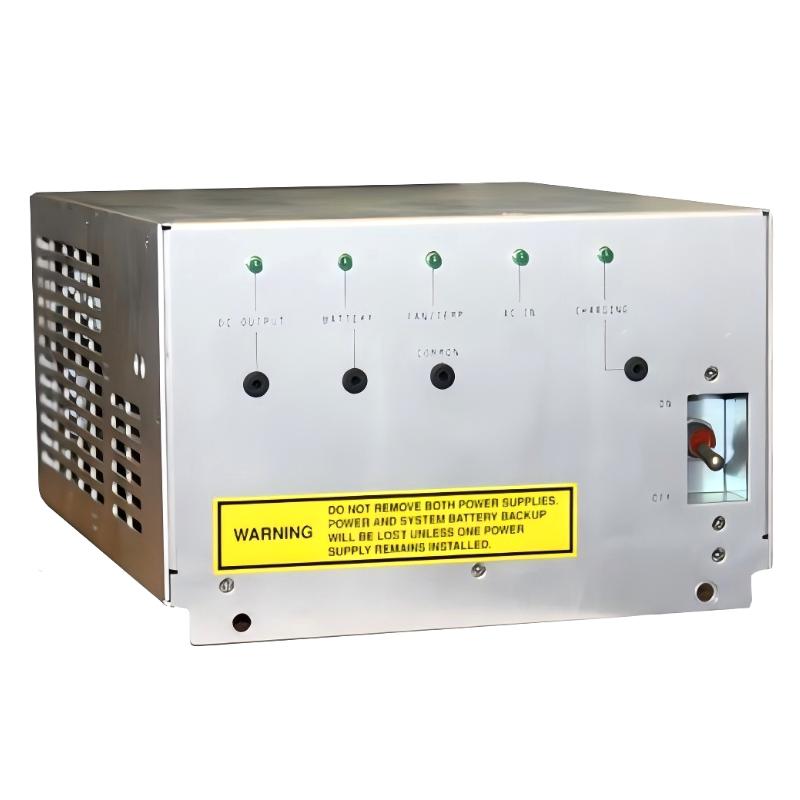

The Honeywell ACX631 51198947-100F Power Supply Module is a high-performance power solution engineered for Honeywell distributed control systems. Designed to deliver stable and continuous power to UCN-based cabinets (PM, APM, HPM), it plays a central role in maintaining system uptime and operational reliability.
With support for both AC mains and battery input, this module ensures uninterrupted power delivery even during supply fluctuations, making it a dependable choice for critical industrial environments. Its integrated charging and synchronization features further enhance system resilience and control precision.
Technical Specifications
| Parameter | Specification |
|---|
| Model | ACX631 / 51198947-100F |
| Module Type | DCS Power Supply Module |
| Input Voltage | 85–264 VAC / 48 VDC battery |
| Frequency | 47–63 Hz |
| Output Voltage | 25.25 VDC (AC input) / 24.25 VDC (battery mode) |
| Output Current | Up to 10 A |
| Auxiliary Output | 6 VAC (35 mA) for synchronization |
| Power Rating | Approx. 550 W |
| Protection | EMI/RFI filtering, industrial-grade protection |
| Operating Temperature | -20°C to +55°C |
| Dimensions (L×W×H) | 21.7 × 30 × 12.7 cm |
| Weight | Approx. 2.5–3.6 kg |
Application Scenarios
This power supply module is widely used in high-demand industrial sectors where continuous operation is critical:
-
Distributed Control Systems (DCS) cabinets
-
Oil & gas processing facilities
-
Power generation and turbine control systems
-
Chemical and petrochemical plants
-
Large-scale manufacturing automation
It provides stable DC output to controllers, I/O modules, and communication units, ensuring consistent system performance.
Performance Advantages and Engineering Value
The ACX631 51198947-100F is designed for reliability, redundancy, and precision power management. Its dual-input capability allows seamless switching between AC supply and battery backup, minimizing the risk of downtime.
Key benefits include:
-
Dual power input support for enhanced system reliability
-
Integrated battery charging circuit for backup readiness
-
Stable DC output for sensitive control equipment
-
EMI/RFI filtering to protect signal integrity
-
Parallel operation capability for increased power capacity
Its ability to maintain consistent voltage under varying loads makes it ideal for mission-critical control environments.
Technical FAQs
1. What is the primary function of this module?
It supplies stable DC power to Honeywell DCS systems.
2. Can it operate with battery backup?
Yes, it supports 48 VDC battery input with charging functionality.
3. What is the typical output voltage?
Approximately 25.25 VDC under AC input conditions.
4. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
5. What systems is it compatible with?
Honeywell UCN-based systems including PM, APM, and HPM cabinets.
6. Does it include protection features?
Yes, including EMI/RFI filtering and industrial safety compliance.
7. Can multiple units be used together?
Yes, outputs can be paralleled for higher capacity.
8. What is the operating temperature range?
Typically -20°C to +55°C under full load.
9. What is the role of the 6 VAC output?
It provides line-frequency synchronization for system timing.
10. Why is this module critical in DCS systems?
It ensures uninterrupted and stable power, which is essential for safe and reliable control operations.
