Industrial Networking Backbone for Critical Automation

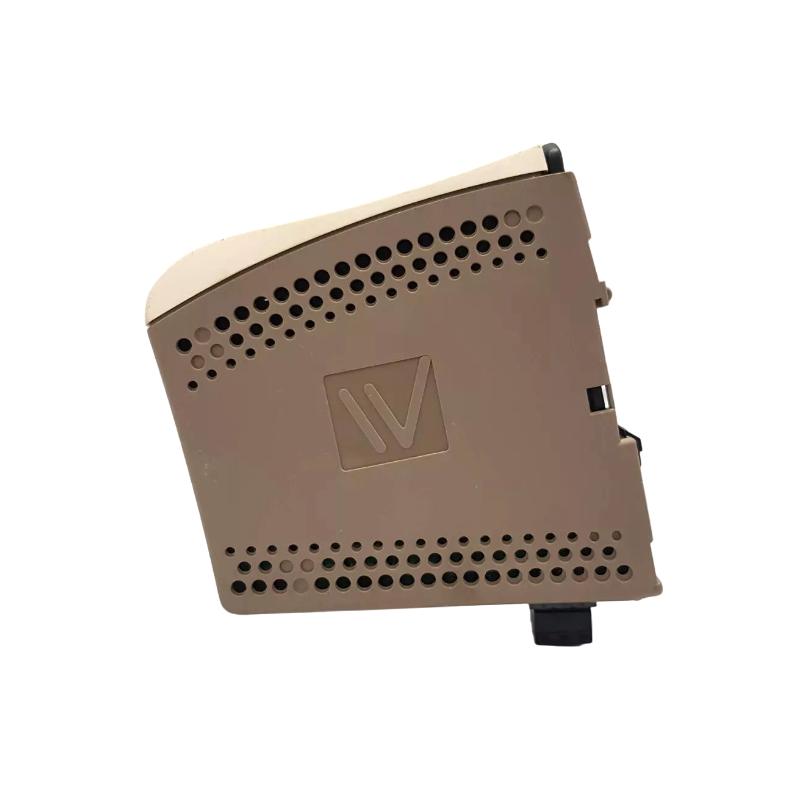

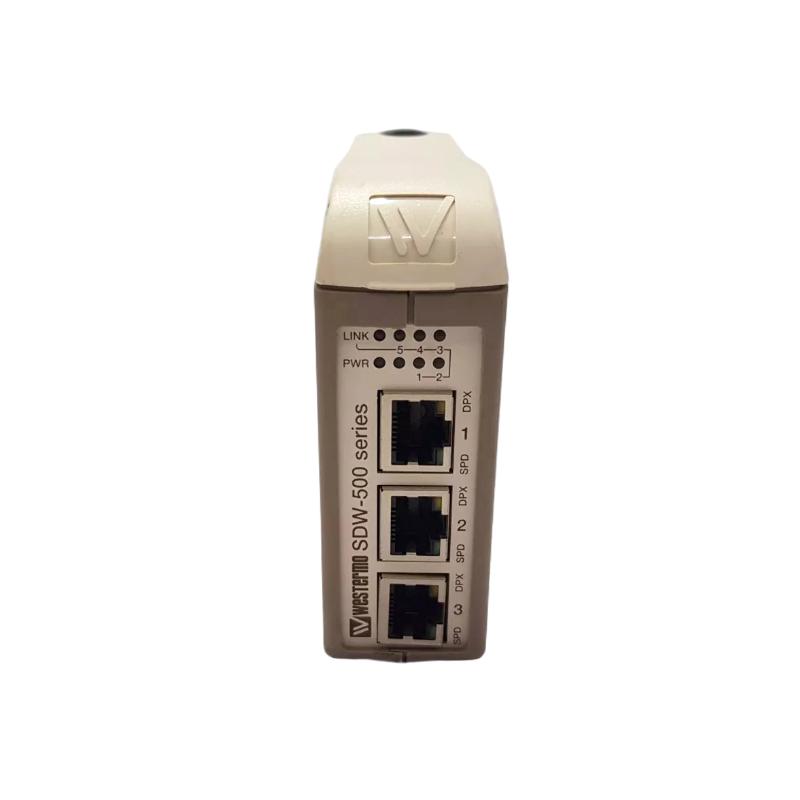

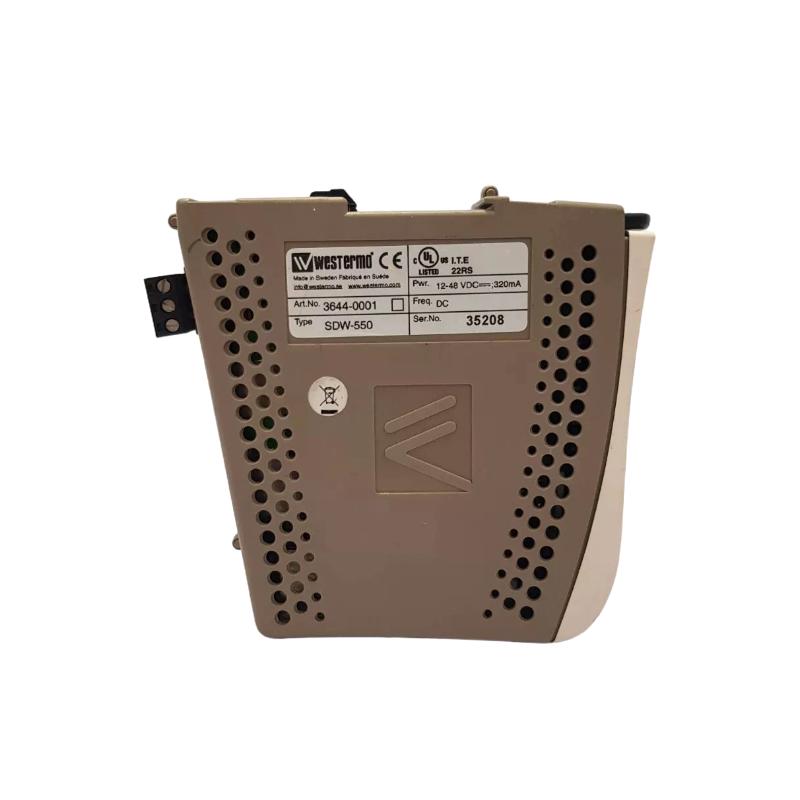

The Honeywell SDW-550EC Ethernet Switch is a rugged industrial communication module designed to provide reliable, high-speed network connectivity in demanding automation environments. As part of Honeywell’s industrial networking solutions, it ensures stable data exchange between controllers, I/O systems, and supervisory platforms.
Built for harsh conditions, this switch combines durability with advanced networking capabilities, making it ideal for process industries where uninterrupted communication is essential. Its compact form factor and industrial-grade design allow seamless integration into control cabinets and distributed control systems (DCS).
Technical Specifications
| Parameter | Specification |
|---|
| Model | SDW-550EC |
| Module Type | Industrial Ethernet Switch |
| Ports | 4 × RJ45 (10/100/1000BASE-T) |
| Data Rate | Up to 1 Gbps |
| Protocol Support | IPv4, IPv6, TCP/IP, UDP |
| Power Supply | 12–48 VDC |
| Power Consumption | ≤ 5–10 W |
| Operating Temperature | -40°C to +75°C |
| Protection Rating | IP30 metal enclosure |
| Mounting | DIN rail / panel mount |
| Dimensions (WxDxH) | Approx. 110 × 100 × 44 mm |
| Weight | Approx. 0.2–0.5 kg |
Application Scenarios
The SDW-550EC is widely deployed in industrial environments requiring reliable network infrastructure:
-
Distributed Control Systems (DCS) and PLC networks
-
Oil & gas production and pipeline monitoring
-
Power generation and substation automation
-
Manufacturing and factory automation lines
-
Transportation and infrastructure systems
Its ability to maintain stable communication under extreme temperatures and electrical noise makes it a dependable networking core for mission-critical systems.
Key Advantages and System Value
The SDW-550EC stands out as a high-performance industrial Ethernet switch that balances speed, durability, and security.
-
High-speed communication up to gigabit levels ensures fast data exchange between devices
-
Wide operating temperature range enables reliable use in harsh environments
-
Industrial-grade enclosure protects against dust and mechanical stress
-
Advanced security features such as VLAN and authentication enhance network safety
-
Flexible integration with standard Ethernet protocols simplifies system expansion
Its fanless, solid-state design reduces maintenance requirements, making it suitable for long-term continuous operation.
Technical FAQs
1. What is the primary function of this module?
It provides Ethernet switching and network connectivity in industrial systems.
2. How many ports are available?
Typically 4 RJ45 Ethernet ports for device connections.
3. What is the maximum data speed?
Up to 1 Gbps depending on configuration.
4. Is it suitable for harsh environments?
Yes, it operates from -40°C to +75°C.
5. What power supply does it require?
12–48 VDC industrial power input.
6. Does it support industrial protocols?
Yes, including IPv4, IPv6, TCP/IP, and UDP.
7. Can it be DIN rail mounted?
Yes, it supports standard industrial mounting methods.
8. Is it managed or unmanaged?
It is typically an unmanaged industrial switch with basic configuration options.
9. Does it include security features?
Yes, including VLAN segmentation and authentication support.
10. What industries commonly use it?
Oil & gas, power, manufacturing, and infrastructure sectors.
